Type C to C (UTT)

  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
  • UTT3-MF-20P series
UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series UTT3-MF-20P series

UTT3-MF-20P series

  • Product ID:UTT3-MF-20P series
  • Interface:TYPE-C / TYPE-C
  • Application: USB extension cable
  • Shelf time:2022-05-17

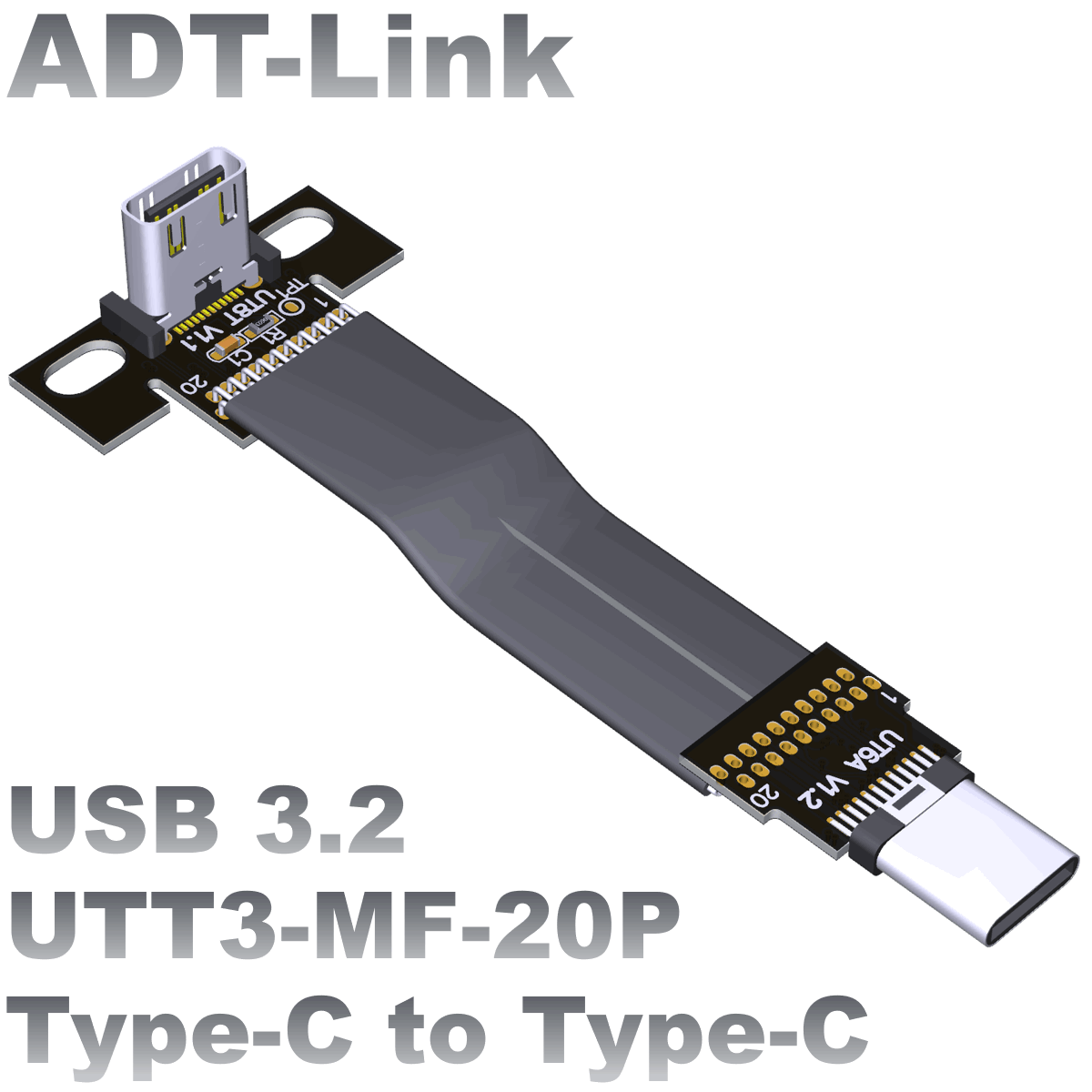

  • Product description: USB 3.2 Type-C male to Type-C female flat cable
  • INQUIRY

USB 3.2 Type-C male to Type-C female flat cable

Brand name: ADT-LINK

Product name: USB 3.2 Type-C male to Type-C female flat cable

Product model: UTT3-MF-20P series

Transfer speed: gen2x2 within 50cm ; gen1x2 within 1 meter

Wire length: 3~300 cm, the length can be customized,

Current capacity: 3A within 50cm ; 1.5A within 1 meter

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Product List:

Brand Part-number Product-Description

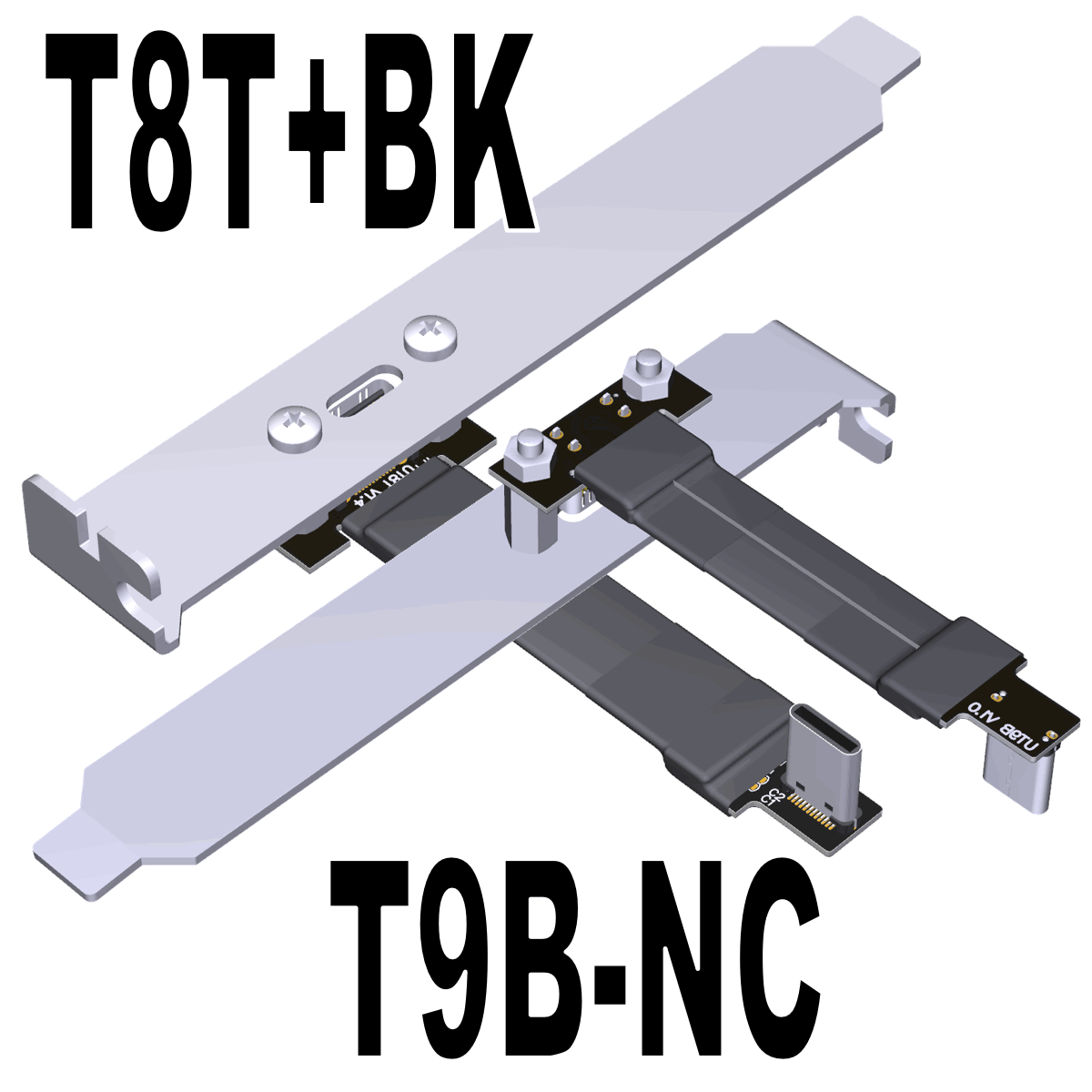

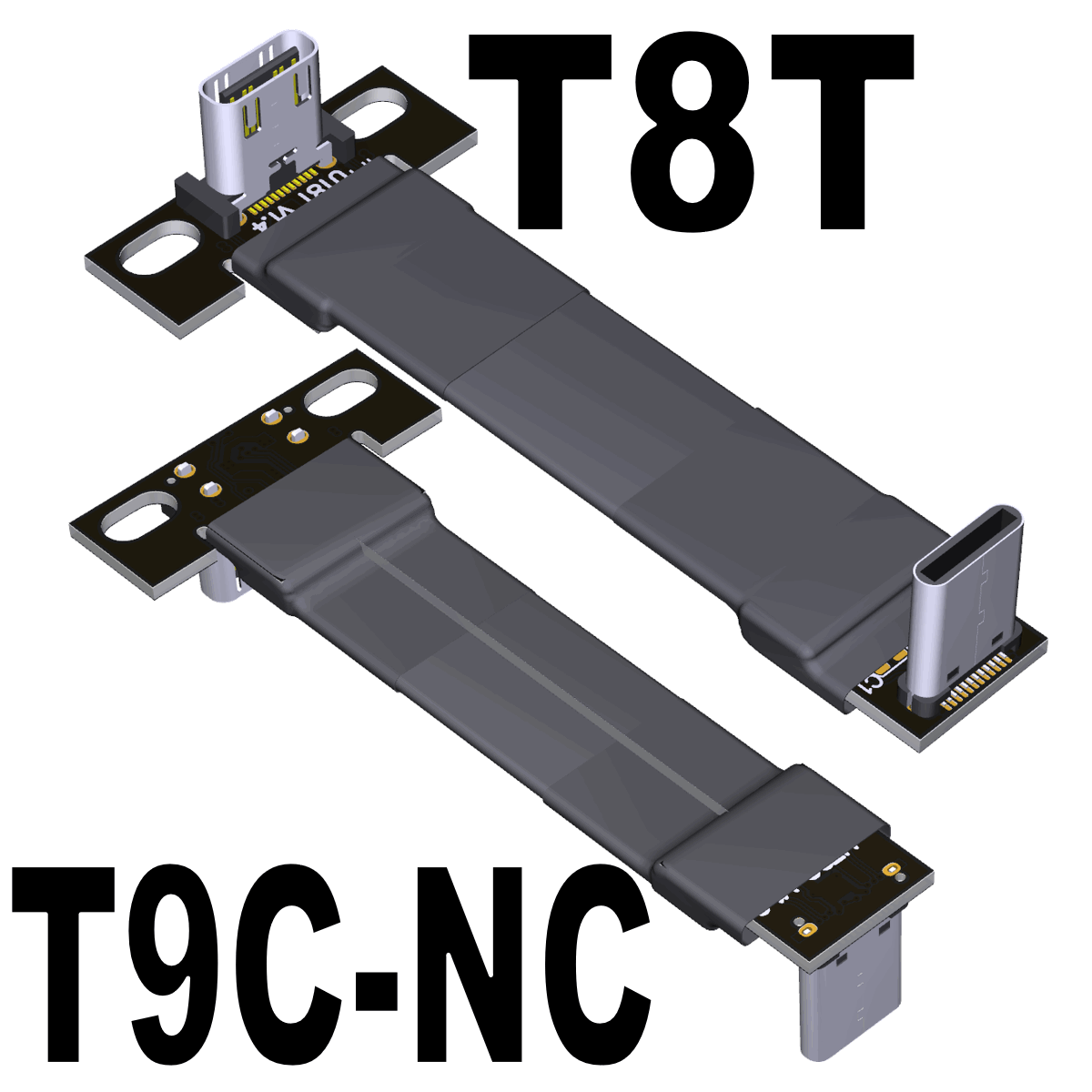

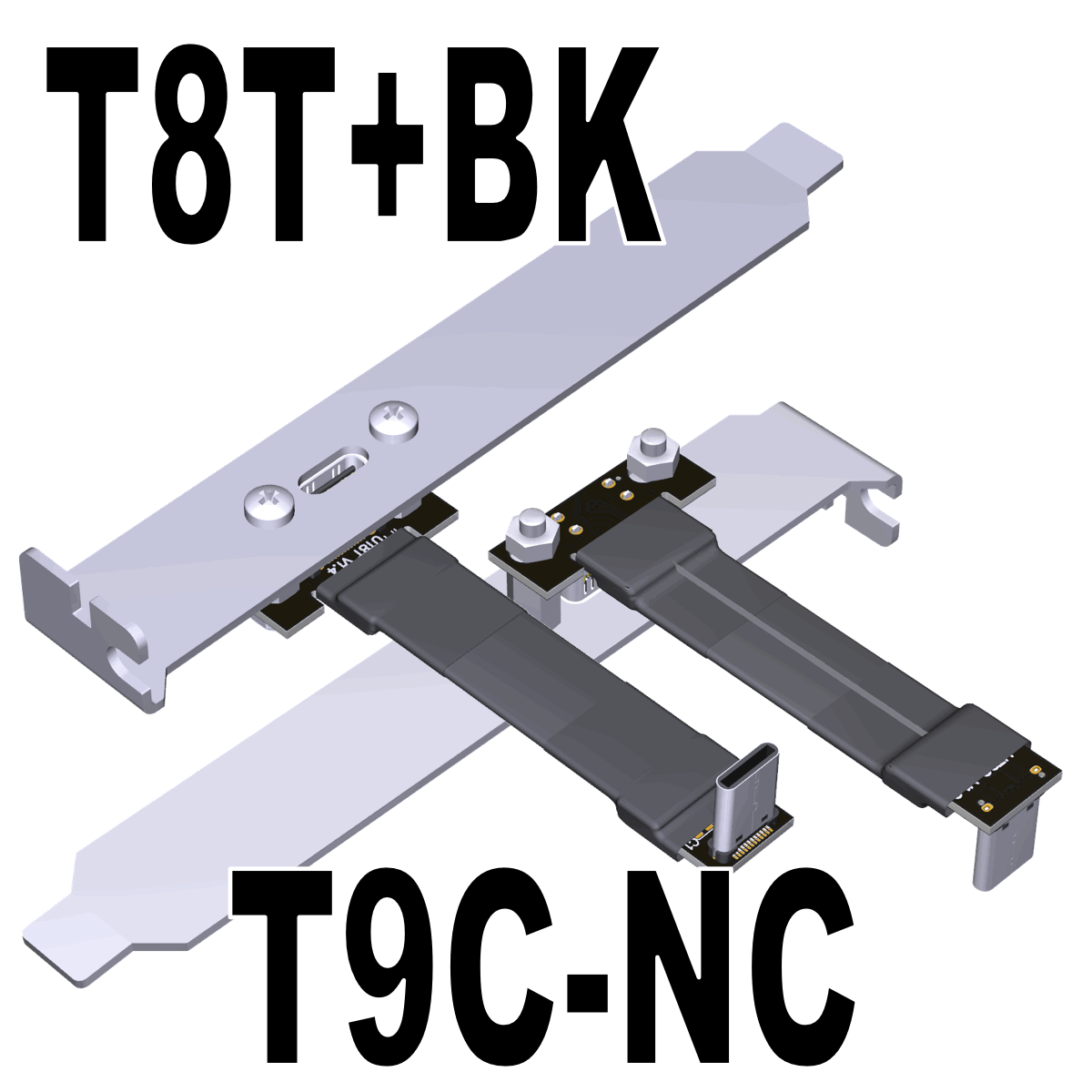

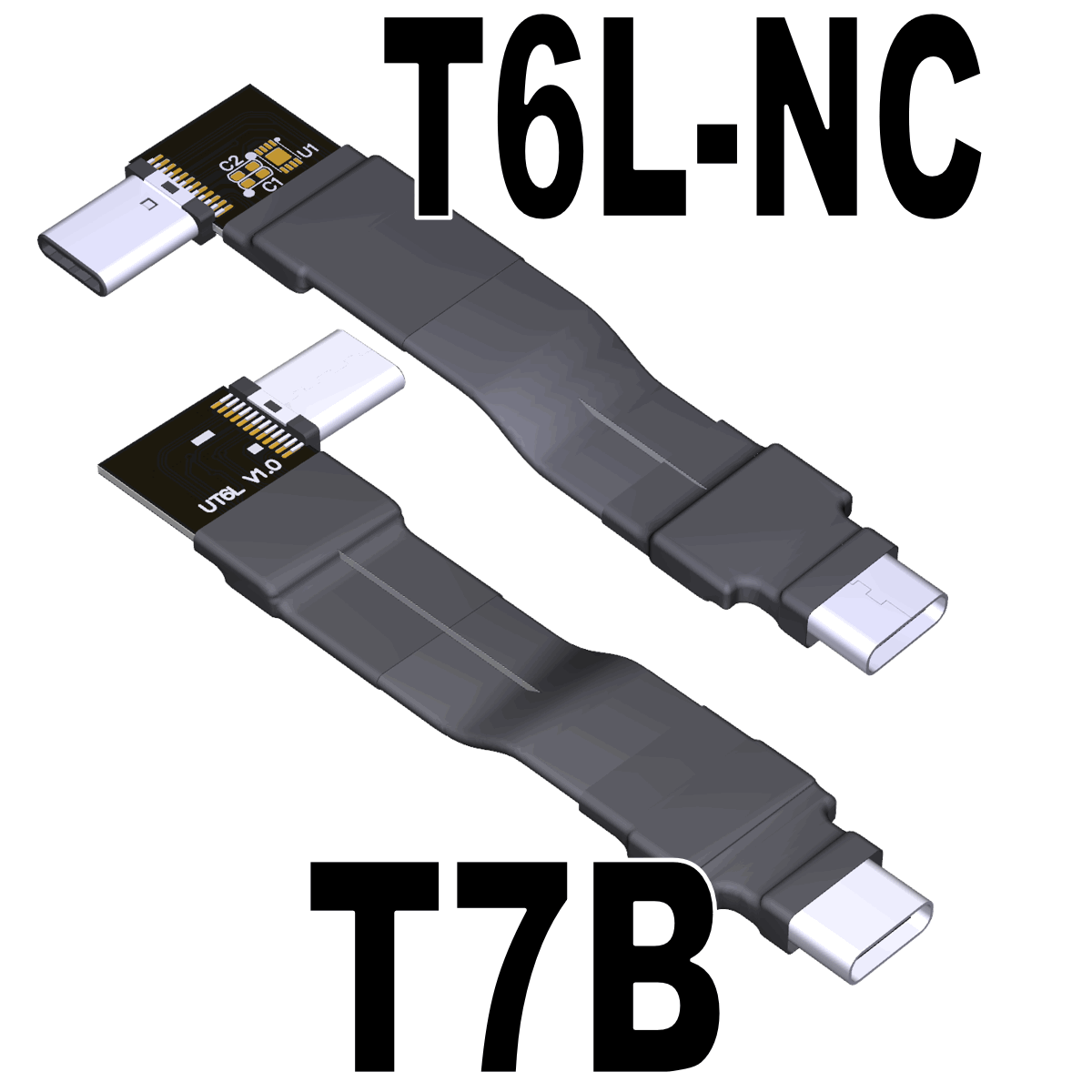

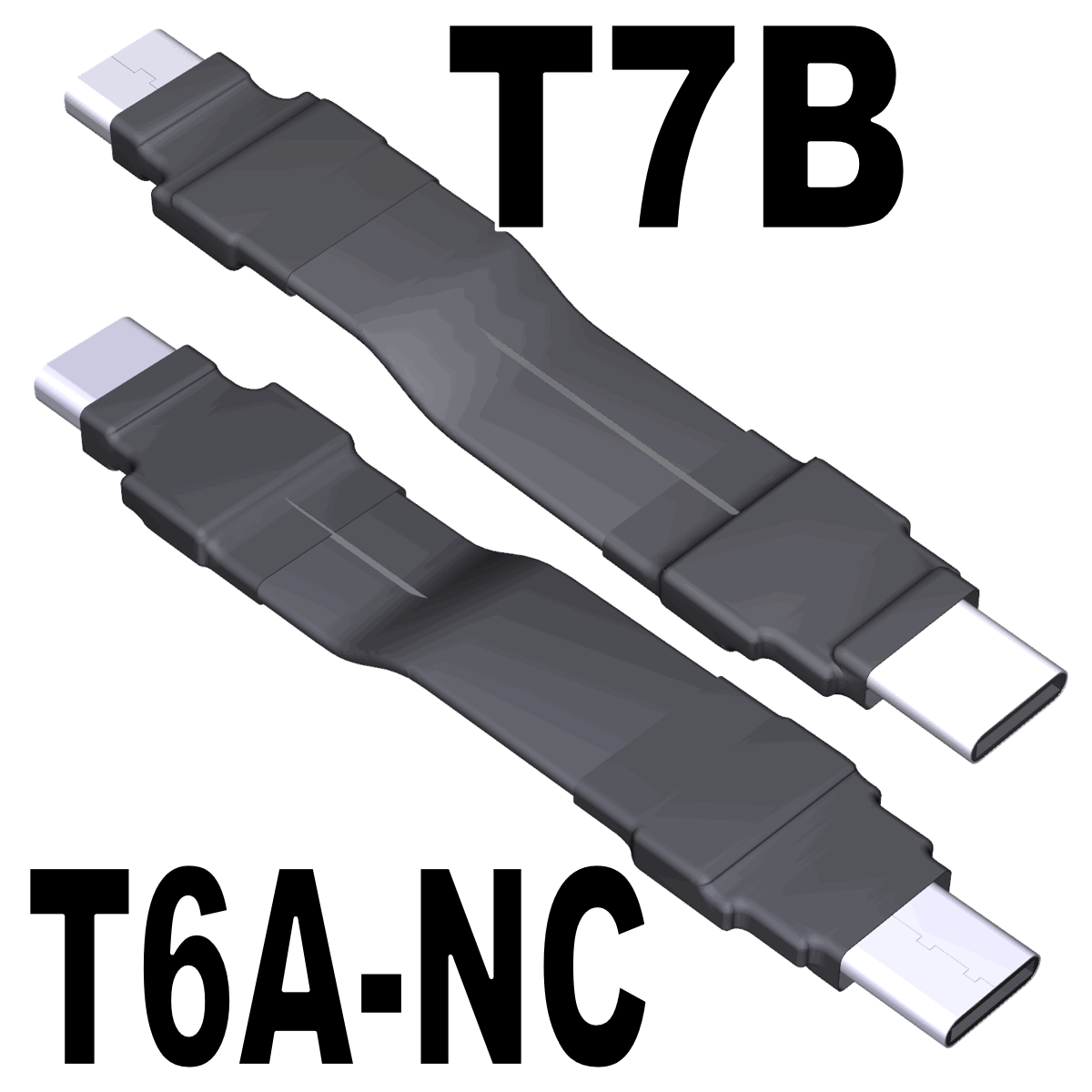

ADTLINK UT6A-UT7B-NC USB 3.2 Type-C male to Type-C female flat cable

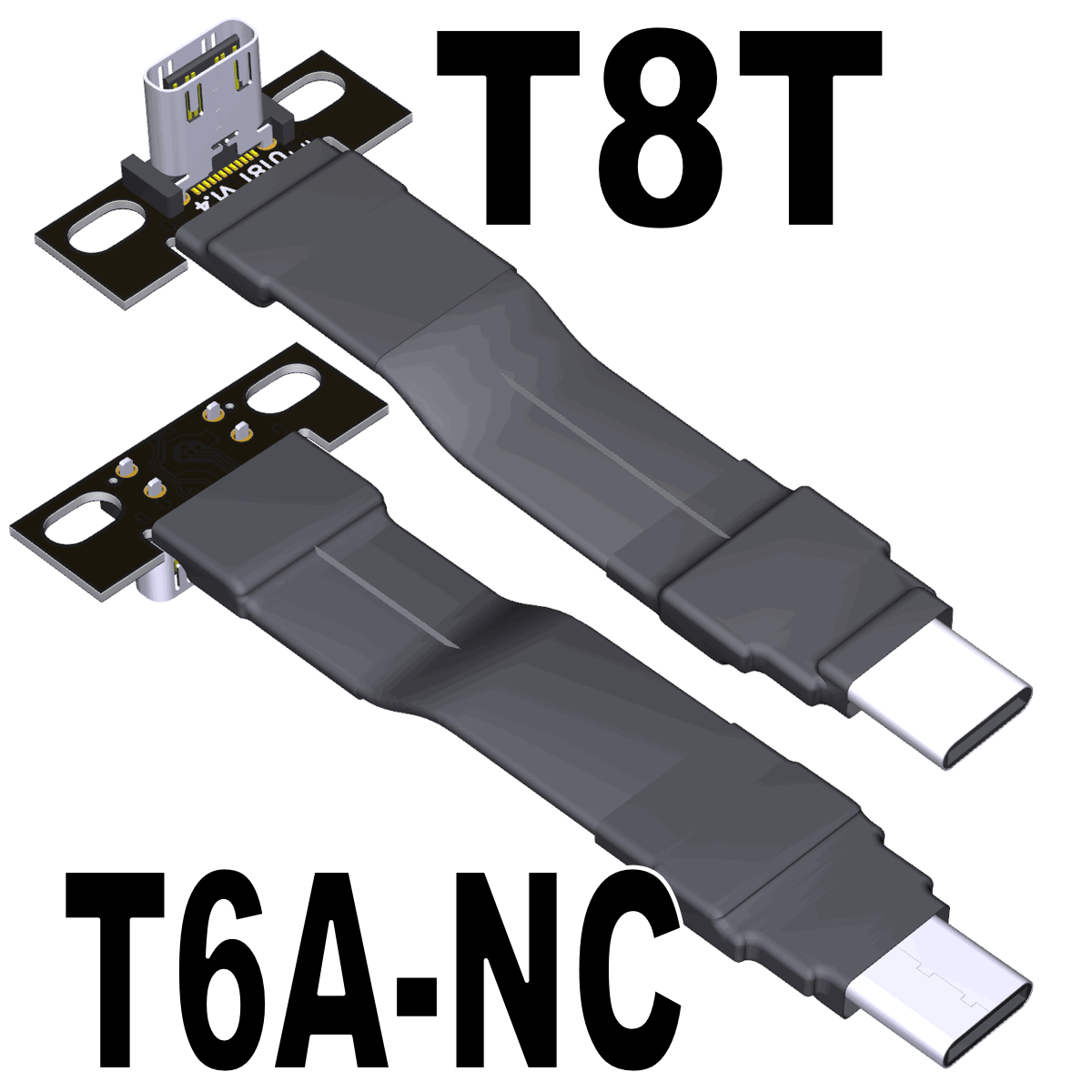

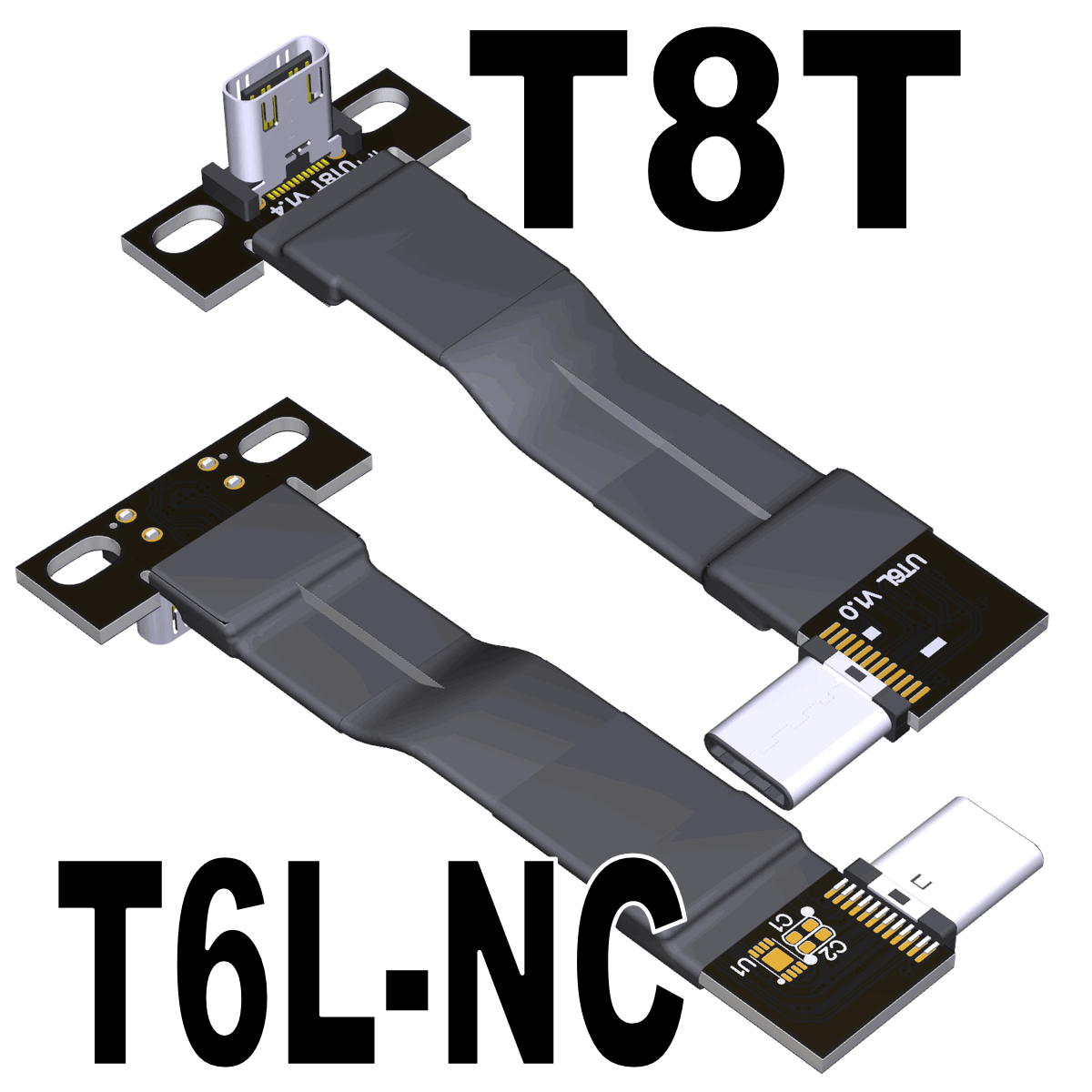

ADTLINK UT6A-UT8T-NC USB 3.2 Type-C male to Type-C female flat cable

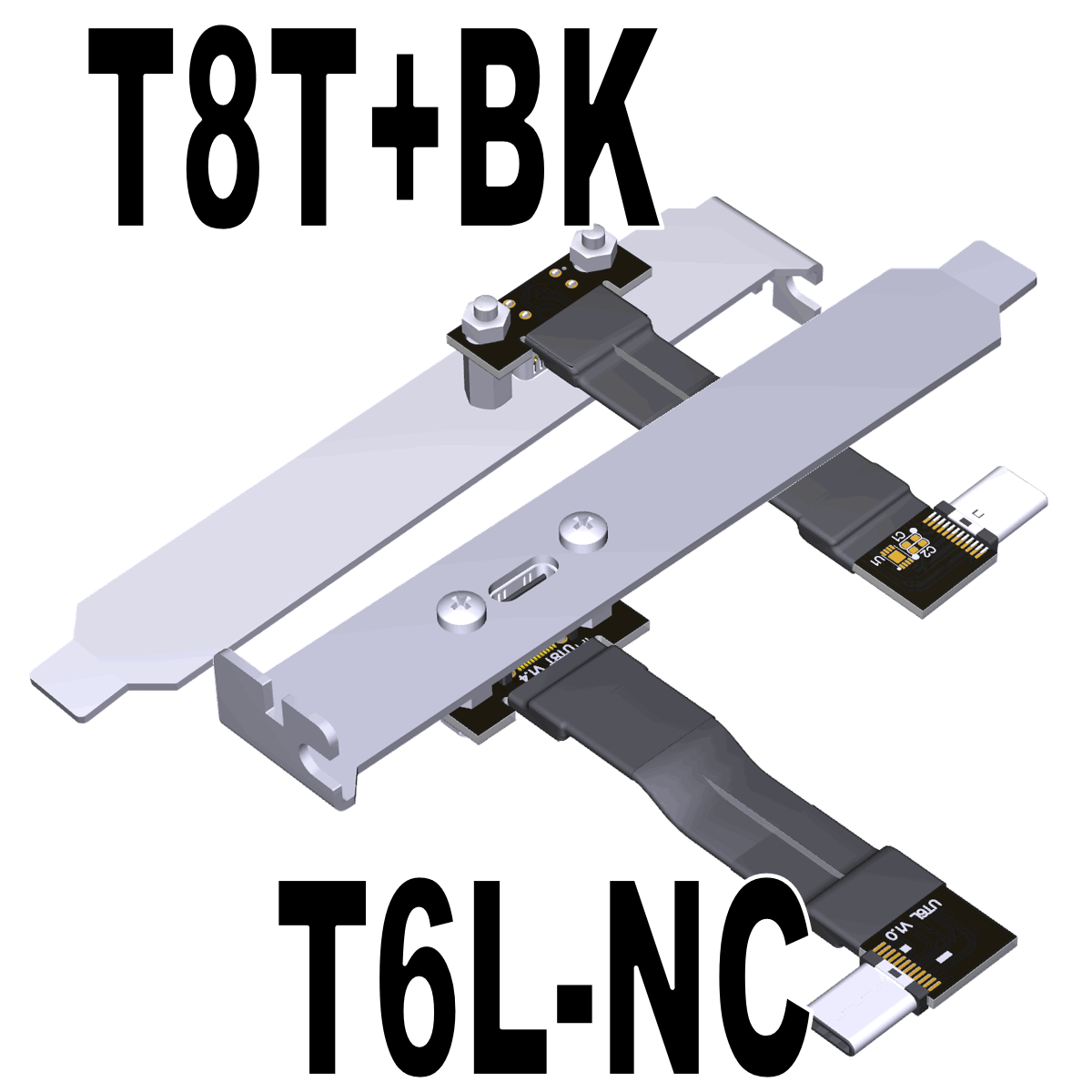

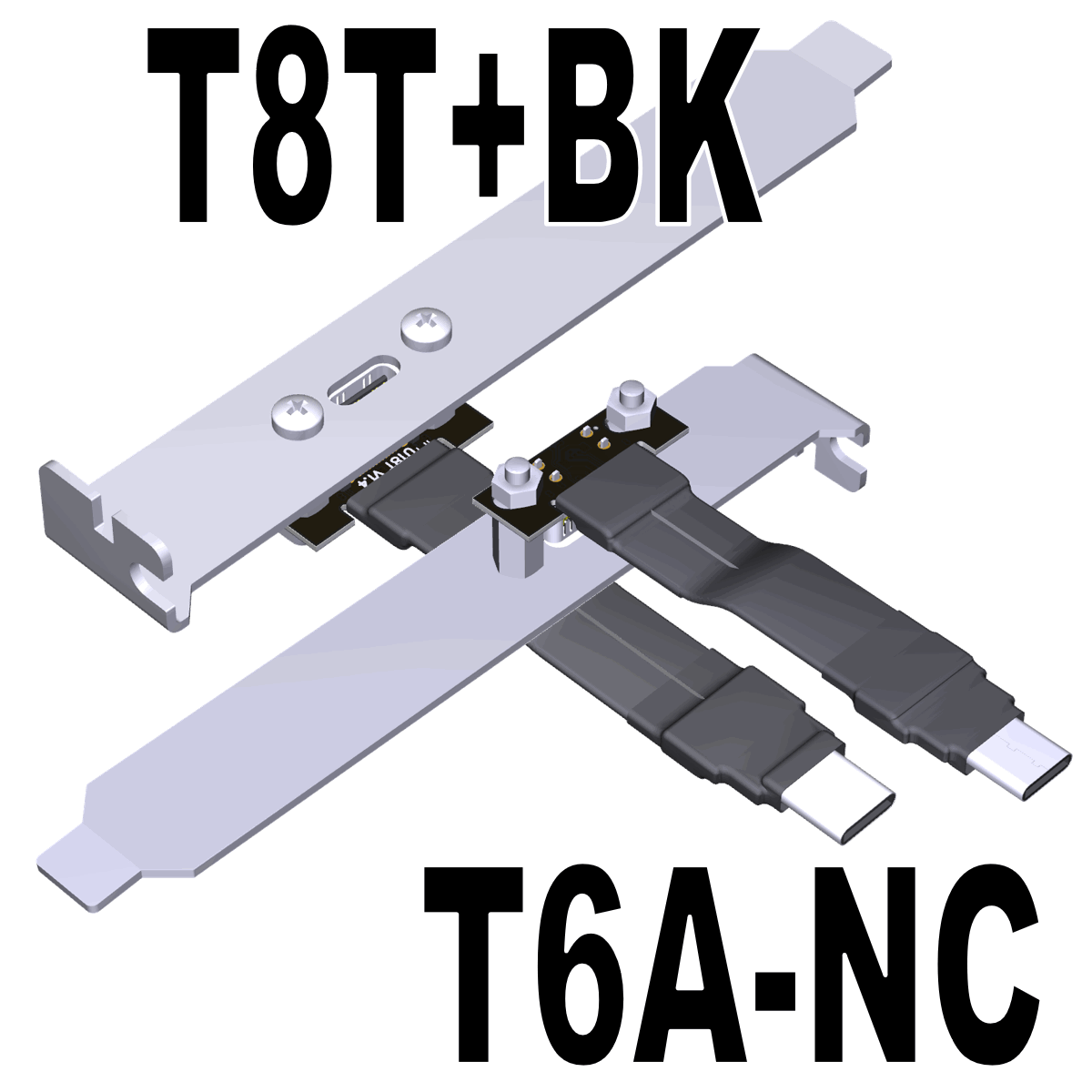

ADTLINK UT6A-UT8T-NC+BK USB 3.2 Type-C male to Type-C female flat cable
ADTLINK UT6A-UT8Q-NC USB 3.2 Type-C male to Type-C female flat cable

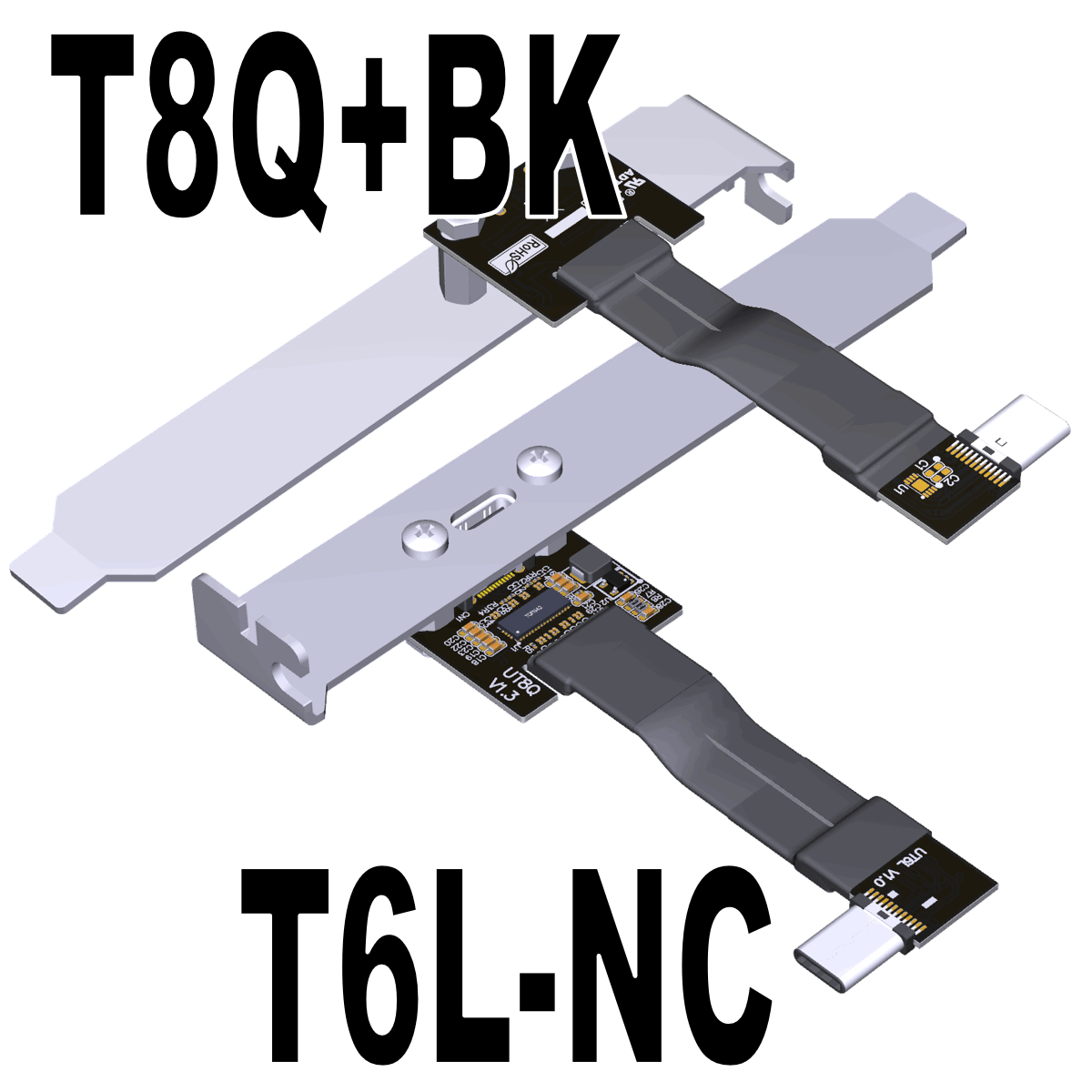

ADTLINK
UT6A-UT8Q-NC+BK
USB 3.2 Type-C male to Type-C female flat cable

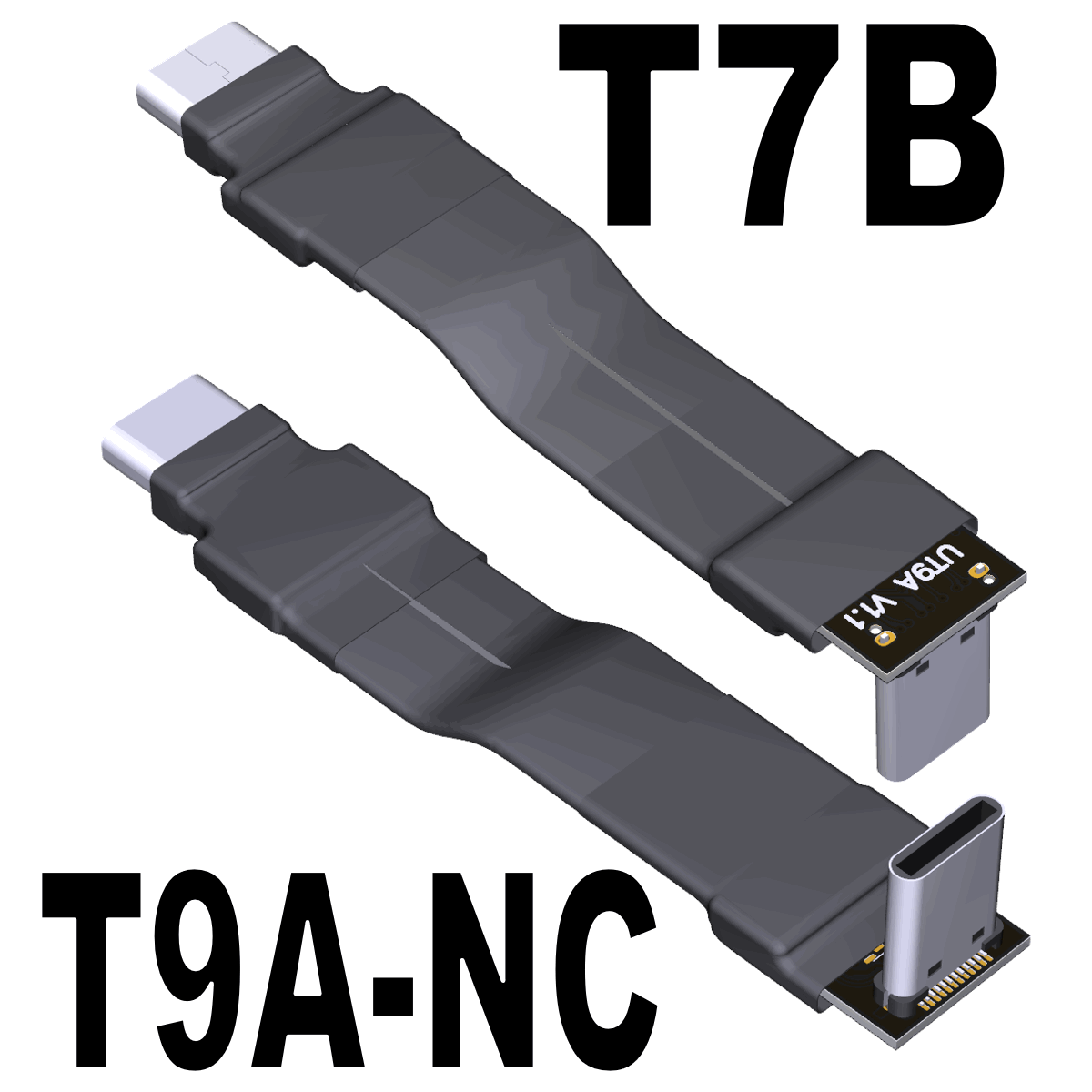

ADTLINK UT9A-UT7B-NC USB 3.2 Type-C male to Type-C female flat cable
ADTLINK UT9A-UT8Q-NC USB 3.2 Type-C male to Type-C female flat cable
ADTLINK UT9A-UT8Q-NC+BK USB 3.2 Type-C male to Type-C female flat cable

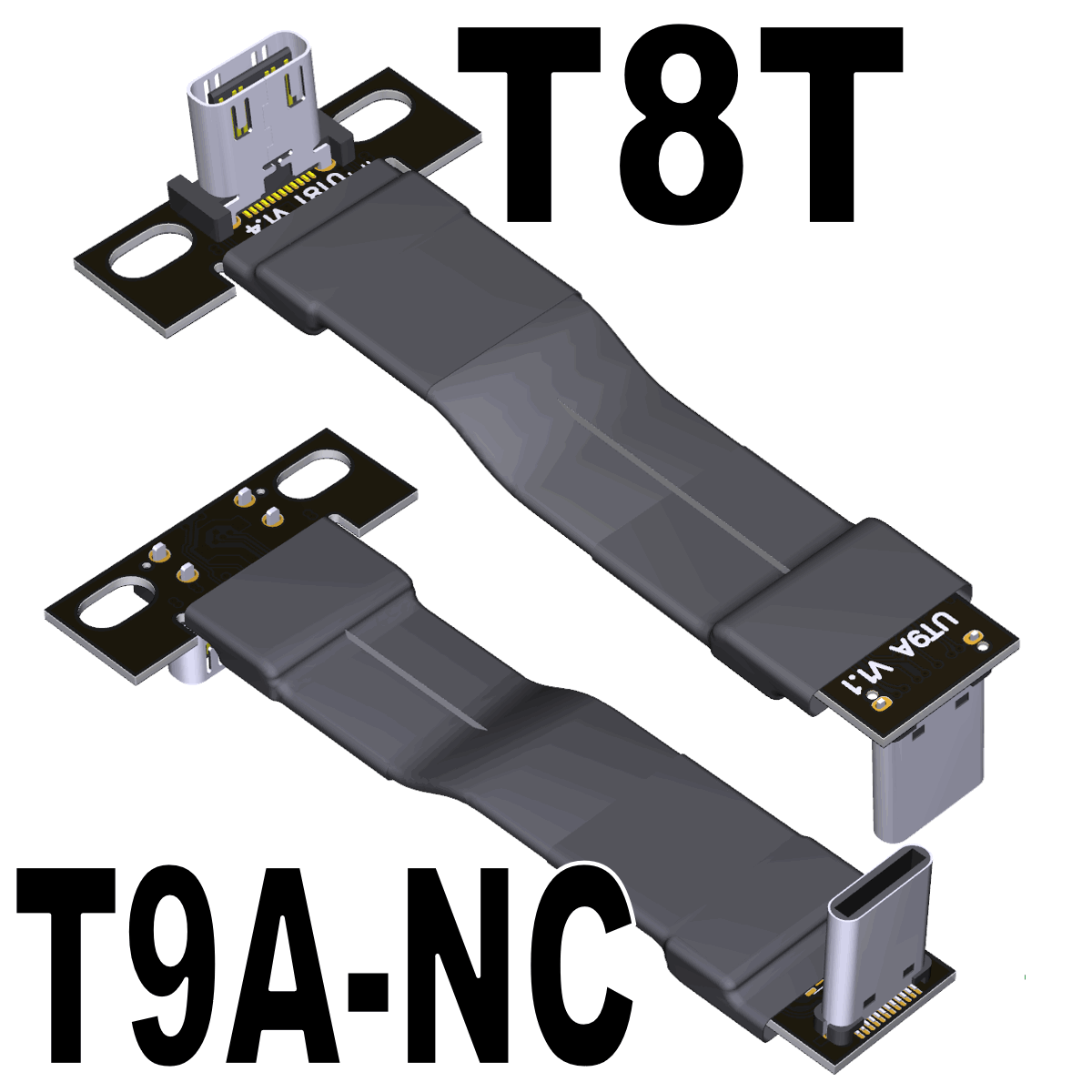

ADTLINK UT9A-UT8T-NC USB 3.2 Type-C male to Type-C female flat cable

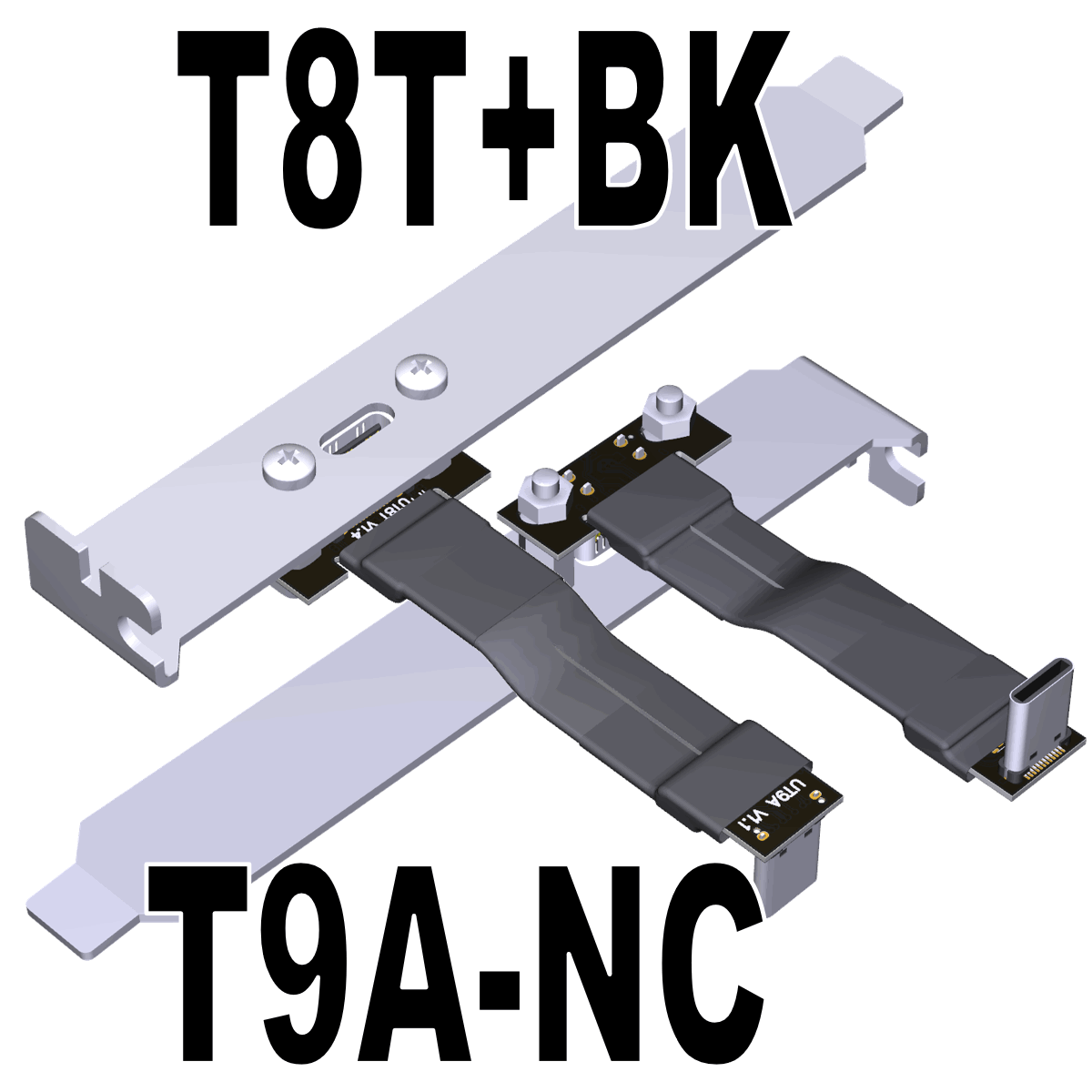

ADTLINK UT9A-UT8T-NC+BK USB 3.2 Type-C male to Type-C female flat cable

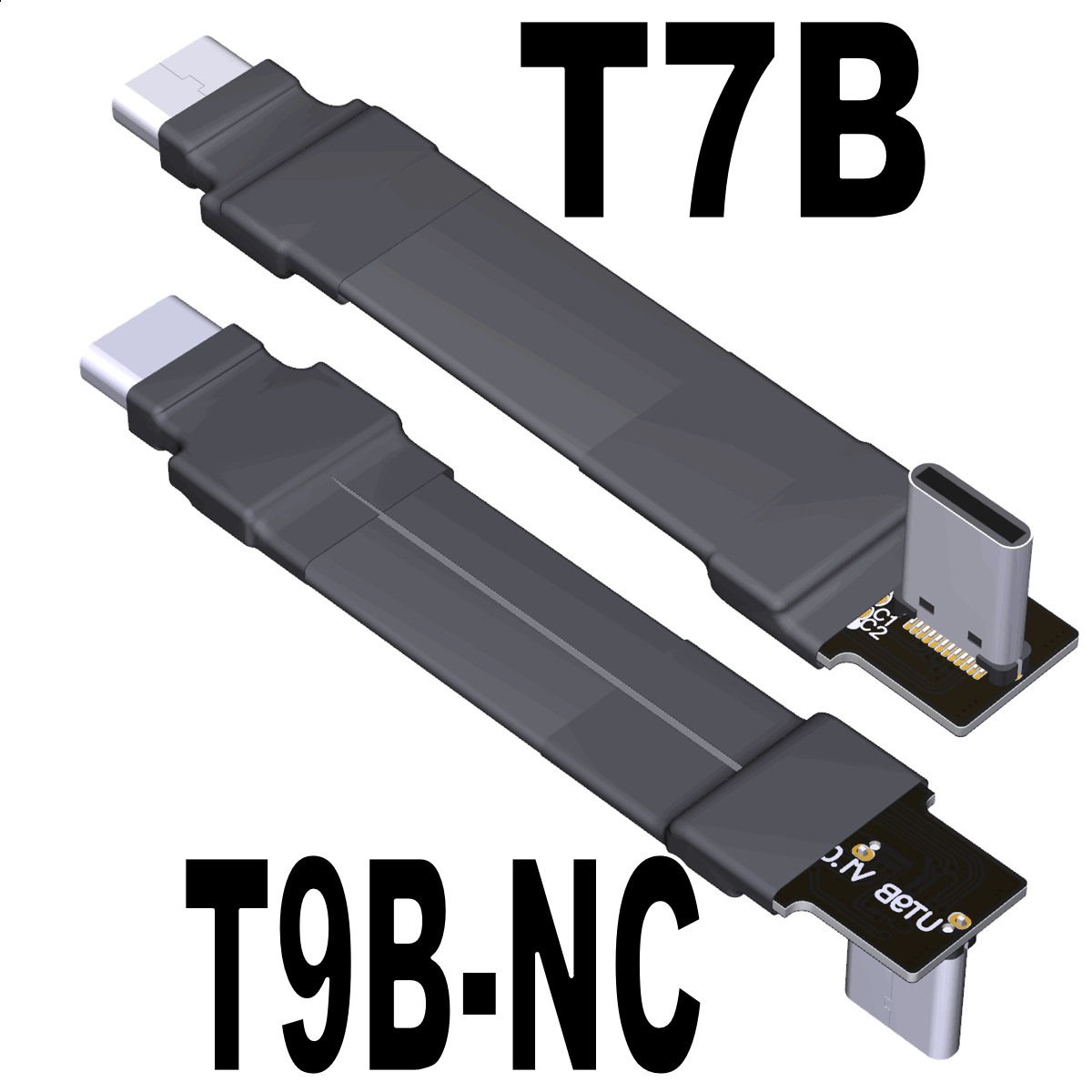

ADTLINK UT9B-UT7B-NC USB 3.2 Type-C male to Type-C female flat cable

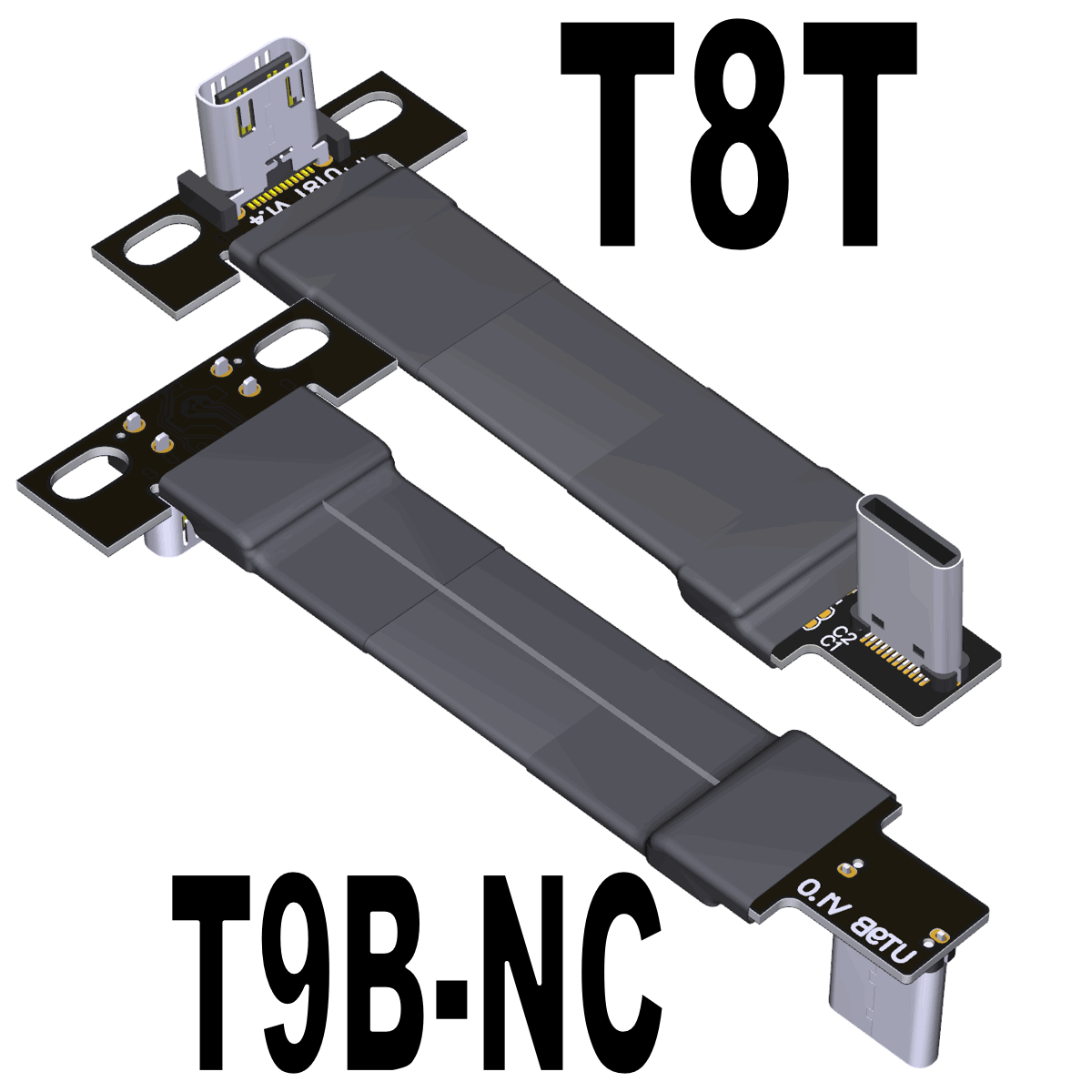

ADTLINK
UT9B-UT8T-NC
USB 3.2 Type-C male to Type-C female flat cable
ADTLINK
UT9B-UT8T-NC+BK
USB 3.2 Type-C male to Type-C female flat cable
ADTLINK
UT9C-UT8T-NC
USB 3.2 Type-C male to Type-C female flat cable
ADTLINK
UT9C-UT8T-NC+BK
USB 3.2 Type-C male to Type-C female flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?

The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

What is the difference between product model T8T and T8Q?

The model UT8T has no chip, and the signal attenuation after two USB cables are connected in series may not meet the requirements of USB high-speed signal transmission.

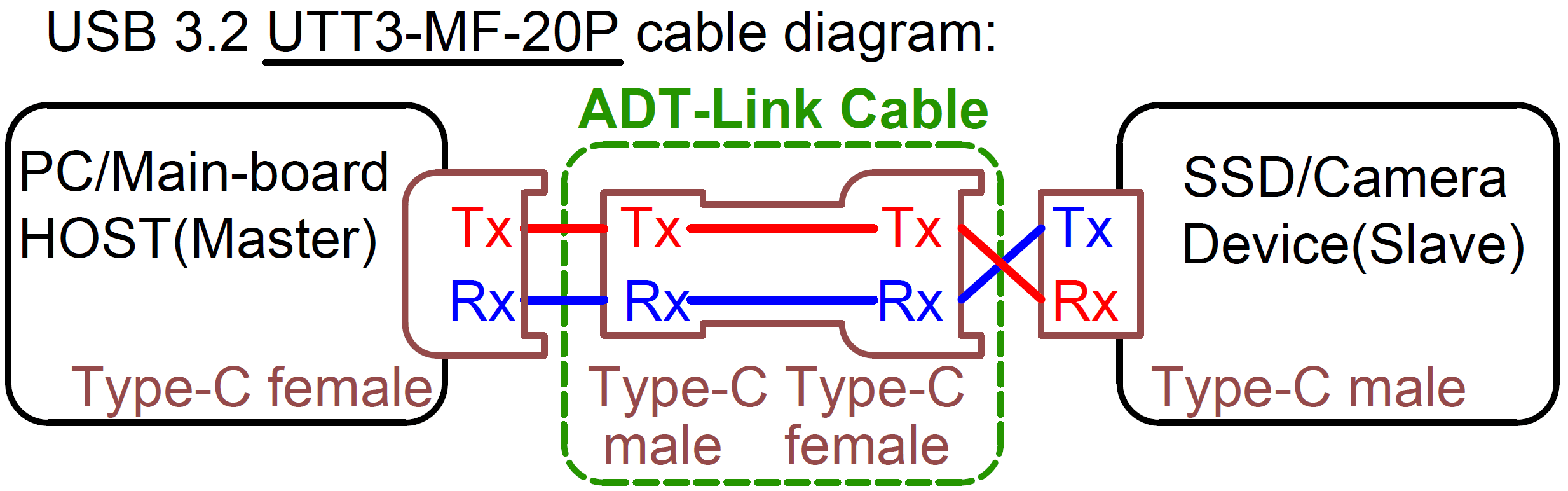

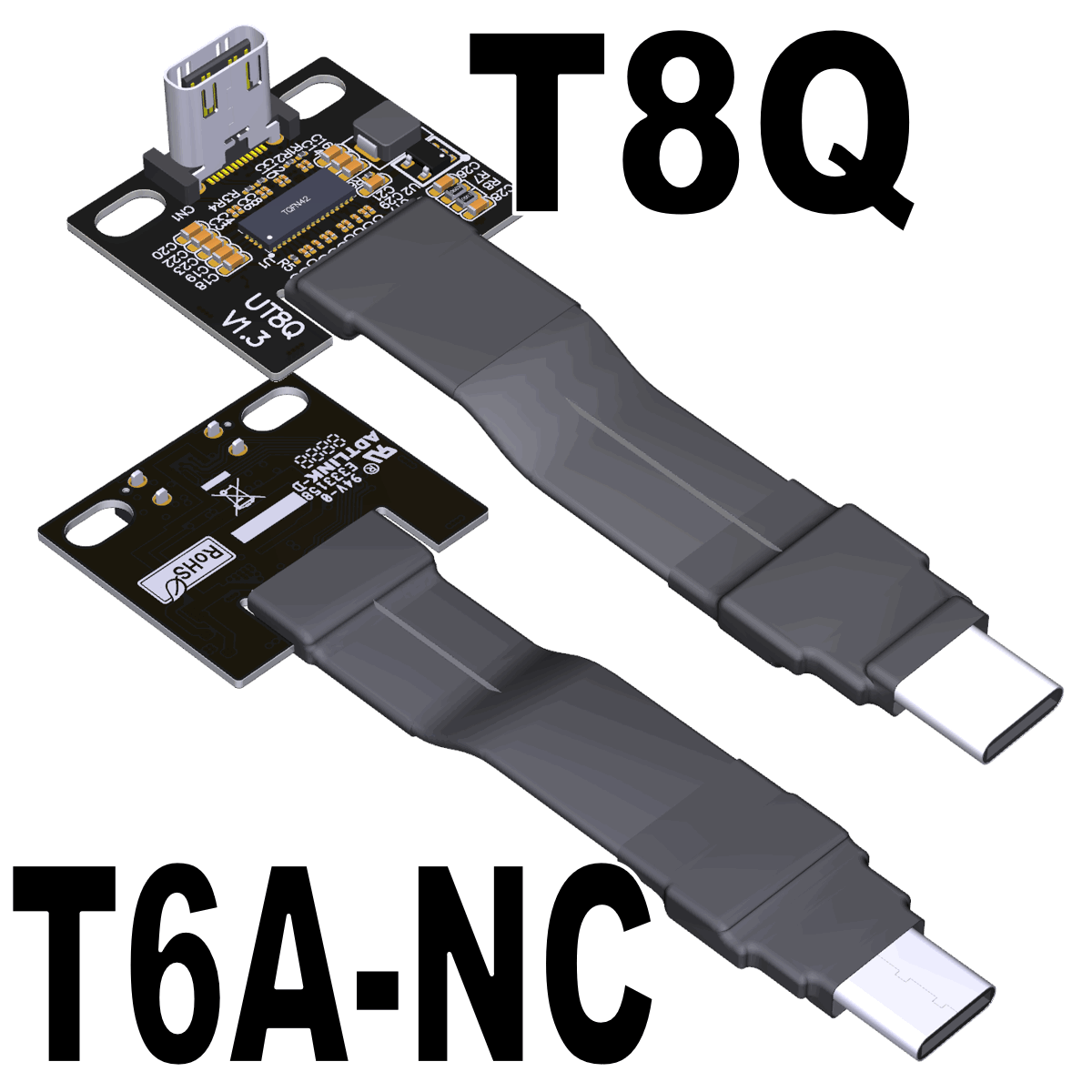

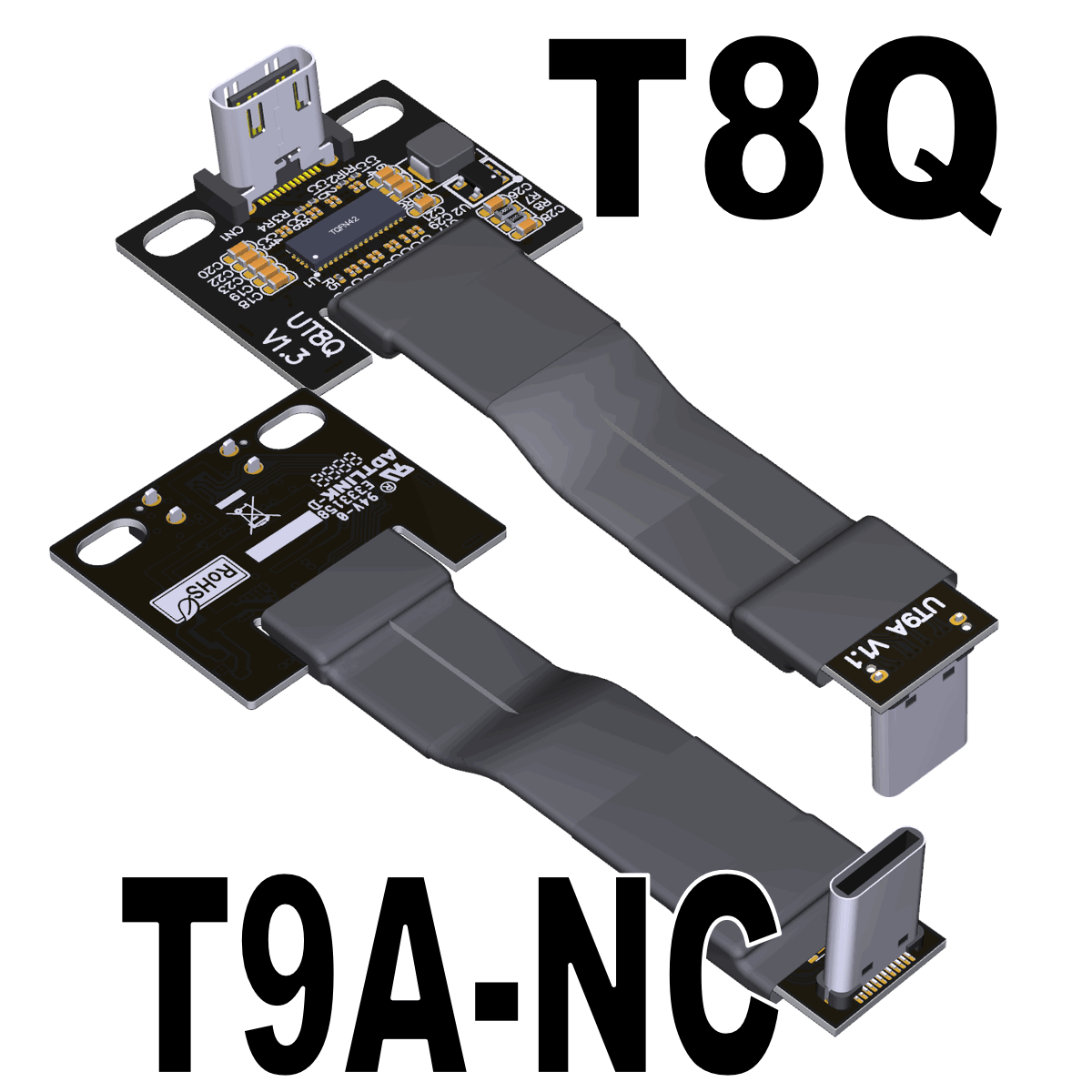

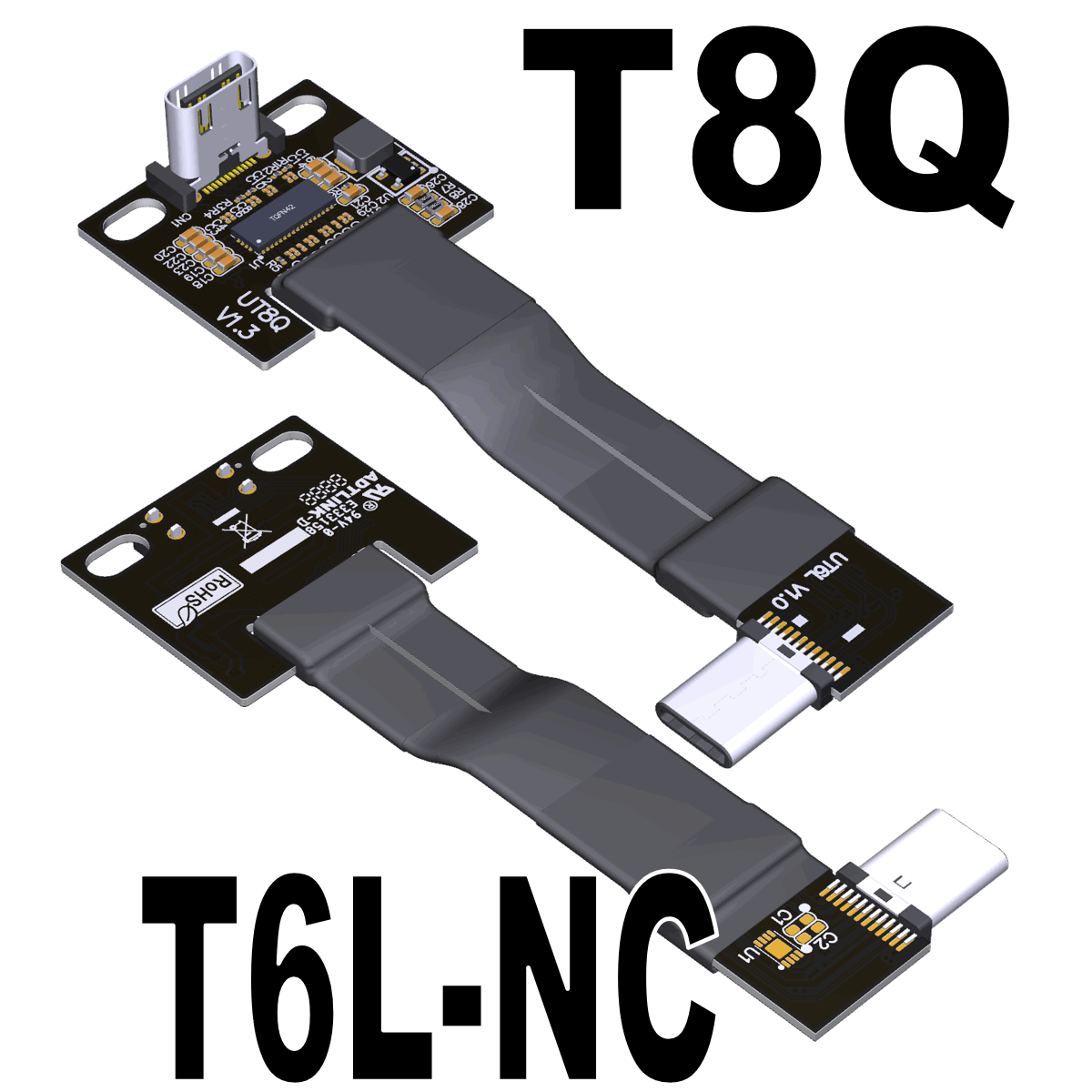

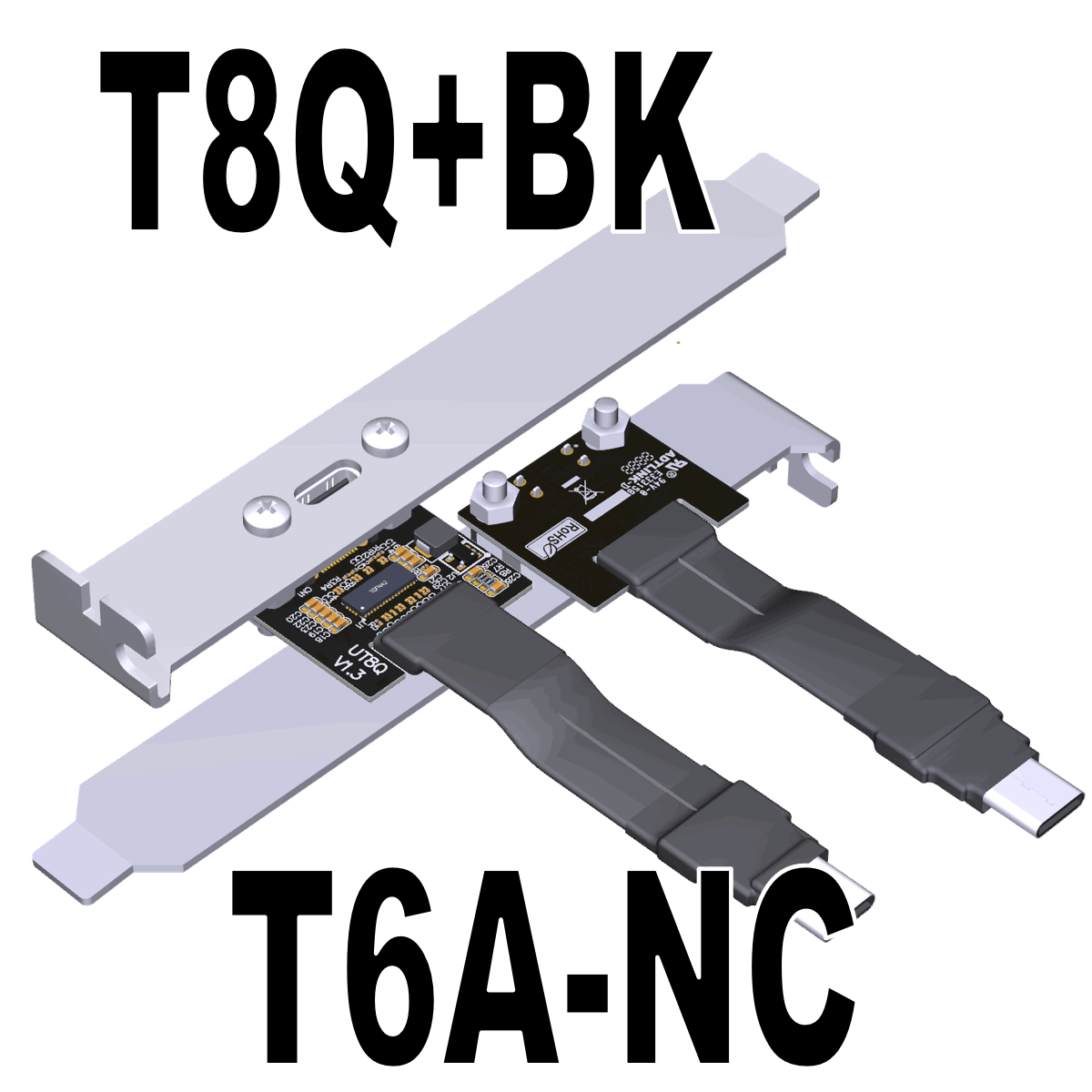

The model UT8Q comes with a chip and uses Diodes/Pericom's Redriver signal repeater (Repeater IC), which can regenerate signals and enhance their signal quality. To reduce the error rate of signal transmission, refer to the schematic diagram as follows:

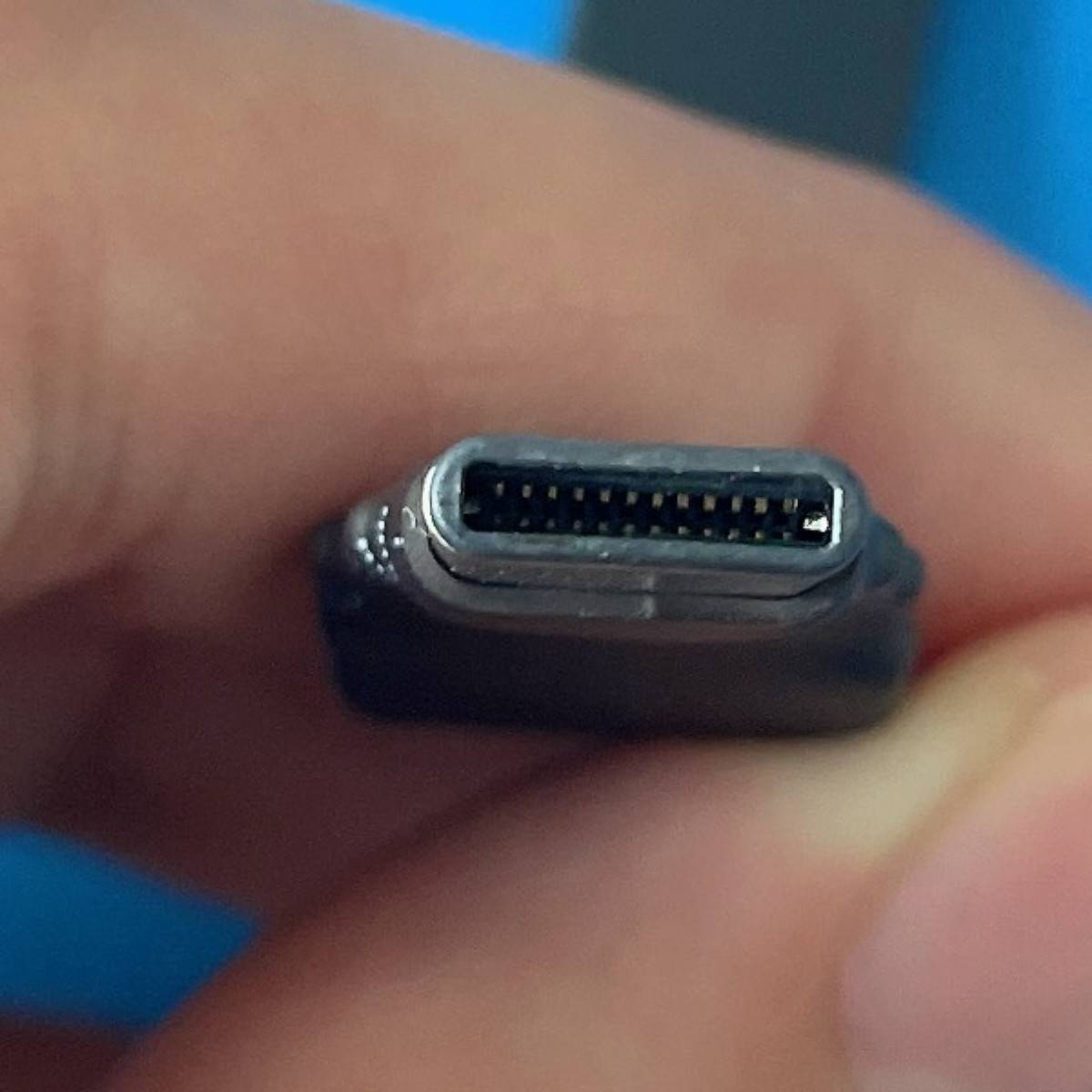

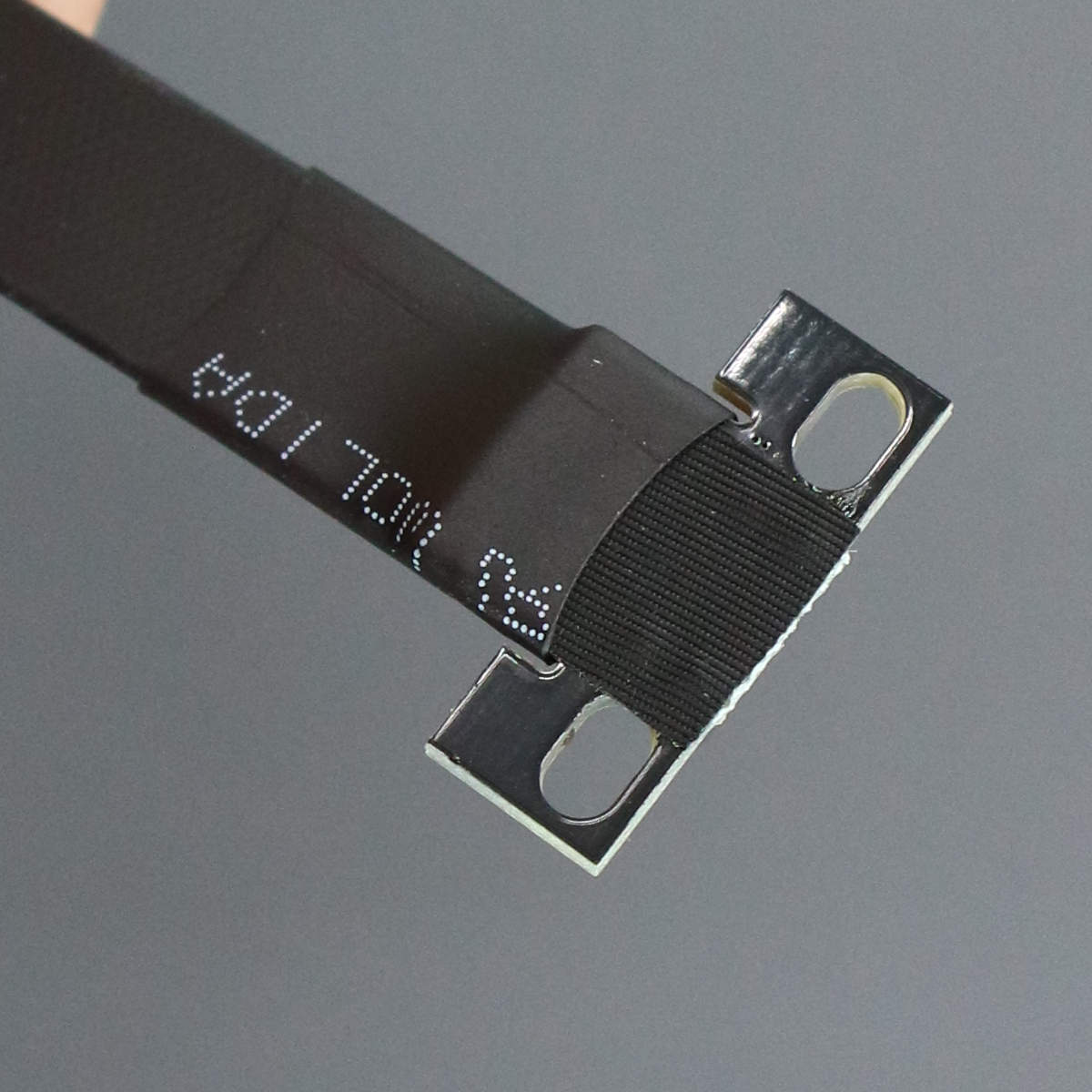

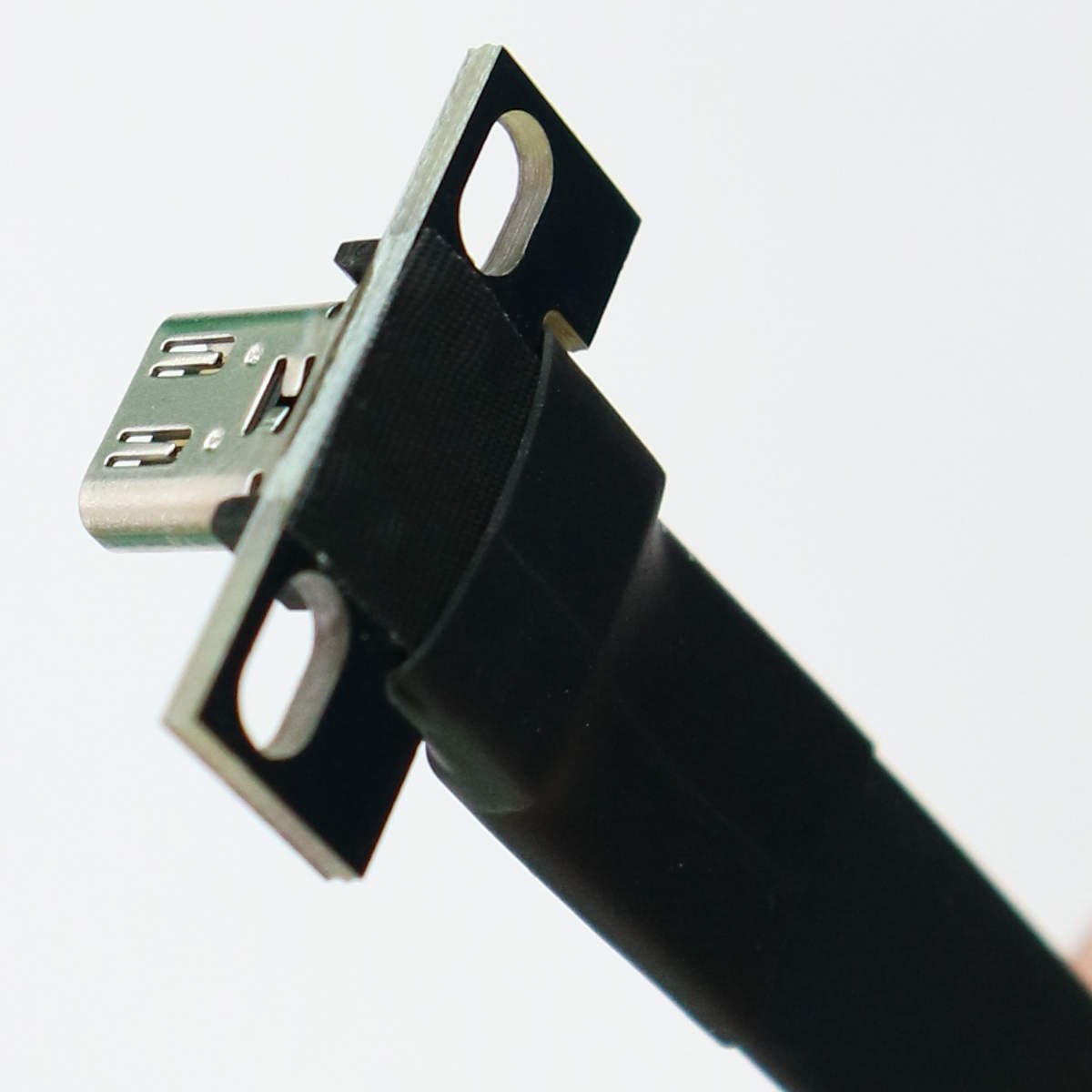

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/UTT3-MF-20P.ZIP

FTP: Hong Kong

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adtlink.cn/download/UTT3-MF-20P.ZIP

WebShop:

http://www.adt.link/product/UTT3-MF-20P-Shop.html


PayPal Acceptance Mark



Keywords:

Aerial FPV PTZ USB 2.0 3.0 3.1 flexible flat ribbon cable FFC cable FPV displayport flat Cable Standard Male to female Straight

Converter Cable Angle   thin flat highly-routable foldable axial elbow A type 10G/bps 5G/bps

3 / 5 /10 /15 /20 /30 /50 / 100 / 150 / 200 cm For PC AV HDTV LCD FPV FFC 3D  Multicopter
