SlimSAS Cable

Product ID: SlimSAS Cable
Transfer speed: PCIe 4.0
Interface: SlimSAS SFF-8654-8i/MCIO SFF-8611/SFF-8639
Shelf time：2025-12-23 11:07:19
Product description: ADT PCIe Gen4 SlimSAS to SlimSAS SFF-8654-8i/MCIO SFF-8611/SFF-8639 Cable
INQUIRY

ADT-Link PCI express 4.0 SlimSAS Extension Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 SlimSAS to SlimSAS SFF-8654-8i/MCIO SFF-8611/SFF-8639 Extension Cable

Product model:SAS-8654-004,SAS-8654-016,SAS-8654-030

Transfer speed: PCIe 4.0

Wire length: 50cm,80cm,100cm

ADT Part-Number Description:

Part-Number	Description	Bandwidth
SAS-8654-004	SlimSAS SFF-8654-8i to SFF-8654-8i	PCIe 4.0 x8
SAS-8654-016	SlimSAS SFF-8654-8i to double SFF-8639	PCIe 4.0 x4x4
SAS-8654-030	SlimSAS SFF-8654-8i to double SFF-8611	PCIe 4.0 x4x4
F34B	PCIe x16 male to double SlimSAS SFF-8654-8i Adapter	PCIe 4.0 x16
F35B	Double SlimSAS SFF-8654-8i to PCIe x16 feamle Adapter	PCIe 4.0 x16

Product Advantages:

1. Mesh cable coverage ensures stable speed and tensile strength.

2. UL-certified PCB board with excellent conductivity.

3. Connector housing material is PA10T/LCP, terminals are gold-plated at 15µ" for easy mating and extraction, and high-frequency compliance meets RoHS/Free (HF) requirements.

4. Advanced design, exquisite craftsmanship, stable signal quality, superior cabling, and excellent isolation; meets PCIe 4.0 standard and various needs.

5. This PCIe adapter cable is freely detachable, supports motherboard Bifurcation PCIe connections (one-to-one, one-to-two, one-to-four), offering flexible design and wide applicability.

Photo:

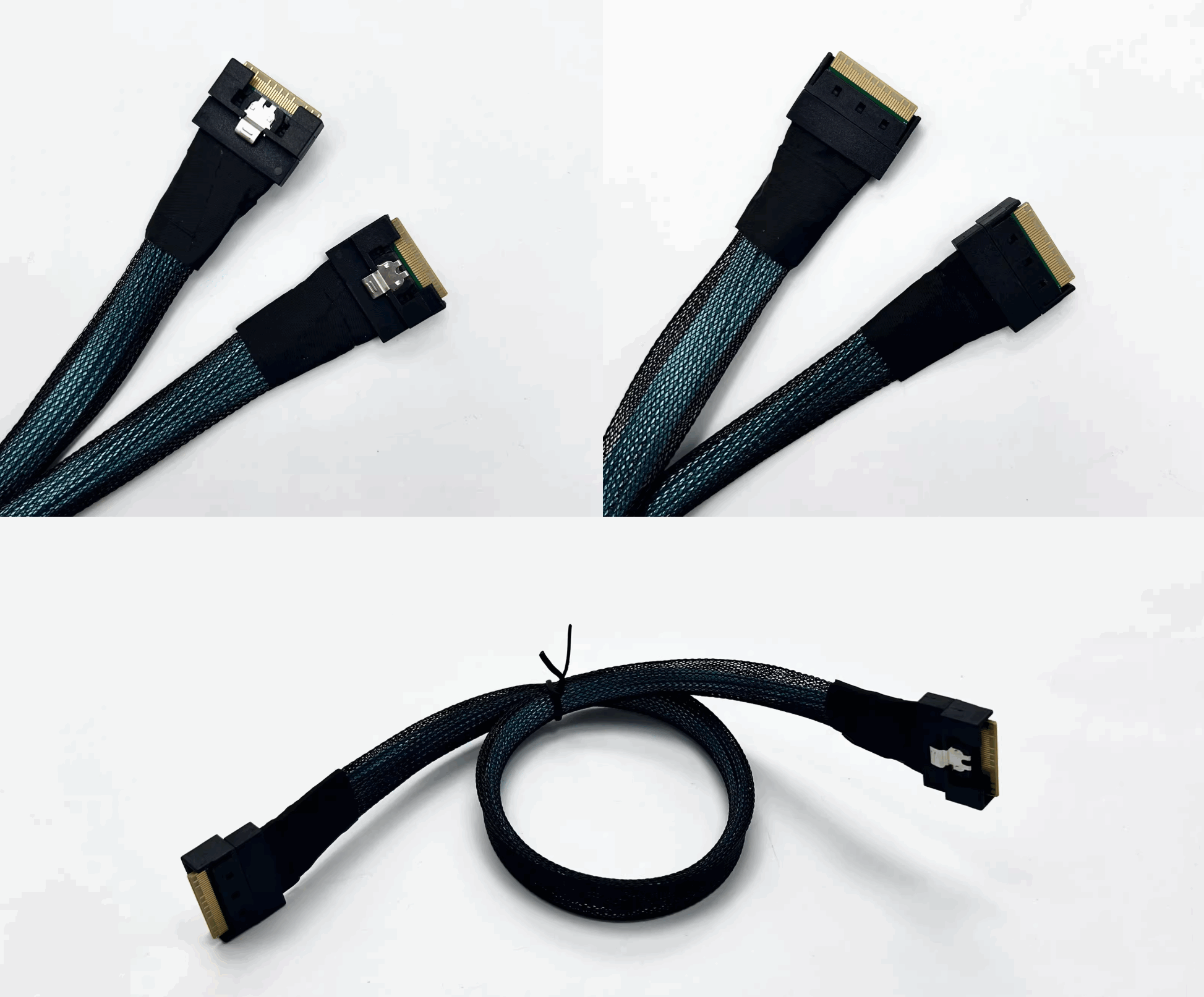

SAS-8654-004

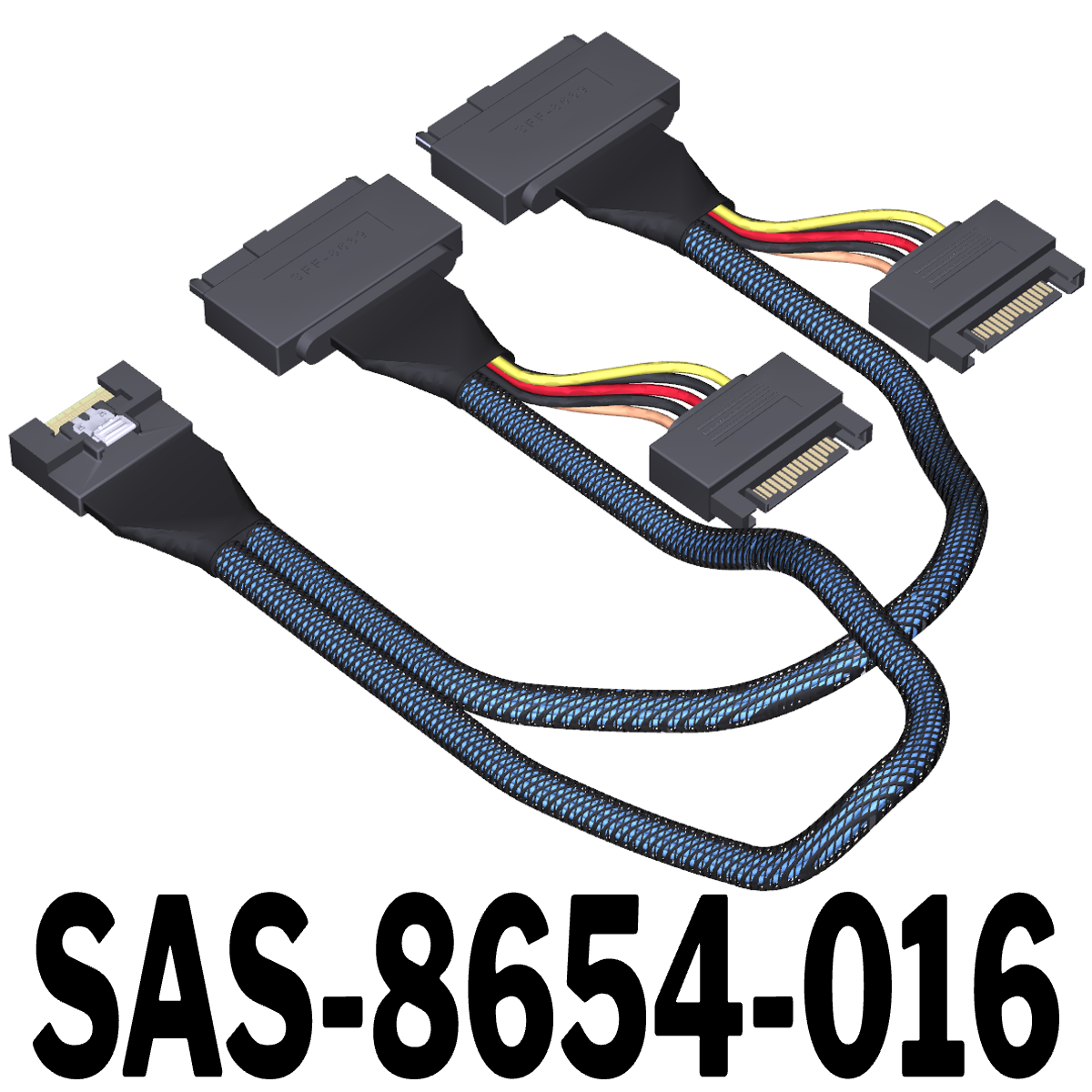

SAS-8654-016

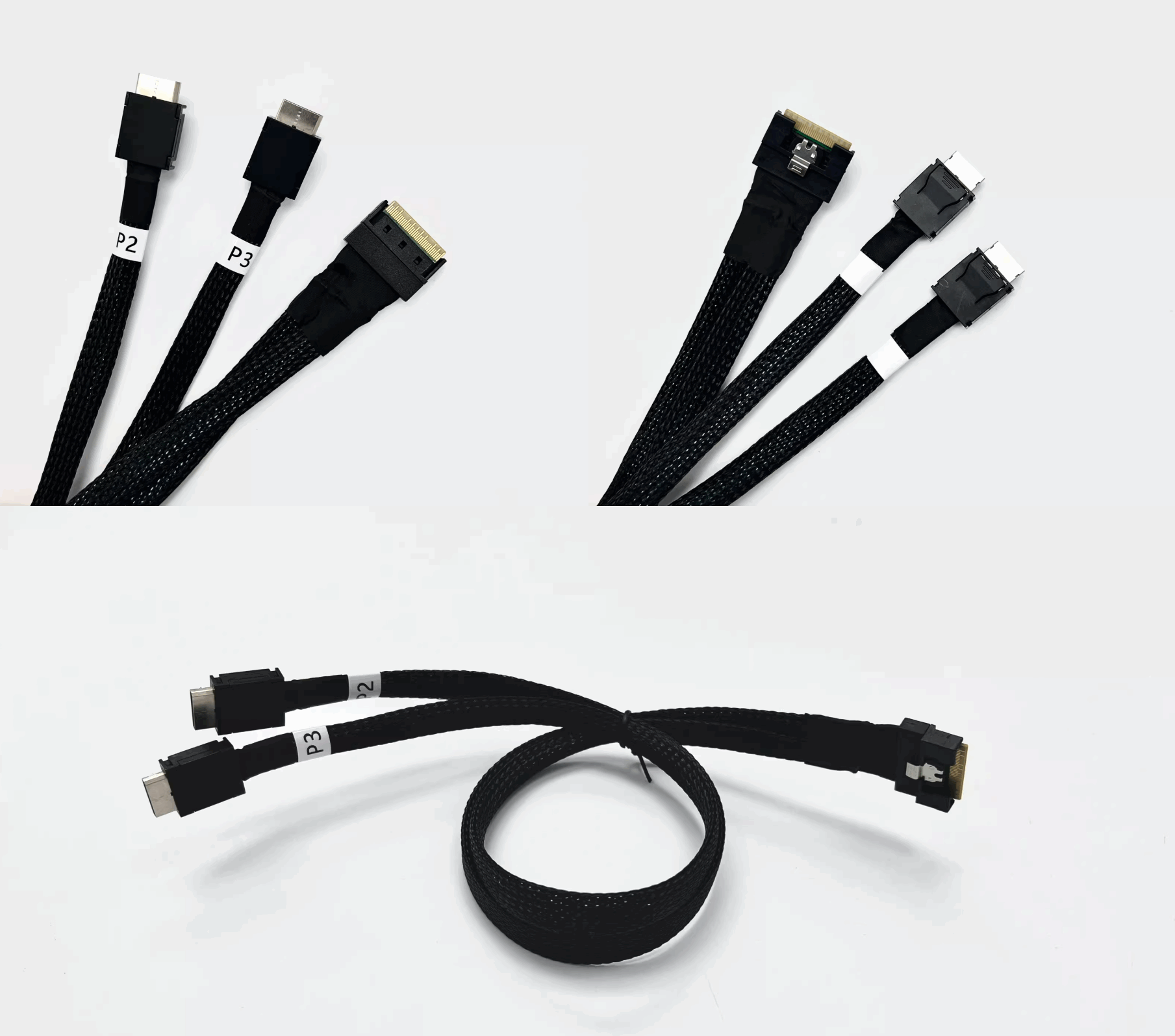

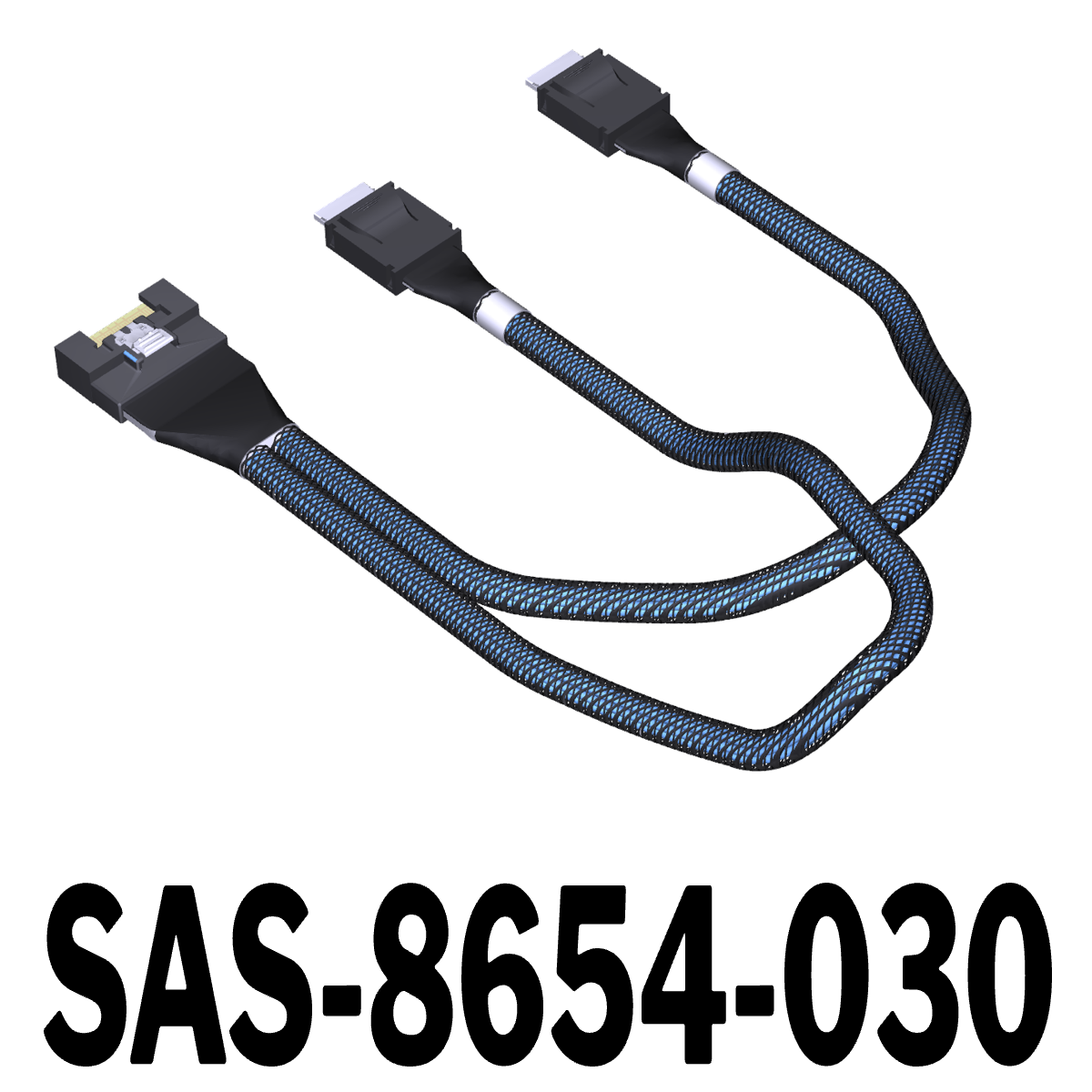

SAS-8654-030

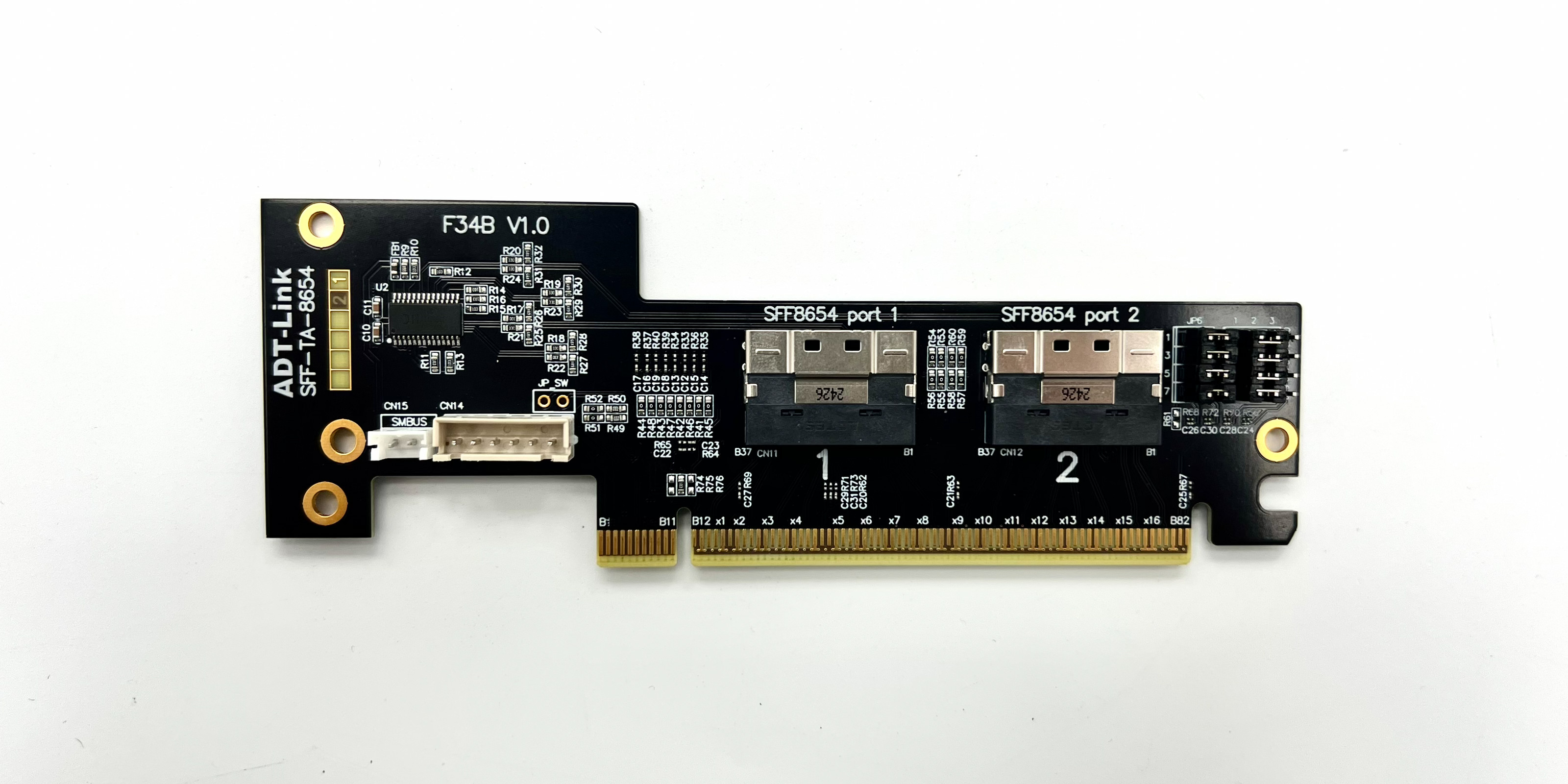

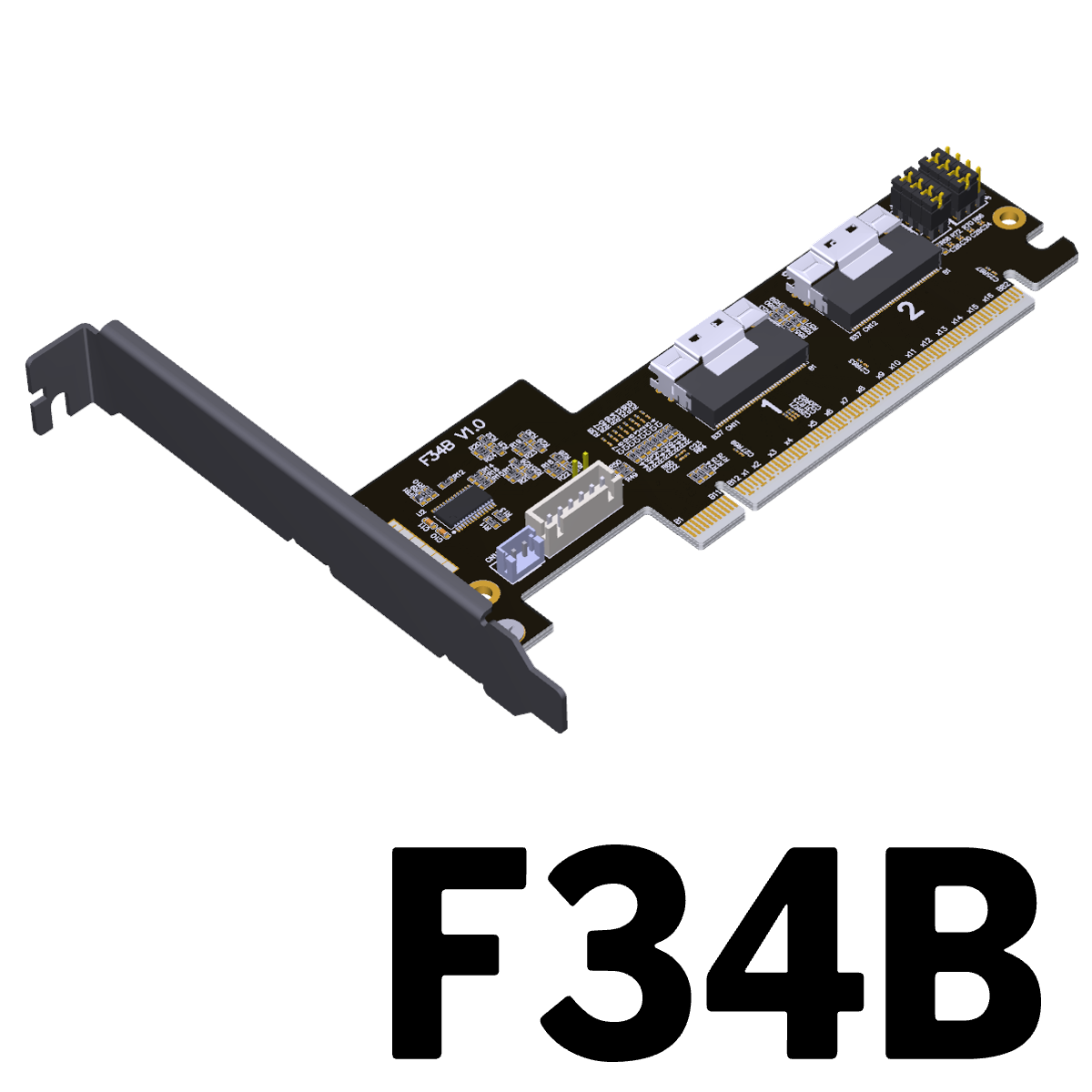

F34B

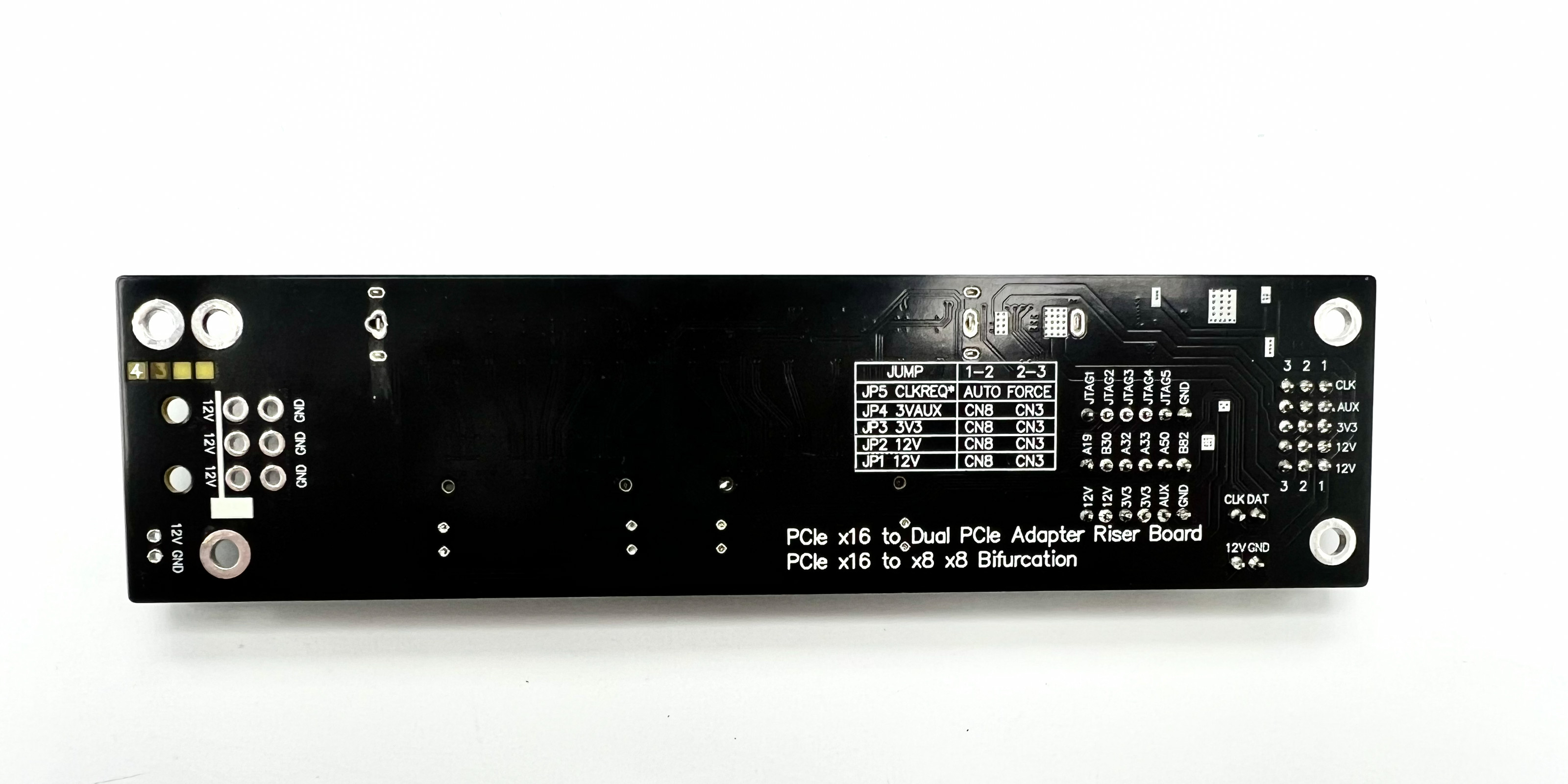

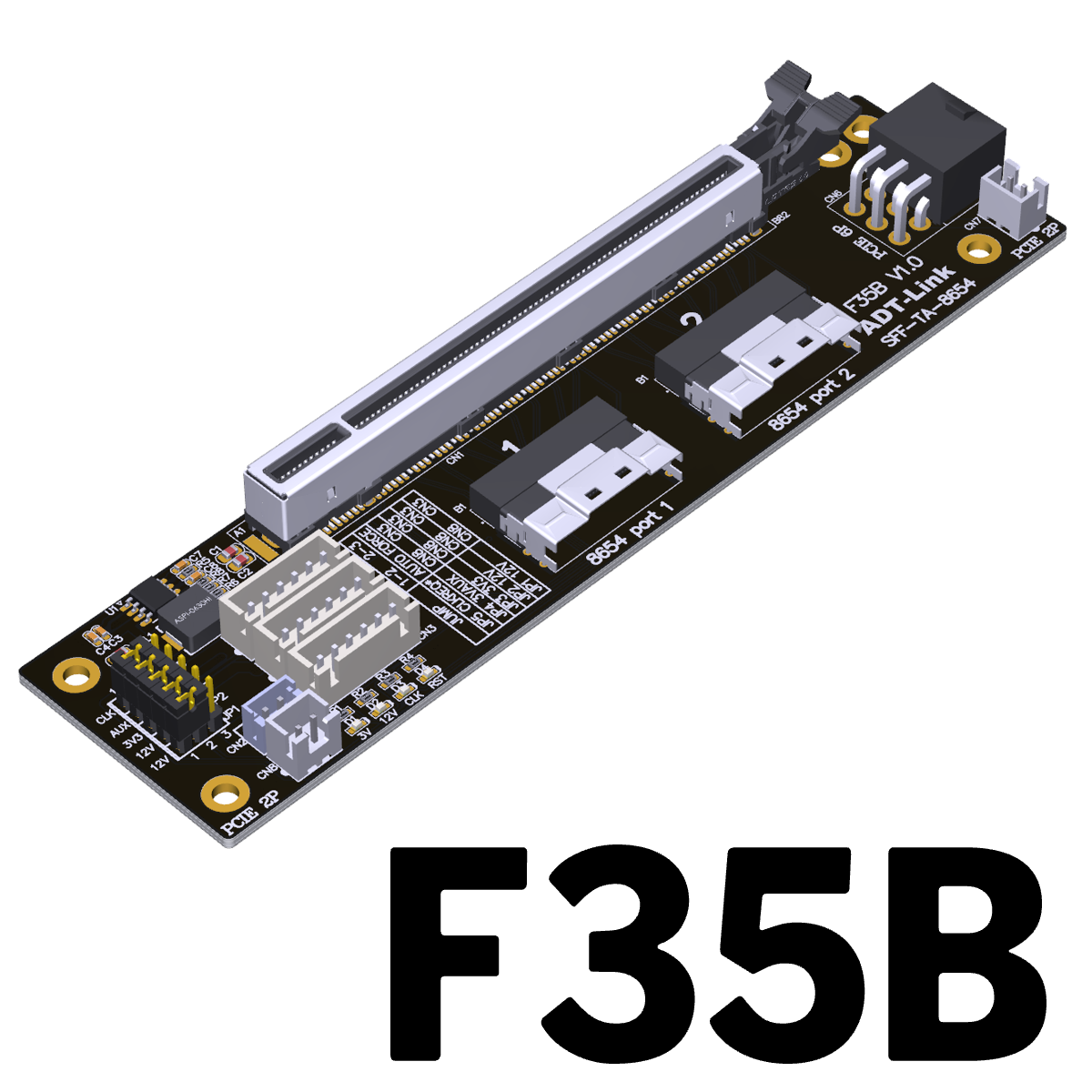

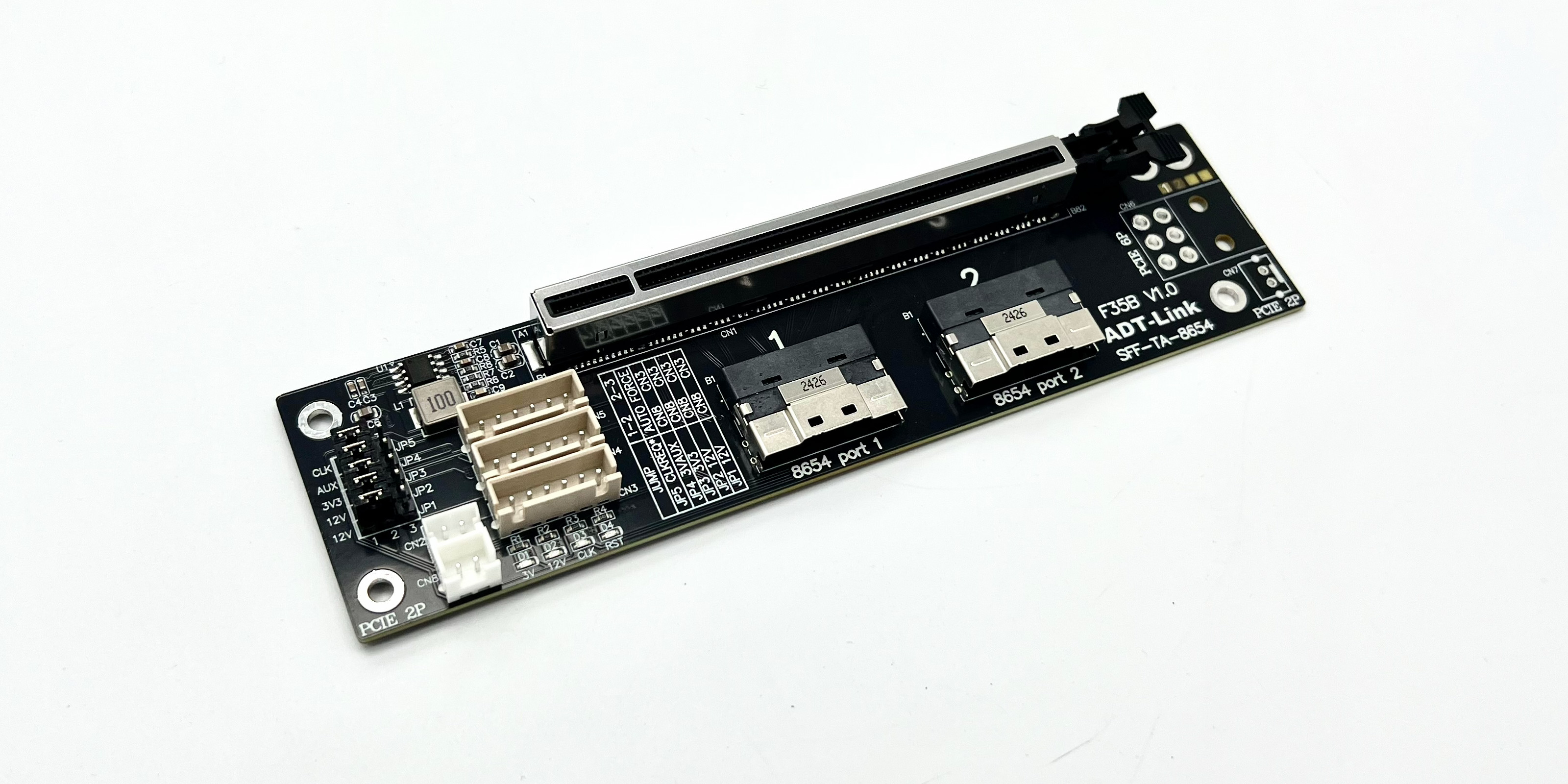

F35B

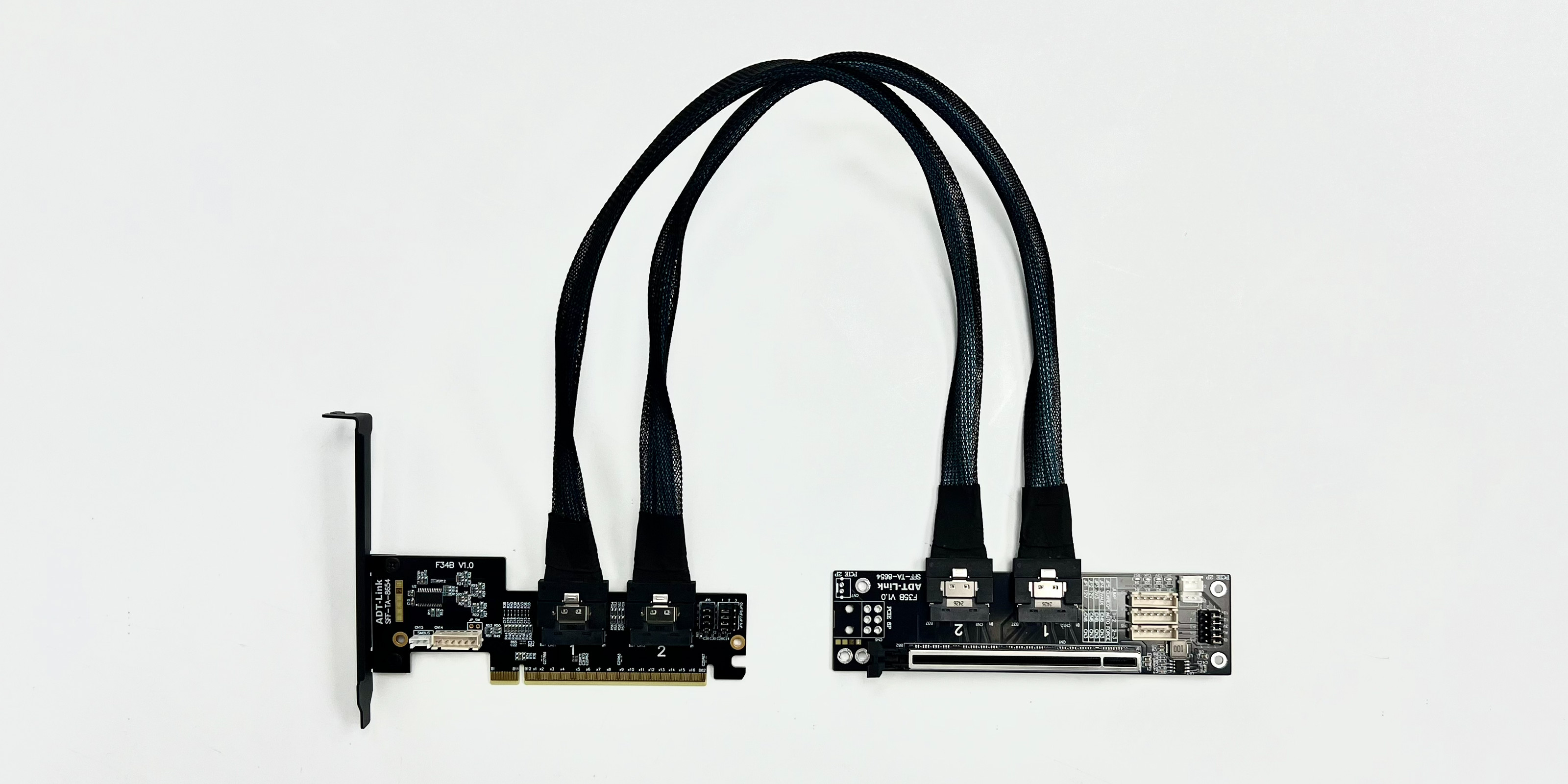

F34B-F35B(F3B+F35B+2xSAS-8654-004)

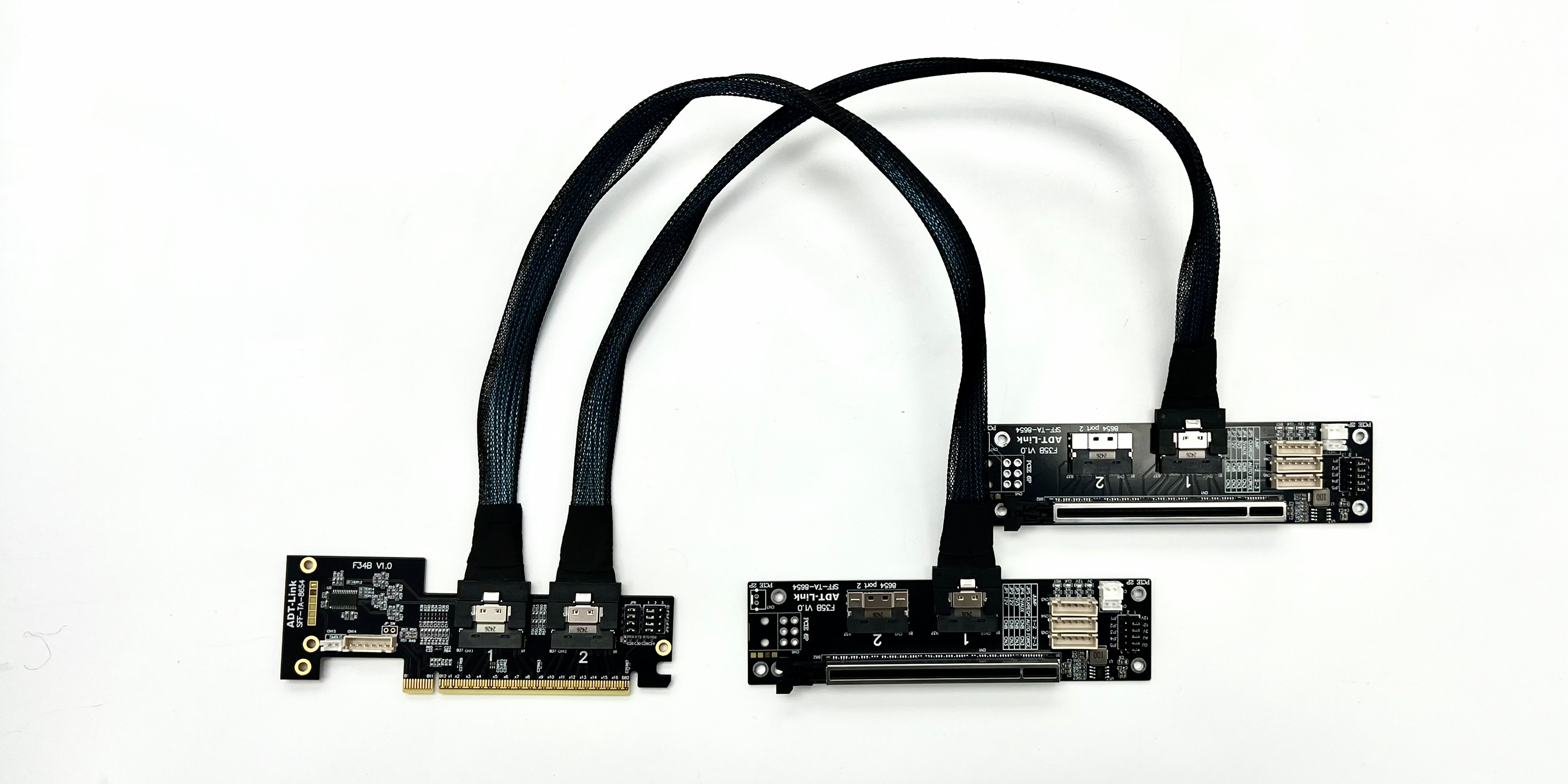

F34B-F35B-D8S(F3B+2xF35B+2xSAS-8654-004)

Can the F34B support a 1-to-4 connection using an SFF-8654 to SFF-8611 or SFF-8654 to SFF-8639 cable?

Our tests show that the F34B supports a 1-to-4 connection.

Using an SFF-8654 to SFF-8611 cable with our F9G product can achieve a 1-to-4 connection, supporting PCIe x4 4.0.

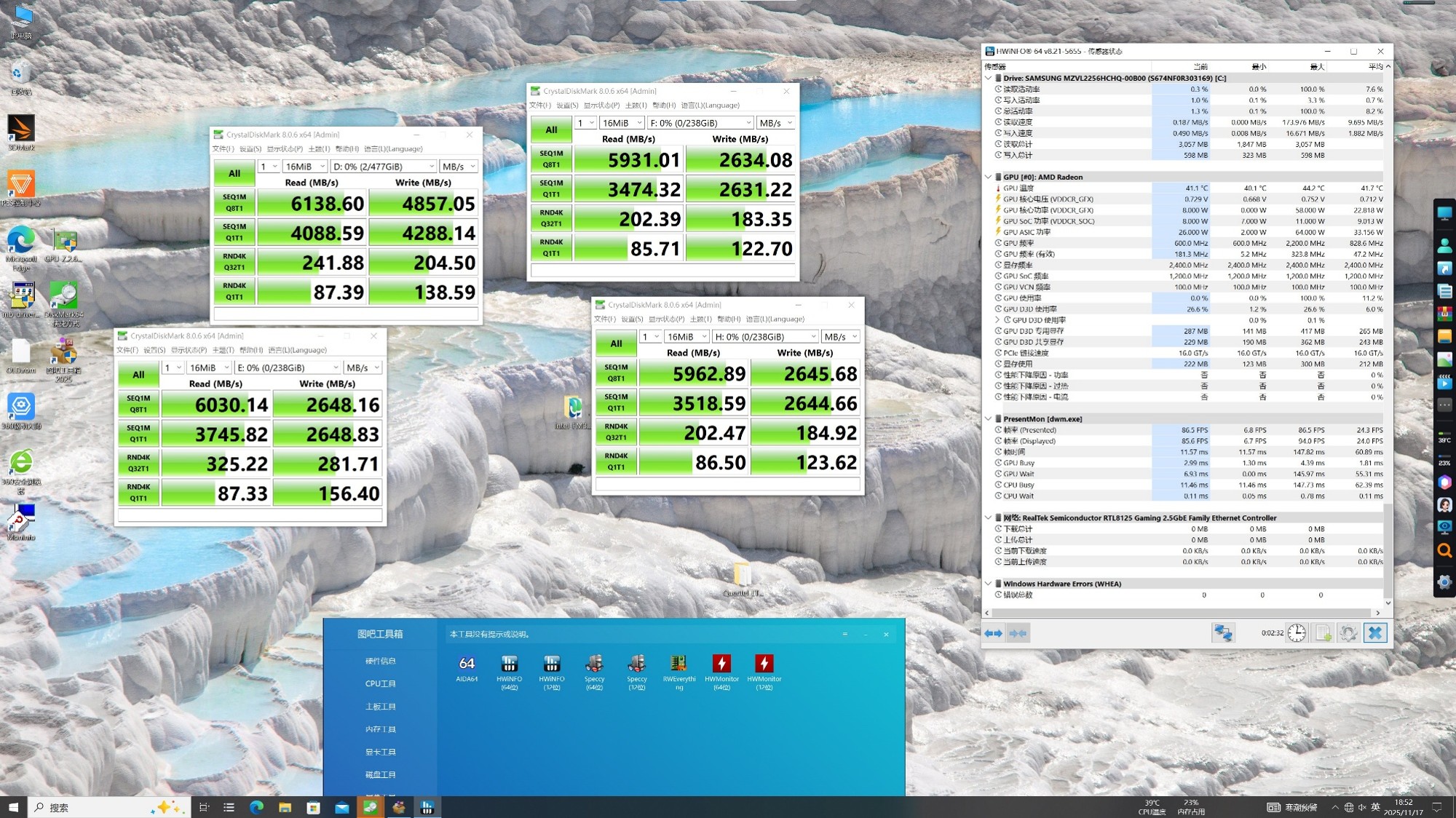

Using an SFF-8654 to SFF-8639 cable to connect U.2 hard drives allows for one-to-four connectivity, reaching full PCIe x4 4.0 speed.

How can I confirm if my motherboard supports Bifurcation PCIe splitting?

Please consult your motherboard manual. The manual or BIOS settings will explain whether it supports Bandwidth PCIe splitting or the Bifurcation option. If it's not mentioned, then it's not supported.
