ADT-Link Oculink to M.2 NVMe Adapter

Brand name: ADT-LINK

Product name: Oculink to M.2 NVMe adapter

Product model: F4C F4D F4Q

Transfer speed: 64Gb/Sec (PCIe gen4 x4 Max.)

Weight: 20g

Dimension: support M.2 NGFF key M(2230) 22mm x 80mm NVMe card

Application: Oculink to M.2 NVMe adapter extesnion riser card

Part-Number Description:

F4D Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Product advantages:
1. The product is made of high-quality materials, UL certified PCB board, PCB workmanship is precise, copper thickness is thickened to 1oz, no invariance, color is yellow crystal, semi-transparent, not white or black.
2. Support PCIe 4.0 x4, compatible with gen3.
3. This product uses DCDC chip, the advantages include stable power supply, high efficiency energy saving, over-current, over-temperature and short-circuit protection functions, while protecting the efficiency and stability of the system.
4. SATA power adapter cable is sent, which is widely compatible and can be used to convert 12V to 3.3V for stable power supply.

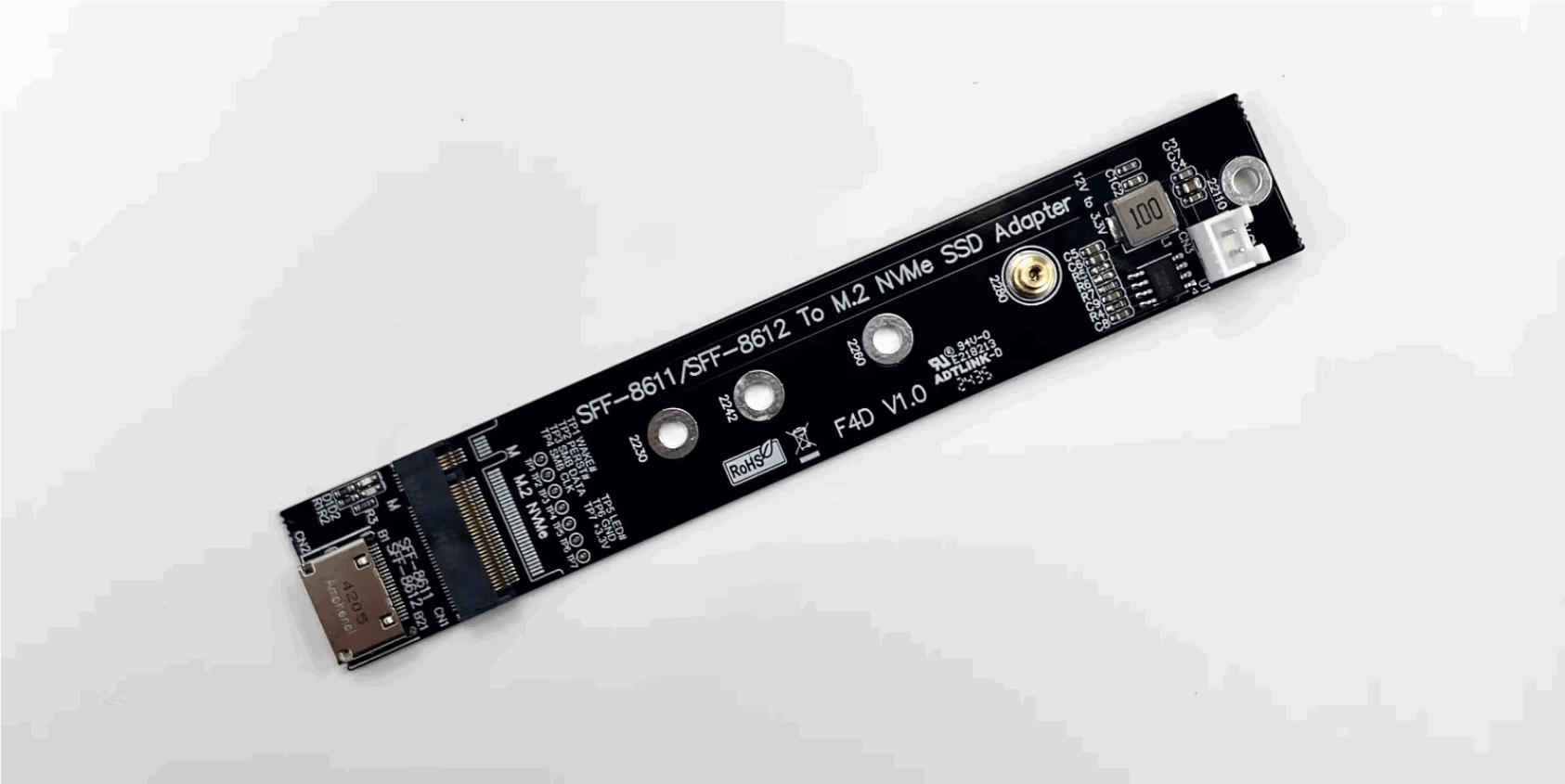

Photo:

Can F4D support PCIe 4.0?
Our laboratory has tested that it can reach PCIe4.0, and the measured read and write speeds are as follows:

What specifications of SSD cards does F4D support?
F4D supports M.2 NVME SSDs of 2230, 2242, 2260, and 2280 specifications

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model files download http://www.adt.link/download/ADT-F4D.zip

Specification files download http://www.adt.link/download/ADT F4D specification 20240925.pdf

FTP: Hong Kong

3D model files download http://www.adtlink.cn/download/ADT-F4D.zip

Specification files download http://www.adtlink.cn/download/ADT F4D specification 20240925.pdf
