PCIe x8 to PCIe x1 Extender

K81SF K81SL 4.0

Product ID: K81SF K81SL 4.0
Interface: PCIe x8 / PCIe x1
Application: Extension
Shelf time：2023-12-20 11:07:19
Product description: PCIe x8 to x1 adapter for PCIe x1 USB, Audio, Wireless LAN cards extension.
INQUIRY

ADT-Link PCI express 4.0 x8 to x1 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x1 extension riser cable

Product model: K81SF 4.0 ; K81SL 4.0

Transfer speed: PCIe4.0 x1, 16G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x1 card to PCIe x8 slot extension cable

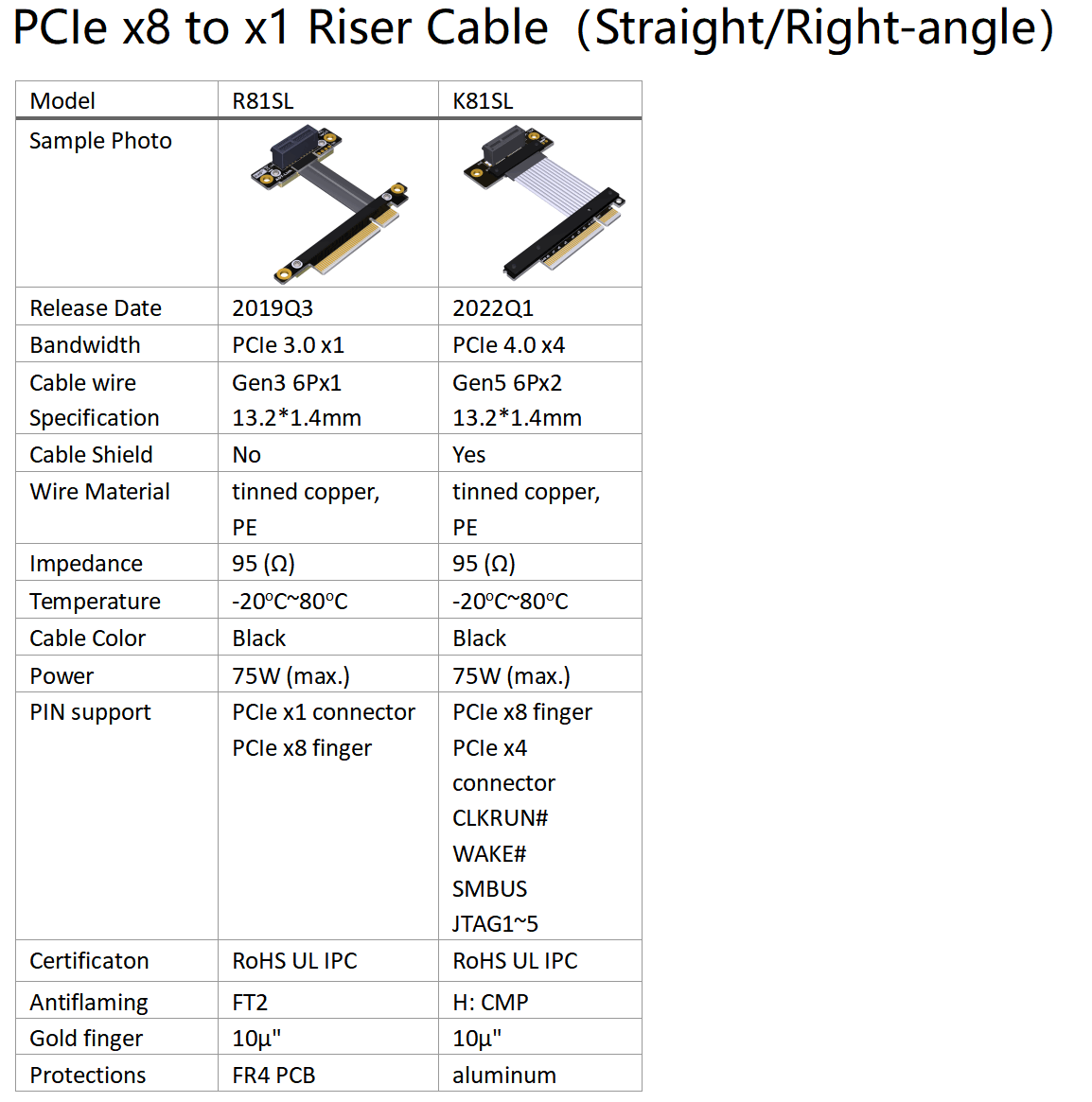

Part-Number Description:

Part-Number	Description	Bandwidth
K81SL 4.0	PCI-E x4 to x1 turn 90 degree upright right angle extension riser cables	PCIe 4.0 x1 (16G/bps)
K81SF 4.0	PCI-E x4 to x1 turn 180 degree splint vertical extension riser cables	PCIe 4.0 x1 (16G/bps)

K81: PCIe x8 to x1

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

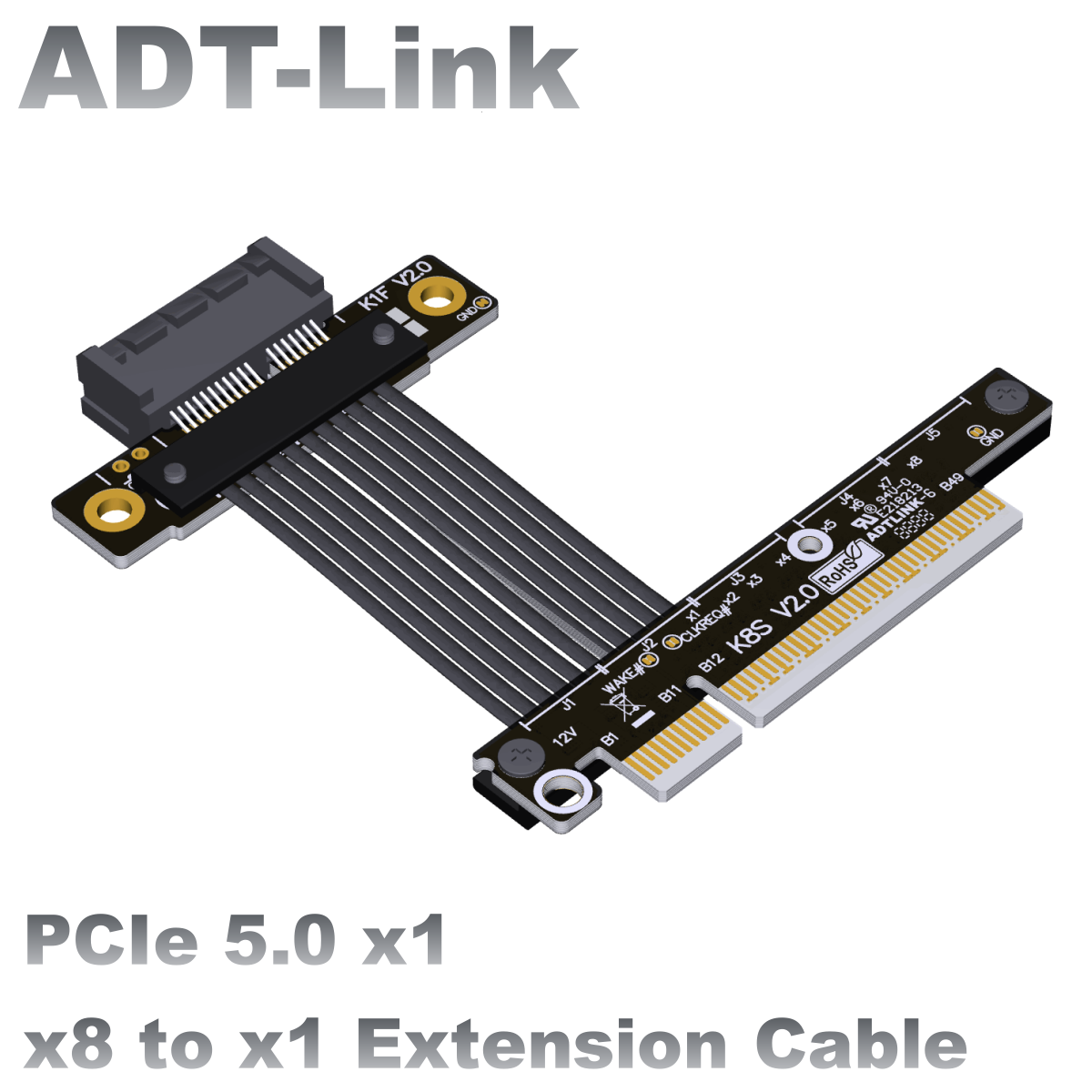

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K81_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K81_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
