M.2 NVMe to M.2 NVMe Extender

  • K44SF K44SH 4.0
  • K44SF K44SH 4.0
K44SF K44SH 4.0K44SF K44SH 4.0

K44SF K44SH 4.0

  • Product name: M.2 NVMe Key M extension cable
  • Product model: K44SF K44SH
  • Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)
  • Application: M.2 NVMe SSD cards extension
  • Product description: ADT-Link Pcie 4.0 x4 M.2 NVMe M-Key SSD Falt Extension Riser Cable with Metal Shield
  • INQUIRY

ADT-Link M.2 NVMe SSD Extension Riser Cable

Brand name: ADT-LINK

Product name: M.2 NVMe Key M extension cable

Product model: K44SF K44SH

Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards extension


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


What is the difference between ADT model K44SF and K44SH?

The K44SH can support SSDs of 22110 size, while the K44SF can support SSDs of 2280 size. The external dimensions are shown in the following figure:

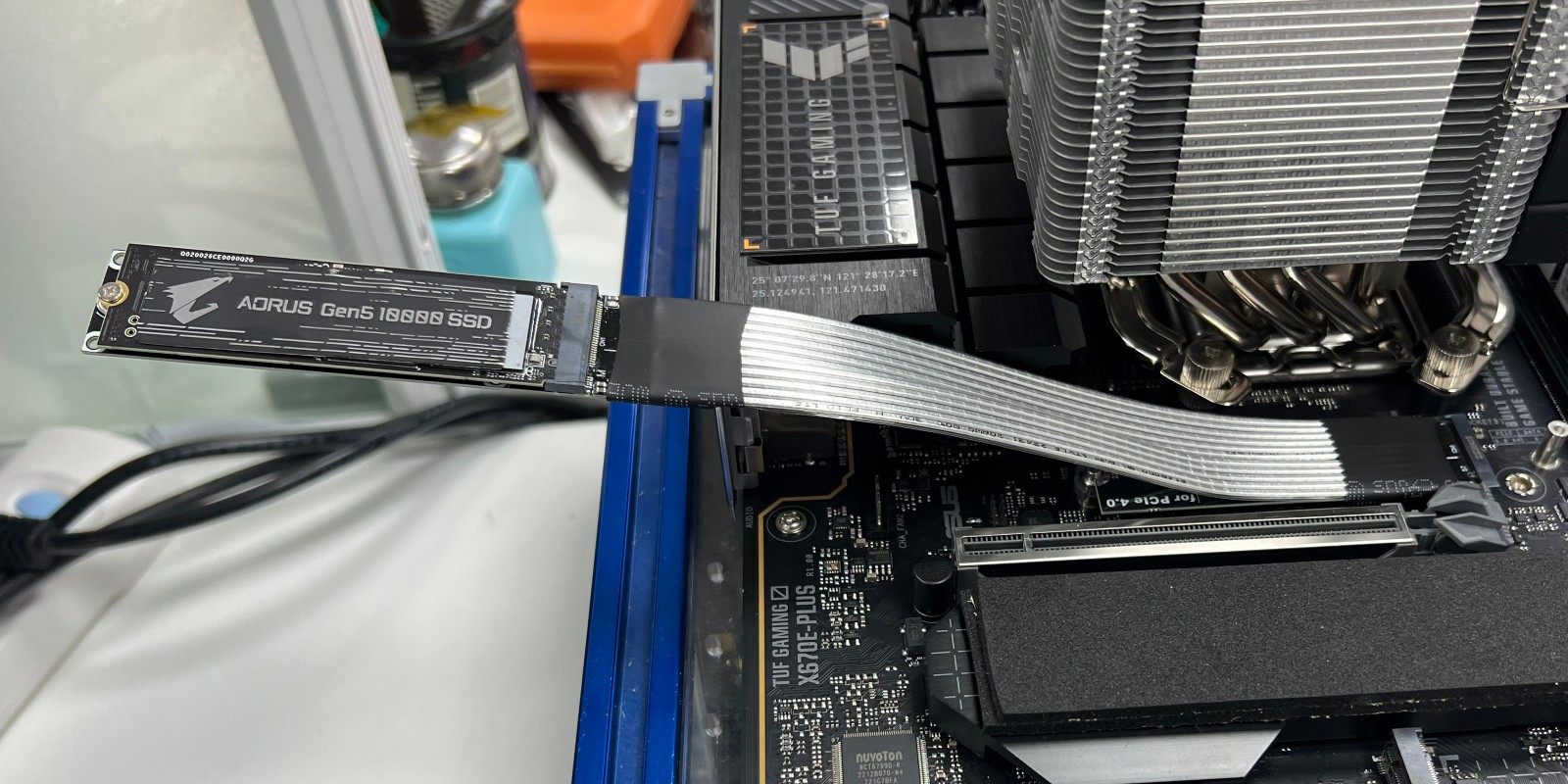

Can K44SF and K44SH support PCIe 5.0?

The laboratory measurement can achieve full speed of PCIe 5.0, but due to the attenuation of extension line length, motherboard driving ability, and SSD signal conditions, full speed of PCIe 5.0 cannot be guaranteed

The measured data of our store are as follows:


Photo:

Q&A:
Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K44xx_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K44xx_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf

WebShop:

http://www.adt.link/product/K44-Shop.html
