M.2 NVMe to M.2 NVMe Extender

K44SS-TT K44SS-TR

Product name: M. 2 NVME Jumper Cable
Product model: K44SS-TT K44SS-TR
Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)
Application: Signal swap
Product description: ADT-Link PCI express 4.0 M. 2 NVME Jumper Extension Riser Cable with Metal Shield
INQUIRY

ADT-Link PCI express 4.0 M. 2 NVME Jumper Cable

Brand name: ADT-LINK
Product name: M.2 NVMe jumpers cable
Product model: K44SS-TT,K44SS-TR
Transfer speed: PCIe 4.0 x4 full speed, 64G/bps (Max.)
Wire length:10~ 100 cm, the length can be customized
Application: M.2 nvme board to board jumpers , extender , adapter , flexible , foldable , pluggable
Operating Temp: -20 ~ 80℃
RoHS Compliant: Yes
If your applications uses a mother board that needs to link to another PCB via M.2 NVMe slot, and that PCB has PCIe connectors instead of edge fingers, then the PCIe Jumper Assemblies may fit your need. All of the speed and flexibility of the original ADT Extender Assemblies, but for card-to-card applications.

Cable length Description:

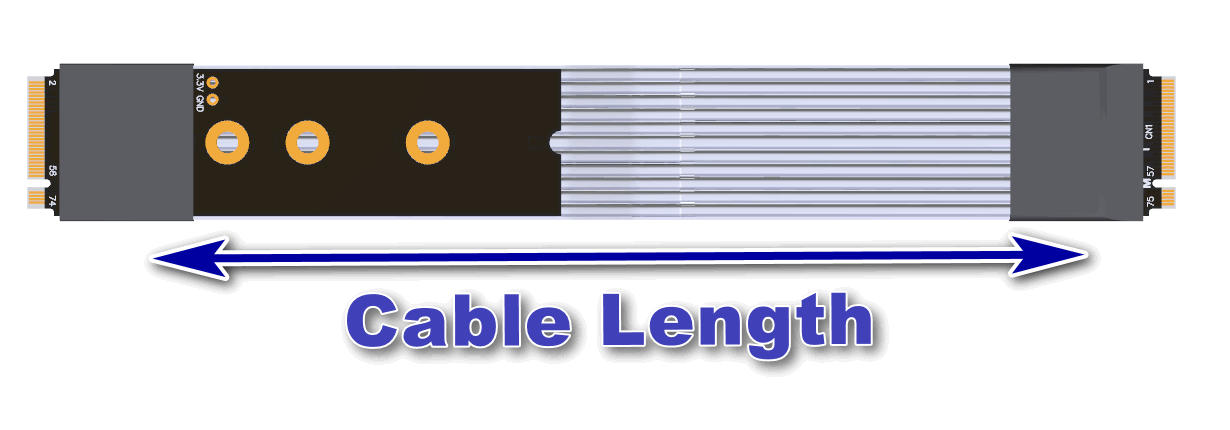

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

What is the difference between ADT model K44SS-TT and K44SS-TR?

Part-Number	Description	Bandwidth
K44SS-TT	M.2 NVMe ,goldfinger to goldfinger, Tx to Tx direct extension	PCIe 4.0 x4 (32G/bps)
K44SS-TR	M.2 NVMe ,goldfinger to goldfinger, Tx to Rx swap extension	PCIe 4.0 x4 (32G/bps)

Photo:

Q&A:
Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
