M.2 NVMe to PCIe x16 Extender

  • K43ST K43SM K43SP K43SW 4.0
  • K43ST K43SM K43SP K43SW 4.0
  • K43ST K43SM K43SP K43SW 4.0
  • K43ST K43SM K43SP K43SW 4.0
K43ST K43SM K43SP K43SW 4.0K43ST K43SM K43SP K43SW 4.0K43ST K43SM K43SP K43SW 4.0K43ST K43SM K43SP K43SW 4.0

K43ST K43SM K43SP K43SW 4.0

  • Product ID:K43ST K43SM K43SP K43SW
  • Interface: M.2 NVMe / PCIe x16
  • Application: Extension
  • Shelf time:2023-03-23
  • Product description: M.2 NVMe to PCIE 4.0 extender riser adapter
  • INQUIRY

ADT-Link M.2 NVMe to PCI express x16 Extension Riser Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x16 extension cable

Product model: K43ST K43SM K43SP

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: for PCIe x16 Nvidia/AMD Graphics cards to M.2(ultra SSD, M-key) NVMe slot extension


Part-Number Description:

Part-Number
Description
Bandwidth (Max.)
K43ST M.2 key-M NVMe to PCIe x4 turn 180 degree splint vertical extension cables PCIe 4.0 x4 (64G/bps)
K43SM M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables PCIe 4.0 x4 (64G/bps)
K43SW
M.2 key-M NVMe to PCIe x4 turn 270 degree extension cables
PCIe 4.0 x4 (64G/bps)
K43SP M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables connector lock version PCIe 4.0 x4 (64G/bps)
K43SP+BK5
M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables connector lock version with black bracket
PCIe 4.0 x4 (64G/bps)
K43SP+WH5
M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables connector lock version with white bracket
PCIe 4.0 x4 (64G/bps)
K43SP+BK6
M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables connector lock version with black bracket
PCIe 4.0 x4 (64G/bps)
K43SP+WH6
M.2 key-M NVMe to PCIe x4 turn 90 degree extension cables connector lock version with white bracket
PCIe 4.0 x4 (64G/bps)

K43: M.2 NVMe to x16

SL SH SM SP: turn 90 degree upright right angle ; SF ST: turn 180 degree splint vertical


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

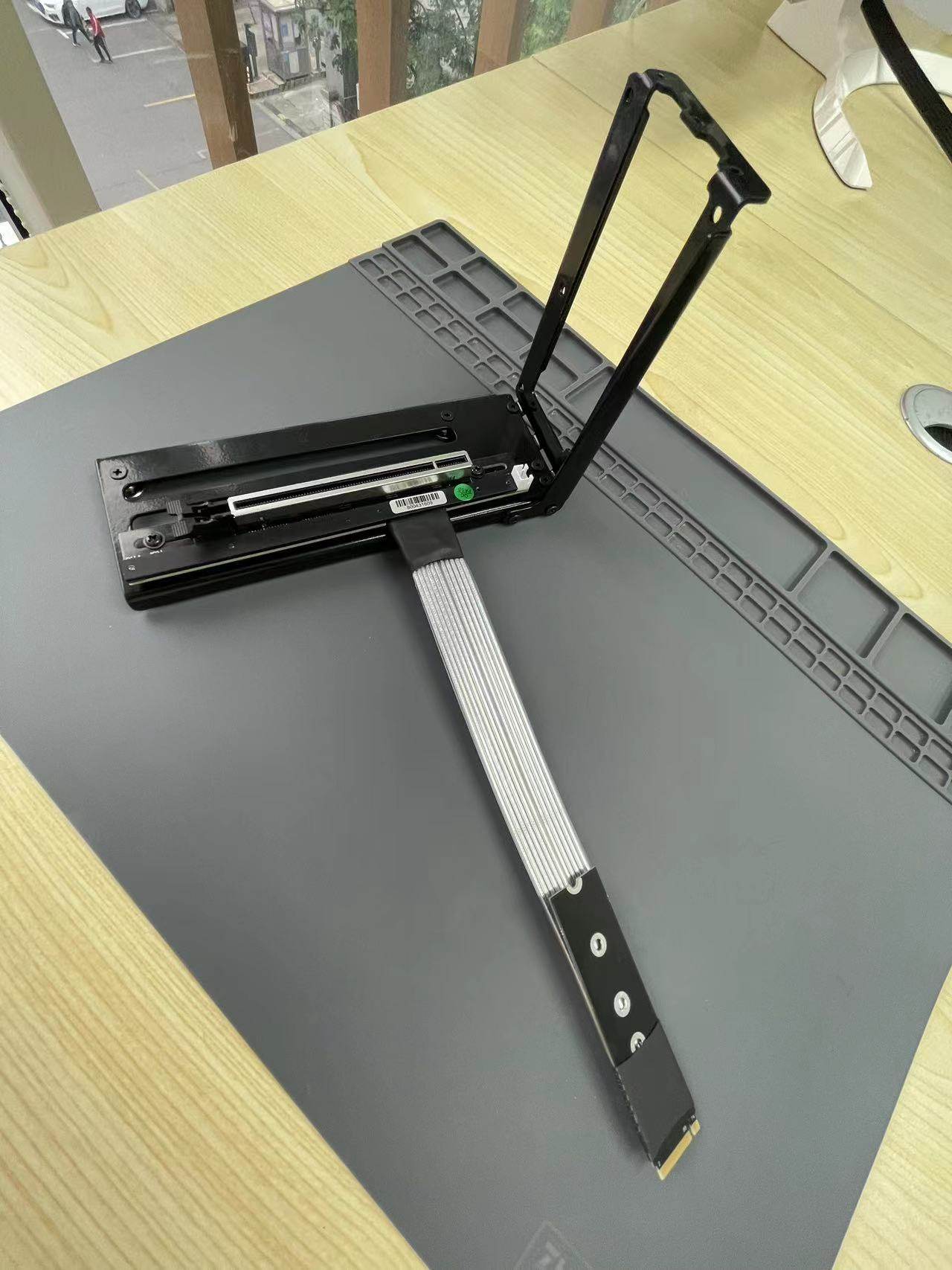

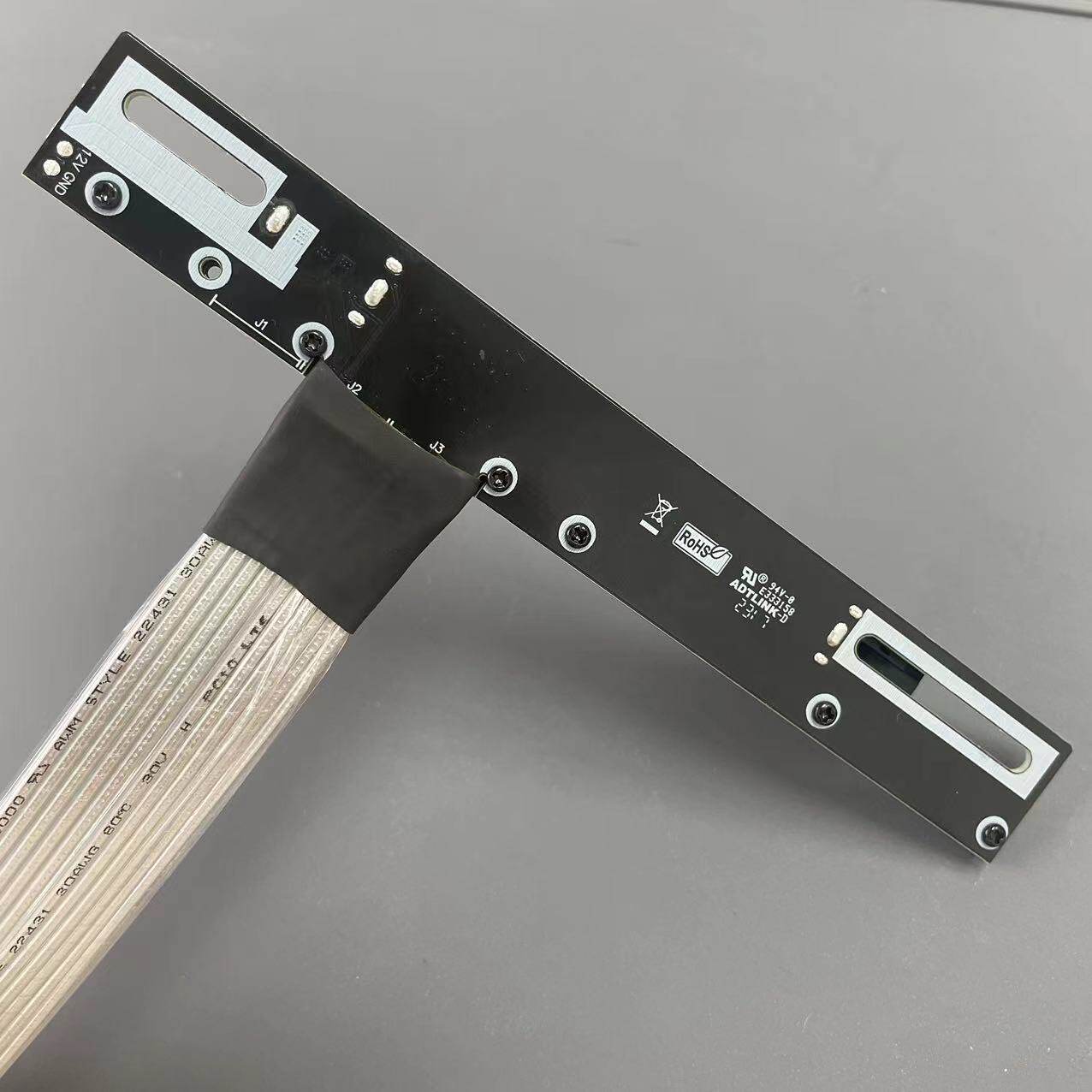

Photo:

Q&A:

Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/adt k43xx_3d.zip

Schematic files download http://www.adt.link/download/adt k43xx schematic.pdf

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/adt k43xx_3d.zip

Schematic files download http://www.adtlink.cn/download/adt k43xx schematic.pdf

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
