PCIe x16 to PCIe x8 Extender

K38SF K38SL 4.0

Product name: PCIe 4.0 x16 to x8 extension cable
Product model: K38SF,K38SL
Transfer speed: PCIe 4.0 x8 to x8, 128G/bps (Max.)
Shelf time：2023-09-20
Product description: ADT-Link PCIe 4.0 x16 to x8 Extension Cable
INQUIRY

ADT-Link PCI express 4.0 x16 to x8 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x8 extension cable

Product model: K38SF,K38SL

Transfer speed: PCIe 4.0, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCI-E x16 to x8 extension.

ADT K38 series Part-Number Description:

Part-Number	Description	Bandwidth

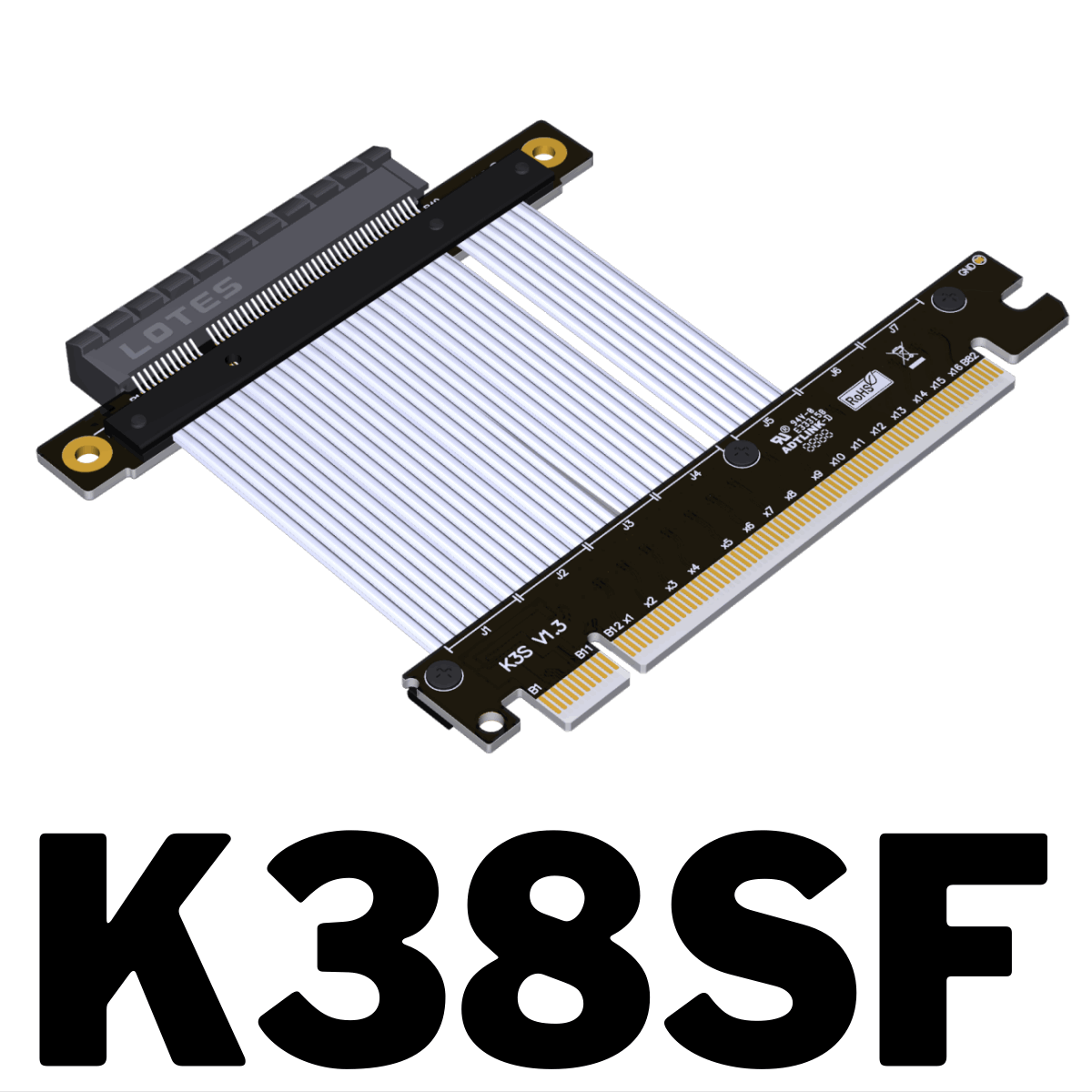

K38SF	PCI-E x16 to x8 turn 180 degree splint vertical extension cables	PCIe 4.0 x8 (128G/bps)
K38SL	PCI-E x16 to x8 turn 90 degree splint vertical extension cables	PCIe 4.0 x8 (128G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
