PCIe x4 to M.2 NVMe Extender

  • K24MF K24MH 4.0
  • K24MF K24MH 4.0
K24MF K24MH 4.0K24MF K24MH 4.0

K24MF K24MH 4.0

  • Product name: PCIe x4 to M.2 NVMe Key M extension cable
  • Product model:K24MF K24MH
  • Transferspeed:PCIe 4.0 x4 , 64G/bps (Max.)
  • Application: M.2 NVMe SSD cards to PCIe x4 extension
  • Product description: ADT-Link Pcie 4.0 x4 Edge to M.2 M-Key NVMe Slot Adapter Cable for NVMe SSD Extension with Metal Shield
  • INQUIRY

ADT-Link M.2 NVMe SSD to PCIe x4 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x4 to M.2 NVMe Key M extension cable

Product model: K24MF,K24MH

Transfer speed: PCIe4.0 x4 full speed, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards to PCIe x4 extension


Product description:


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.


What is the difference between K24MF and K24MH?

The K24MH can support SSDs of 22110 size, while the K24MF can support SSDs of 2280 size. The external dimensions are shown in the following figure:


Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

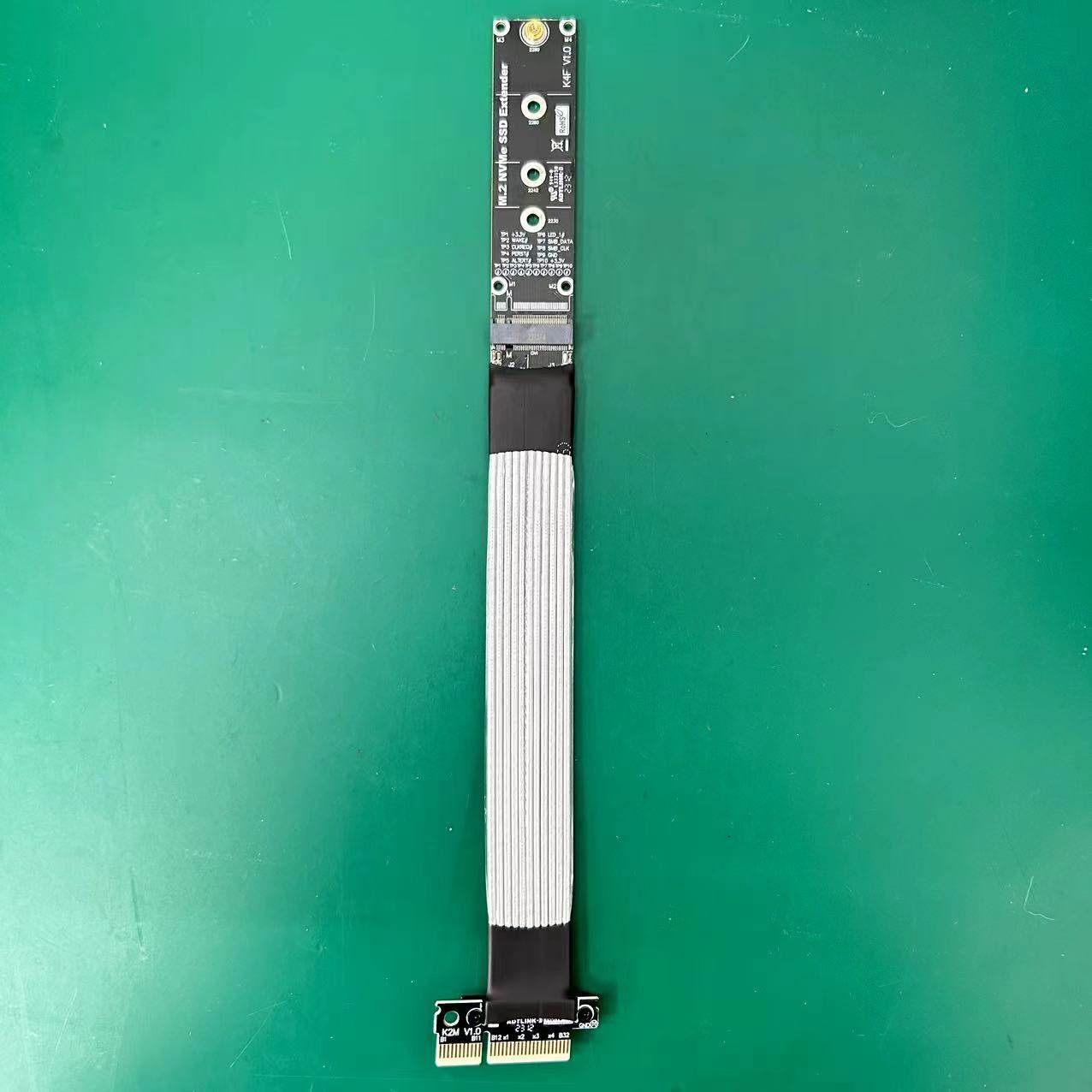

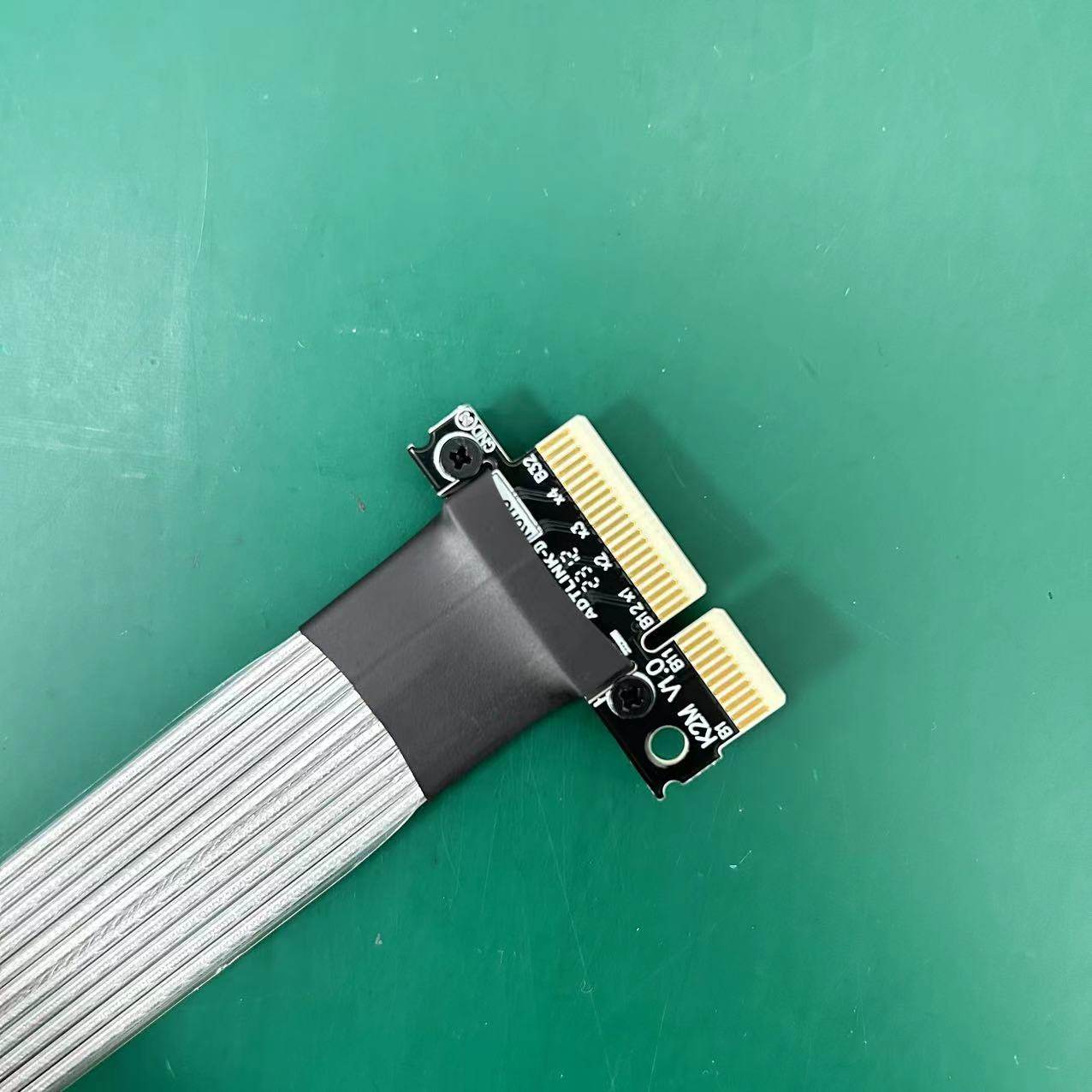

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/K24xx_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K24xx_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
