PCIe x4 to PCIe x4 Jumper

  • K22VS,K22NS
  • K22VS,K22NS
  • K22VS,K22NS
K22VS,K22NSK22VS,K22NSK22VS,K22NS

K22VS,K22NS

  • Product name: PCIe 4.0 x4 jumpers cable
  • Product model:K22VS
  • Transfer speed: PCIe 4.0 x4 full speed, 64G/bps (Max.)
  • Application: PCIe x4 board to board jumpers , extender , adapter , flexible , foldable , pluggable
  • Product description: ADT-Link PCIE X4 Riser Cable PCIe 4.0 X4 to X4 Male to Male Jumpers Extension Cable With metal shield PCI Express 4X Riser Card Ribbon Extender
  • INQUIRY

ADT-Link PCI express 4.0 x4 Jumper Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 x4 jumpers cable

Product model: K22VS,K22NS

Transfer speed: PCIe 4.0 x4 full speed, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x4 board to board jumpers , extender , adapter , flexible , foldable , pluggable

Operating Temp: -20 ~ 80oC

RoHS Compliant: Yes

If your applications uses a mother board that needs to link to another PCB via PCIe, and that PCB has PCIe connectors instead of edge fingers, then the PCIe Jumper Assemblies may fit your need. All of the speed and flexibility of the original ADT Extender Assemblies, but for card-to-card applications.

Restrictions on use: Only specified by professional engineers to purchase, general use cannot be used, ordinary buyers should not buy.

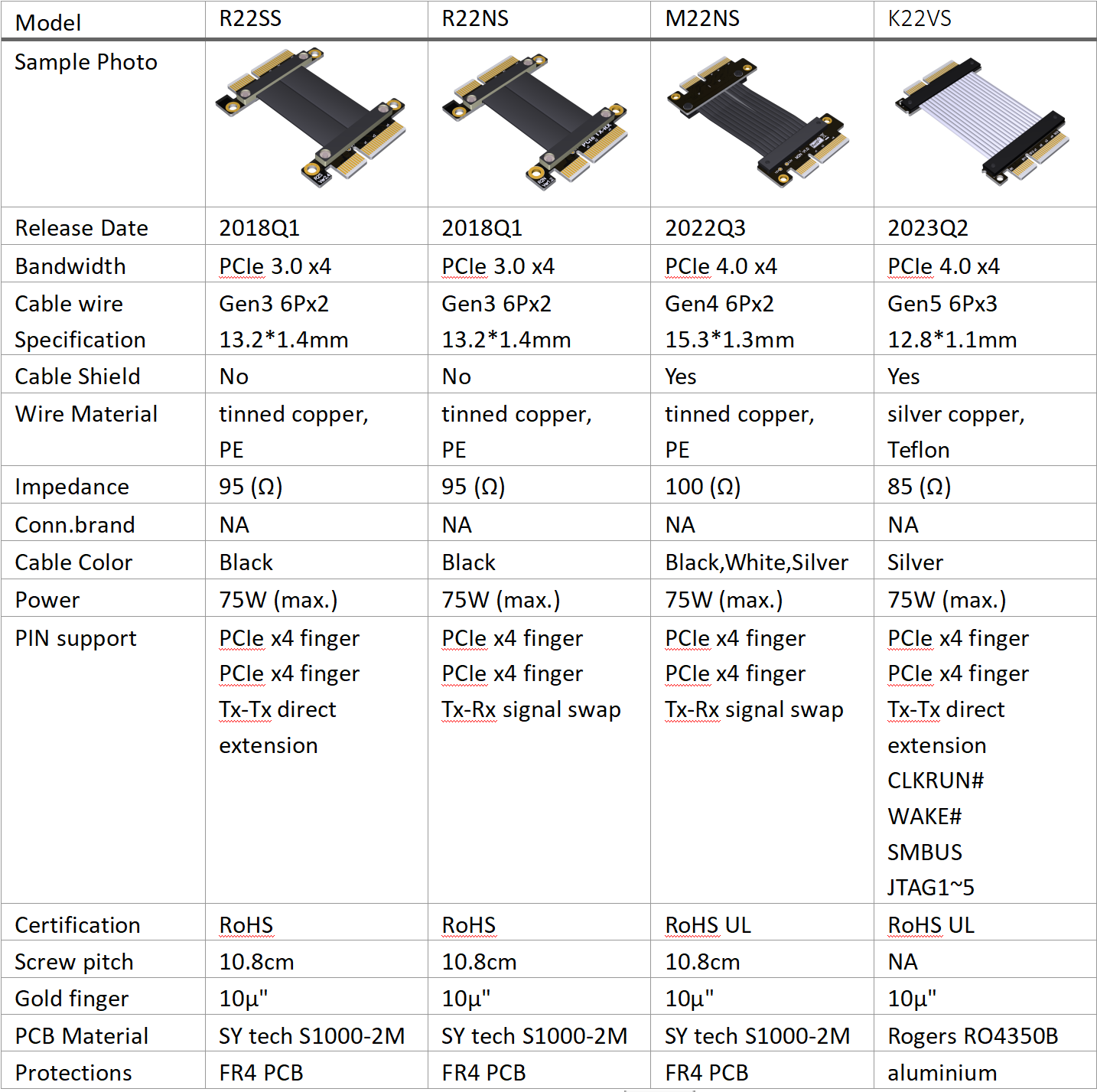

ADT PCIe Jumper products Part-Number Description:

Part-Number
Description
Bandwidth
K22VS PCI-E x4 ,goldfinger to goldfinger, Tx to Tx direct extension PCIe 4.0 x4 (64G/bps)
K22NS PCI-E x4 ,goldfinger to goldfinger, Tx to Rx signal swap PCIe 4.0 x4 (64G/bps)


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K22xx_Jump_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K22xx_Jump_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf

WebShop:

http://www.adt.link/product/K22_Jump-Shop.html

PayPal Acceptance Mark

Restrictions on use: Only specified by professional engineers to purchase, general use cannot be used, ordinary buyers should not buy.
