  • Product name: PCIe x4 extension cable
  • Product model:K22SF,K22SF-TL.K22SL,K22SL-TL, K22AB
  • Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)
  • Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards, extension
  • Product description: ADT-Link PCI express 4.0 x4 Extension Riser Cable
  • INQUIRY

ADT-Link PCI express 4.0 x4 Extension Riser Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 x4 extension cable

Product model:K22SF,K22SF-TL,K22SL,K22SL-TL,K22AB

Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized

Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards, extension


ADT K22 series Part-Number Description:

Part-Number
Description
Bandwidth
K22SF
PCI-E x4 to x4 turn 180° splint vertical extension cables PCIe 4.0 x4 (64G/bps)
K22SF-TL PCI-E x4 to x4 connector turn 180° and finger turn 90° upright right angle extension cables PCIe 4.0 x4 (64G/bps)
K22SL
PCI-E x4 to x4 turn 90° splint vertical extension cables
PCIe 4.0 x4 (64G/bps)
K22SL-TL
PCI-E x4 to x4 connector turn 90° and finger turn 90° upright right angle extension cables
PCIe 4.0 x4 (64G/bps)
K22AB
PCI-E x4 to x4 turn 90° splint vertical extension cables support SMBUS.WAKE#
PCIe 4.0 x4 (64G/bps)

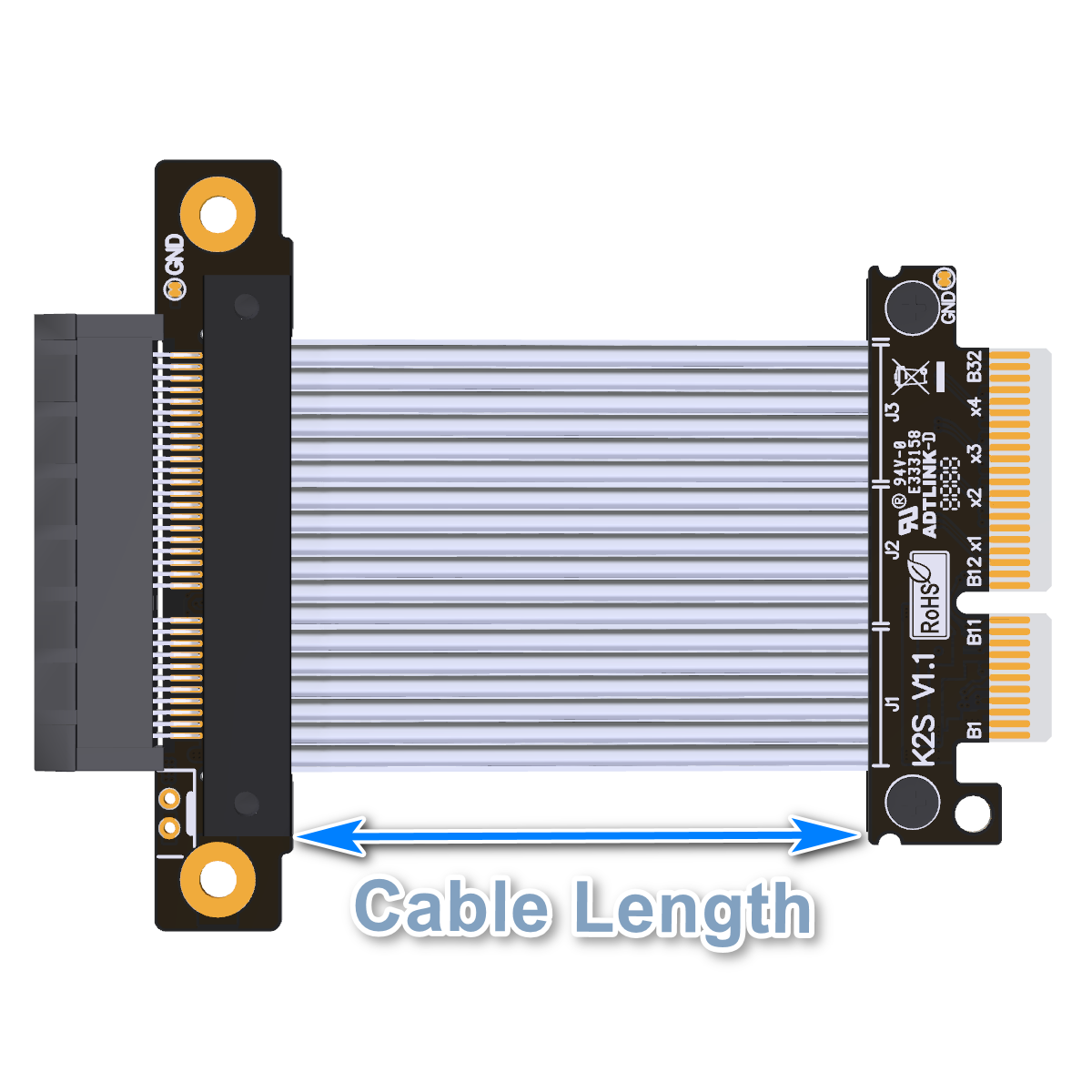

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Do models K22AB and K22SF support PCIe 4.0 with a wire length of 1.5 meters?

The laboratory measured that an ultra long line with a length of 1.5 meters can achieve PCIe 4.0 full speed, but due to the attenuation of the extension line length, the driving ability of the motherboard, and the conditions of the board, PCIe 4.0 full speed is not guaranteed. Please slow down and use.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K22_3D.zip

Schematic files download http://www.adt.link/download/ADT_K22_schematic.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K22_3D.zip

Schematic files download http://www.adtlink.cn/download/ADT_K22_schematic.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
