Brand name: ADT-LINK
Product name: HDMI 2.1 type-A male to type-A female Flat Cable
Product model: HAA-MF-24P series
Transfer-speed: Support HDMI V2.1 bandwidth up to 48G.bps, resolutions up to 4K@165Hz, 8K@60Hz
Wire length: 3 ~ 200 cm, the length can be customized
Application: For FPV Aerial Photography Gopro Camera
Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.
Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.
ADT HDMI series Part-Number Description:
Brand | Part-Number | Product-Description |
ADTLINK | HA5-HA8 | HDMI 2.0 A-type male to A-type female |
ADTLINK | HA5-HA8Q | HDMI 2.1 A-type male to A-type female |
ADTLINK | HA5-HA8T | HDMI 2.0 A-type male to A-type female |
ADTLINK | HA6-HA8 | HDMI 2.0 A-type male to A-type female |
ADTLINK | HA6-HA8Q | HDMI 2.1 A-type male to A-type female |
ADTLINK | HA6-HA8T | HDMI 2.0 A-type male to A-type female |
ADTLINK | HA7-HA8 | HDMI 2.0 A-type male to A-type female |
ADTLINK | HA7-HA8Q | HDMI 2.1 A-type male to A-type female |
ADTLINK | HA7-HA8T | HDMI 2.0 A-type male to A-type female |
Note: The HA8,HA8T extension cable does not support two or more HDMI cables connected in series. If you connect more than two HDMI cables in series, the signal will be attenuated. It may not be used HDMI 2.1 normally.
Cable length Description:

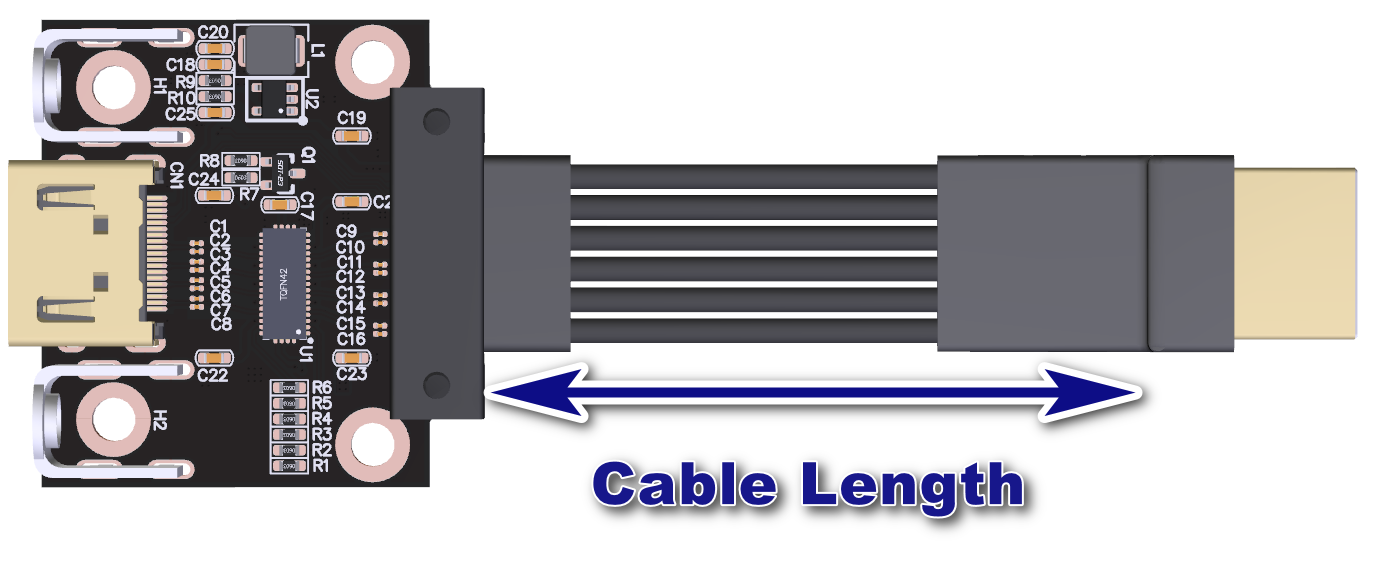

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.
Q&A:
Is there any EMI shielding for Cable?
Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
Cable thickness? Can it be bent?
The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.

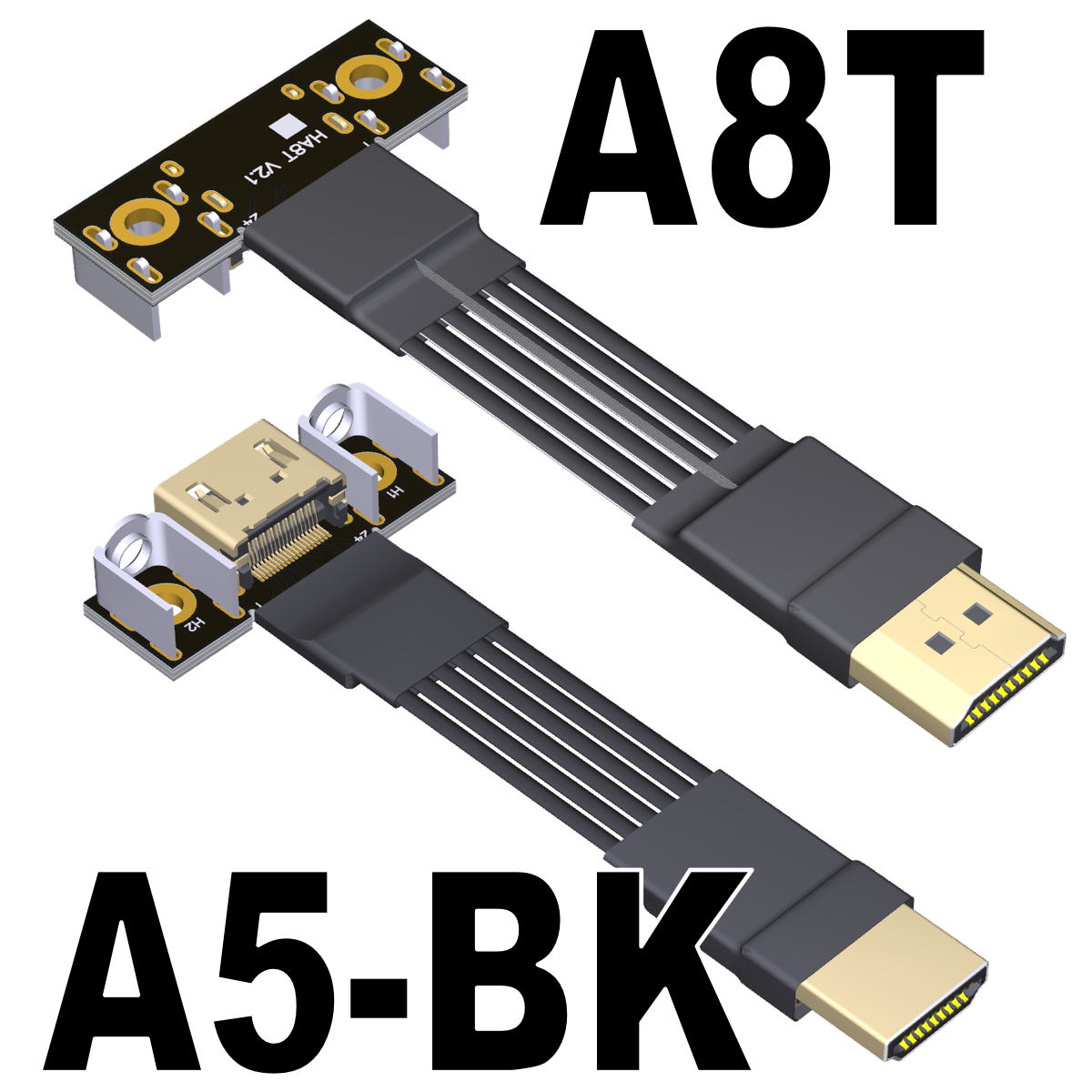

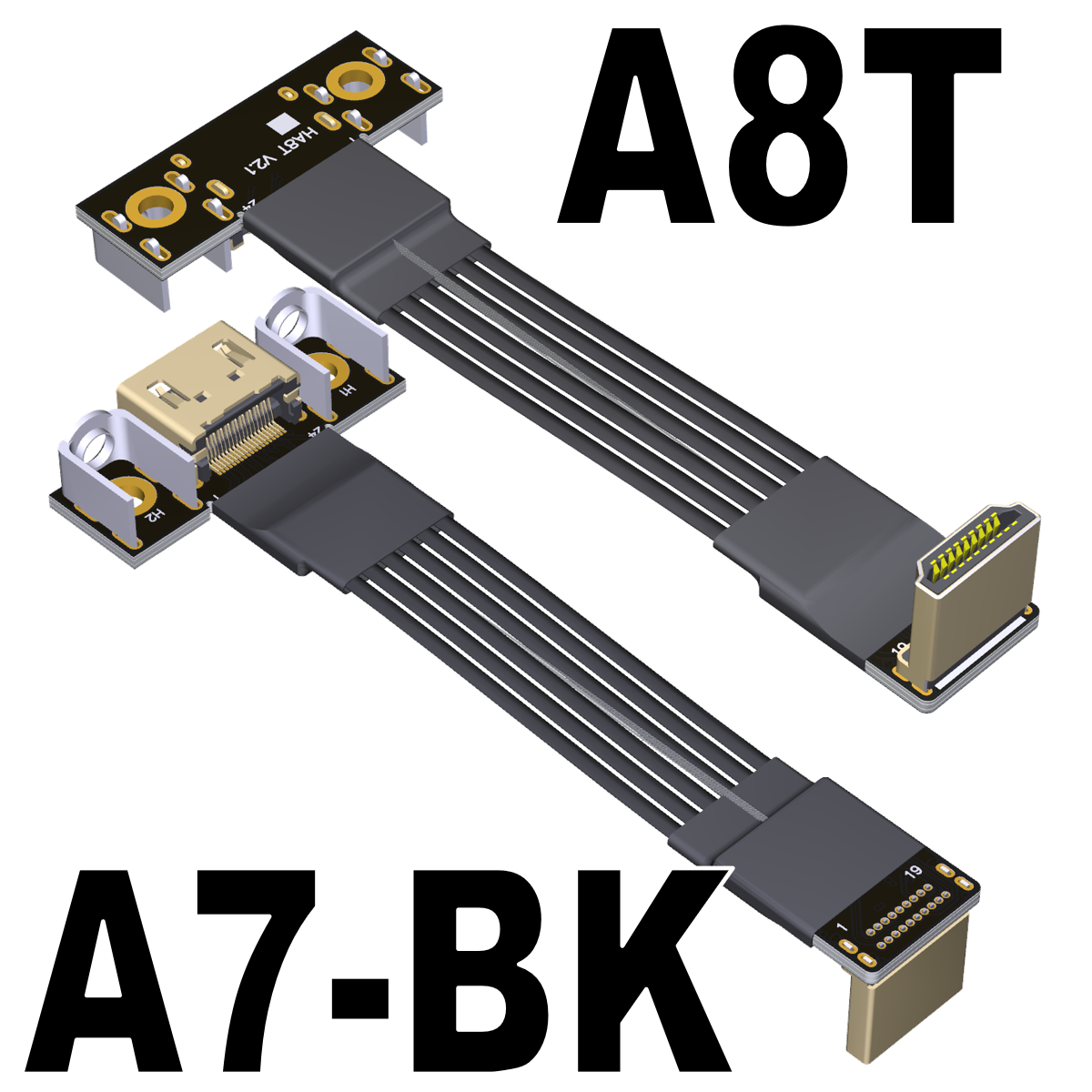

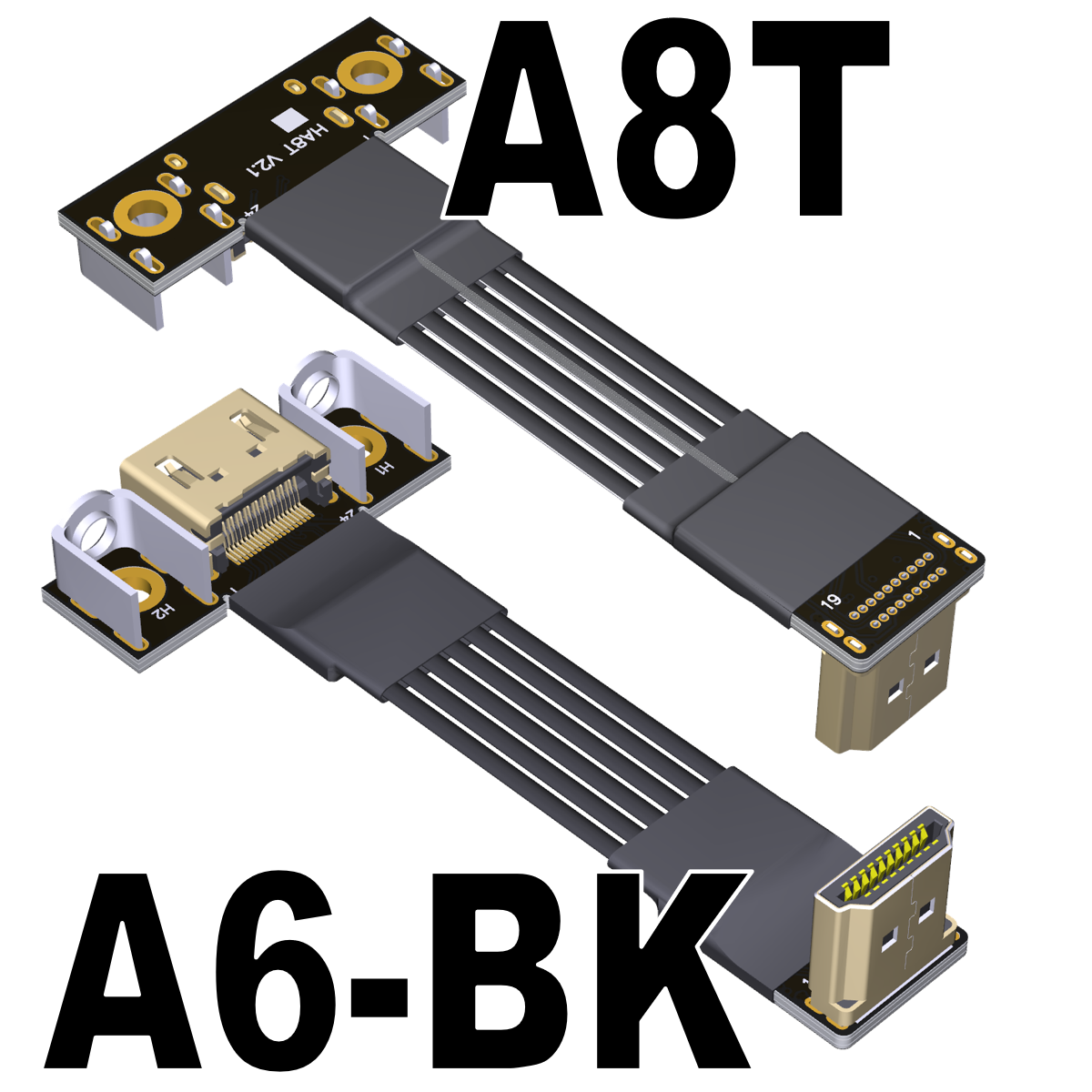

Model A8Q, what is the hole spacing of A8T?
As shown in the figure below, please use M4 screws, the hole distance is 27mm, please refer to the 3D model for specific dimensions
Model HA8 or HA8T has no chip, and the signal attenuation may not meet the requirements of HDMI2.1 high-speed signal transmission after two HDMI cables are connected in series.

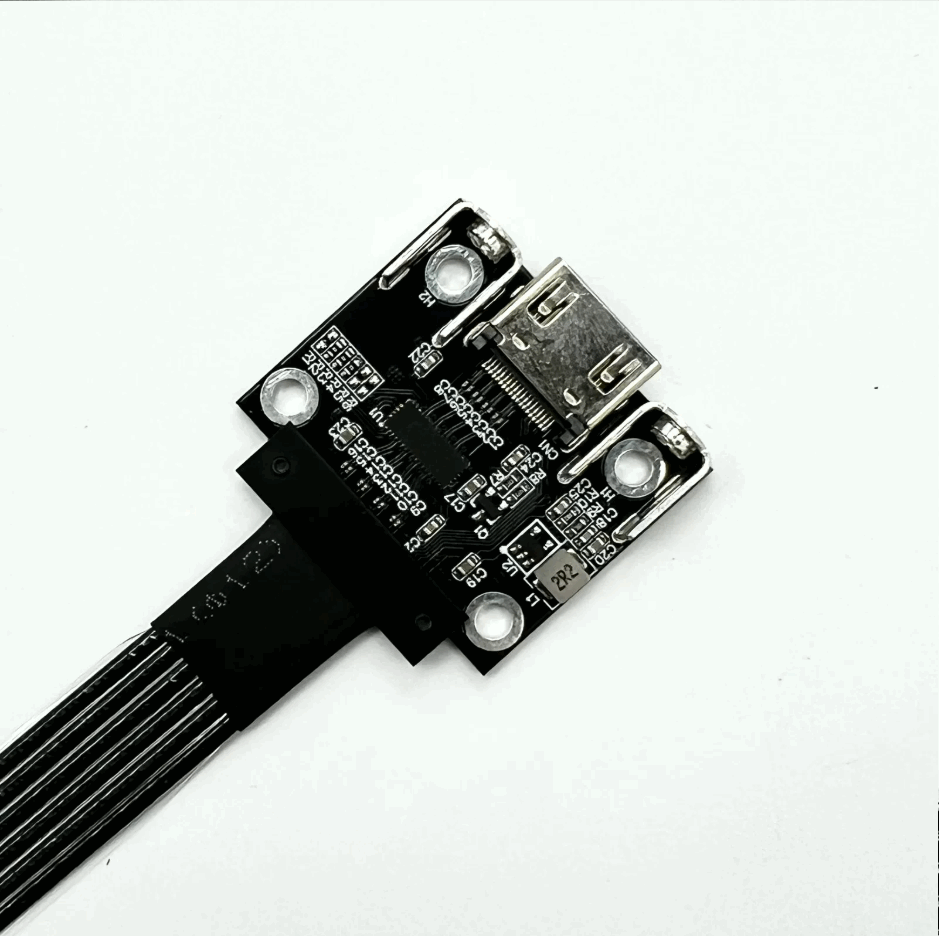

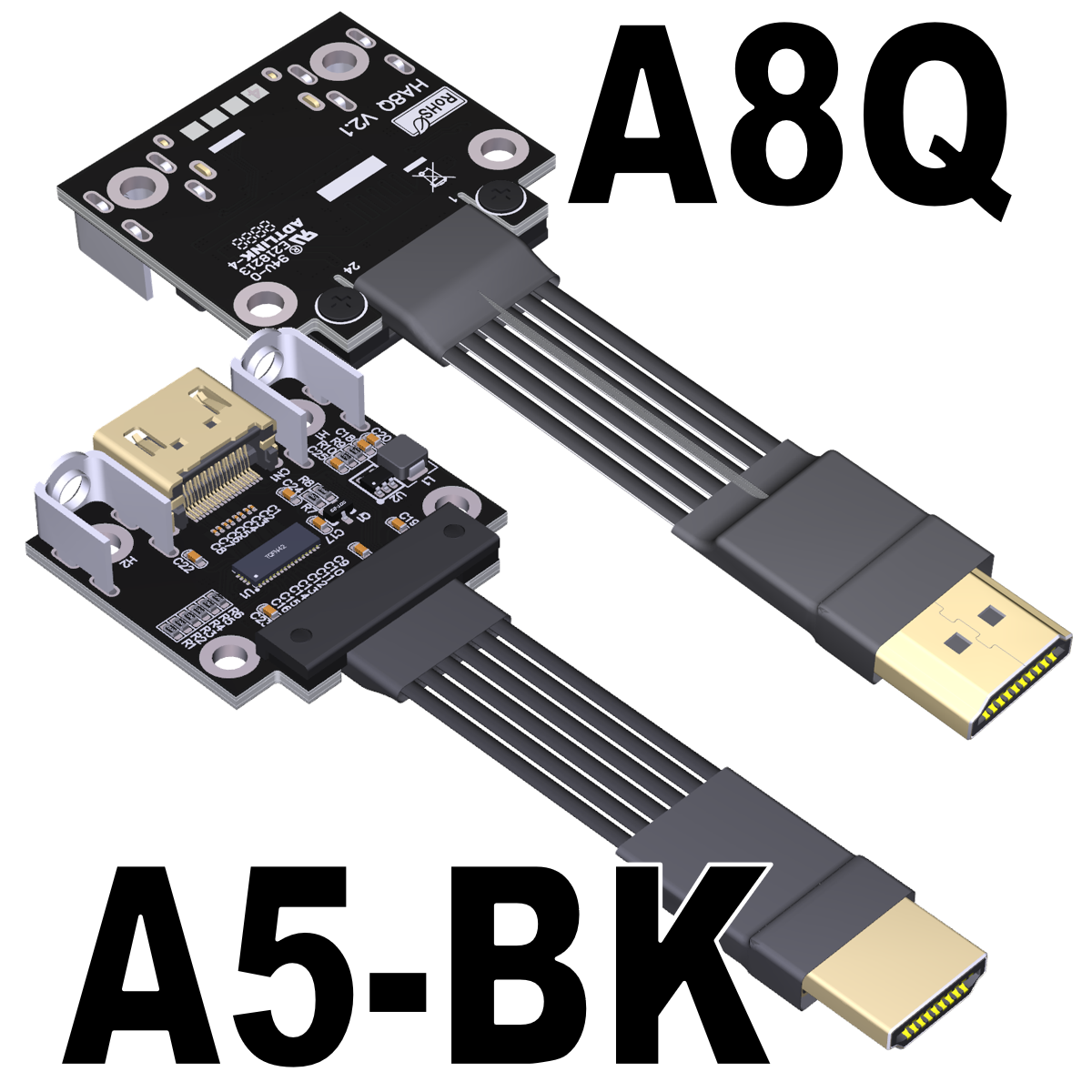

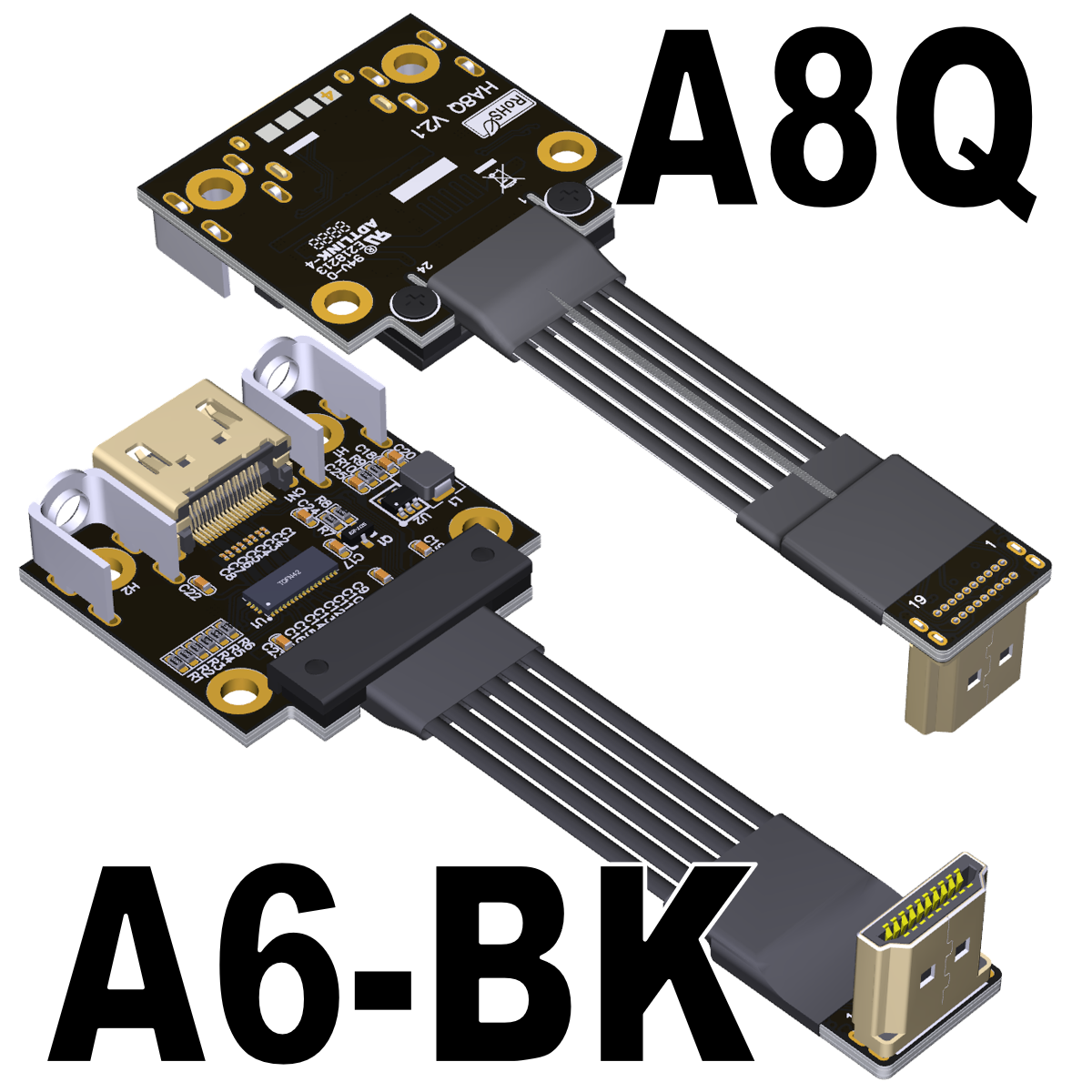

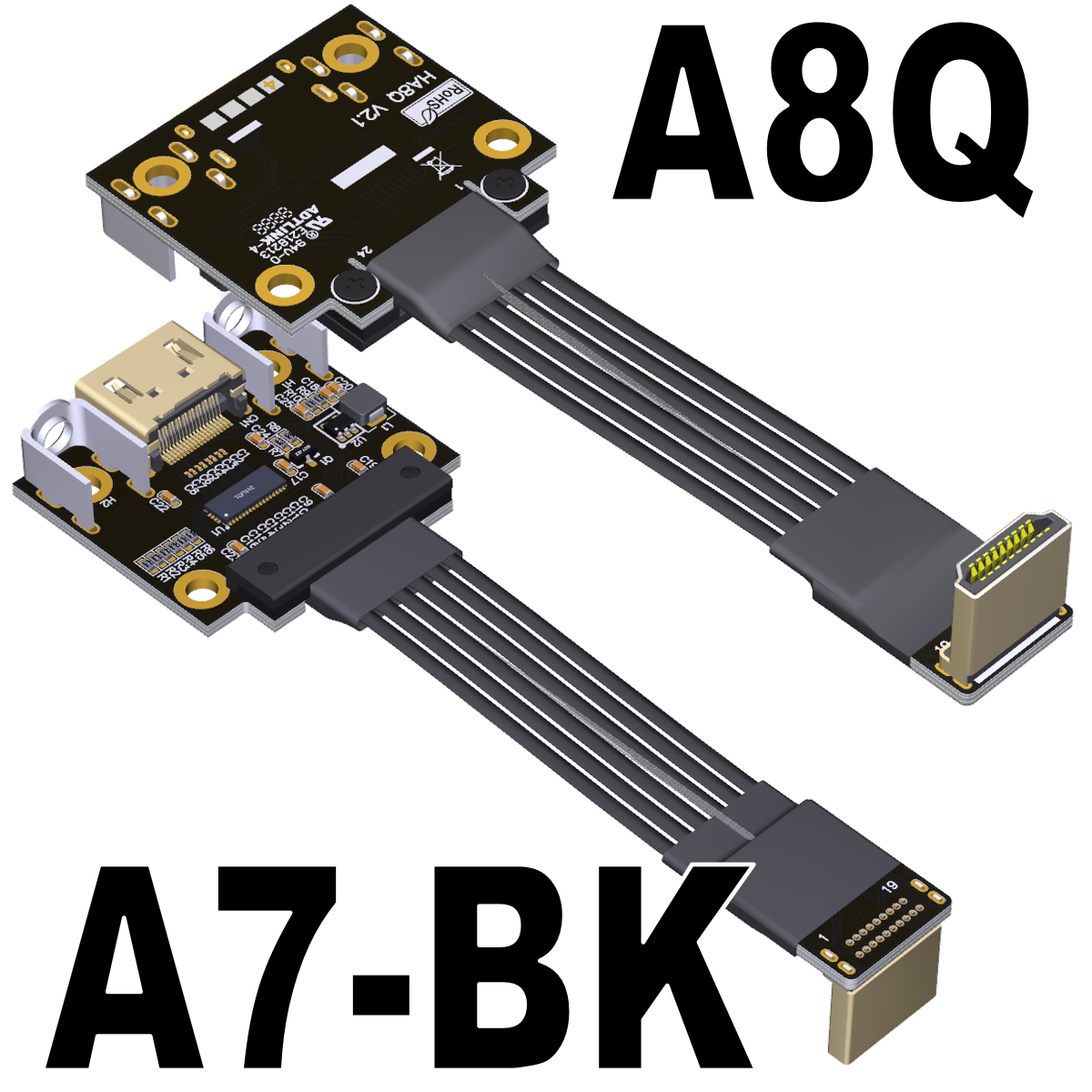

Model HA8Q with chip, using Diodes/Pericom's PI3HDX12211 Redriver signal repeater (Repeater IC), this chip can regenerate the HDMI2.1 signal to enhance its signal quality. To reduce the error rate of signal transmission, the reference diagram is as follows:.

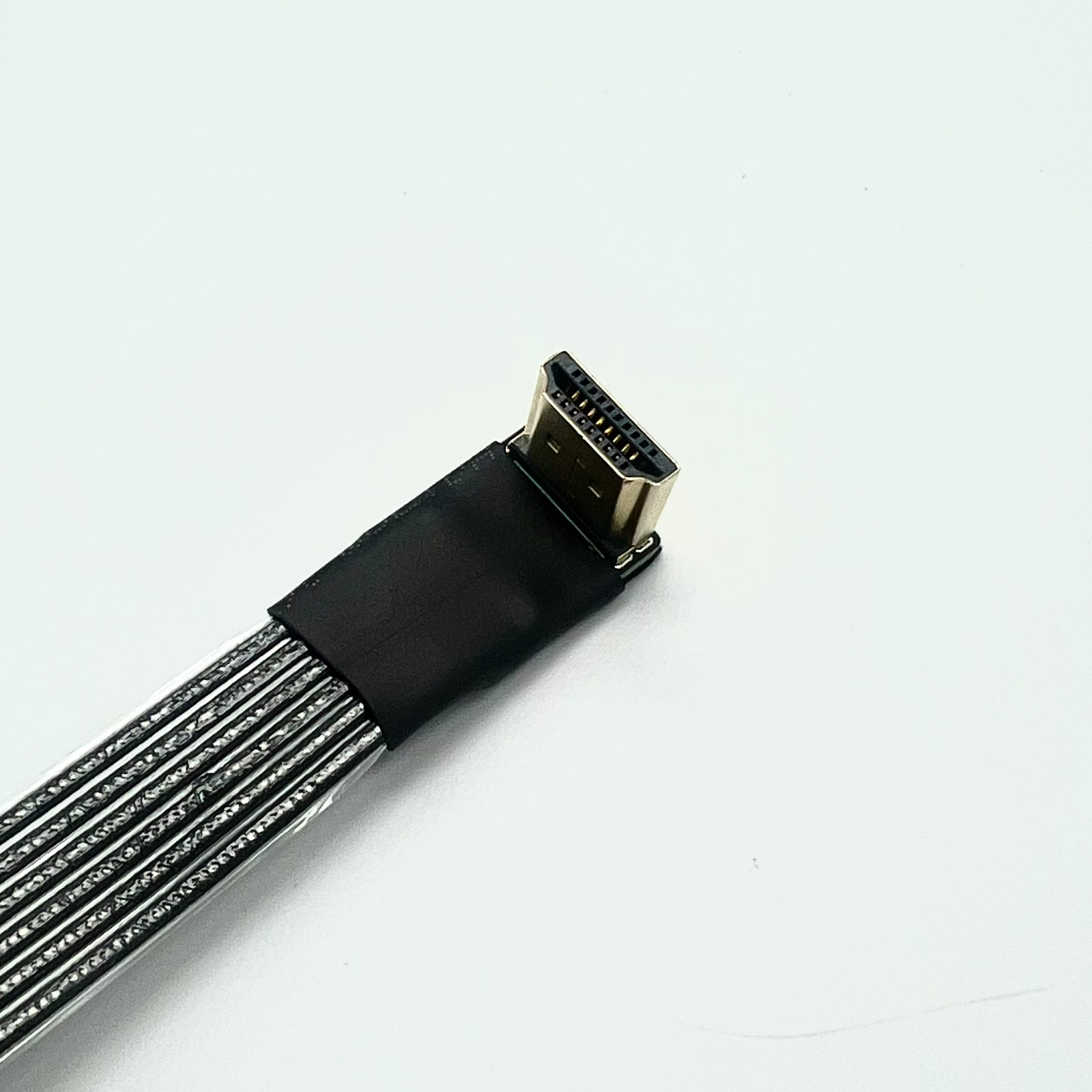

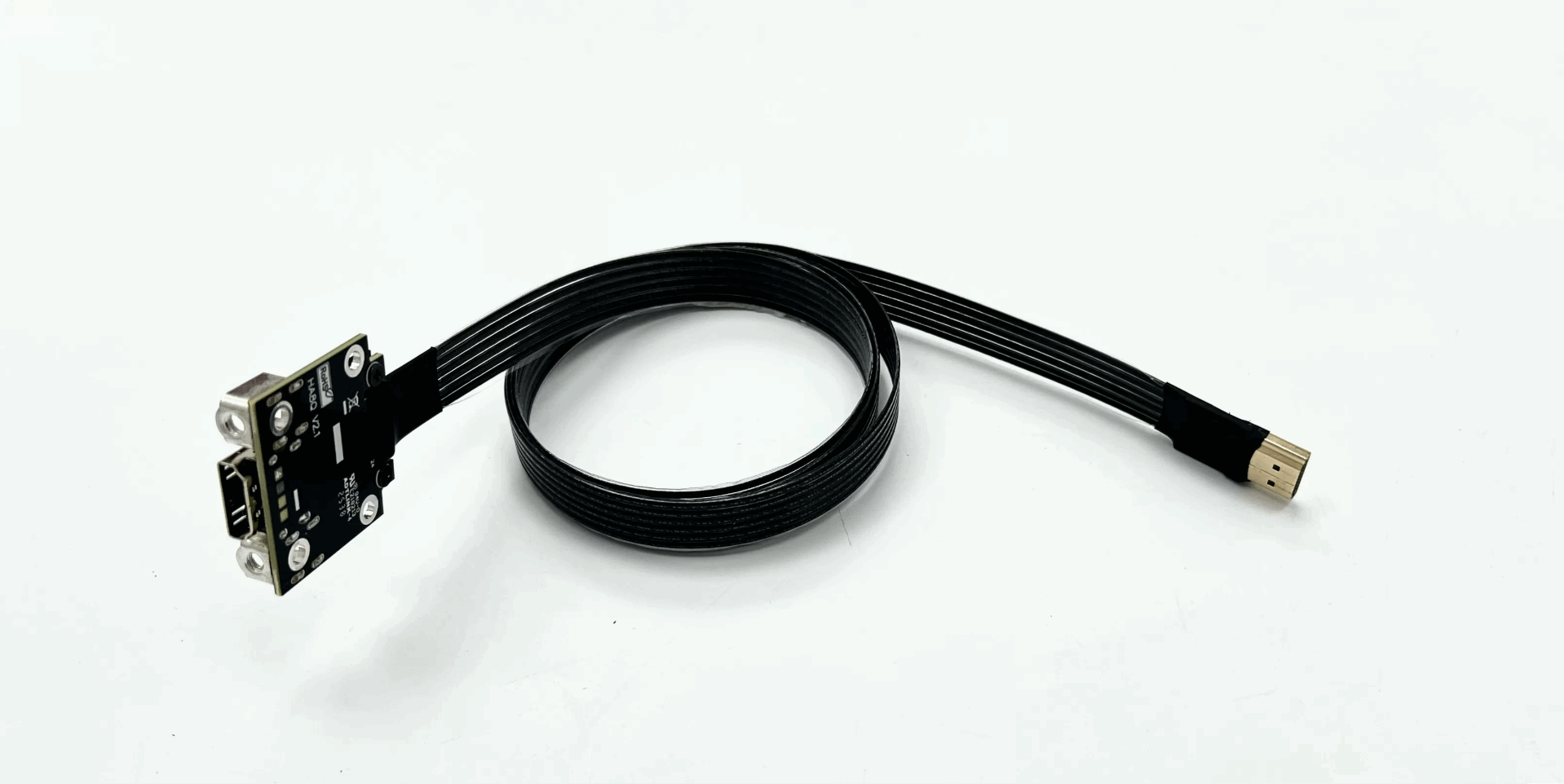

Photo:
Download:
To open 3D PDF files. Please use Adobe Reader DC software.
FTP: Los Angeles
3D PDF files download: http://www.adt.link/download/HAA-MF-24P.ZIP
Schematic download: http://www.adt.link/download/schematic_hdmi.pdf
FTP: Hong Kong
3D PDF files download: http://www.adtlink.cn/download/HAA-MF-24P.ZIP
Schematic download: http://www.adtlink.cn/download/schematic_hdmi.pdf
WebShop:
http://www.adt.link/product/HAA-MF-24P-Shop.html
Keywords:
Aerial FPV PTZ HDMI flexible flat ribbon cable FFC cable FPV HDMI Cable Standard Male to female Straight
A1 HDMI Mini HDMI Micro HDMI 2.0 Converter Cable Angle highly-routable foldable axial elbow
3 / 5 /10 /15 /20 /30 /50 / 100 / 150 / 200 cm For PC AV HDTV LCD FPV FFC 3D Multi copter
2K 4K 50/60Hz for HDTV AV Aerial Photography 90 Degree Connector Drone Gopro DSLR gimbal kit
Micro HDMI use for GH4 GoPro BMPCC A5000 A6000 A7R A7S and other all Micro HDMI interface device;
Mini HDMI use for 5D3 5D2 GH3 GH2 5N 5T 5R 7N and other all Mini HDMI interface device;
HDMI use for UHD TV ,RED BMCC FS7 C300,Blu-ray players, Fire TV, Apple TV, PS4, PS3, XBox one, Xbox 360, computers, Android TV box, mxiii, m8, mxq and other all HDMI-enabled devices. HDMI V2.1 Ver 2.1
