Brand name: ADT-LINK
Product name:M.2 NVMe to PCIe x16 eGPU Adapter
Product model: F43SG
Transferspeed:PCIe 5.0 x4, gen5, 128G/bps (Max.)
Wire length: 25cm,50cm
Application: eGPU for NUC / ITX / STX / Notebook PC
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the figure below.
ADT F43SG series Part-Number Description:
P/N
Description
Bandwidth
F43SG
M.2 NVMe to PCIe x16, connector turn 90° extension cable
PCIe 5.0 x4 (128G/bps)
F43SG-BK7
M.2 NVMe to PCIe x16, connector turn 90° extension cable+Bracket
PCIe 5.0 x4 (128G/bps)
Can F43SG Support PCIe 5.0?
The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result of F43SG-50cm
Product advantages
1.Four LED indicators: CLK, RST, 12V and 3V
2.Using aluminum alloy gaskets, it can effectively block interference and noise, making it strong and durable.
3.FFC wire, flat cable design with full coverage and shielding, thickness only 0.5mm, ultra-soft and ultra-thin.
4.The PCB uses a four-layer high-frequency impedance board with advanced design, exquisite workmanship, stable and fast signals, excellent wiring, good isolation, and can reach the PCIe 5.0 standard.
5.The gold finger is 10µ" gold-plated, resistant to plugging and unplugging, and has better stability.
6.The connector is from Amphenol, the shell material is PA10T/LCP, the socket has a durability of 50 Cycles, supports high frequency and complies with RoHS/Free (HF) requirements.

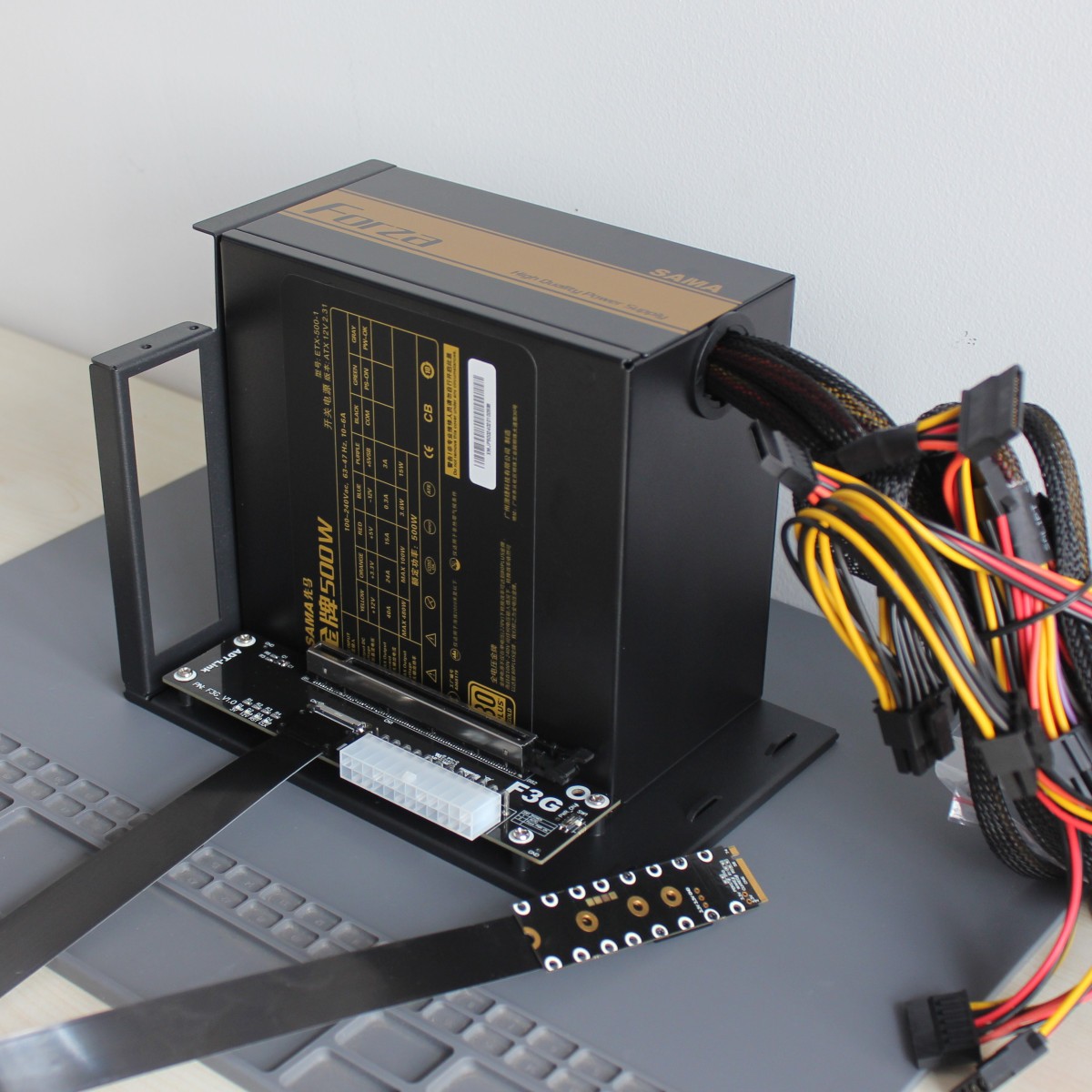

Installation renderings
Photo:
Q&A:
Is there any EMI shielding for Cable?
With metal shielding. The cable uses the latest EMI shielding materials with full cable coverage shielding to prevent the incoming or outgoing of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.
What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.
Download:
To open 3D PDF files. Please use Adobe Reader DC software.
FTP: Los Angeles
3D Step & 3D PDF files download http://www.adt.link/download/ADT_F43SG_3D.zip
Installation Tutorial file download http://www.adt.link/download/F43SG-BK7 Installation Tutorial.mp4
FTP: Hong Kong
3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_F43SG_3D.zip
Installation Tutorial files download http://www.adtlink.cn/download/F43SG-BK7 Installation Tutorial.mp4
