M.2 NVMe to PCIe x16 Extender

K4S-F34C

Product ID：K4S-F34C
Interface: M.2 NVMe / PCIe x16
Transferspeed:PCIe 5.0
Shelf time：2026-08-20
Product description: ADT PCIe 5.0 M.2 NVMe SSD to x16 Split extension riser cable
INQUIRY

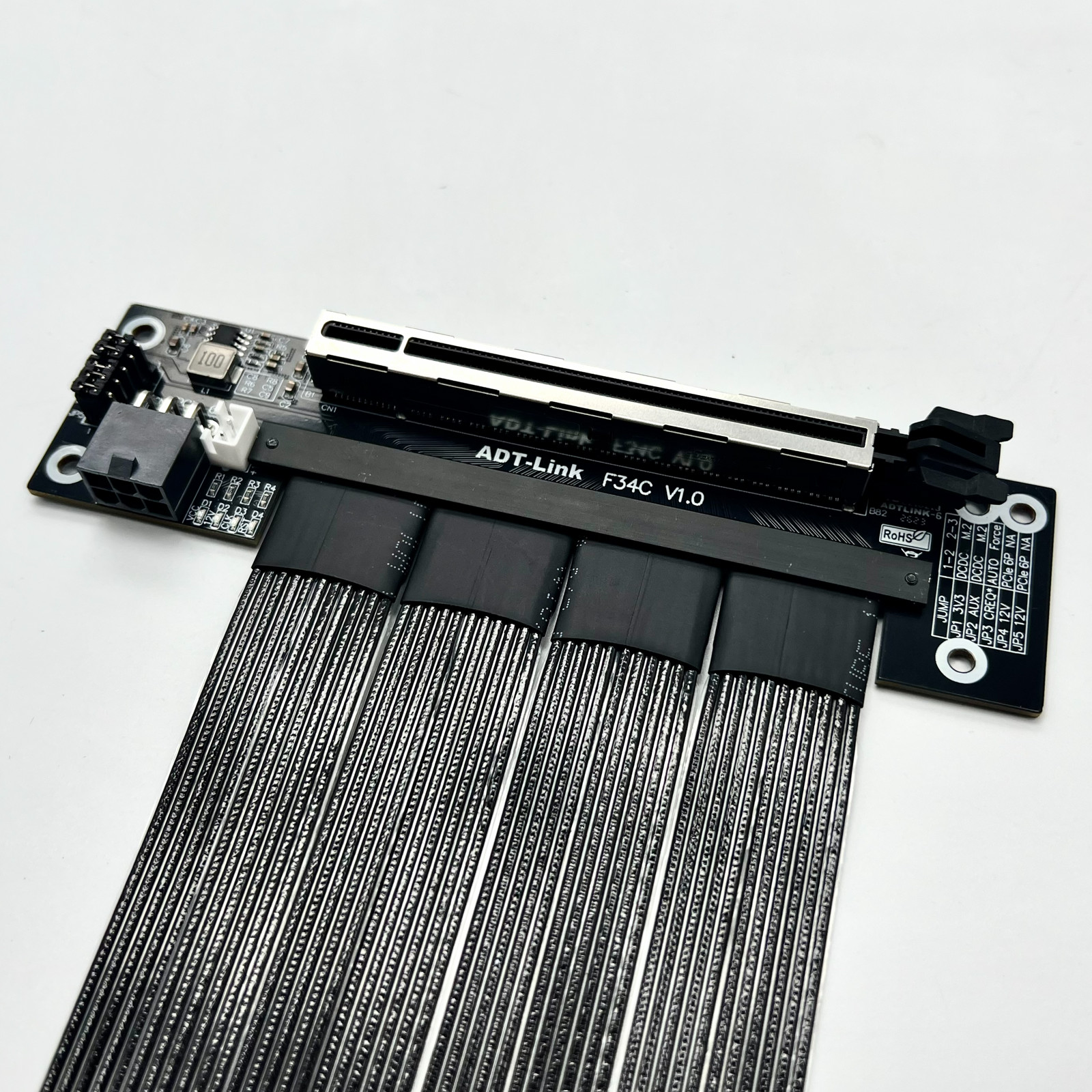

ADT-Link M.2 NVMe to PCI express x16 Split Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x16 split extension cable

Product model: K4S-F34C,K4S-F34C-D8S,K4S-F34C-Q4S

Transferspeed:PCIe 5.0

Wire length: 10 ~ 100 cm, the length can be customized

Cable length Description:

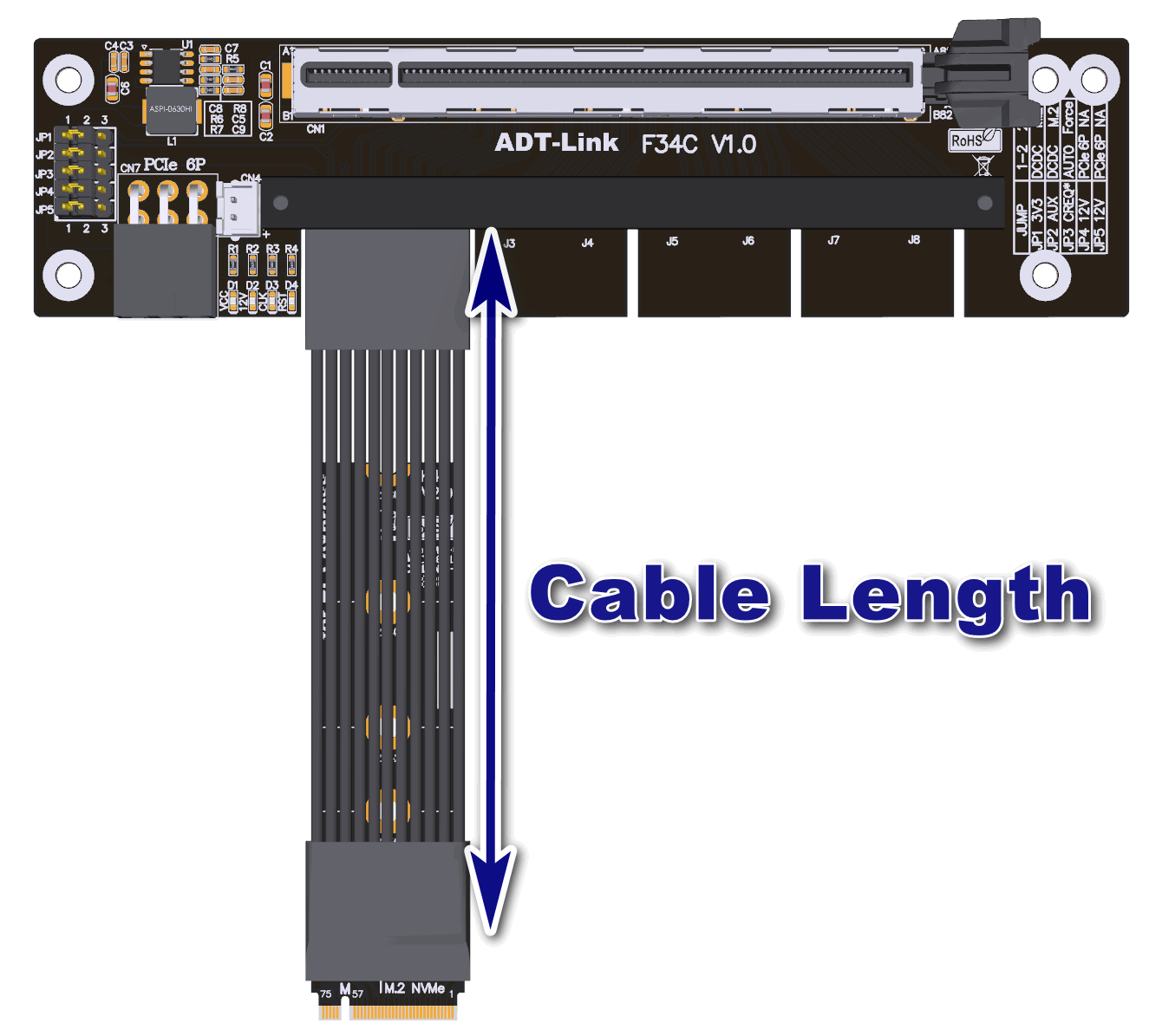

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the figure below.

ADT K4S-F34C series Part-Number Description:

P/N	Description	Bandwidth

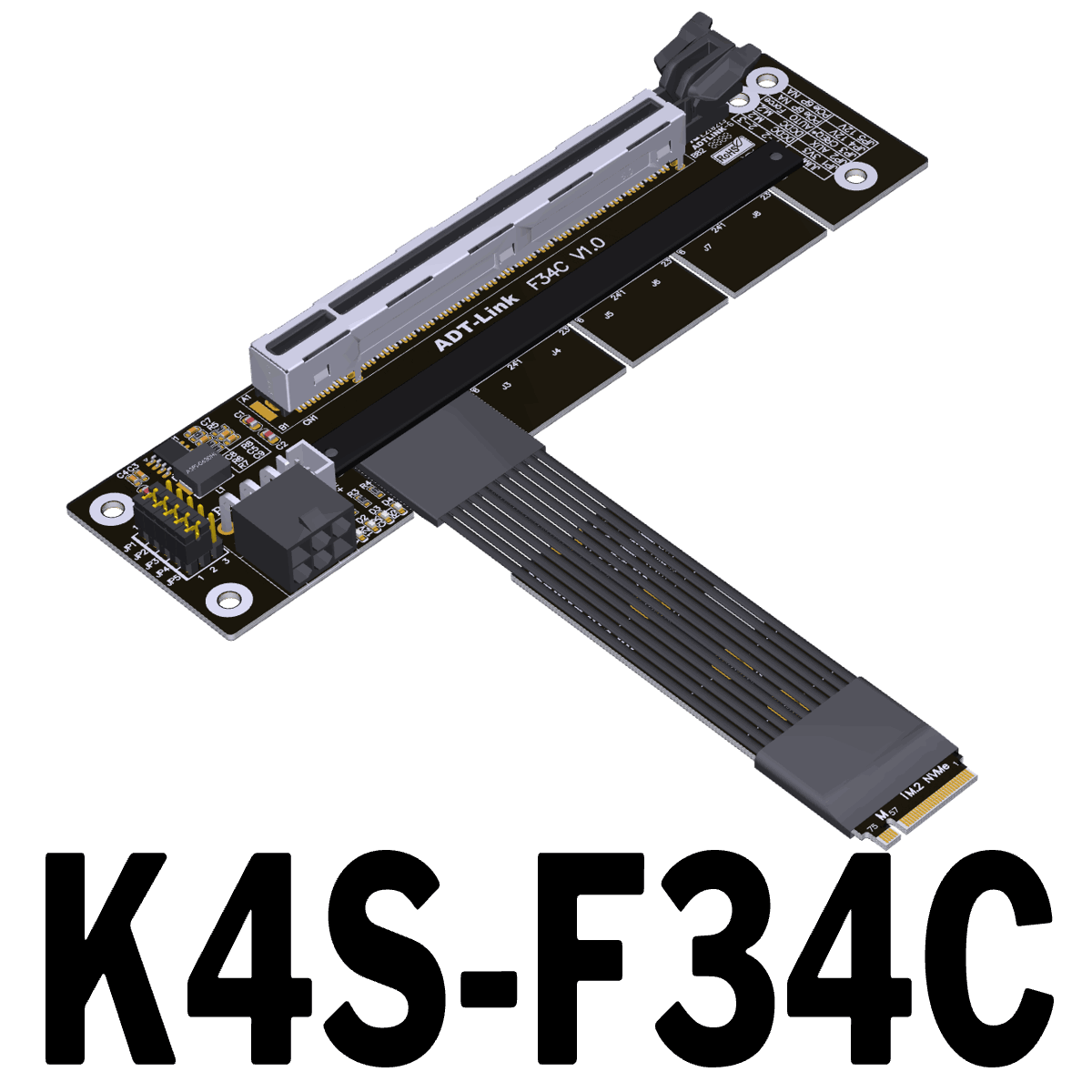

K4S-F34C	M.2 NVMe to PCIe x16, connector turn 270° extension cable	PCIe 5.0 x4

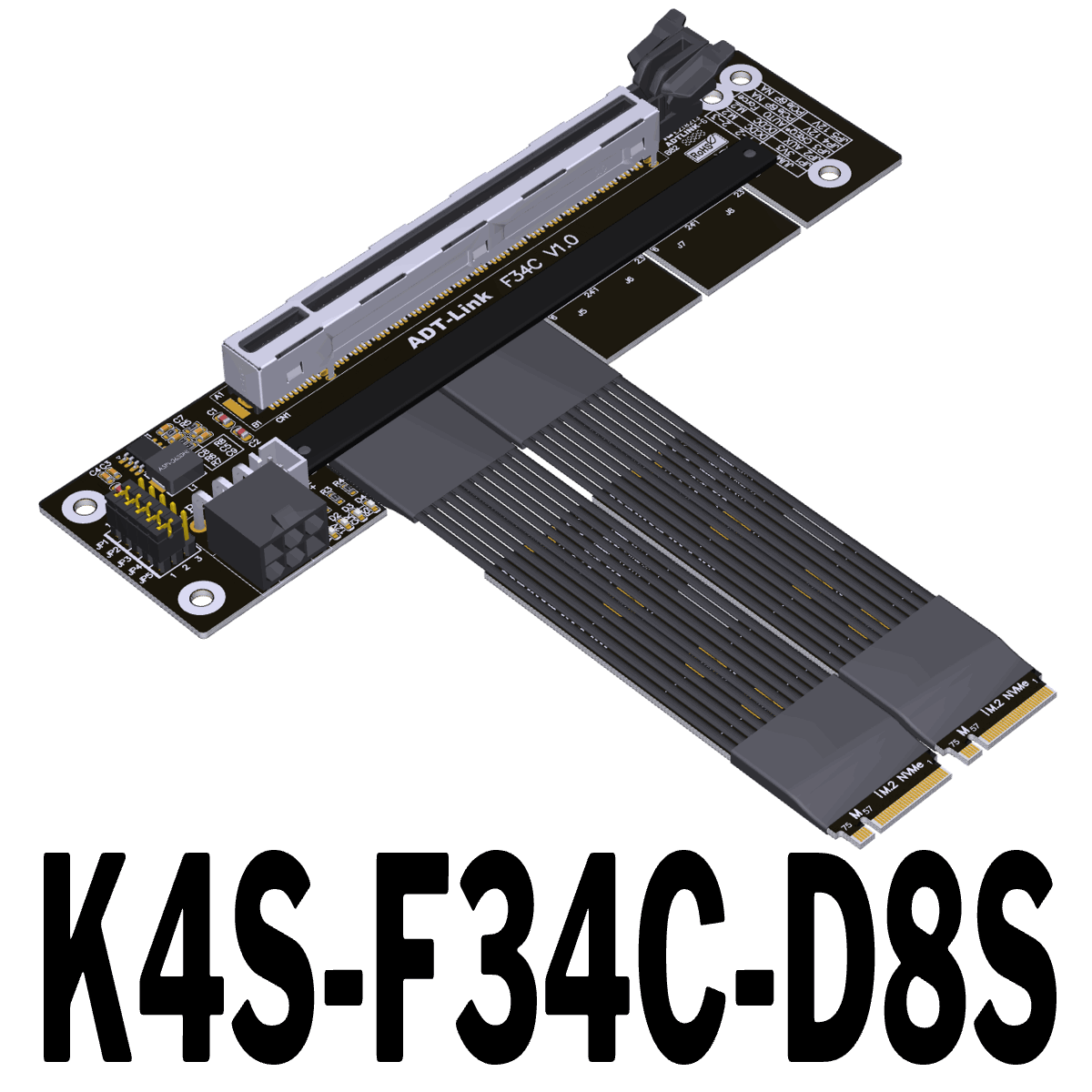

K4S-F34C-D8S	2xM.2 NVMe to PCIe x16, connector turn 270° extension cable	PCIe 5.0 x8

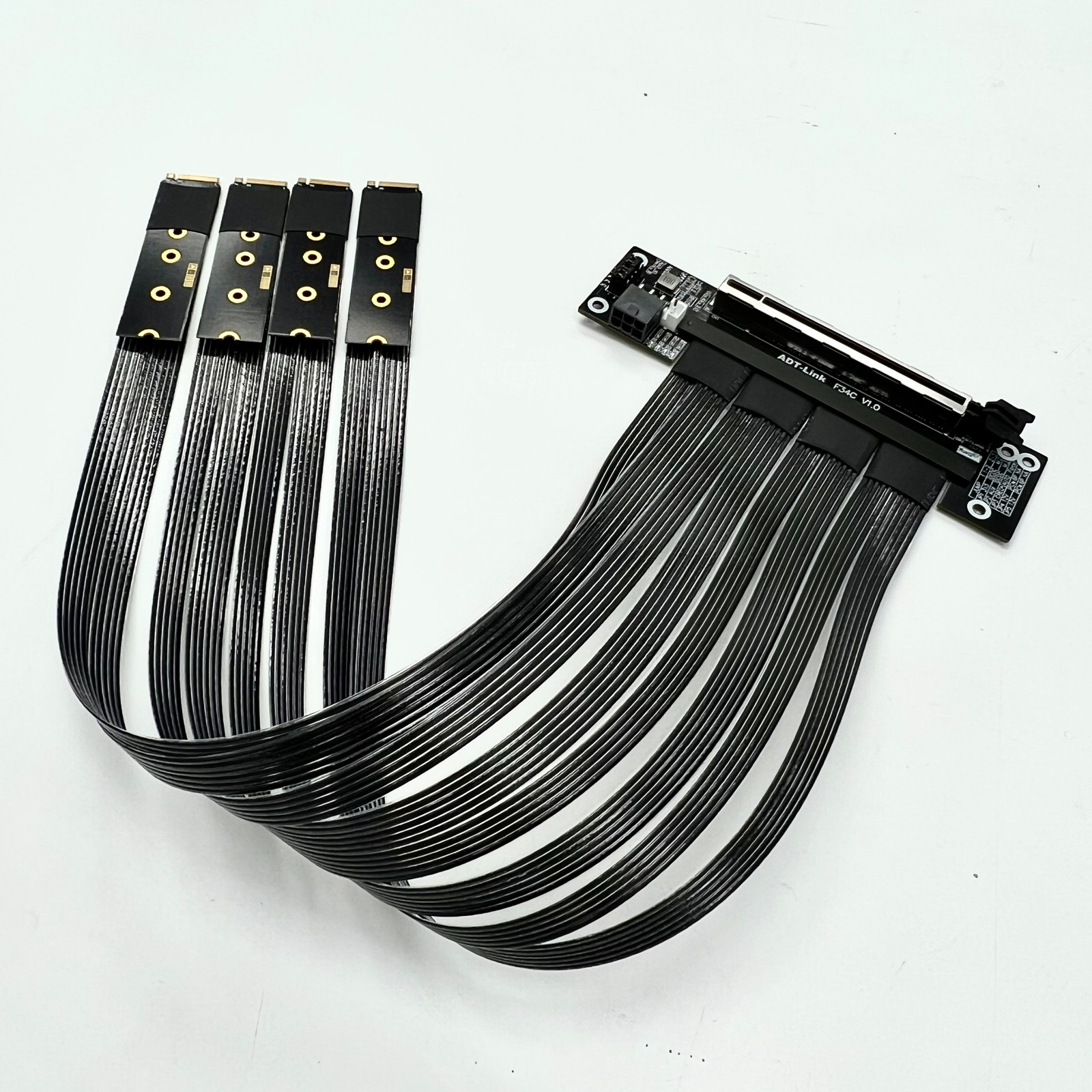

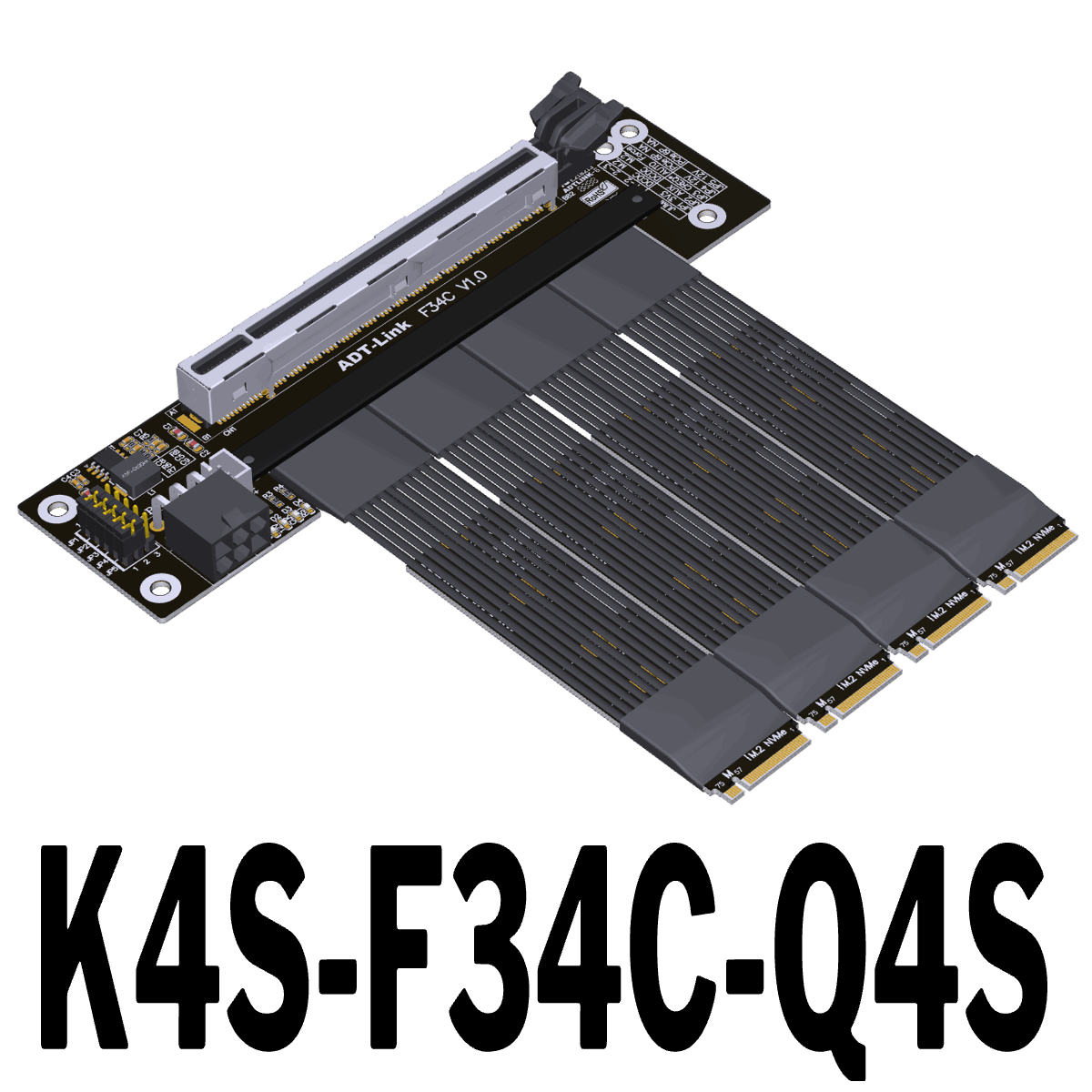

K4S-F34C-Q4S	4xM.2 NVMe to PCIe x16, connector turn 270° extension cable	PCIe 5.0 x16

Can K4S-F34C Support PCIe 5.0?

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.8mm, which can be bent freely without affecting its use.

How to confirm whether the motherboard supports Bifurcation PCIE splitting?
Please check the motherboard manual yourself. The manual or BIOS options will explain Bandwidth PCIE channel splitting or Bifurcation options. If it is not mentioned, it is not supported.
