DP Extension Cable

DPP21 MM series

Product ID：DPP 2.1 male to male series
Interface:DP male / DP male
Application: Displayport Cable
Shelf time：2025-10-10 11:07:19
Product description: DPP 2.1 displayport male to male cable
INQUIRY

Cable Length

Model

Note

ADT-Link DP 2.1 Male to male Flat Cable

Brand name: ADT-LINK

Product name: DP 2.1 male to male extension cable

Product model: DPP 2.1 MM series

Transfer speed: DP 2.1(1080P-480Hz,2K-240Hz, 4K-240Hz, 8K-240Hz,10K-60Hz,16K-60Hz(with DSC))

Wire length: 5 ~ 200 cm, the length can be customized

Operating temperature: -20°C ~ 80°C

Application: For Video card, Graphics card extension

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Note: The extension cable does not support two or more DP cables connected in series. If you connect more than two DP cables in series, the signal will be attenuated. It may not be used normally.

ADT DP series Part-Number Description:

Product Name	Cable Material	Part-Number	Bandwidth

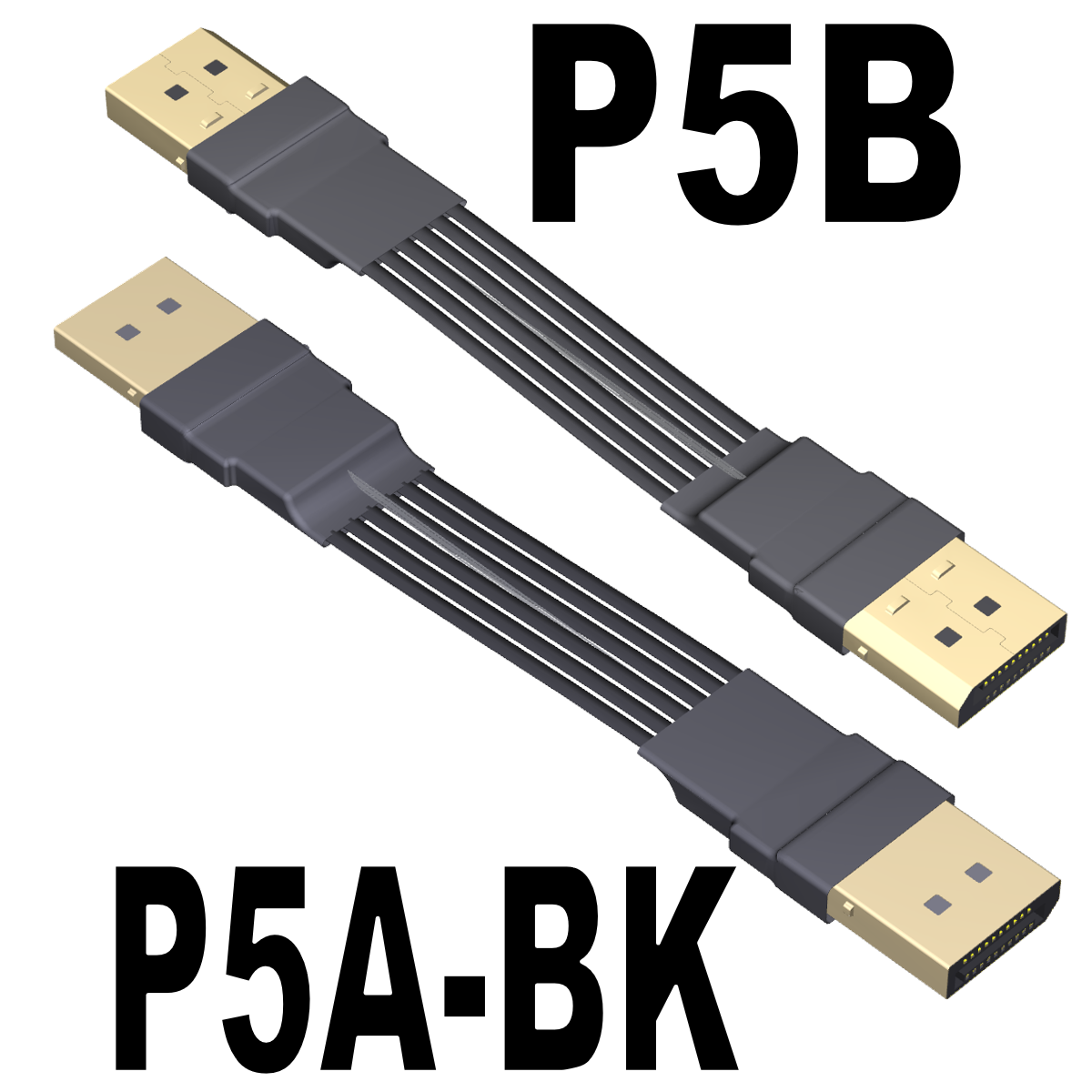

DP Cable, flat mount male to flat mount male	Black with metal shield	P5A-P5B-BK	DP2.1

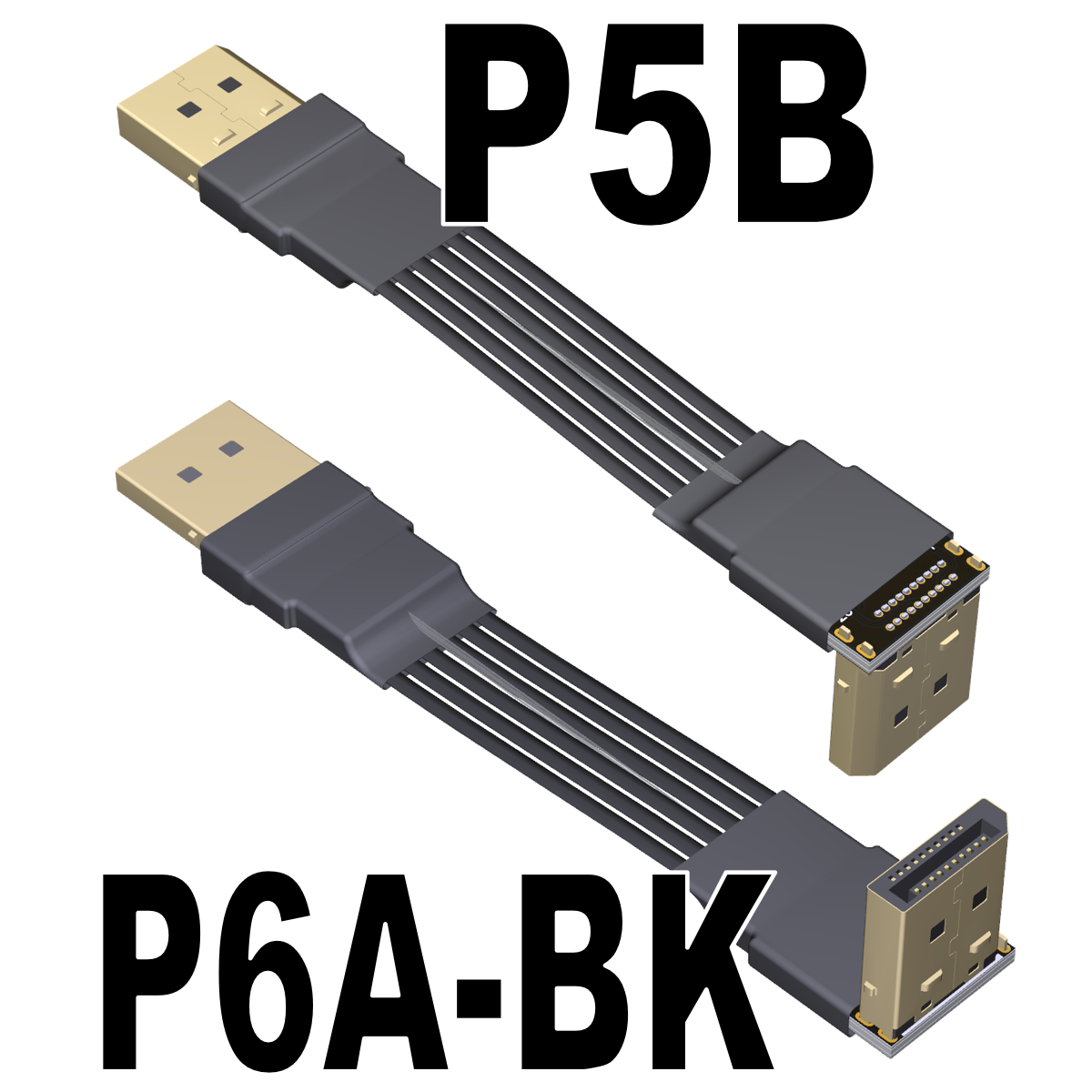

DP Cable, flat mount male to Turn up male	Black with metal shield	P5A-P6B-BK	DP2.1

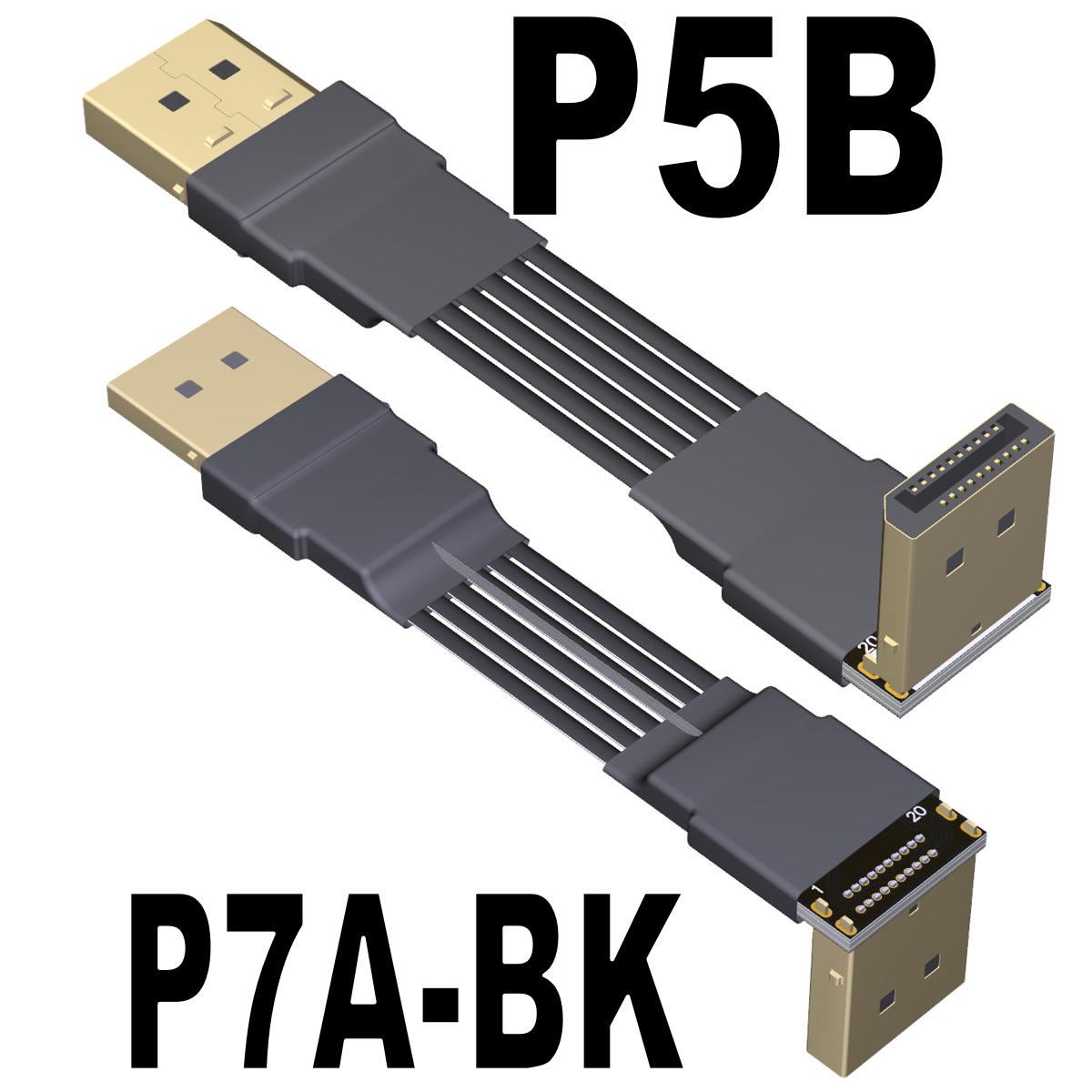

DP Cable, flat mount male to Turn down male	Black with metal shield	P5A-P7B-BK	DP2.1
DP Cable, turn up male to Turn up male	Black with metal shield	P6A-P6B-BK	DP2.1
DP Cable, turn up male to Turn down male	Black with metal shield	P6A-P7B-BK	DP2.1
DP Cable, turn down male to Turn down male	Black with metal shield	P7A-P7B-BK	DP2.1

P5_DP flat mount； P6_DP turn up； P7_DP turn down； P8_DP female

M1_mini DP flat mount；

Cable length Description:

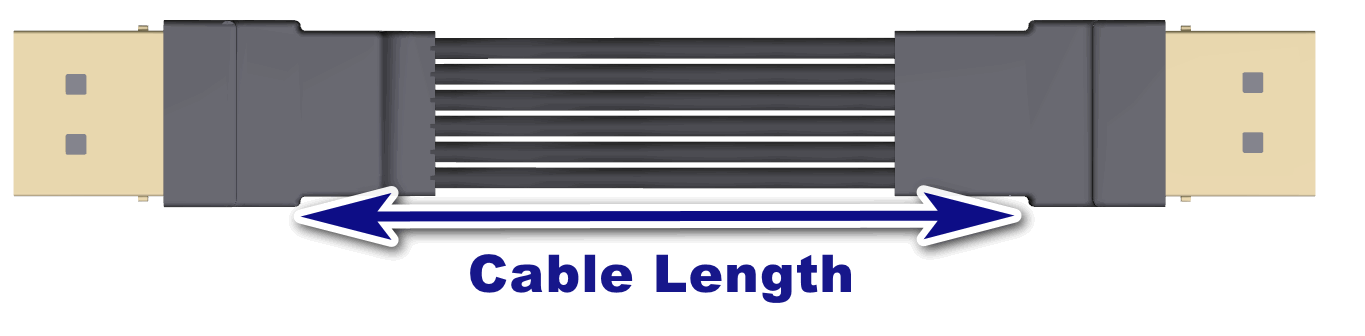

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.

Q&A:

How compatible are wires?

Supports DP 2.1 high-speed, supports 1080P-480Hz,2K-240Hz,4K-240Hz,8K-240Hz,10K-60Hz,16K-60Hz(with DSC).

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. The cable is added with a metal shield. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.8mm, which can be bent freely without affecting its use.
