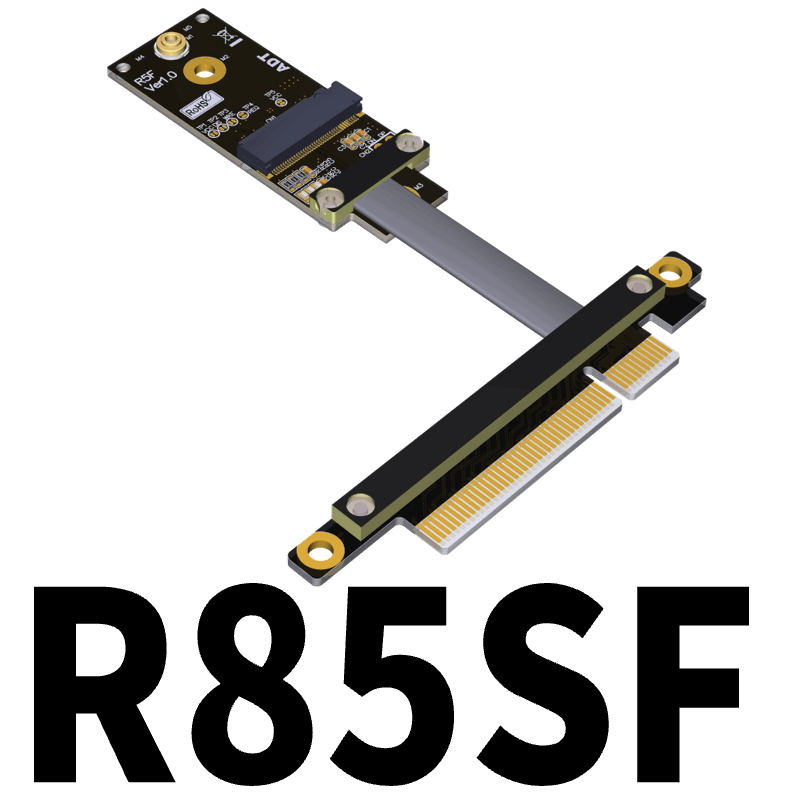

PCIe x8 to M.2 WiFi Extender

  • R85SF
R85SF

R85SF

  • Product ID: R85SF
  • Interface: PCIe x8 / M.2 WiFi
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x8 to M.2 WiFi adapter extension cable.
  • INQUIRY

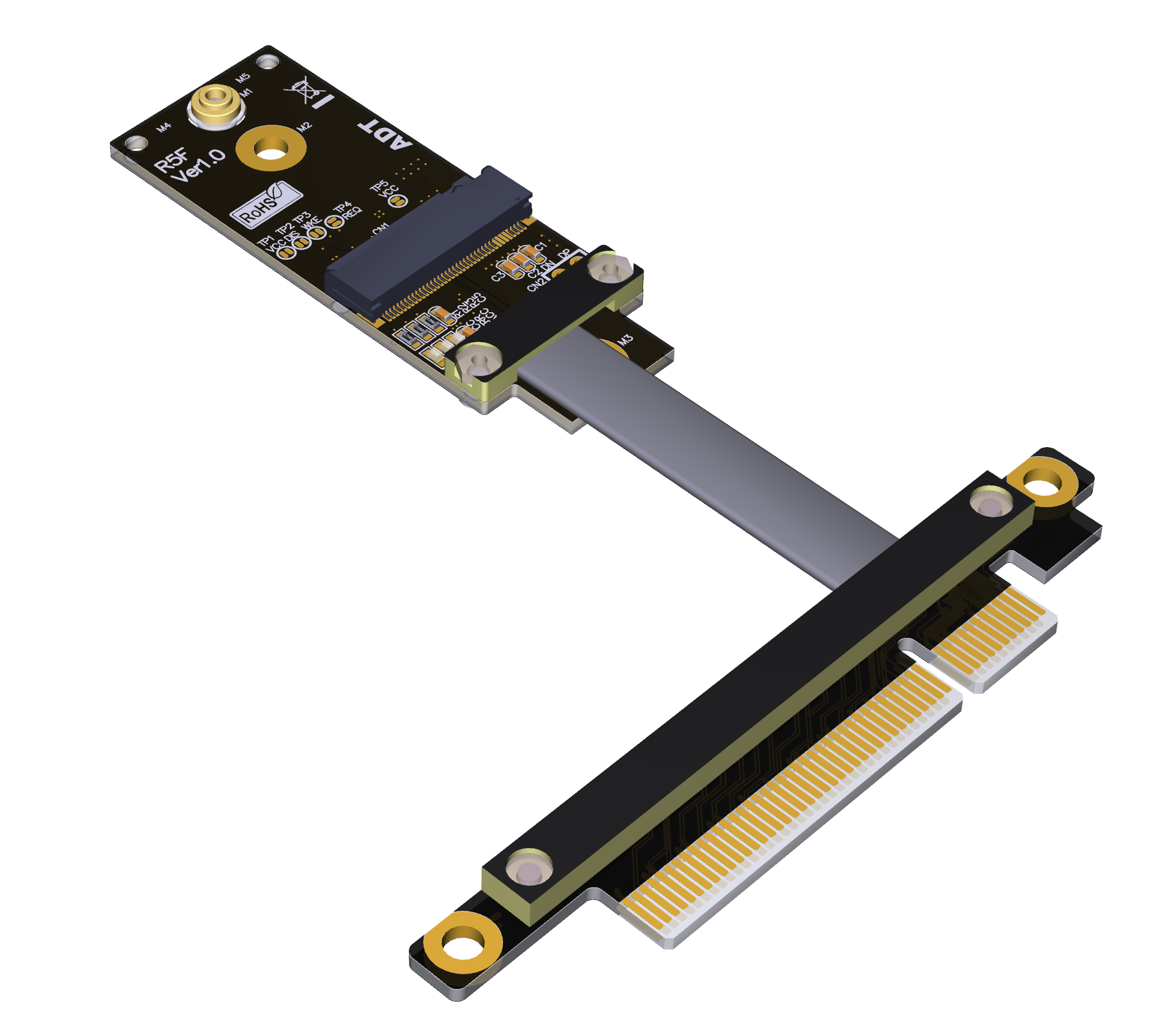

ADT-Link PCI express 3.0 x8 to M.2 WiFi Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to M.2 WiFi extension cable

Product model: R85SF

Transfer speed: PCIe3.0 x1, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: M.2 WiFi card to PCIe x8 slot extension cable


ADT R85 series Part-Number Description:

P/N
Description
Bandwidth
R85SF PCI-E x8 edge to M.2 key A.E. WiFi connector extension cables PCIe 3.0 x1 (8G/bps)



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R85_3D.zip

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R85_3D.zip

WebShop:

http://www.adt.link/product/R85SF-Shop.html
