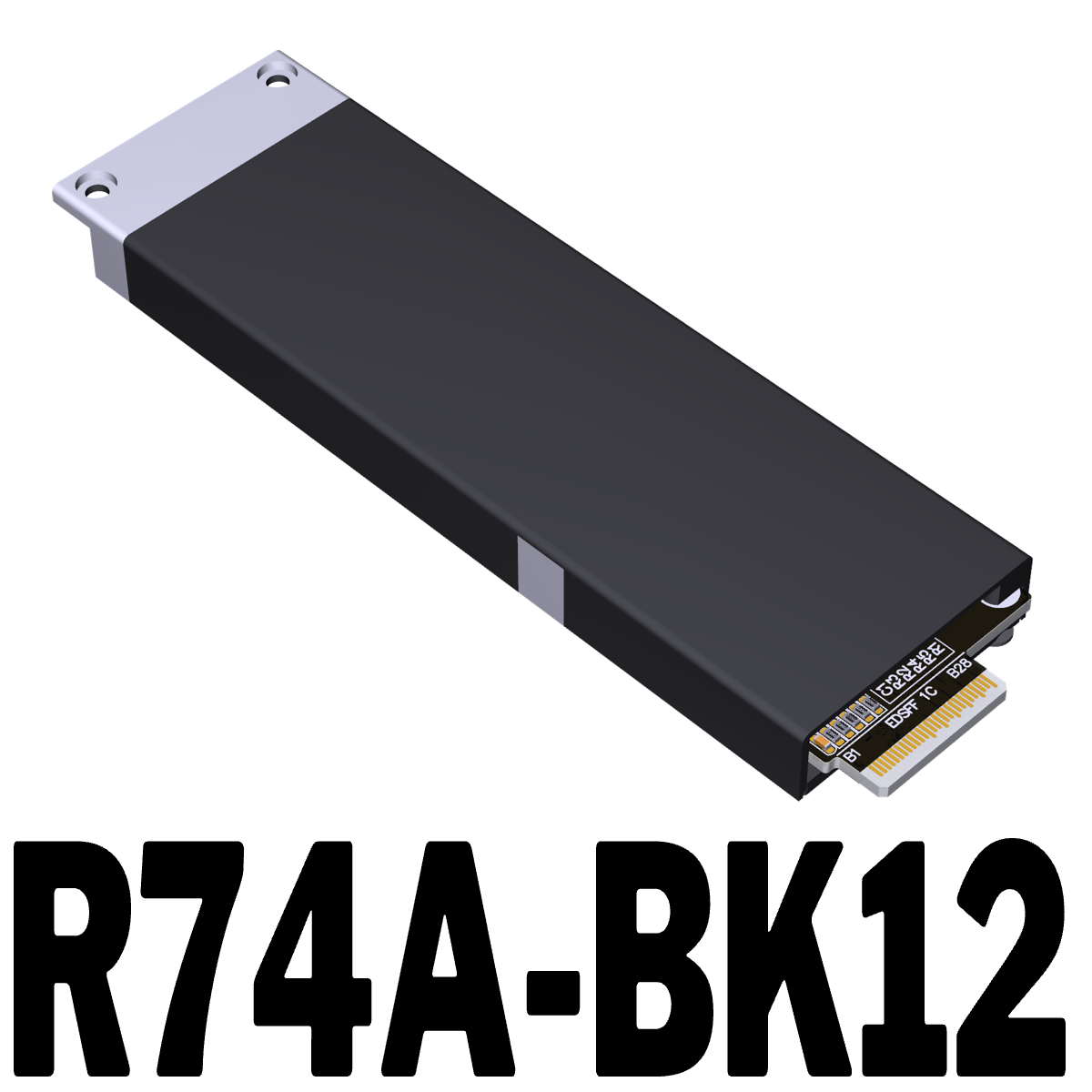

ADT-Link PCIe 5.0 EDSFF E1.S to M.2 NVMe adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 EDSFF E1.S to M.2 NVMe adapter

Product model: R74A

Transfer speed: 128Gb/Sec (PCIe gen5 x4 Max.)

Weight: 20g

Dimension: support M.2 NGFF key M(2230) 22mm x 80mm NVMe card

Application:EDSFF E1.S to  M.2 NVMe adapter extesnion riser card

Product advantages:
1. Support PCIe 5.0 x4, compatible with gen3/gen4/gen5
2. Gold finger gold plating process, gold thickness up to 10U, the same level as RTX4090 graphics card, in line with IPC level 1 international standards
3. The product uses high-quality materials, UL certified PCB board, PCB workmanship is precise, copper thickness is thickened to 1oz, no deformation, color yellow crystal semi-transparent not white or black
Photos:

Q&A:

What is the dimension of the R74A?

Why does the LED light of R74A flicker?
The LED light of R14A is a read/write light, and flickering during use is normal.The D1 light of R74A is a power light, which remains on continuously during proper installation and use; D2 light is a read-write light, and flashing during use is considered normal; D3 light is a fault light, and it cannot be used normally when it lights up.

Test data:
Test platform: B660 + G7400++ 4070 + Xingu 850W power supply + R74A +PM9A1(4.0)

Z790+ G7400++ 4070 + Xingu 850W power supply + R74A + T700(5.0)

Notes:
1. Be sure to know the direction when inserting the product, do not insert it in the wrong direction or in the wrong position to prevent burning the device.
2. Only purchases specified by product engineers
3. Supports the general version of M.2 NVMe SSD, does not support M.2 WiFi wireless network card, does not support M.2 SATA, does not support Lenovo/HP network card
Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

2D DWG dimension & 3D model files download http://www.adt.link/download/ADT-R74A.zip

FTP: Hong Kong

2D DWG dimension & 3D model files download http://www.adtlink.cn/download/ADT-R74A.zip

WebShop:

http://www.adt.link/product/R74A-Shop.html
