M.2 NVMe to PCIe x1 Extender

R41SF, R41SL, R41SR

Product ID：R41SF, R41SL, R41SR
Interface: M.2 NVMe / PCIe x1
Application: Extension
Shelf time：2020-02-10 11:07:19
Product description: M.2 NVMe to PCIE extender adapter
INQUIRY

ADT-Link M.2 NVMe to PCI express x1 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe extension cable

Product model:R41SF , R41SL , R41SR

Transferspeed:PCIe3.0 x1, gen3, 8G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized

Application: PCIe x1 USB, wireless LAN, Audio or Capture cards to M.2(ultra SSD, M-key)extension

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

ADT R41 series Part-Number Description:

Part-Number	Description	Bandwidth (Max.)

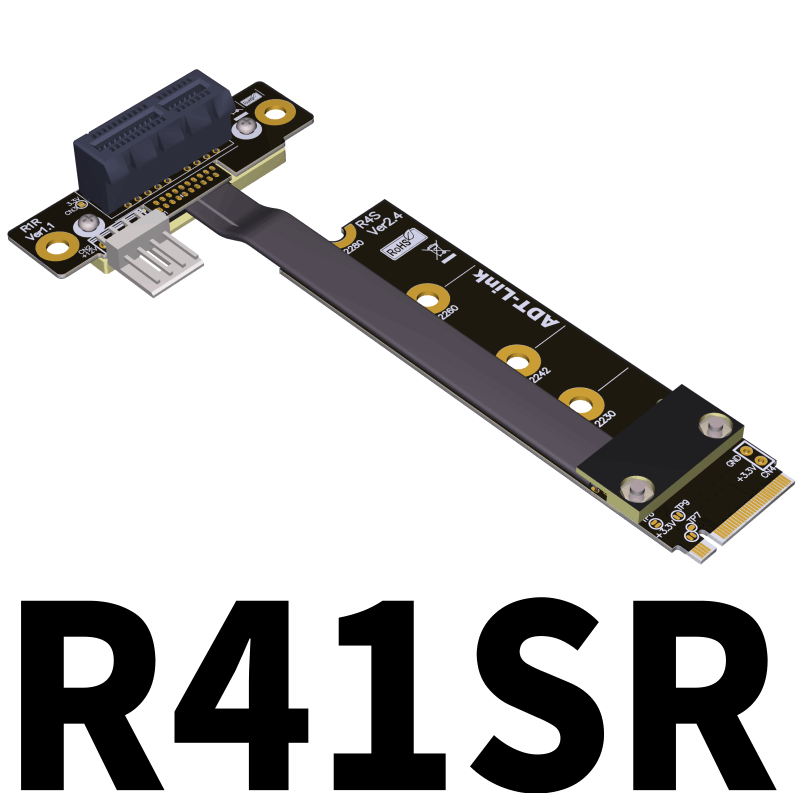

R41SF	M.2 key-M NVMe to PCIe x1 turn 180 degree splint vertical extension cables	PCIe 3.0 x1 (8G/bps)
R41SR	M.2 key-M NVMe to PCIe x1 turn 270 degree inverted reverse extension cables	PCIe 3.0 x1 (8G/bps)
R41SL	M.2 key-M NVMe to PCIe x1 turn 90 degree extension cable	PCIe 3.0 x1 (8G/bps)
R41UF 4.0	M.2 key-M NVMe to PCIe x1, connector turn 180 degree splint vertical,Goldfinger turn left extension cable	PCIe 3.0 x1 (8G/bps)
R41UF 4.0	M.2 key-M NVMe to PCIe x1, connector turn 90 degree ,Goldfinger turn left extension cable	PCIe 3.0 x1 (8G/bps)

Photo:

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
