PCIe x16 to mPCIe Extender

R36SF

Product ID：R36SF
Interface: PCIe x16 / mini-PCIe
Application: Extension
Shelf time：2020-01-10 11:07:19
Product description: PCIe x16 edge to mPCIe slot adapter Cable for NVMe SSD extension
INQUIRY

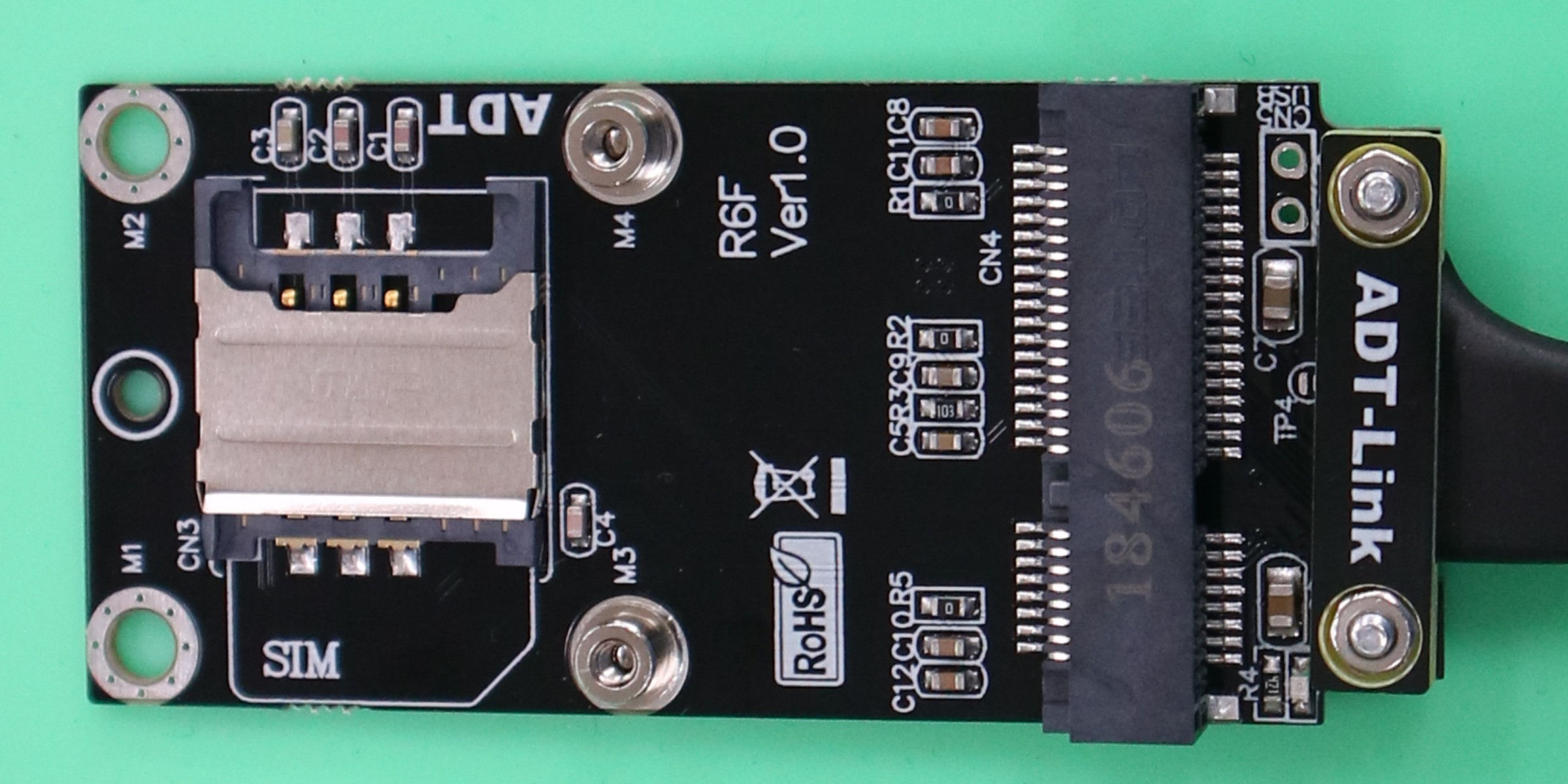

ADT-Link PCIe x16 to mini-PCIe Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to mPCIe extension cable

Product model: R36SF

Transfer speed: PCIe3.0 x1 , 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x16 to mPCIe extension

This product has many restrictions. It does not support mSATA or WWAN. It only supports mPCIe cards with PCIE channels.

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
