PCIe x1 to M.2 NVMe Extender

  • R14SF
R14SF

R14SF

  • Product ID:R14SF
  • Interface: M.2 NVMe / PCIe x1
  • Application: Extension
  • Shelf time:2020-01-10 11:07:19
  • Product description: PCIe x1 to M.2 NVMeextender adapter extension cable
  • INQUIRY

ADT-Link PCIe 3.0 x1 to M.2 NVMe Extension Cable

Brand name: ADT-LINK

Product name: PCIe x1 to M.2 NVMe extension cable

Product model: R14SF

Transfer speed: PCIe 3.0 x1 , 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x1 PCIe to M.2 NVMe ultra SSD slot extension cable


ADT R14SF Part-Number Description:

Part-Number
Description
Bandwidth
R14SF PCIe x1 to M.2 NVMe extension cables PCIe 3.0 x1 (8G/bps)




Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

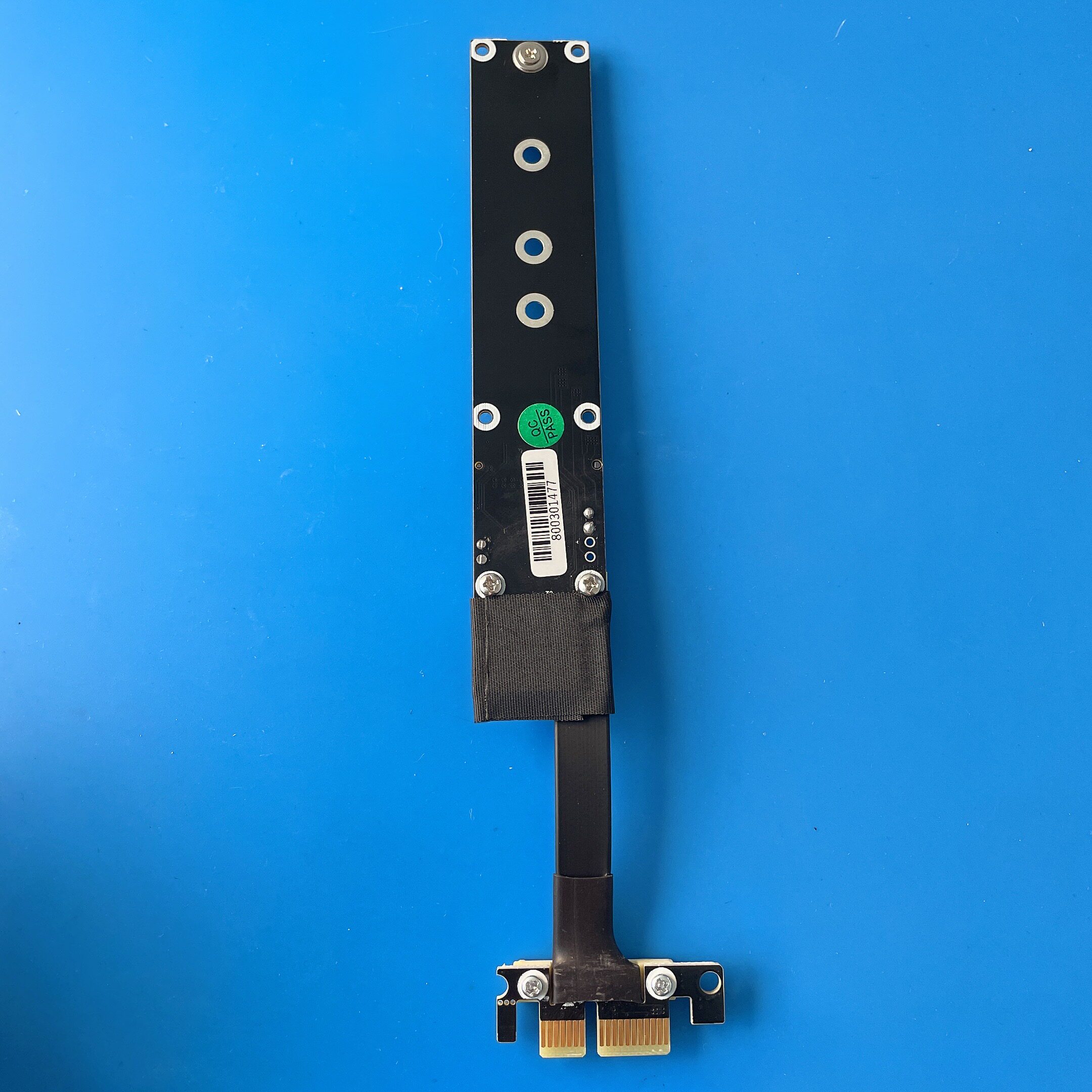

Photo:



Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download http://www.adt.link/Uploads/download/ADT_R14-17_3D.zip

3D STEP files download http://www.adt.link/Uploads/download/ADT_R14-17_STEP.zip

FTP: Hong Kong

3D PDF files download http://www.adtlink.cn/Uploads/download/ADT_R14-17_3D.zip

3D STEP files download http://www.adtlink.cn/Uploads/download/ADT_R14-17_STEP.zip

WebShop:

http://www.adt.link/product/R14SF-Shop.html
