  • Product ID:R11SF, R11SF-F, R11SL,R11SL-TL,R11SL-FL,R11SR,R11SR-FL
  • Interface: PCIe x1 / PCIe x1
  • Application: Extension
  • Shelf time:2020-01-10 11:07:19
  • Product description: PCI-E x1 to x1 turn 180 degree splint vertical extension cables
  • INQUIRY

ADT-Link PCI express 3.0 x1 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x1 extension cable

Product model: R11SF, R11SF-F, R11SL,R11SL-TL,R11SL-FL,R11SR,R11SR-FL

Transfer speed: PCIe3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x1 audio, LAN, USB cards, extension


ADT R11 series Item List:

Part-Number
Description
Bandwidth
R11SF
PCI-E x1 to x1 turn 180 degree splint vertical extension cables PCIe 3.0 x1 (8G/bps)
R11SF-F
PCI-E x1 to x1 turn 180 degree splint vertical extension cables. Open type connector
PCIe 3.0 x1 (8G/bps)
R11SF-PW
PCI-E x1 to x1 turn 180 degree splint vertical extension cables. Add SATA power cable.
PCIe 3.0 x1 (8G/bps)
R11SF-WK
PCI-E x1 to x1 turn 180 degree splint vertical extension cables. For GPU mining cost-down version. Add SATA power cable.
PCIe 3.0 x1 (8G/bps)
R11SL
PCI-E x1 to x1 turn 90 degree upright right angle extension cables
PCIe 3.0 x1 (8G/bps)
R11SL-FL PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables. Open type connector
PCIe 3.0 x1 (8G/bps)
R11SL-TL-PA2 PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables. Add magnetic feet.
PCIe 3.0 x1 (8G/bps)
R11SL-FL-PA4 PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables, including base of magnetic feet. Open type connector.
PCIe 3.0 x1 (8G/bps)
R11SL-TL PCI-E x1 to x1 turn 90 degree dual right upright angle extension cables PCIe 3.0 x1 (8G/bps)
R11SL-TL-LG4 PCI-E x1 to x1 turn 90 degree dual right upright angle extension cables, including base of rubber feet.
PCIe 3.0 x1 (8G/bps)
R11SL-TL-PA4
PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables, including base of magnetic feet.
PCIe 3.0 x1 (8G/bps)
R11SR
PCI-E x1 to x1 turn 270 degree inverted reverse extension cables
PCIe 3.0 x1 (8G/bps)
R11SR-WK PCI-E x1 to x1 turn 180 degree splint vertical extension cables. For GPU mining cost-down version.
PCIe 3.0 x1 (8G/bps)



Part-Number Description:

R11: PCIe x1 to x1

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-WK: GPU mining cost-down version. add 15Pin SATA external power cable

-FL: PCIE open type connector ; -TL PCIE closed type connector

-PA2 including 2PCS magnetic feet ; -PA4 including 4PCS magnetic feet and PCB-PAD

-LG2 including 2PCS rubber feet ; -LG4 including 4PCS rubber feet and PCB-PAD

-PW add 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.


Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Difference between open and closed:

The closed type interface will fit the sound card quite well.

The open type interface has more compatibility. For instance, an x4 internet card can fit the open type interface.

Photo:

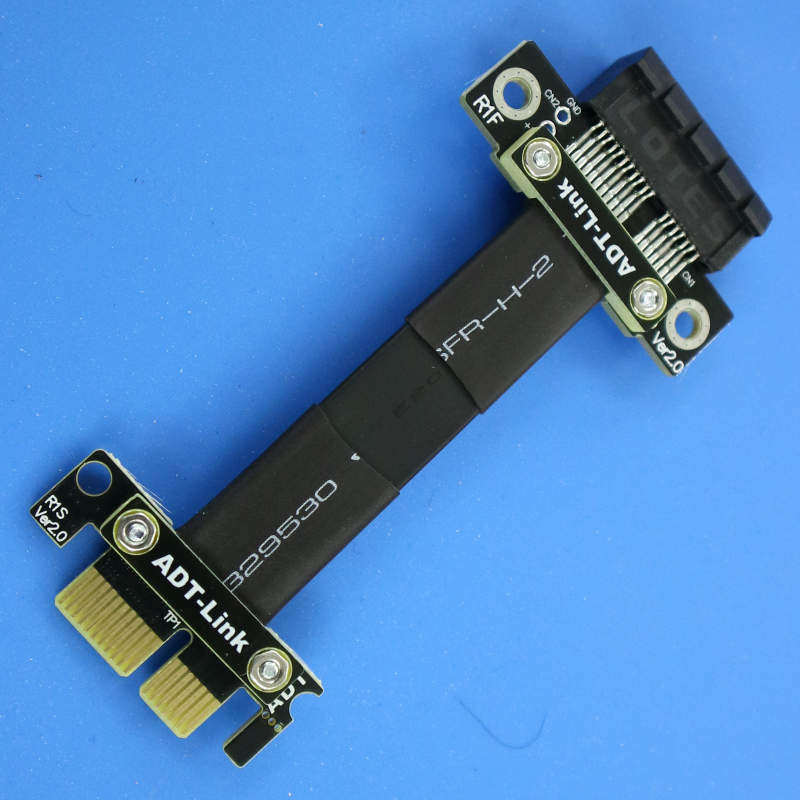

R11SF (Closed type connector)

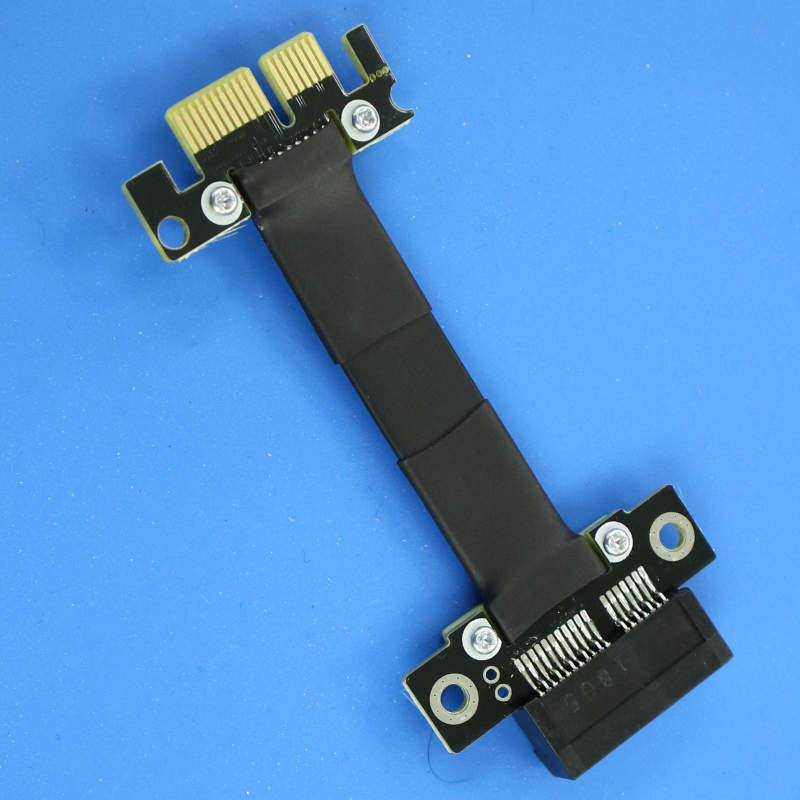

R11SF-WK (Open type connector)

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D files download http://www.adt.link/Uploads/download/ADT_R11_3D.zip

Specification files download http://www.adt.link/download/ADT R11SF Cable specification 20210302.pdf

Schematic files download http://www.adt.link/download/ADT R11 schematic 20201225.pdf

FTP: Hong Kong

3D files download http://www.adtlink.cn/Uploads/download/ADT_R11_3D.zip

Specification files download http://www.adtlink.cn/download/ADT R11SF Cable specification 20210302.pdf

Schematic files download http://www.adtlink.cn/download/ADT R11 schematic 20201225.pdf
