Mining GPU Extension Cable

  • R11SF-WK
R11SF-WK

R11SF-WK

  • Product ID:R11SF-WK
  • Interface: PCIe x1 / PCIe x1
  • Application: BTC mining
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x1 extender adapter jumper for audio, wireless LAN, usb cards.
  • INQUIRY

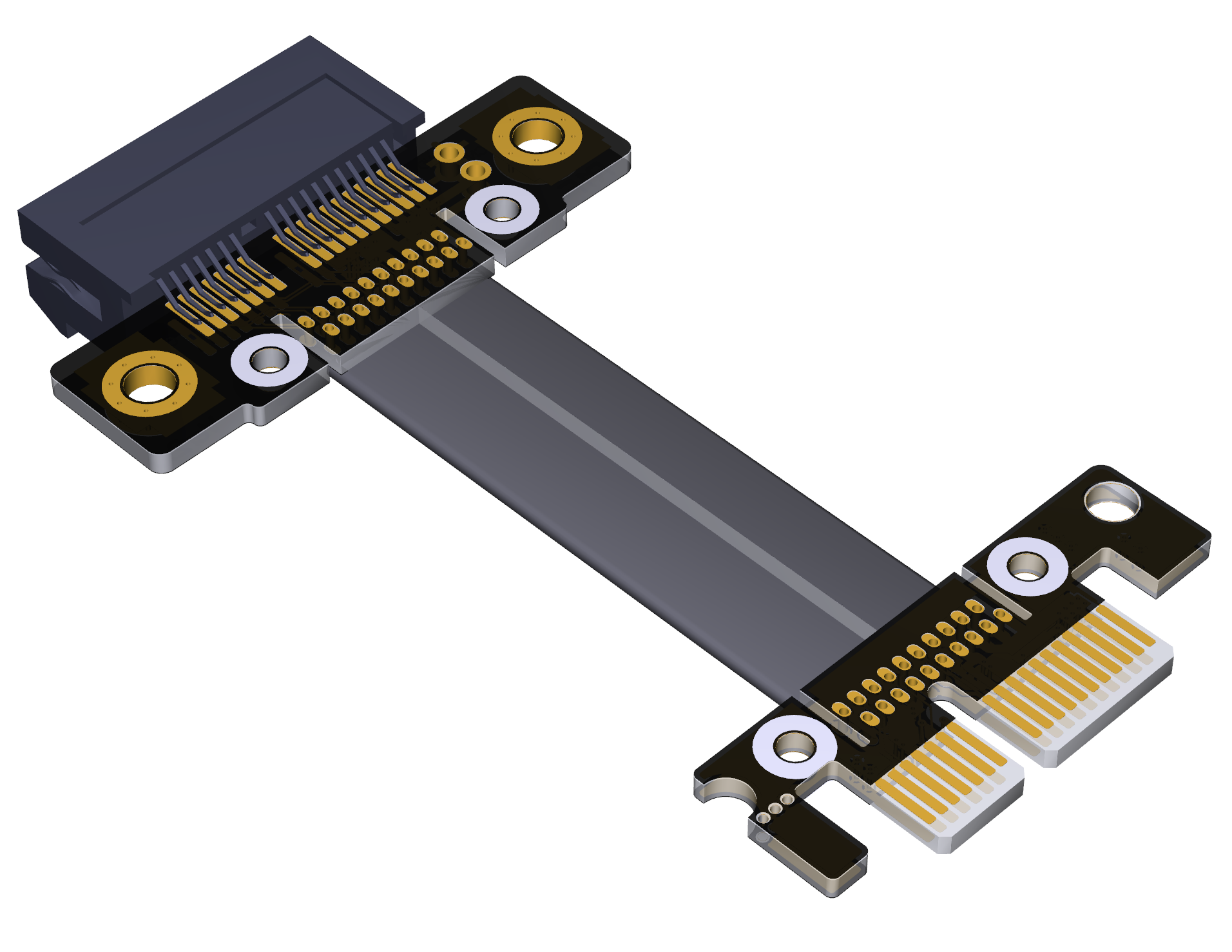

ADT-Link PCI express 3.0 x1 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x1 extension cable

Product model: R11SF-WK ; R11SR-WK

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: BTC mining GPU PCI-E extension cable


ADT R11WK series Part-Number Description:

Part-Number
Description
Bandwidth
R11SF-WK
PCI-E x1 to x1 turn 180 degree splint vertical extension cables PCIe 3.0 x1 (8G/bps)
R11SF-WP PCI-E x1 to x1 extension cables without power cables
PCIe 3.0 x1 (8G/bps)



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.



Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP:Los Angeles

3D PDF files download http://www.adt.link/Uploads/download/ADT_WK_3D.zip

3D STEP files download http://www.adt.link/Uploads/download/ADT_WK_STEP.zip

FTP: Hong Kong

3D PDF files download http://www.adtlink.cn/Uploads/download/ADT_WK_3D.zip

3D STEP files download http://www.adtlink.cn/Uploads/download/ADT_WK_STEP.zip

WebShop:

http://www.adt.link/product/R11SR-WK-Shop.html
