mPCIe to PCIe x1 Extender

M61JF, M61JL,M61JR

Product ID:M61JF, M61JL,M61JR
Interface: miniPcie / PCIe x1
Application: Extension
Shelf time：2023-01-10 11:07:19
Product description: ADT-Link PCI express 4.0 x1 mini-PCIe Extension Cable PCIe x1 to mini-PCIe Extension Cable
INQUIRY

Cable Length

Part-Number

Note

ADT-Link mini-PCIe to PCIe x1 Extension Cable

Brand name: ADT-LINK

Product name: mini-Pcie to PCIe x1 extension cable

Product model: M61JF, M61JL,M61JR

Transfer speed: PCIe 4.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x1 audio card, wireless LAN card to mini-pcie extender

ADT PCIe Part-Number Description:

Part-Number	Description	Bandwidth
M61JL	mini-Pcie to PCIe x1 connector turn 90 degree upright right angle extension cables	PCIe 4.0 x1 (8G/bps)

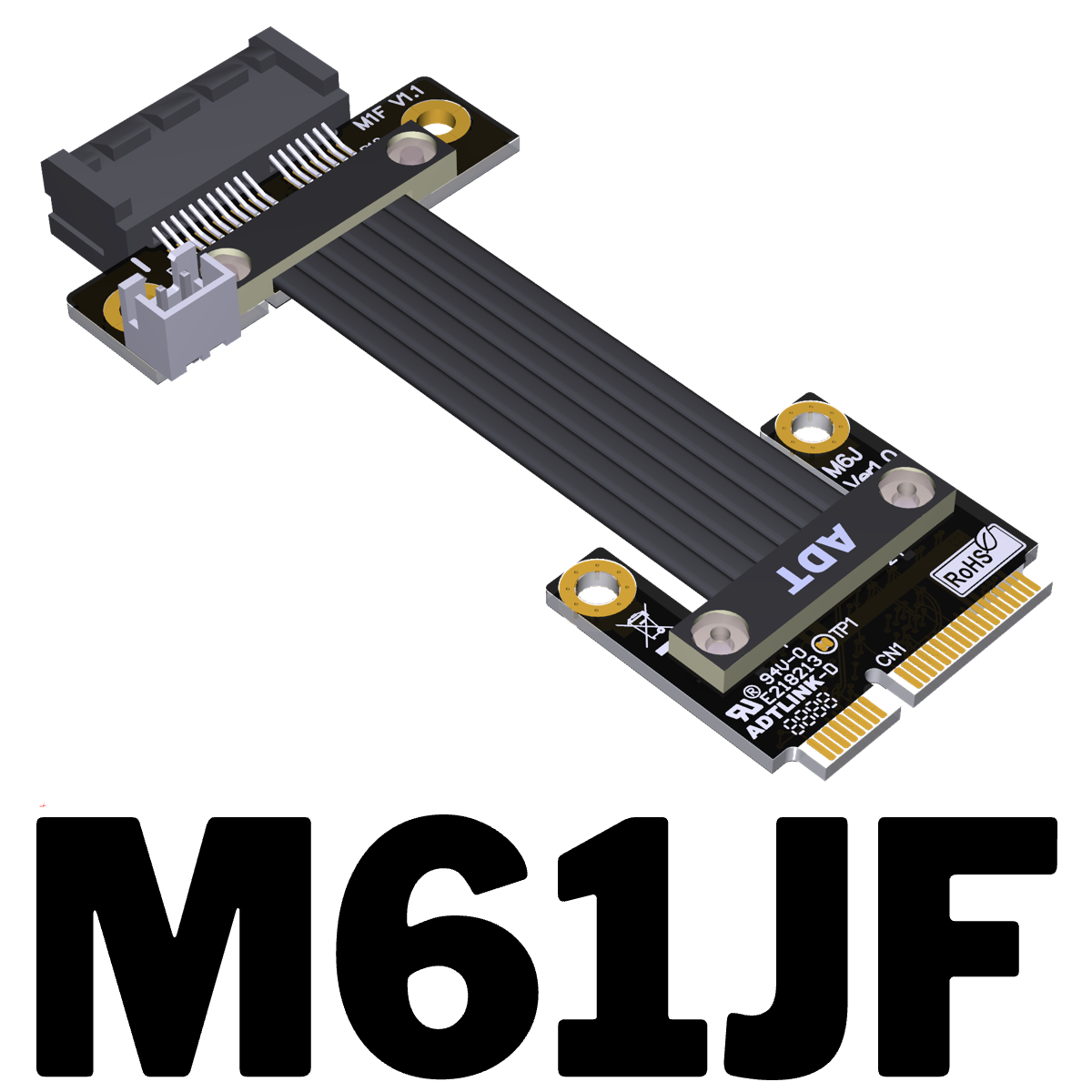

M61JF	mini-Pcie to PCIe x1 connector turn 180 degree splint vertical extension cables	PCIe 4.0 x1 (8G/bps)
M61JR	mini-Pcie to PCIe x1 connector turn 270 degree extension cables	PCIe 4.0 x1 (8G/bps)

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
