M.2 NVMe to M.2 NVMe Extender

M44SF

Product ID：M44SF
Interface: M.2 NVMe / M.2 NVMe
Transfer speed: PCIe 4.0 x4
Shelf time：2019-01-10 11:07:19
Product description: ADT-Link PCIe 4.0 M.2 NVMe SSD Extension Cable gen4
INQUIRY

Cable Length

Part-Number

Note

ADT-Link M.2 NVMe SSD Extension Riser Cable

Brand name: ADT-LINK

Product name: M.2 NVMe Key M extension cable

Product model: M44SF

Transfer speed: PCIe 4.0 x4 , 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards extension

Part-Number Description:

Part-Number	Description	Bandwidth (Max.)
M44SF 4.0	M.2 key-M NVMe to PCIe x4 turn 180 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)

M44: M.2 NVMe to M.2 NVMe

Cable length Description:

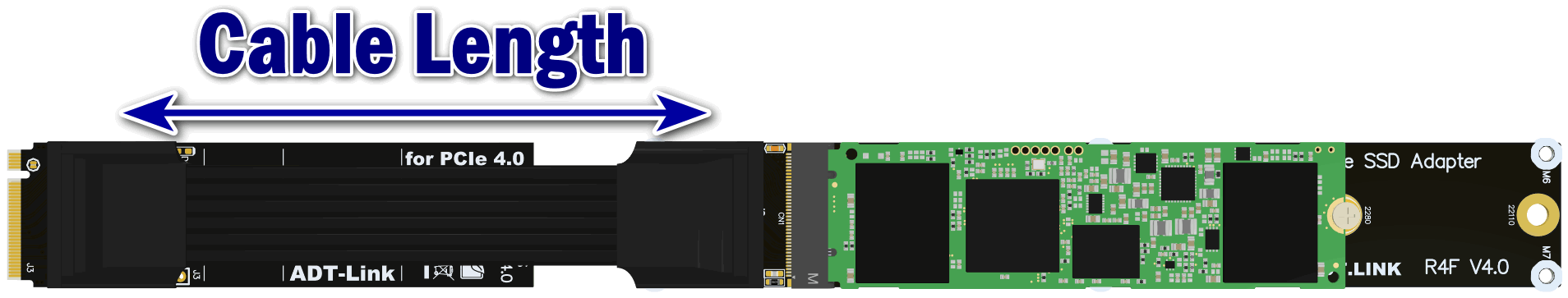

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
