PCIe x16 to PCIe x16 Extender

M33JK-TL M33JK-TR M33JM-TL M33JM-TR

Product ID：M33JK-TL M33JK-TR M33JM-TL M33JM-TR
Interface: PCIe x16 / PCIe x16
Transfer speed: PCIe 4.0 x16
Shelf time：2025-Jan-12
Product description: PCIe x16 to x16 adapter for graphics video cards turn right/left extension gen4
INQUIRY

Cable Length

Part-Number

Note

ADT-Link PCI express 4.0 x16 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable

Product model: M33JK-TL,M33JK-TR

Transfer speed: PCIe 4.0 x16 full speed, 256G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x16 graphics video card to PCIe x16 slot extension riser cable

Part-Number Description:

Part-Number	Description	Bandwidth
M33JK-TL	PCI-E x16 to x16 180 degree turn left vertical extension cables	PCIe 4.0 x16 (Max.)
M33JK-TR	PCI-E x16 to x16 180 degree turn right vertical extension cables	PCIe 4.0 x16 (Max.)
M33JM-TL	PCI-E x16 to x16 90 degree turn left vertical extension cables	PCIe 4.0 x16 (Max.)
M33JM-TR	PCI-E x16 to x16 90 degree turn left vertical extension cables	PCIe 4.0 x16 (Max.)

Cable length Description:

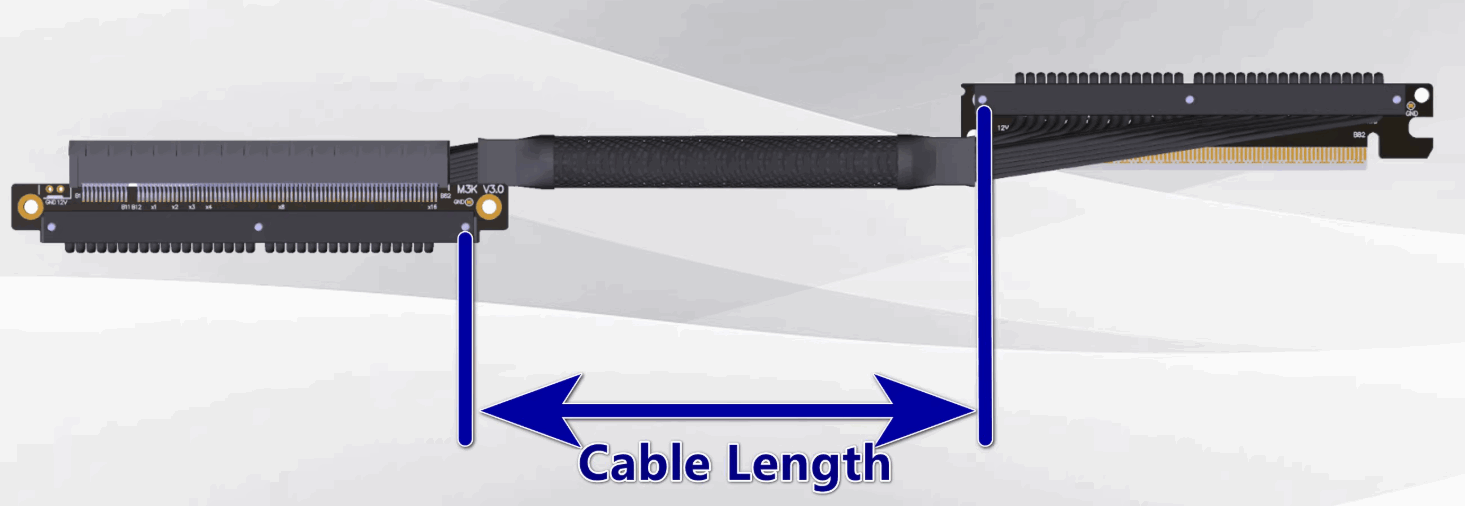

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Product advantages:

1、 The advantage of the wire is that ADT has independently developed and designed the 5th generation anti-interference low resistance wire with a scratch resistant and wear-resistant outer sheath, and supports stable PCIe 4.0 transmission at high frequencies.

2、 Line length advantage, customization is accepted from 5cm to 100cm. Please contact customer service for customization.

3、 Differential signal without via design, there is no signal attenuation interference caused by parasitic capacitance and inductance, and there will be no CAF micro short circuit phenomenon. The product is durable and long-lasting.

4、 The product is made of high-quality materials, with precise PCB workmanship. The PCB uses high TG board, and the thickness of the copper material is thickened to 1oz. The gold finger has sufficient gold plating content, and the gold plating foot has good conductivity, which can reduce the problem of freezing and blue screen caused by oxidation, rust, and impedance increase.

5、 The wire used in the product is already very durable. It is protected by PCB pads with a thickness of 3mm at the metal welding points, and fastened with screws and hex nuts. The product is sturdy, reliable, resistant to pulling, anti-interference, and will not have problems such as wire breakage or nail drop. The wire can be bent and folded without affecting its use.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.96mm, which can be bent freely without affecting its use.
