M.2 NVMe to PCIe x16 Extender

K43SF K43SL K43SR

Product ID：K43SF K43SL K43SR
Interface: M.2 NVMe / PCIe x16
Transferspeed:PCIe 5.0 x4
Shelf time：2025-08-20
Product description: ADT PCIe 5.0 M.2 NVMe SSD to x16 riser cable
INQUIRY

Cable Length

Part-Number

Note

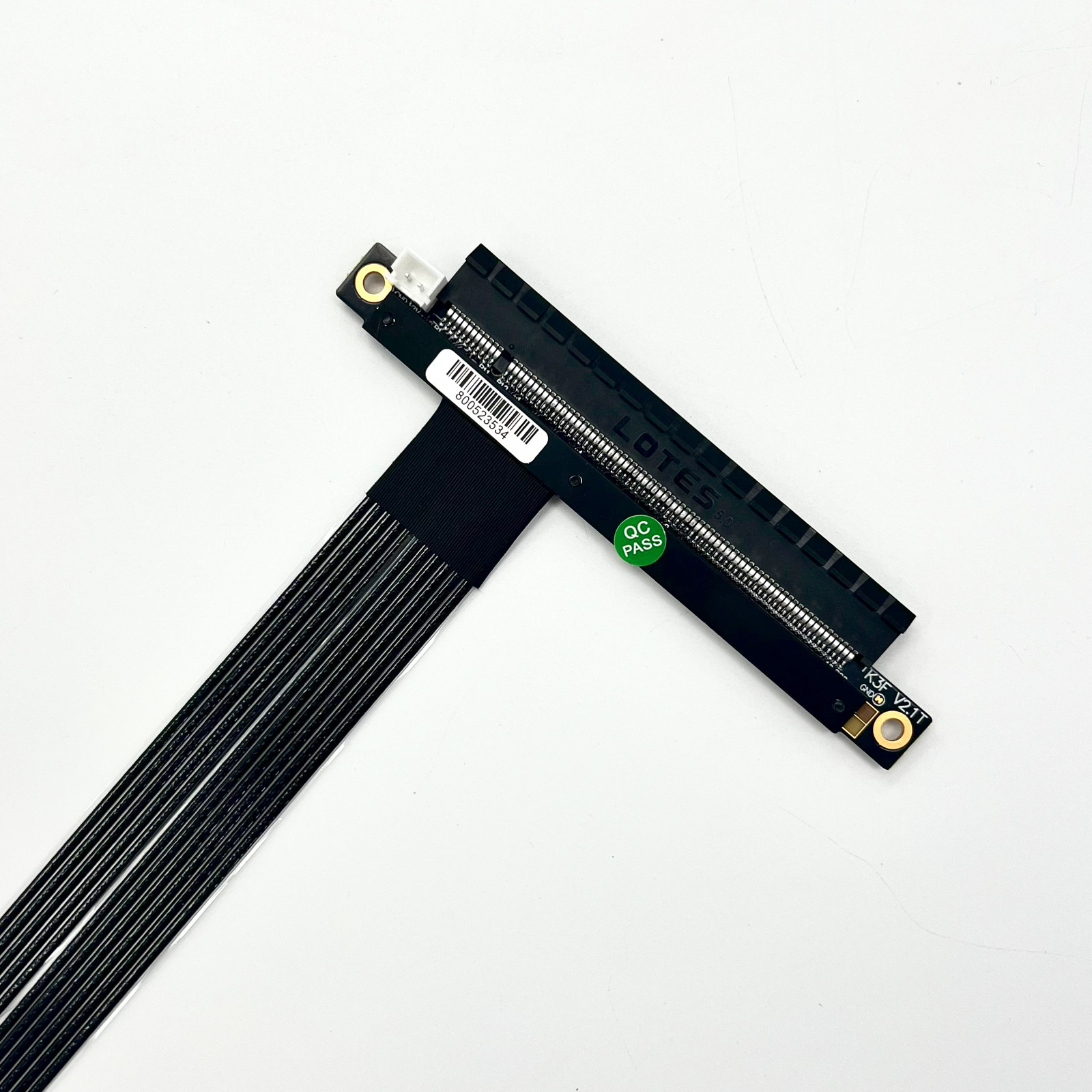

ADT-Link M.2 NVMe to PCI express x16 Extension Riser Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x16 extension cable

Product model: K43SF K43SL K43SR

Transferspeed:PCIe 5.0 x4, gen5, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: for PCIe x16 Nvidia/AMD Graphics cards to M.2(ultra SSD, M-key) NVMe slot extension

Cable length Description:

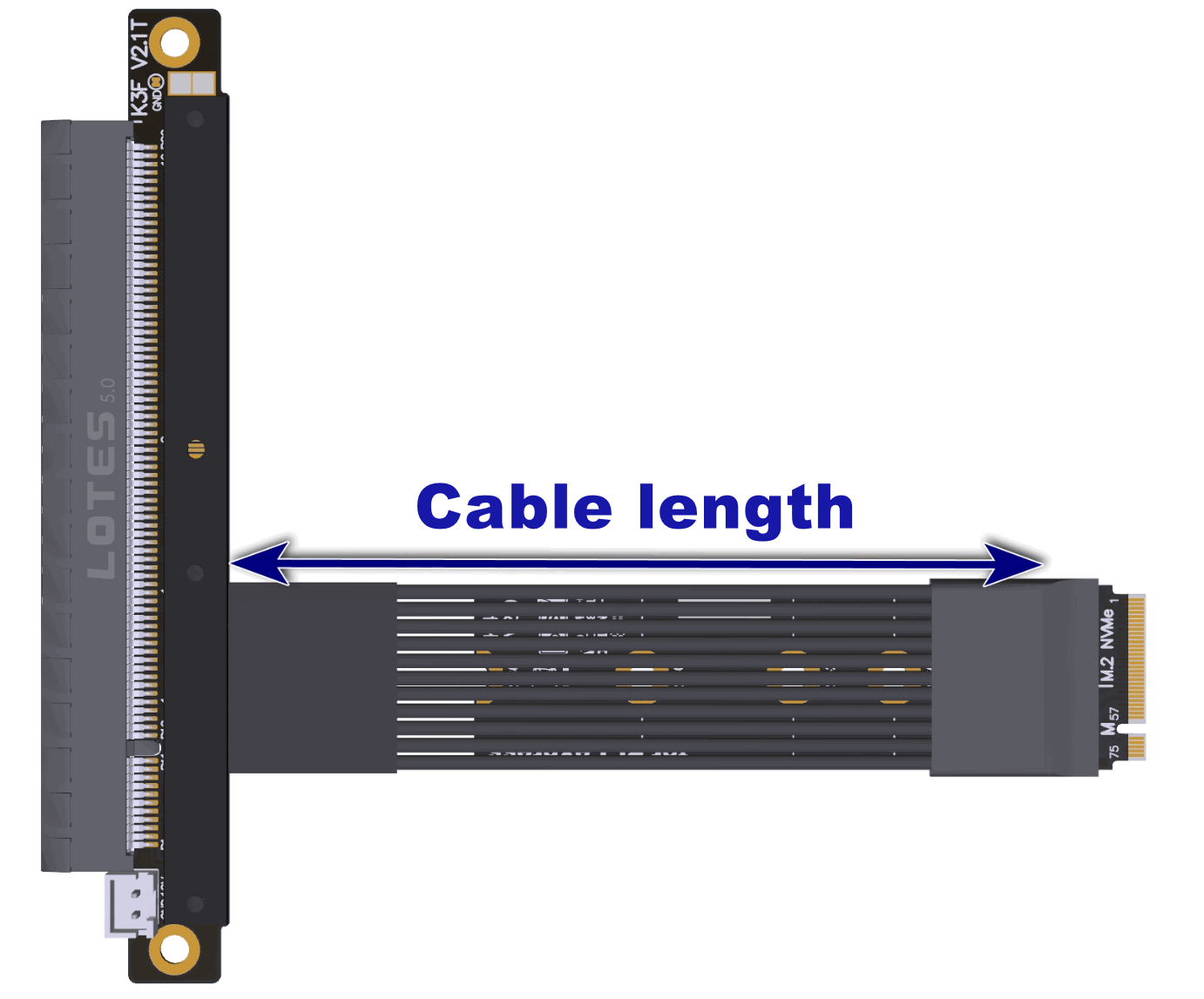

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the figure below.

Accessories description:

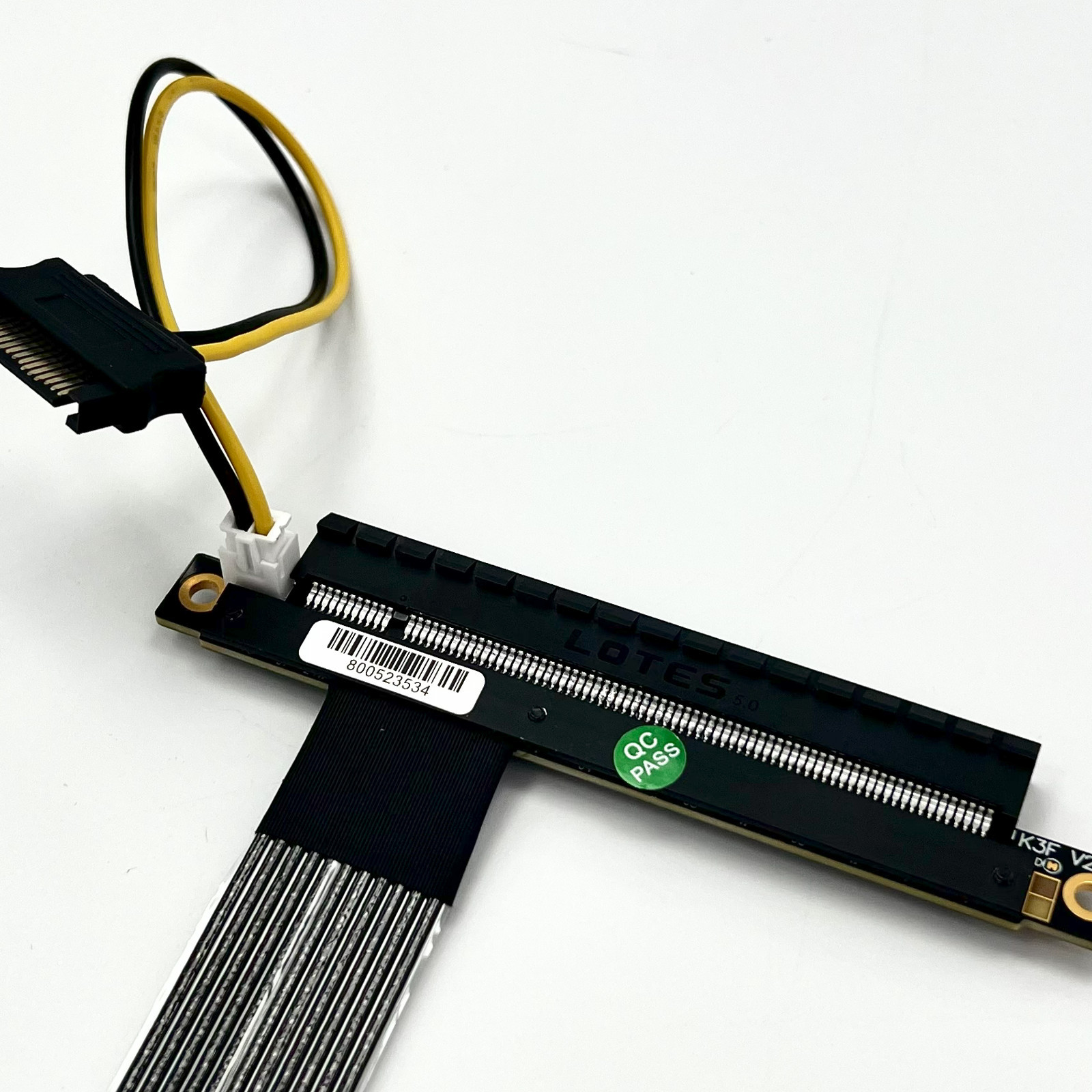

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

ADT K43 series Part-Number Description:

P/N	Description	Bandwidth

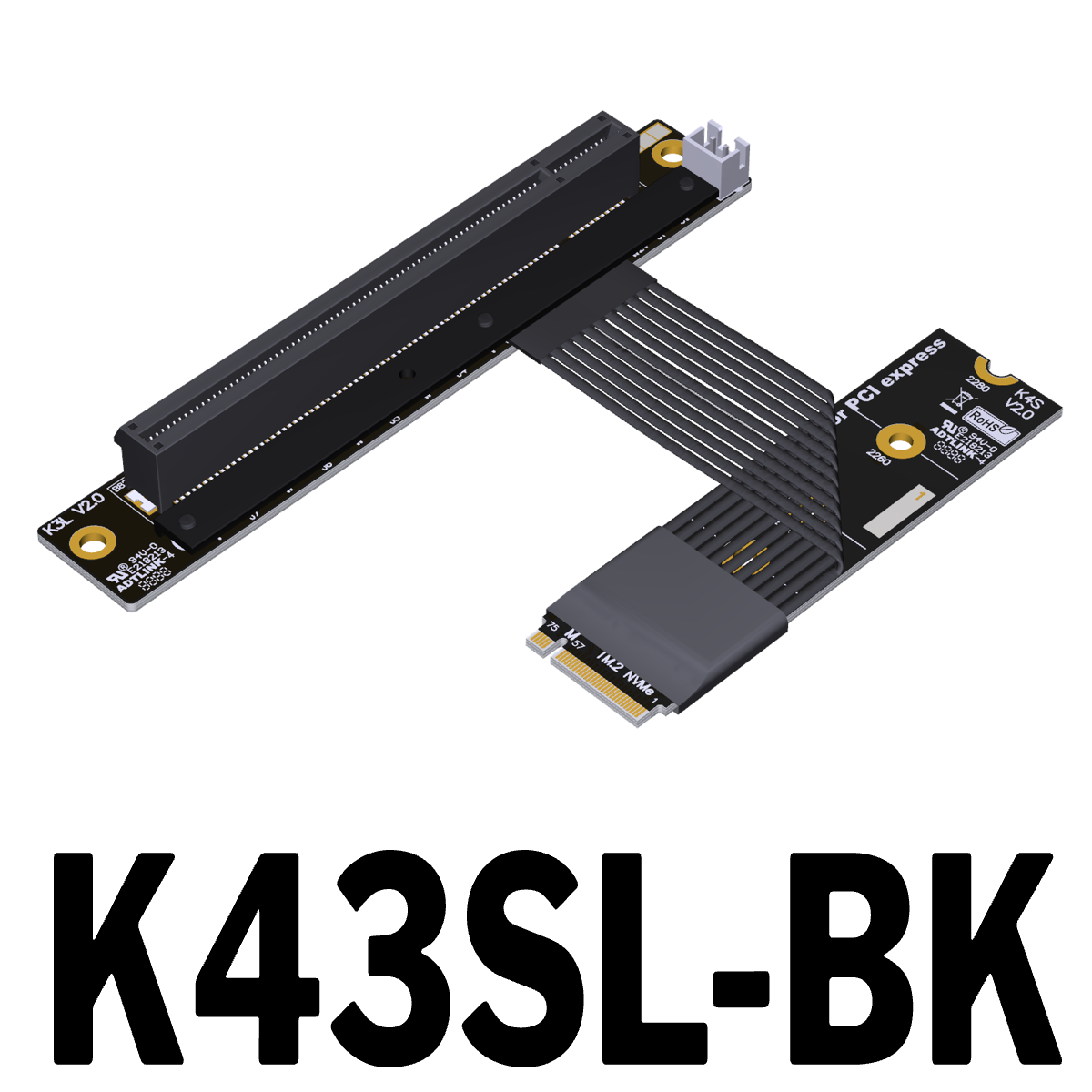

K43SL-BK	M.2 NVMe to PCIe x16, connector turn 90° extension cable	PCIe 5.0 x4 (128G/bps)

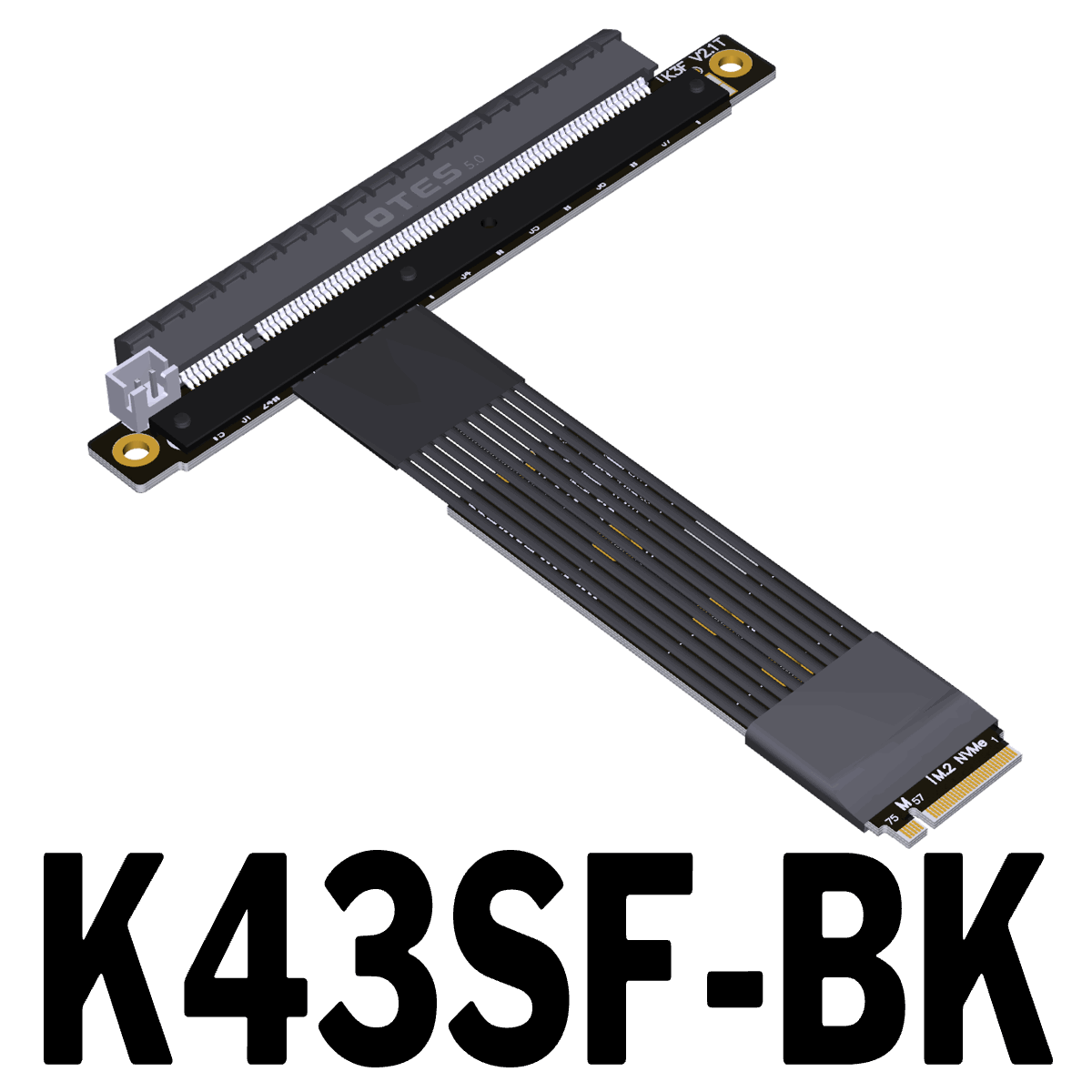

K43SF-BK	M.2 NVMe to PCIe x16, connector turn 180° extension cable	PCIe 5.0 x4 (128G/bps)

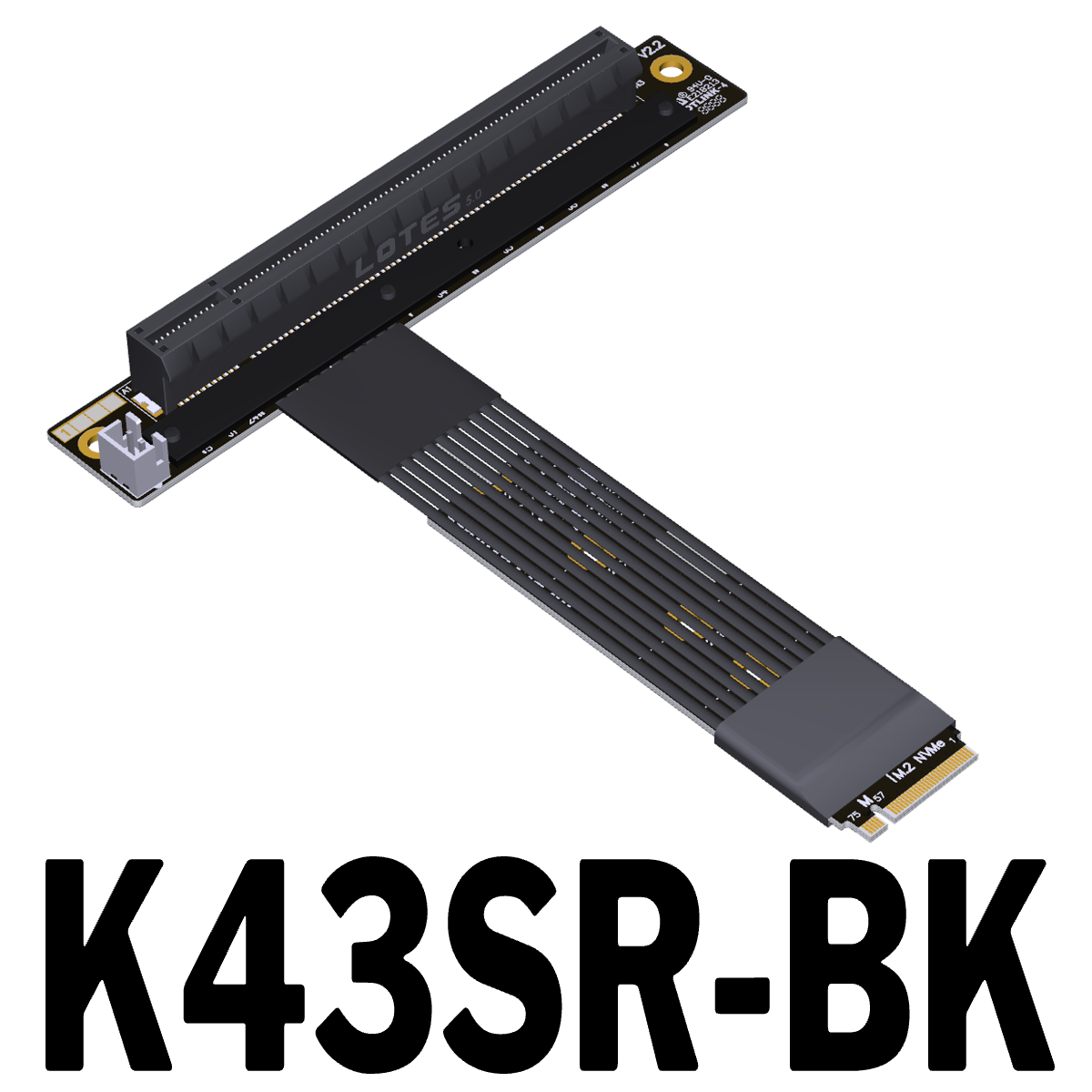

K43SR-BK	M.2 NVMe to PCIe x16, connector turn 270° extension cable	PCIe 5.0 x4 (128G/bps)

Can K43 Support PCIe 5.0?

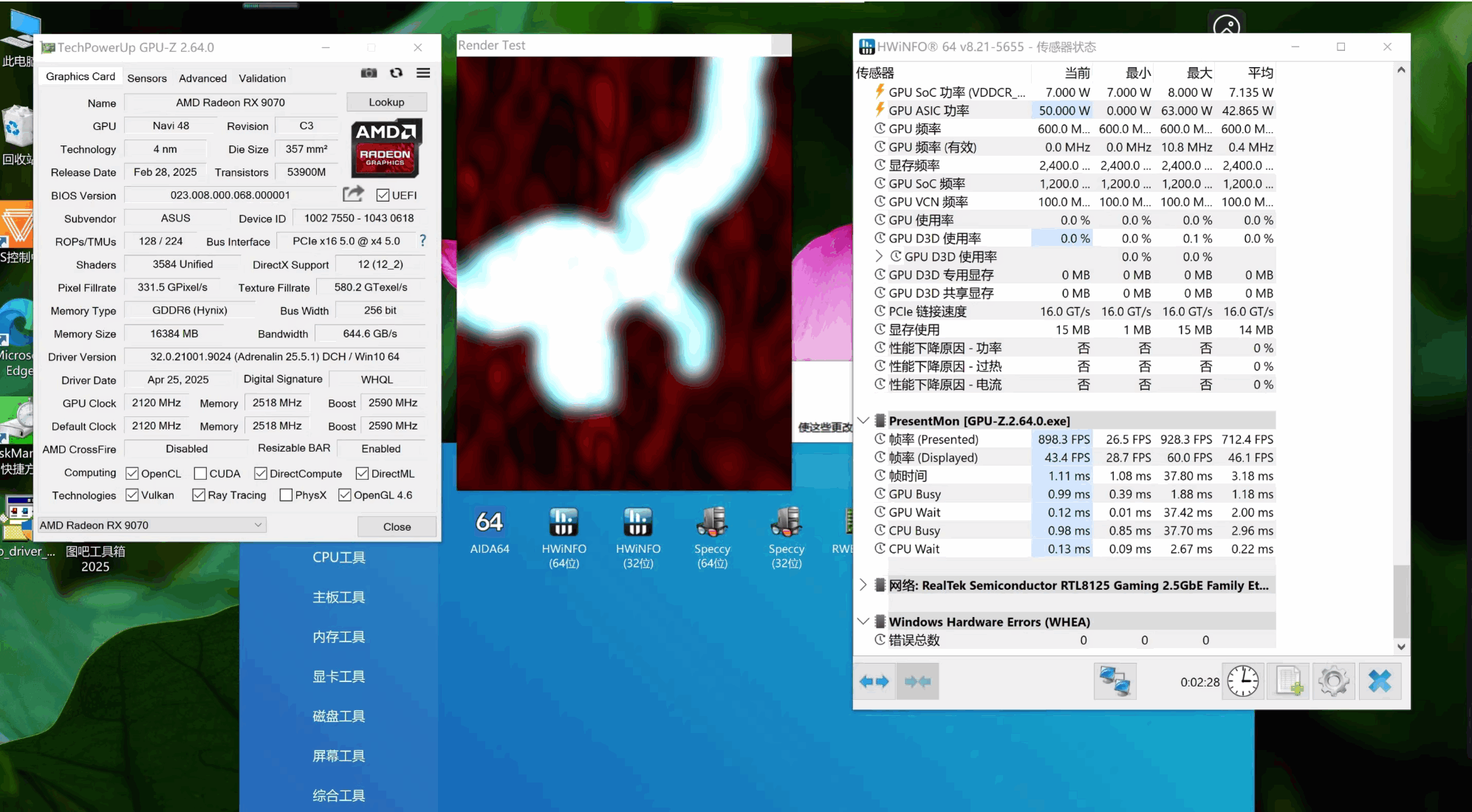

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.8mm, which can be bent freely without affecting its use.
