PCIe x16 to PCIe x16 Extender

K33UF,K33UL,K33UR

Product ID:K33UF,K33UL,K33UR
Interface:PCIe x16 / PCIe x16
Application:Extension
Shelf time:2025-July-10
Product description: PCIe 5.0 x16 to x16 adapter for graphics video cards extension gen5
INQUIRY

ADT-Link PCI express 5.0 x16 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable

Product model: K33UF,K33UL,K33UR

Transfer speed: PCIe 5.0 x16 full speed, 512G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x16 graphics video card to PCIe x16 slot extension riser cable

Part-Number Description:

Part-Number	Description	Bandwidth

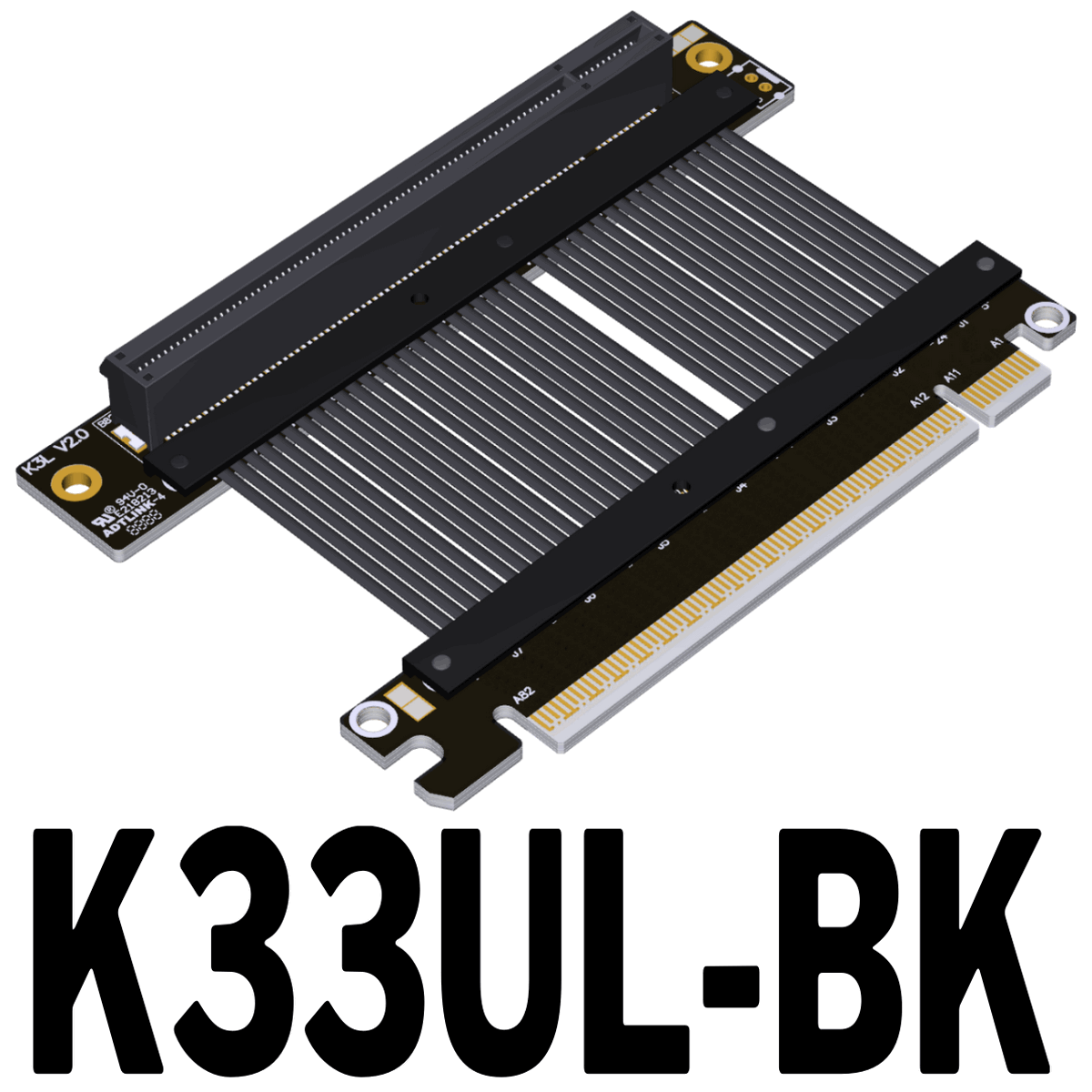

K33UL	PCI-E x16 to x16 turn 90 degree upright right angle extension cables	PCIe 5.0 x16 (Max.)

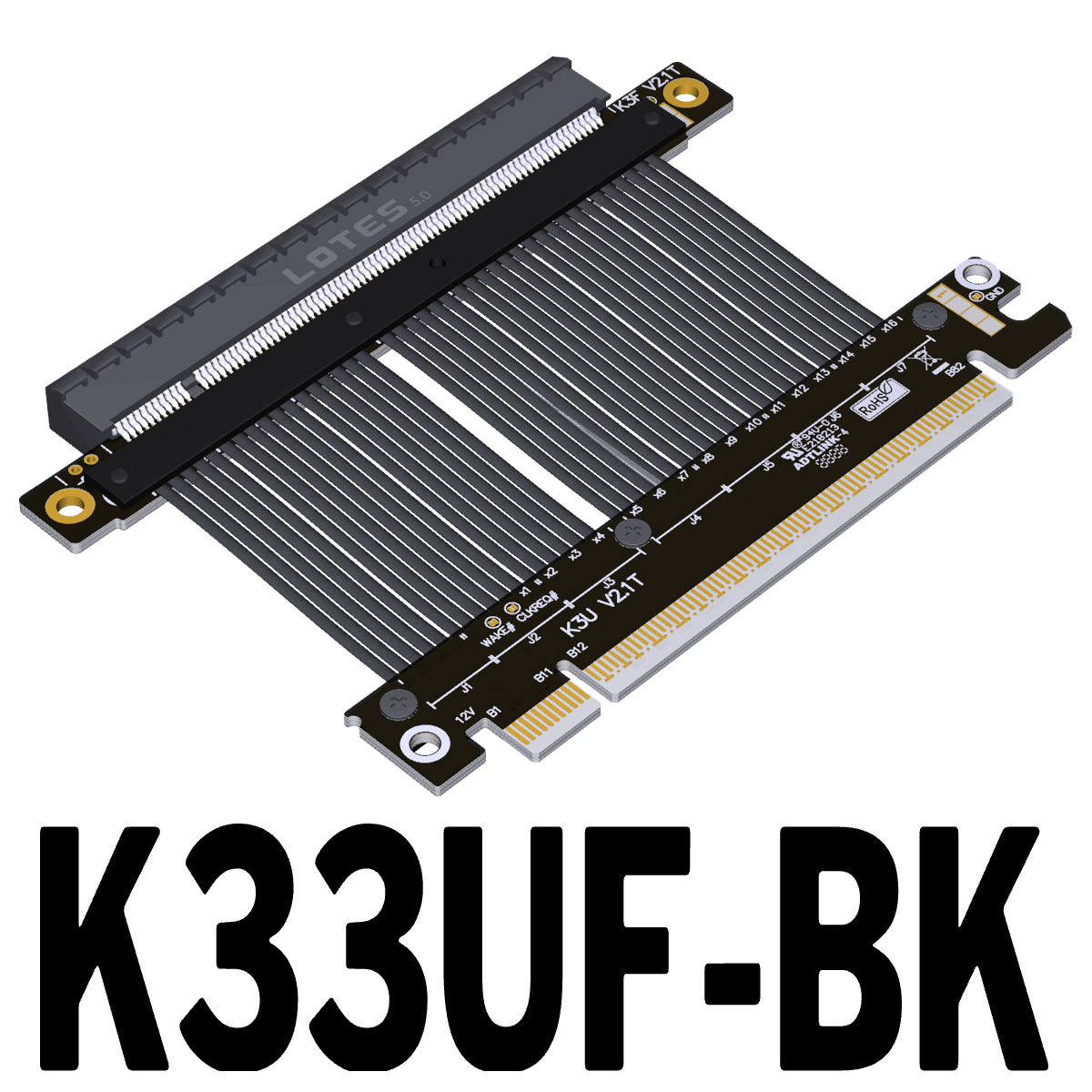

K33UF	PCI-E x16 to x16 turn 180 degree splint vertical extension cables	PCIe 5.0 x16 (Max.)

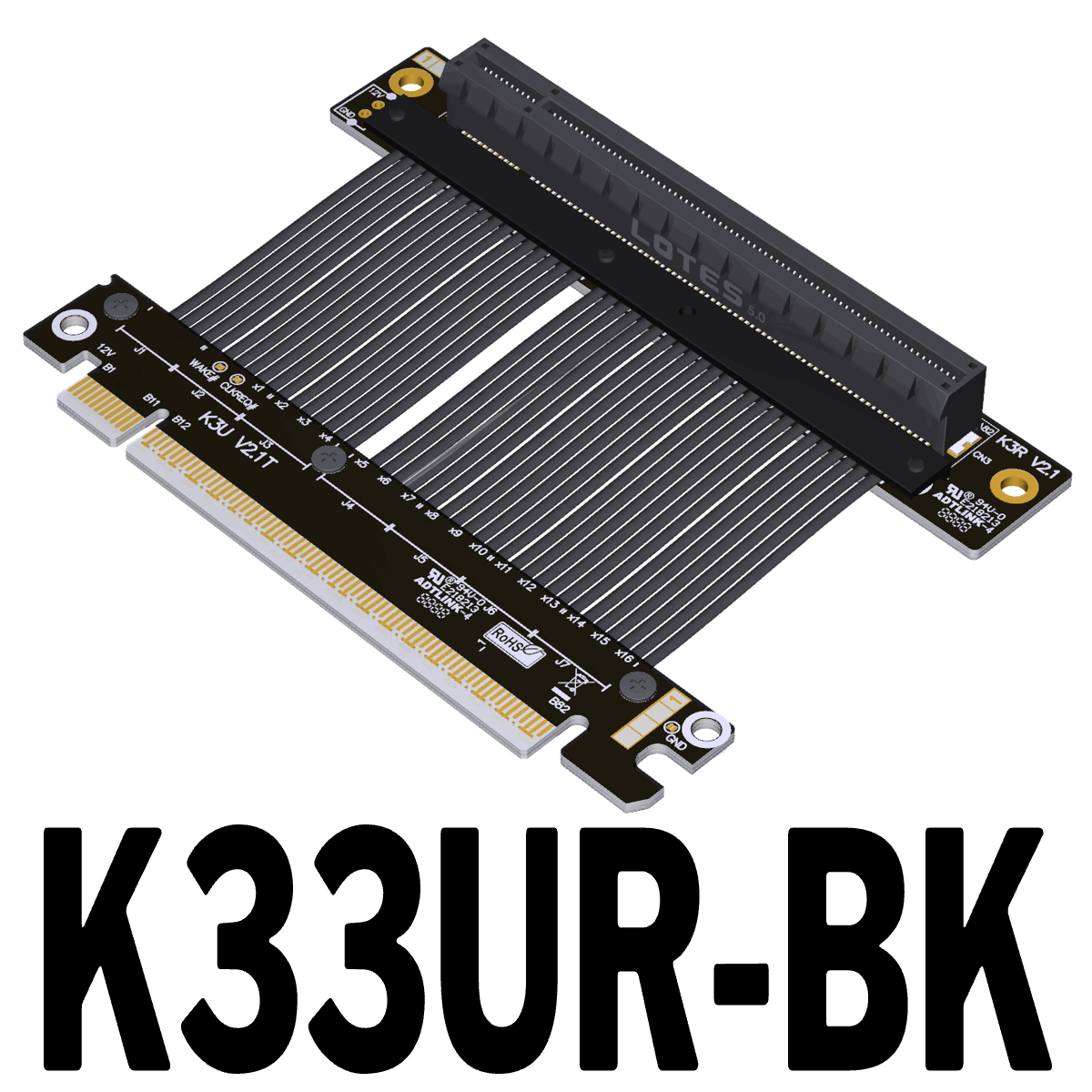

K33UR	PCI-E x16 to x16 turn 270 degree extension cables	PCIe 5.0 x16 (Max.)

Cable length Description:

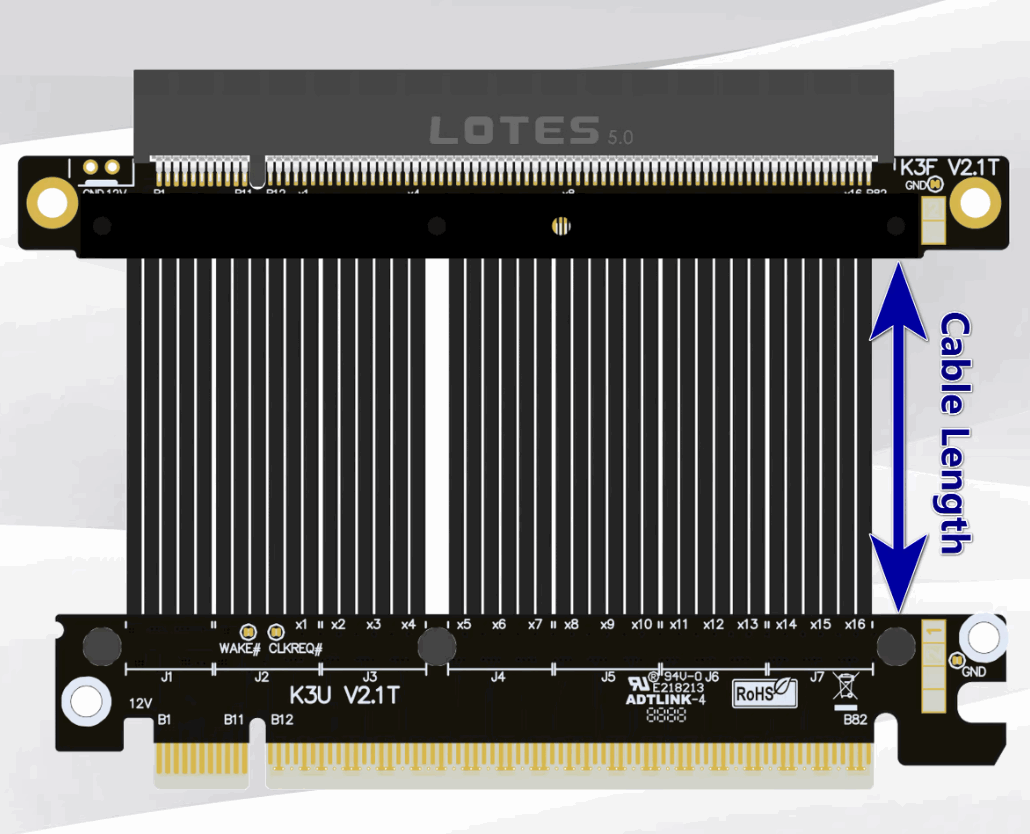

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Product advantages:

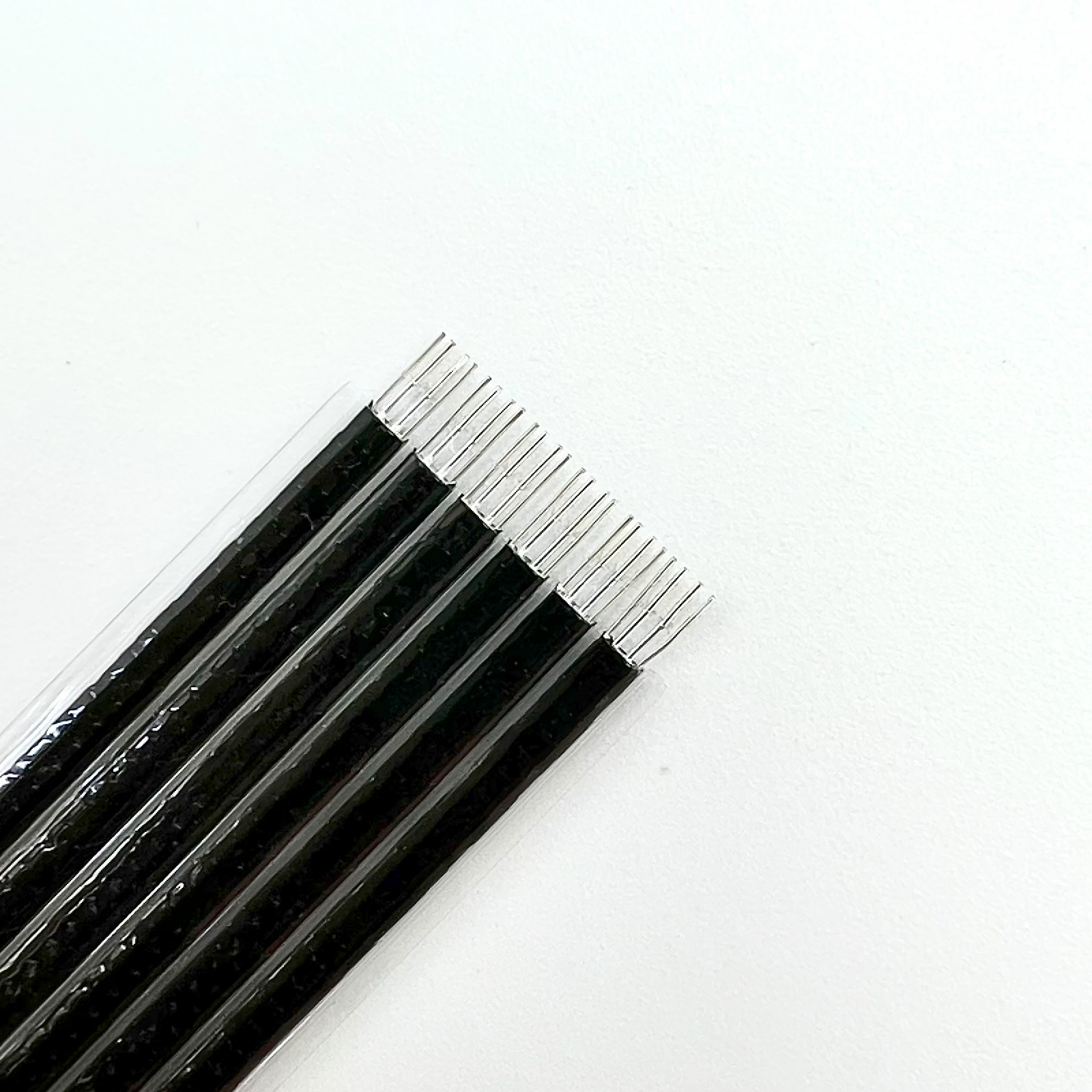

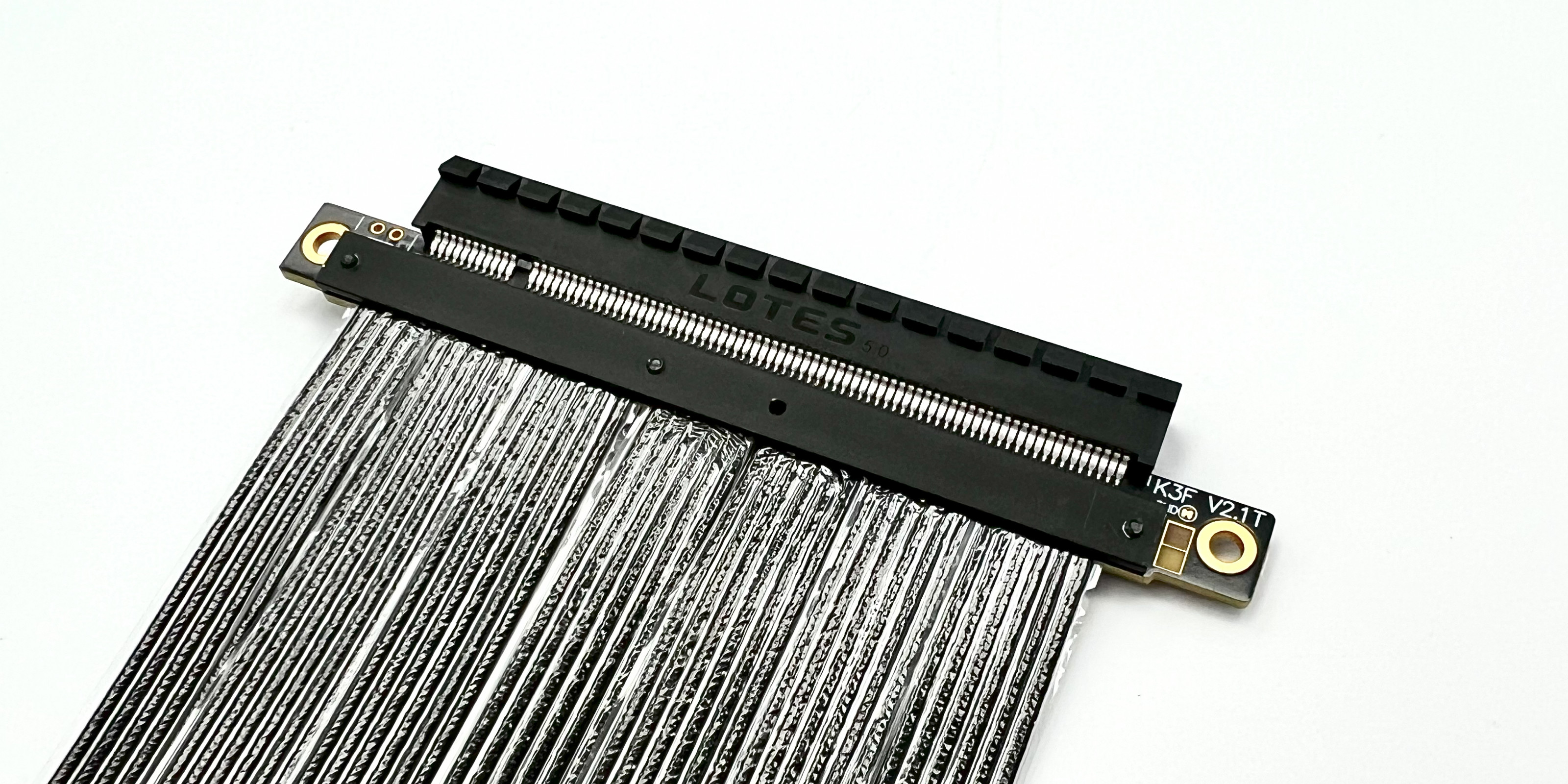

1、 The advantage of this wire is that ADT has independently developed and designed the fifth generation anti-interference low resistance silver plated wire, which has a scratch resistant and wear-resistant outer sheath, a lightweight and easy to bend single cable, and supports stable PCIe 5.0 high-frequency transmission.

2、 Line length advantage, customization is accepted from 5cm to 100cm. Please contact customer service for customization.

3、 Differential signal without via design, there is no signal attenuation interference caused by parasitic capacitance and inductance, and there will be no CAF micro short circuit phenomenon. The product is durable and long-lasting.

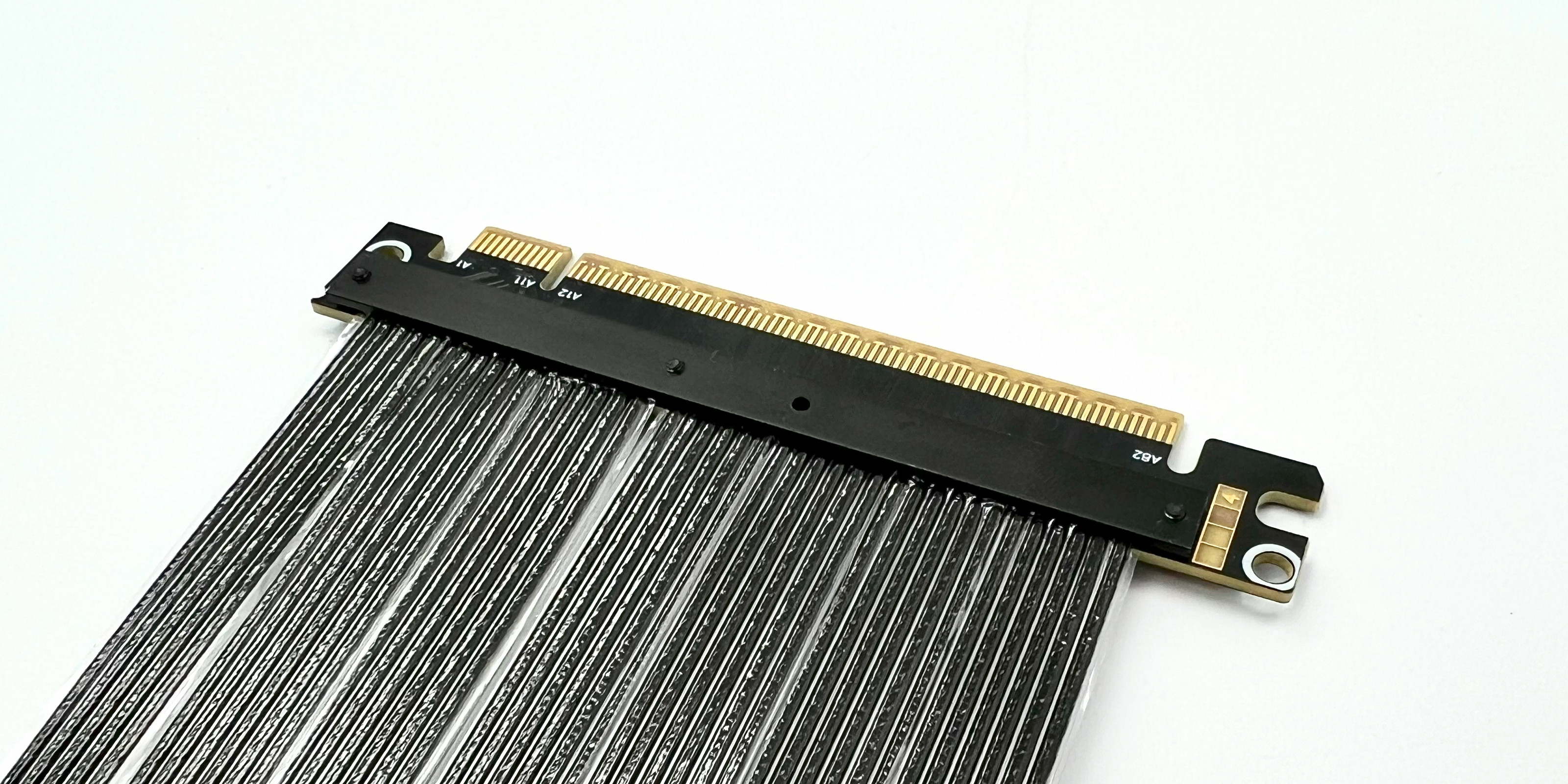

4、 The product is made of high-quality materials, with precise PCB workmanship. The PCB uses high TG board, and the thickness of the copper material is thickened to 1oz. The gold finger has sufficient gold plating content, and the gold plating foot has good conductivity, which can reduce the problem of freezing and blue screen caused by oxidation, rust, and impedance increase.

5、 The wire used in the product is already very durable. It is protected by PCB pads with a thickness of 3mm at the metal welding points, and fastened with screws and hex nuts. The product is sturdy, reliable, resistant to pulling, anti-interference, and will not have problems such as wire breakage or nail drop. The wire can be bent and folded without affecting its use.

Test data:

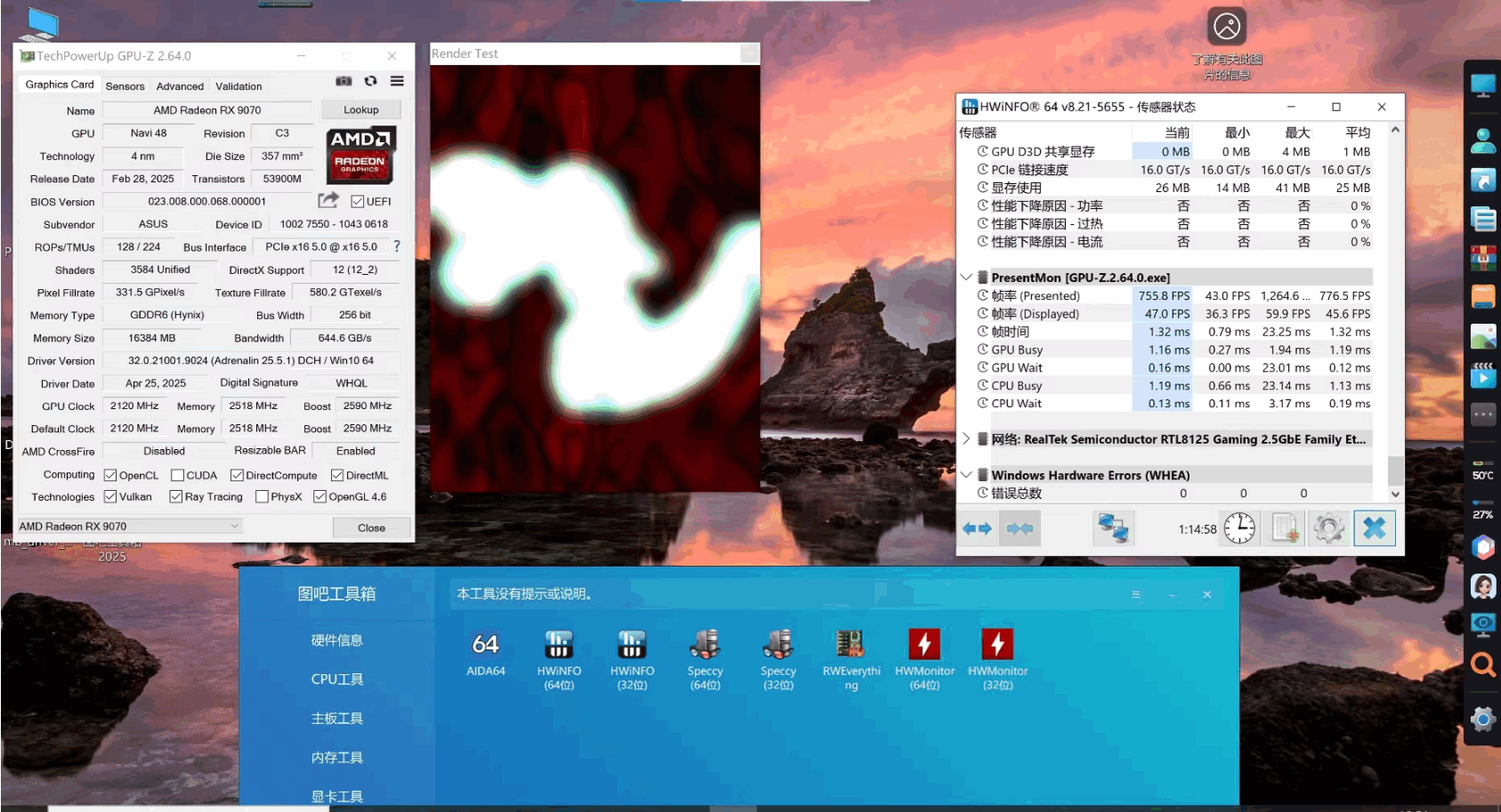

Tested with nVidia RTX 5070 and AMD RX9070, both can achieve PCIe 5.0 x16

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

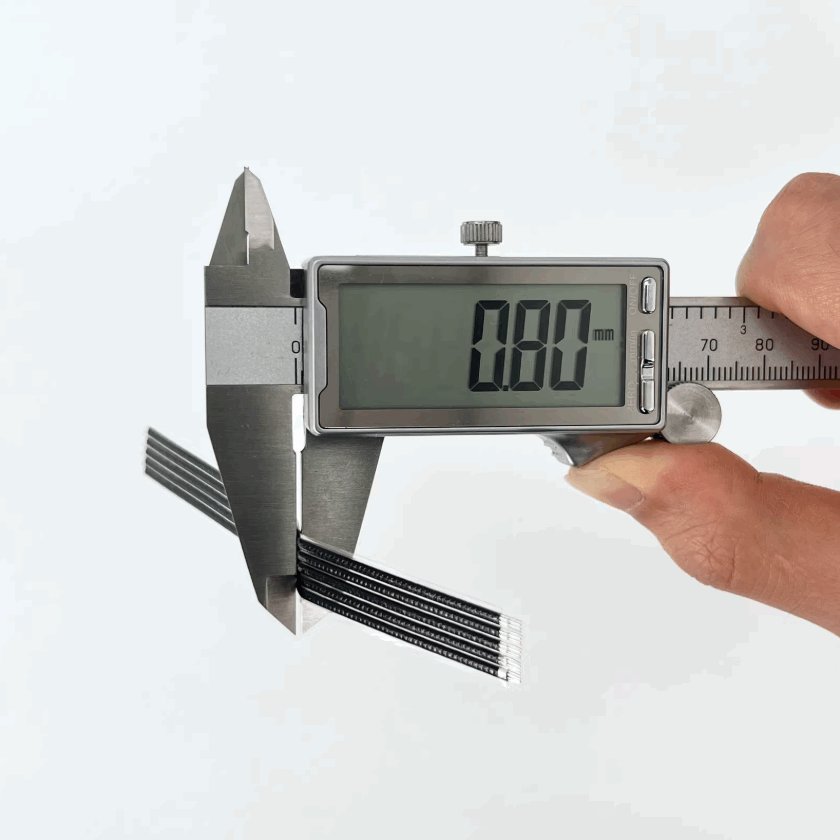

The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.8mm, which can be bent freely without affecting its use.
