PCIe x4 to M.2 NVMe Extender

K24MF-BK,K24MH-BK

Product name: PCIe x4 to M.2 NVMe Key M extension cable
Product model:K24MF-BK,K24MH-BK
Transferspeed:PCIe 5.0 x4 , 128G/bps (Max.)
Application: M.2 NVMe SSD cards to PCIe x4 extension
Product description: ADT-Link Pcie 5.0 x4 Edge to M.2 M-Key NVMe Slot Adapter Cable for NVMe SSD Extension with Metal Shield
INQUIRY

Cable Length

Part-Number

Note

Cable Length

Part-Number

Note

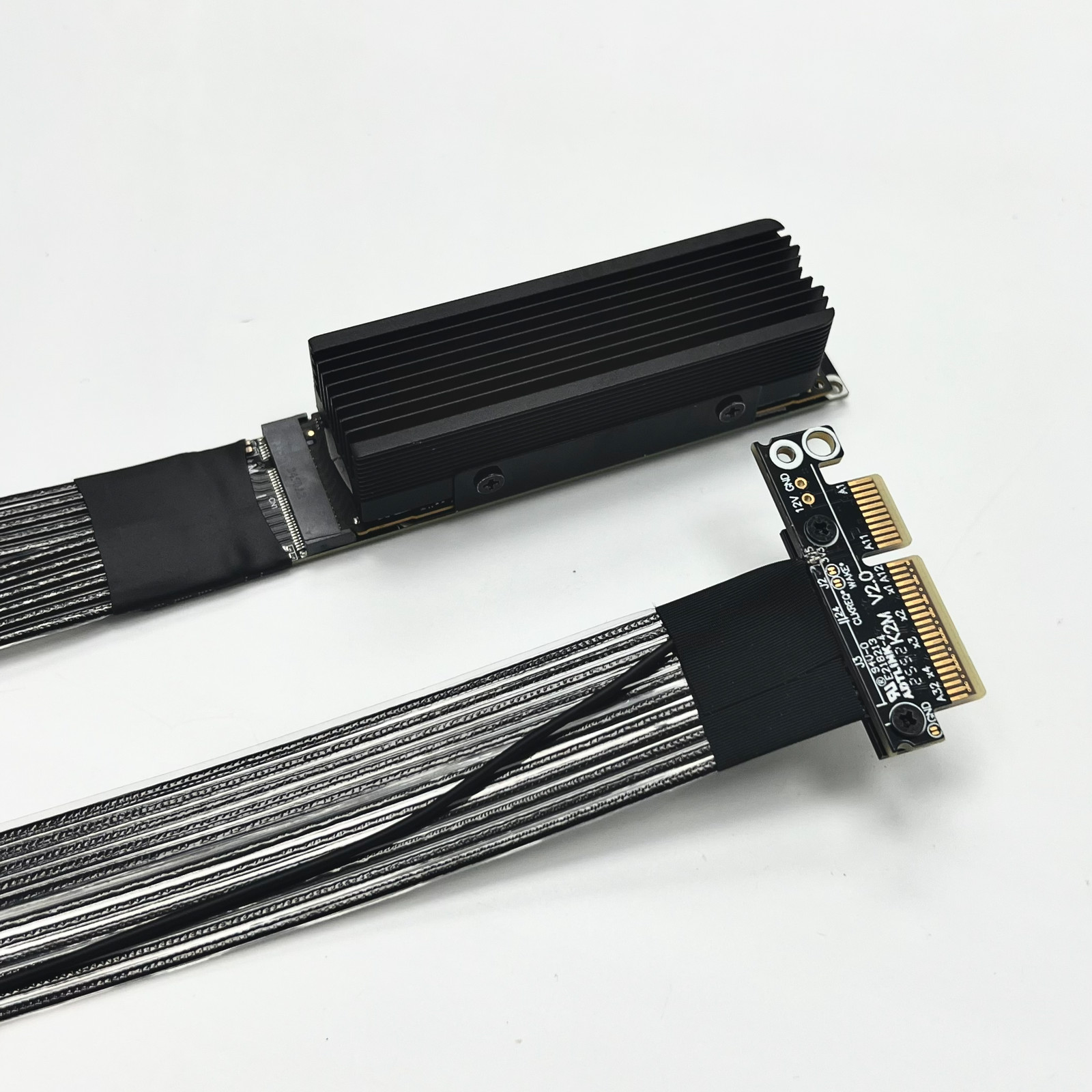

ADT-Link M.2 NVMe SSD to PCIe x4 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x4 to M.2 NVMe Key M extension cable

Product model: K24MF-BK,K24MH-BK

Transfer speed: PCIe 5.0 x4 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards to PCIe x4 extension

Cable length Description:

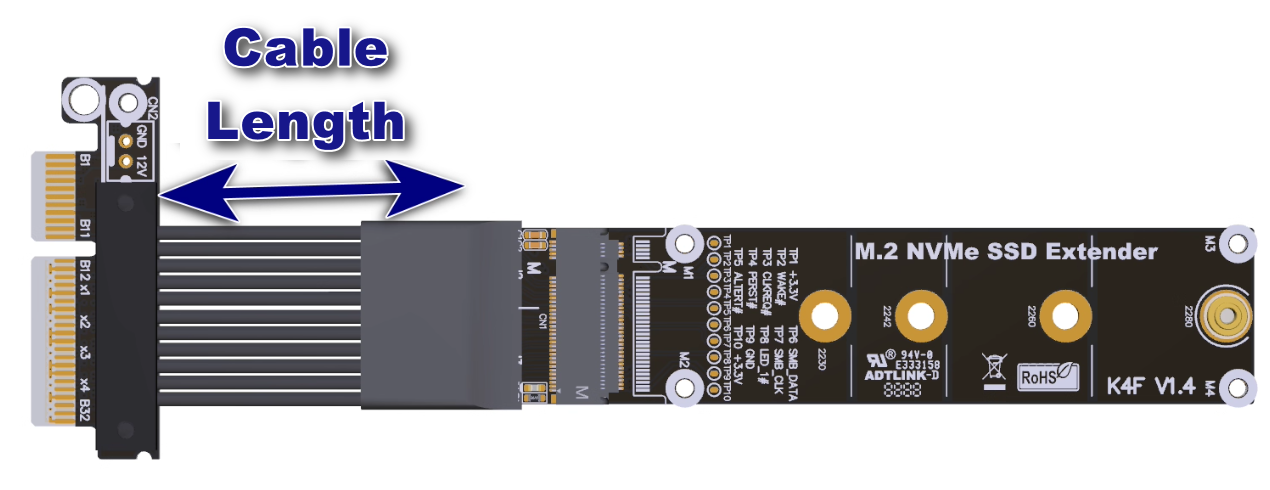

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.

ADT K24 series Part-Number Description:

Part-Number	Description	Bandwidth

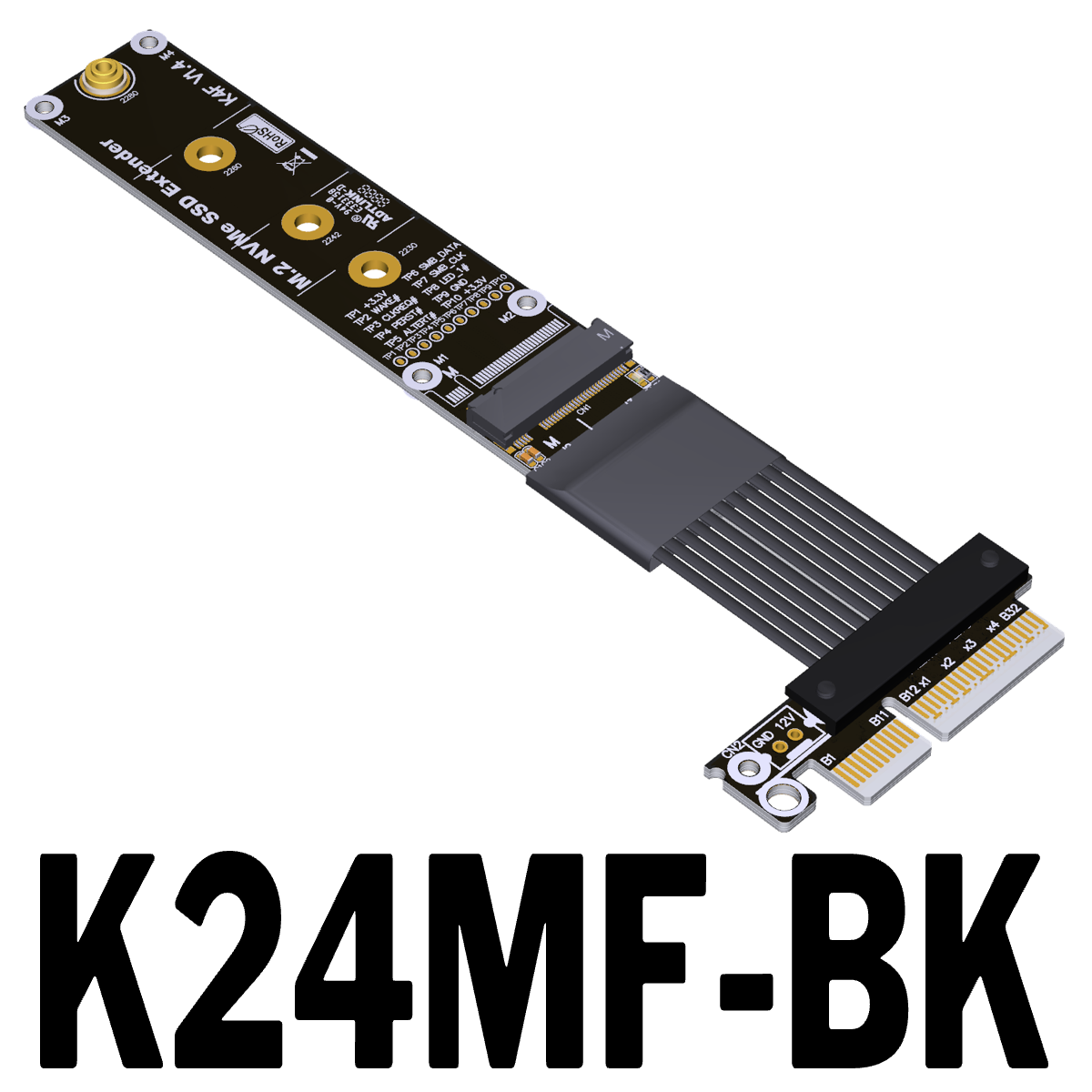

K24MF-BK	PCI-E x4 to M.2NVMe extension cables support 2280	PCIe 5.0 x4 (128G/bps)

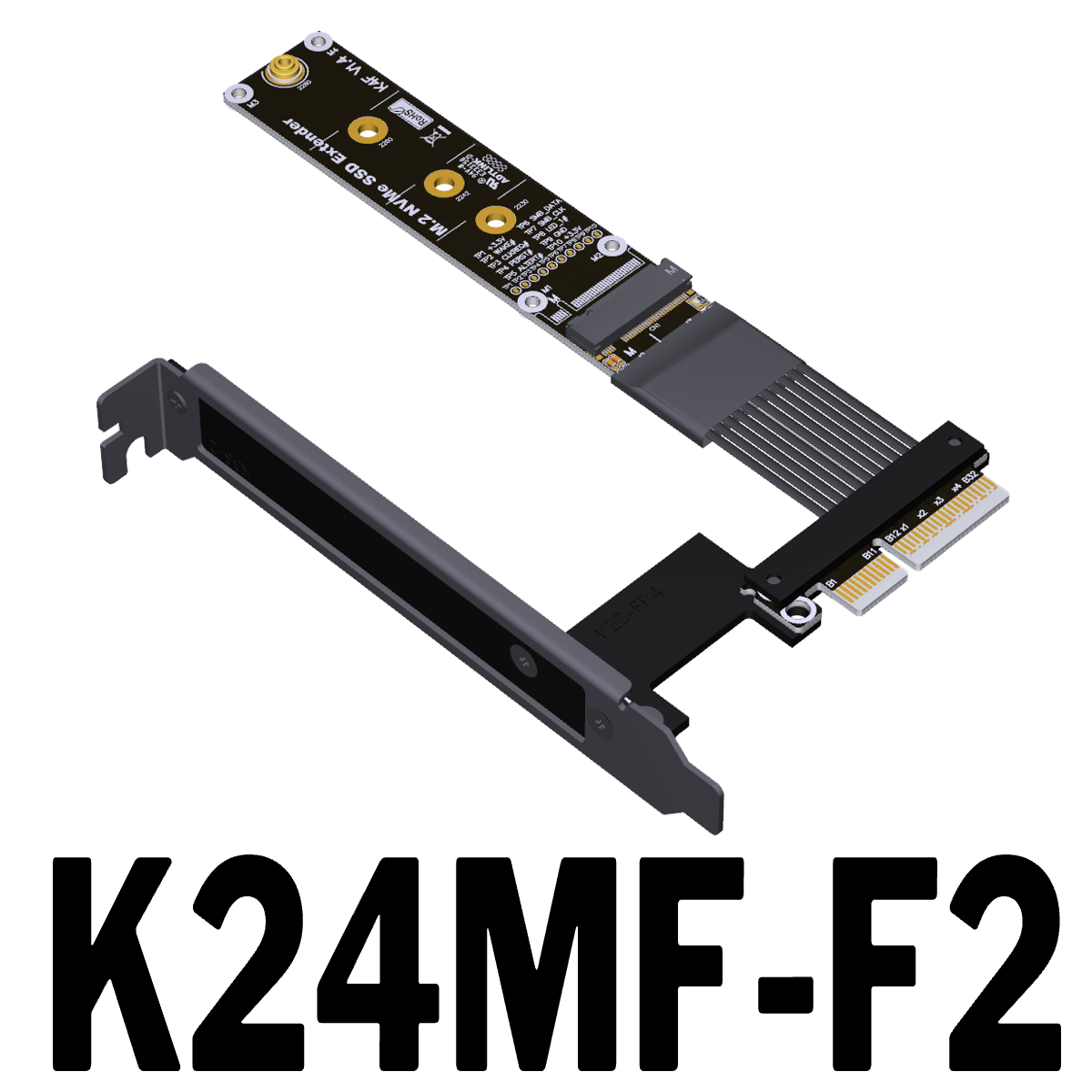

K24MF-F2	PCI-E x4 to M.2NVMe extension cables support 2280 with full height baffle	PCIe 5.0 x4 (128G/bps)

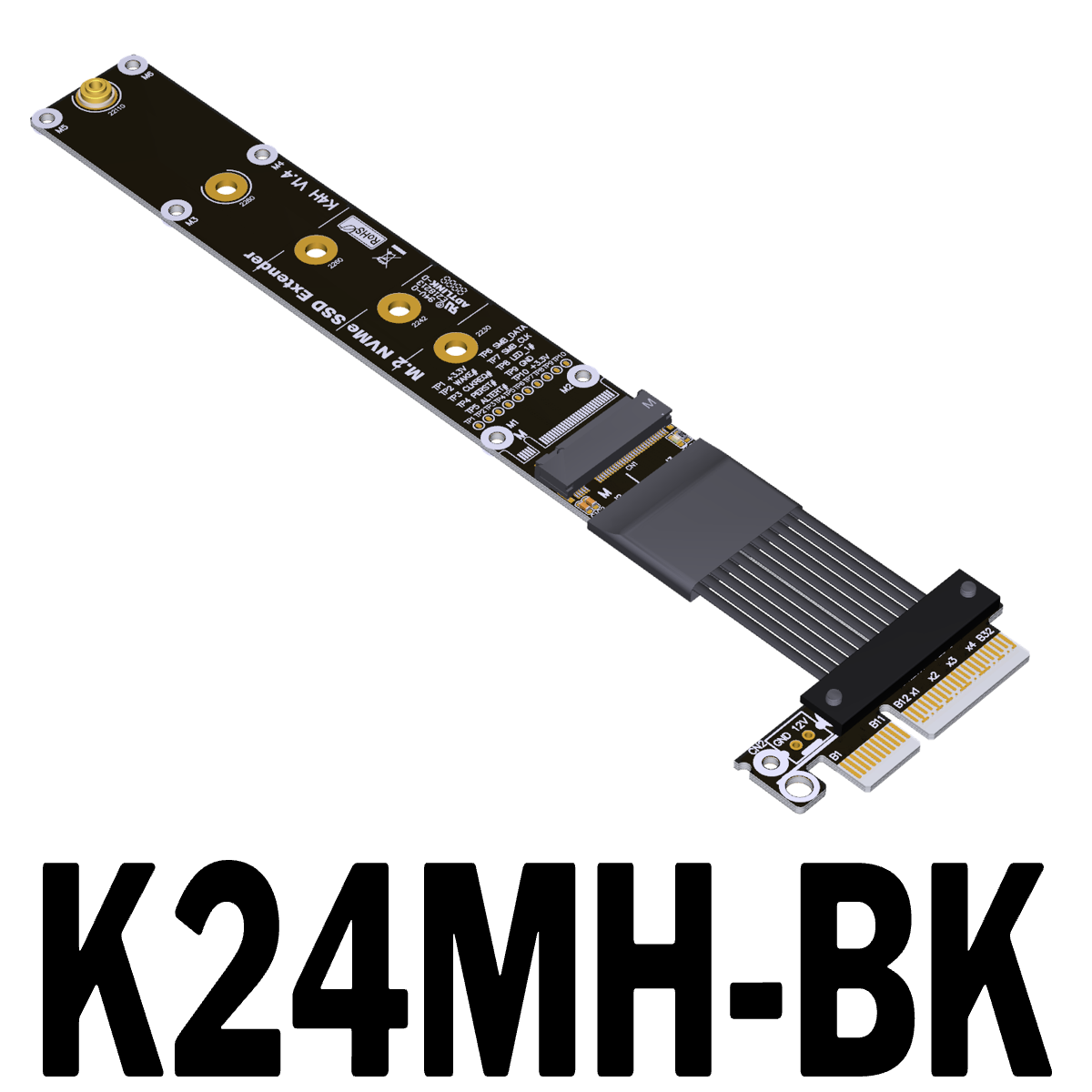

K24MH-BK	PCI-E x4 to M.2NVMe extension cables support 22110 extension cables	PCIe 5.0 x4 (128G/bps)

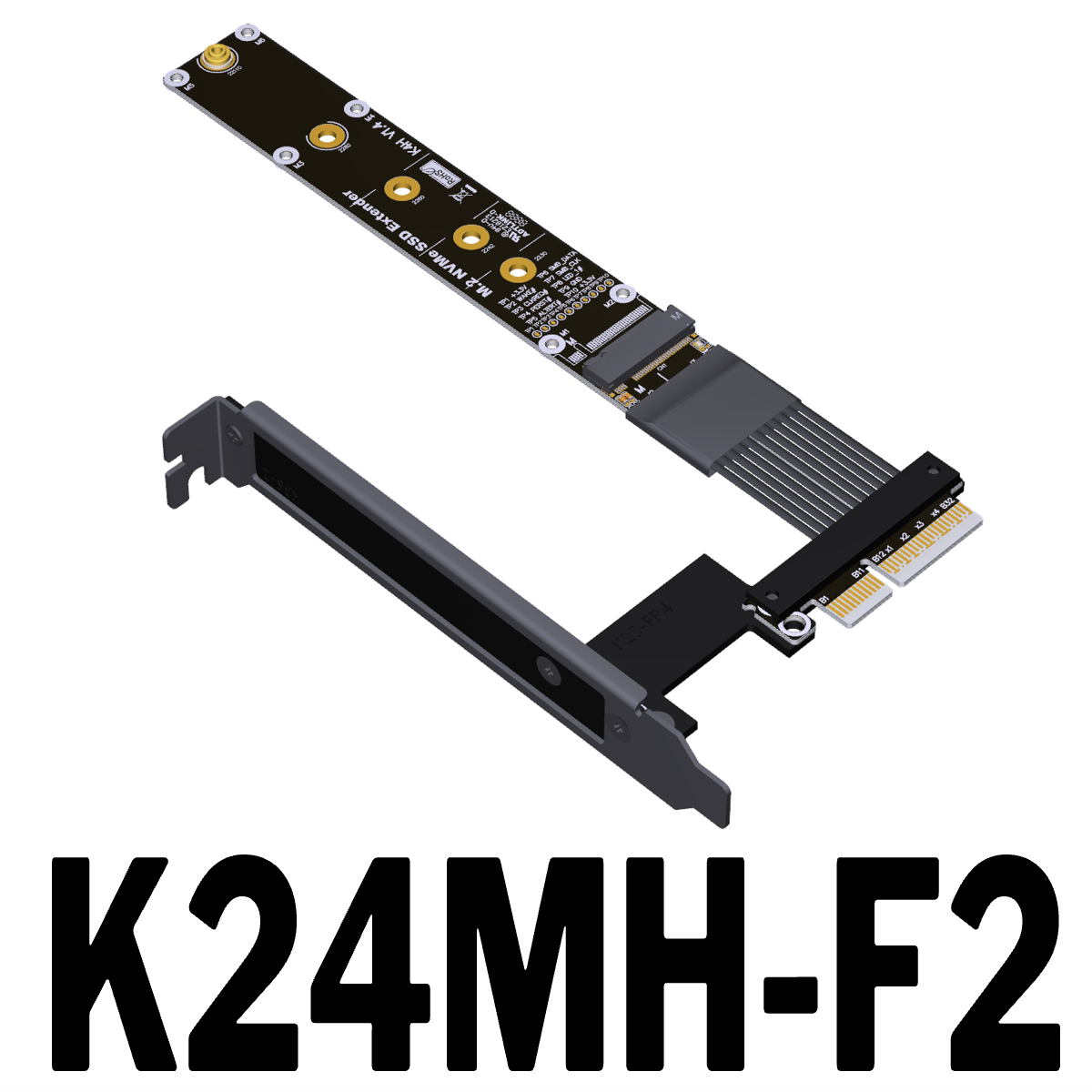

K24MH-F2	PCI-E x4 to M.2NVMe extension cables support 22110 with full height baffle	PCIe 5.0 x4 (128G/bps)

What is the difference between K24MF-BK and K24MH-BK?

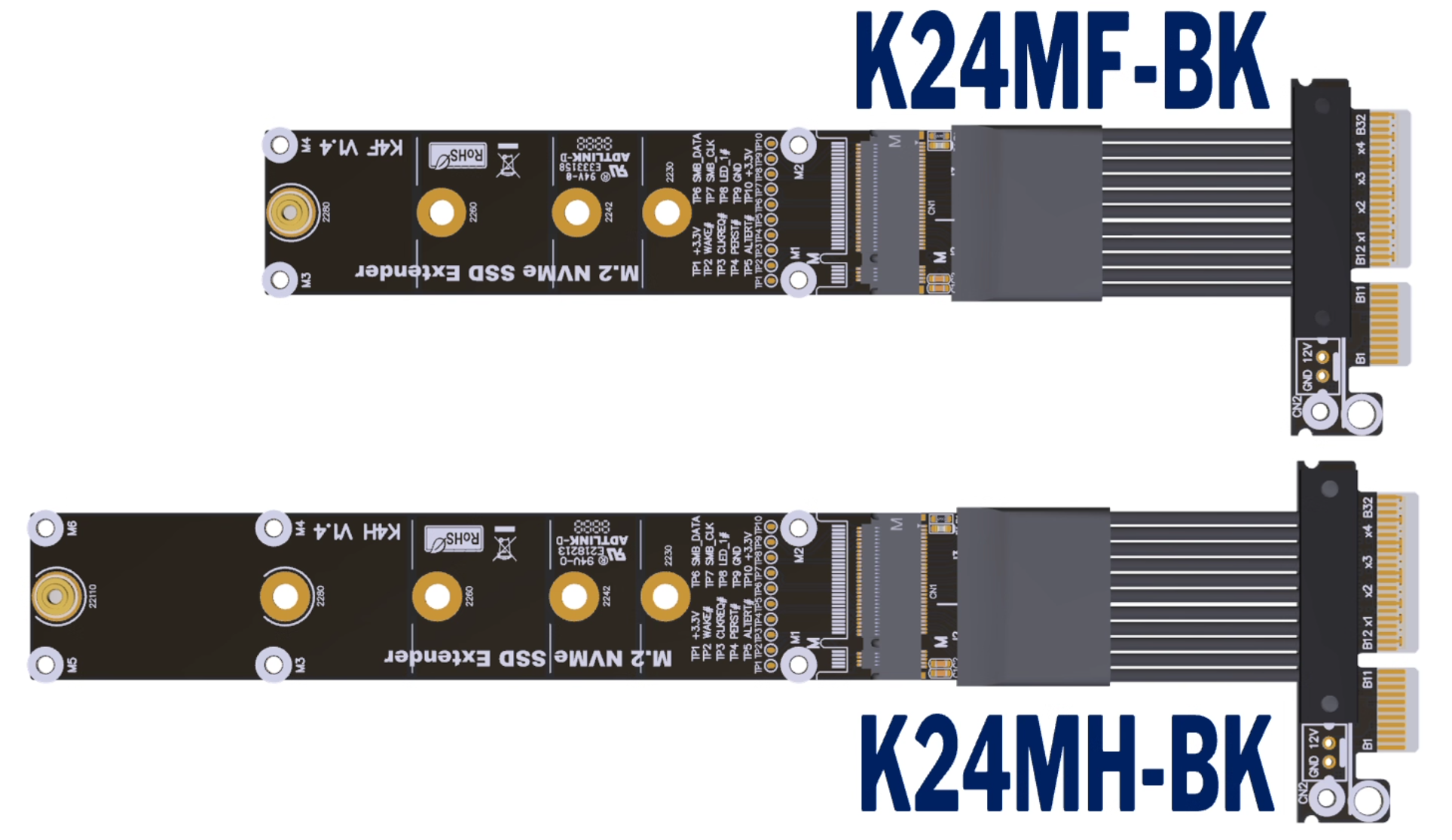

The K24MH can support SSDs of 22110 size, while the K24MF can support SSDs of 2280 size. The external dimensions are shown in the following figure:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The wire is the fifth generation PCIe dedicated wire independently developed by ADT, with a diameter of only 0.8mm, which can be bent freely without affecting its use.
