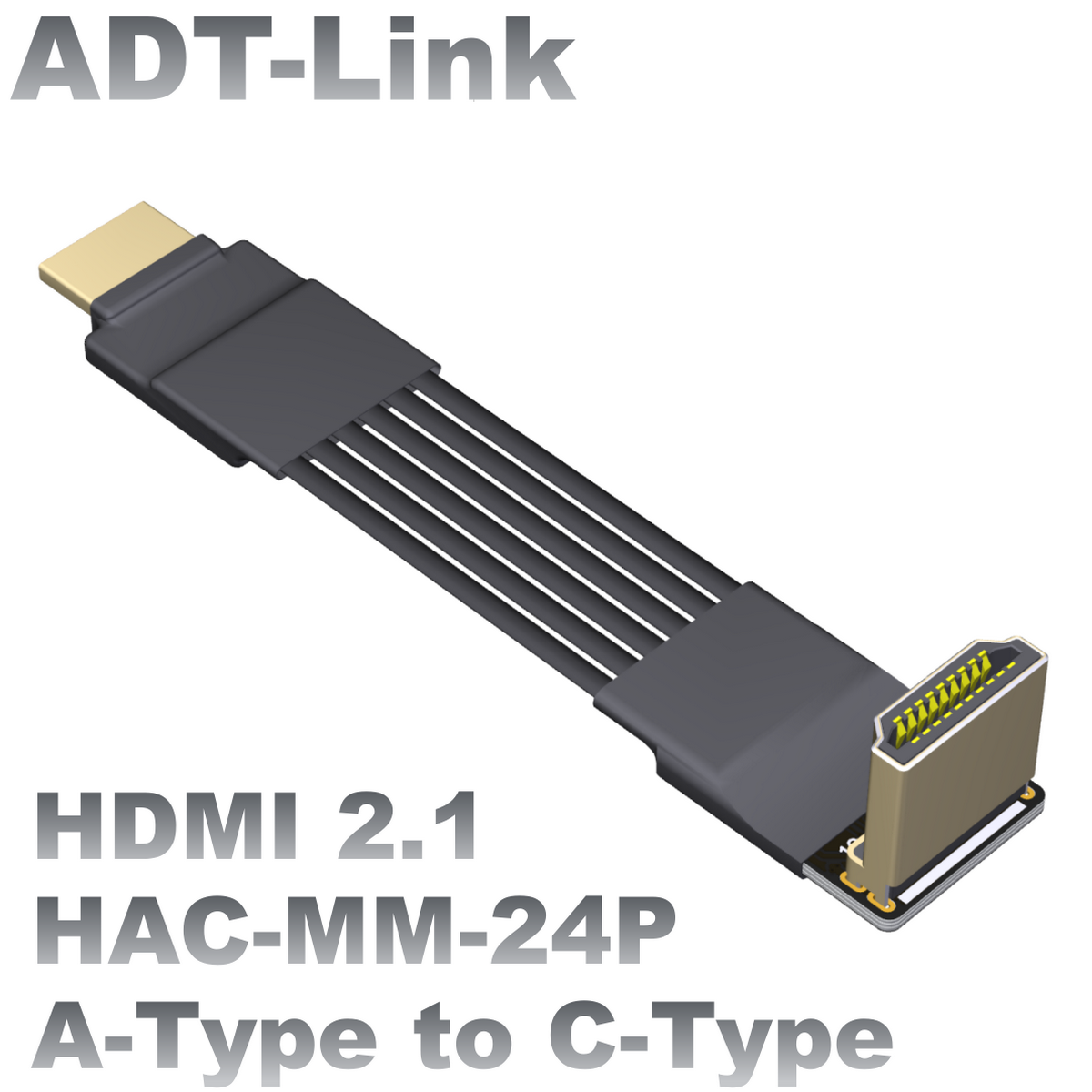

HDMI 2.1 type-A male to type-C male Flat Cable

Brand name: ADT-LINK

Product name: HDMI 2.1 type-A male to type-C male Flat Cable

Product model: HAC-MM-24P series

Transfer-speed: support HDMI V2.1 bandwidth up to 48G.bps, resolutions up to 4K@165Hz, 8K@60Hz

Wire length: 3 ~ 200 cm, the length can be customized

Application: For FPV Aerial Photography Gopro Camera

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Cable length Description:

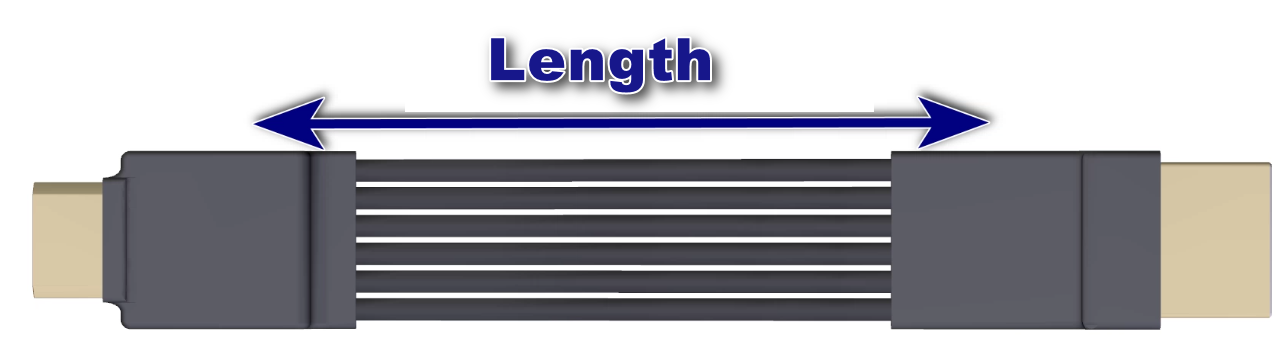

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download: http://www.adt.link/download/HAC-MM-24P.ZIP

Schematic download: http://www.adt.link/download/schematic_hdmi.pdf

FTP: Hong Kong

3D PDF files download: http://www.adtlink.cn/download/HAC-MM-24P.ZIP
Schematic download: http://www.adtlink.cn/download/schematic_hdmi.pdf

WebShop:

http://www.adt.link/product/HAC-MM-24P-Shop.html

Keywords:

Aerial FPV PTZ HDMI flexible flat ribbon cable FFC cable FPV HDMI Cable Standard Male to female Straight

A1 HDMI Mini HDMI Micro HDMI 2.0 Converter Cable Angle   highly-routable foldable axial elbow

3 / 5 /10 /15 /20 /30 /50 / 100 / 150 / 200 cm For PC AV HDTV LCD FPV FFC 3D  Multi copter

2K 4K 50/60Hz for HDTV AV Aerial Photography 90 Degree Connector Drone Gopro DSLR gimbal kit

Micro HDMI use for GH4  GoPro  BMPCC  A5000  A6000  A7R  A7S and other all Micro HDMI interface device;
Mini HDMI use for  5D3  5D2  GH3  GH2  5N  5T  5R  7N and other all Mini HDMI interface device;
HDMI use for UHD TV ,RED BMCC FS7 C300,Blu-ray players, Fire TV, Apple TV, PS4, PS3, XBox one,  Xbox 360, computers, Android TV box, mxiii, m8, mxq and other all HDMI-enabled devices. HDMI V2.1 Ver 2.1
