PCIe x16 to PCIe x16 Extender

F36B-F37B F36B-F37B-D8S

Product ID: F36B-F37B F36B-F37B-D8S
Transfer speed: PCIe 4.0
Interface: PCIe x16/PCIe x16
Shelf time：2024-12-23 11:07:19
Product description: ADTLink PCIe 4.0x16 MCIO graphics card split extension cable supports one-to-two x8 split
INQUIRY

ADT-Link PCI express 4.0 x16 MCIO Split Extension Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 x16 Mini Cool Edge I/O (MCIO) Split extension cable

Product model: F36B,F37B,F36B-F37B,F36B-F37B-D8S

Transfer speed: PCIe 4.0

Wire length: 50cm,80cm,100cm

Cable length Description:

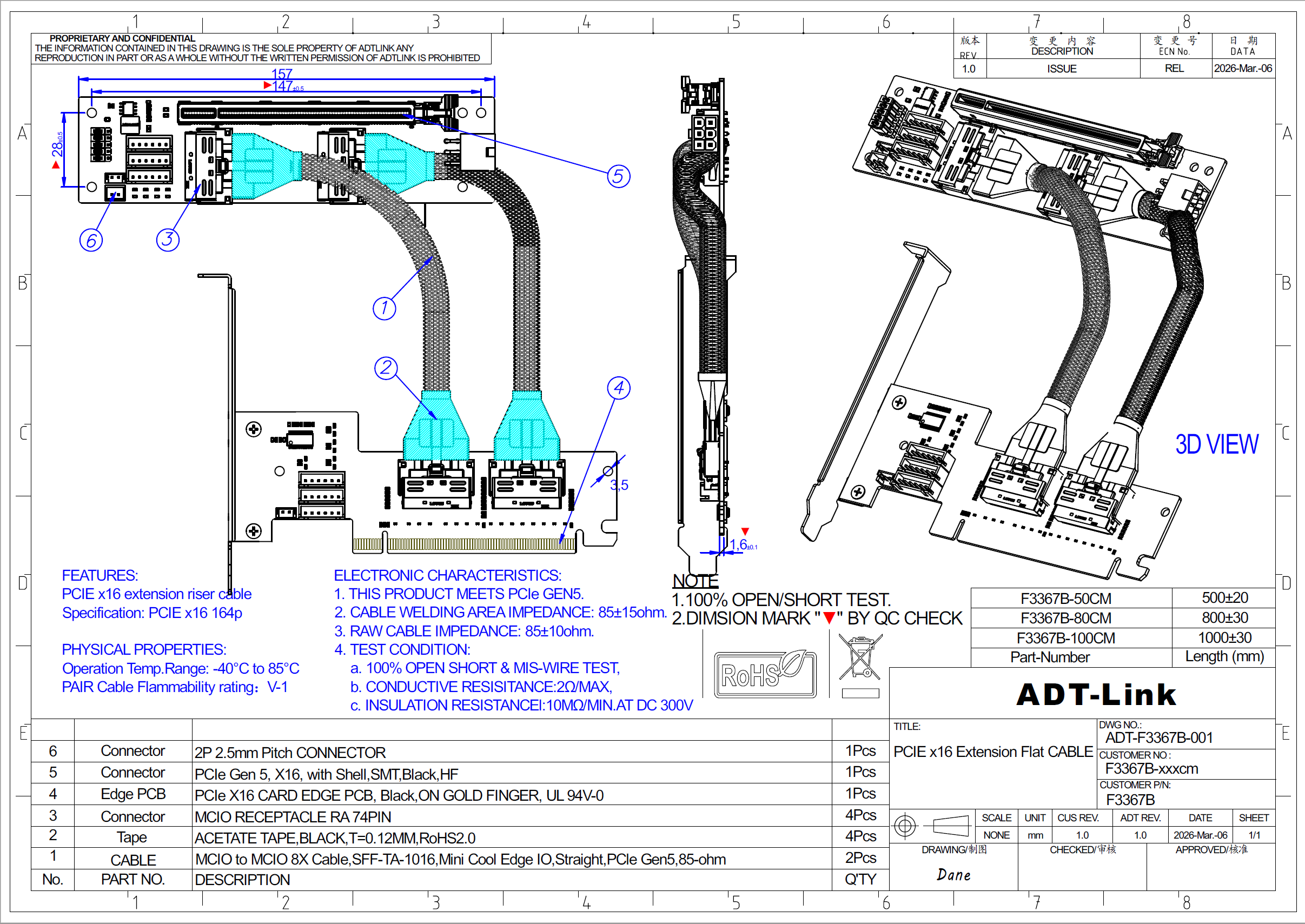

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Part-Number Description:

Part-Number	Description	Bandwidth(Max.)

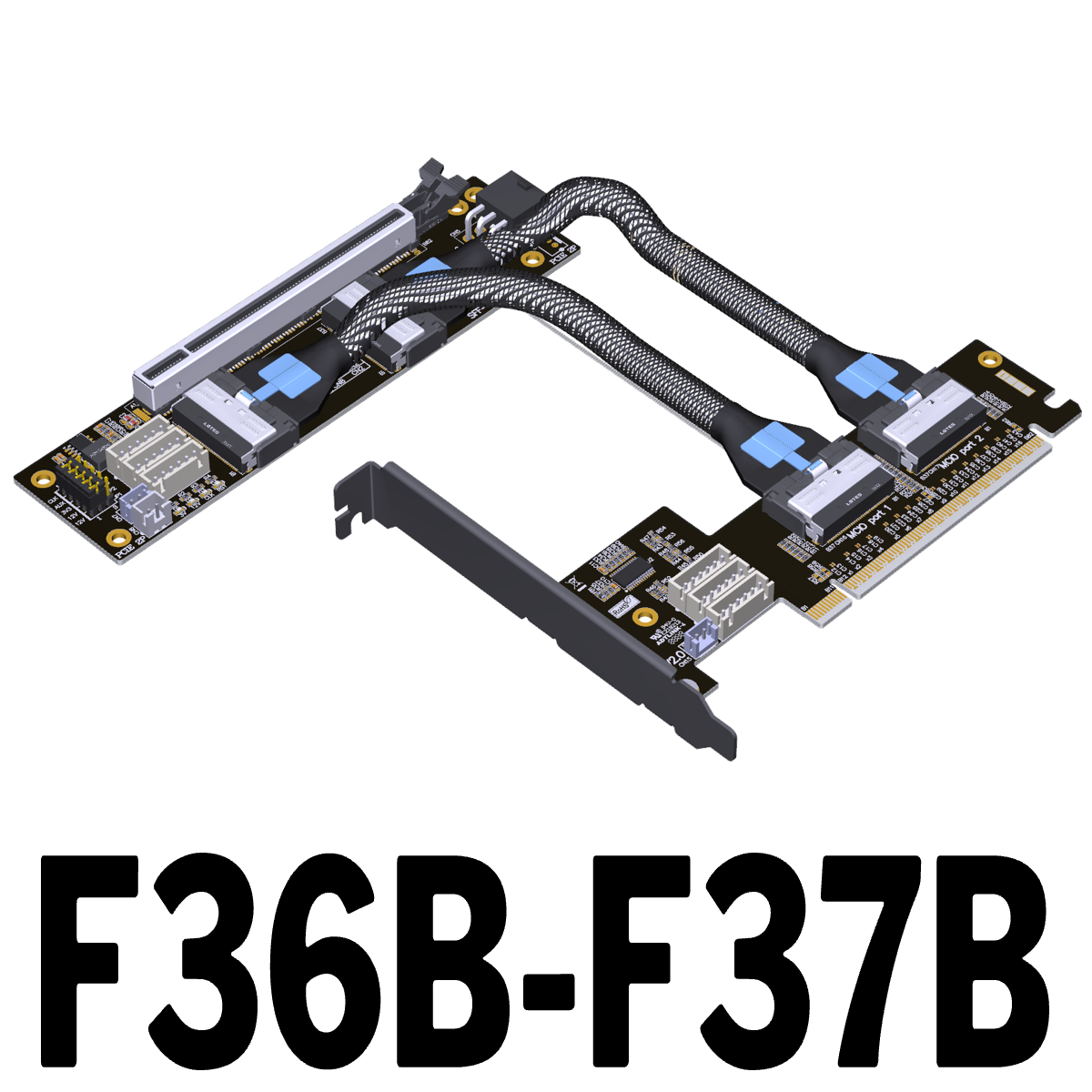

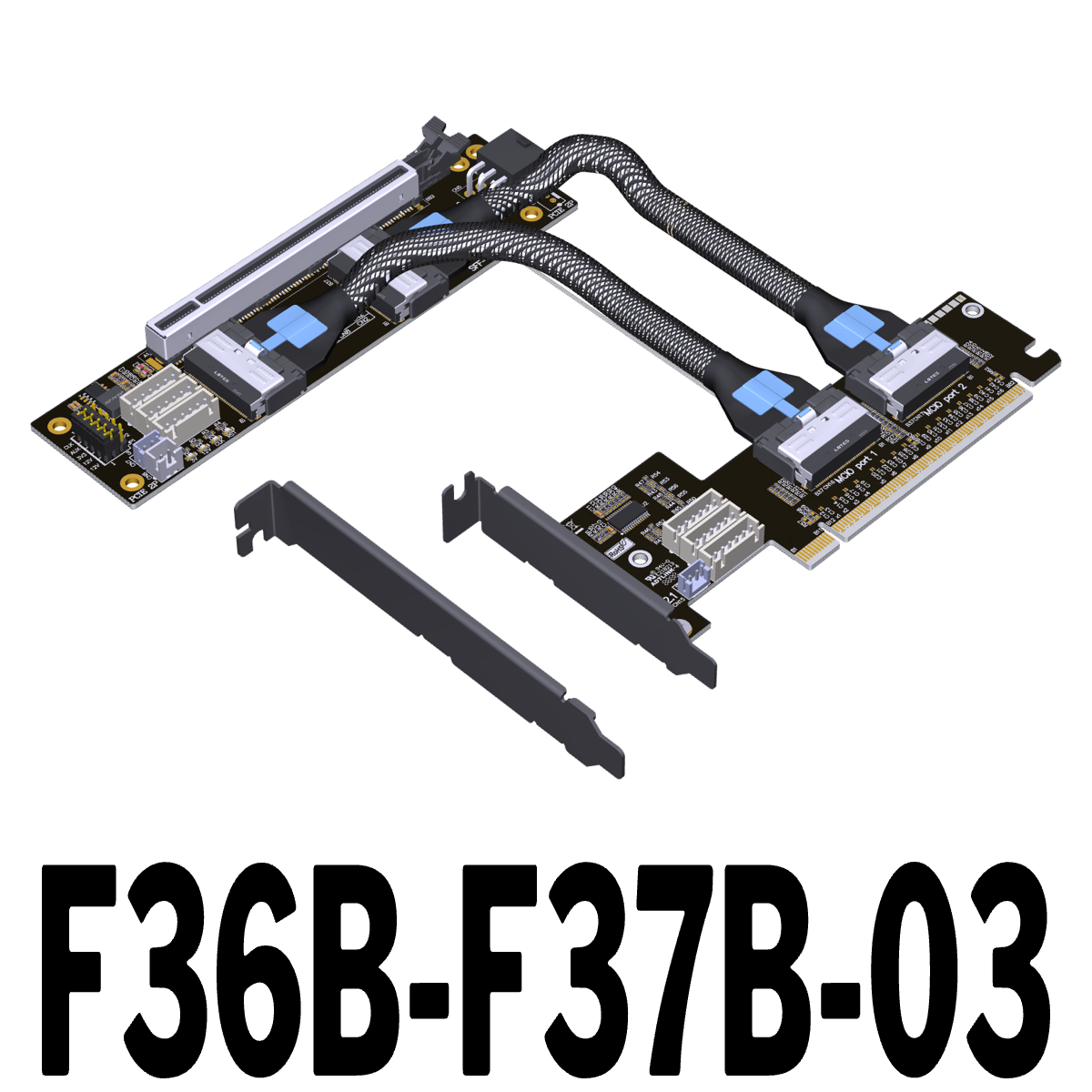

F36B-F37B	PCI-E 4.0 x16 to x16 turn 90 degree extension cables	PCIe 4.0 x16

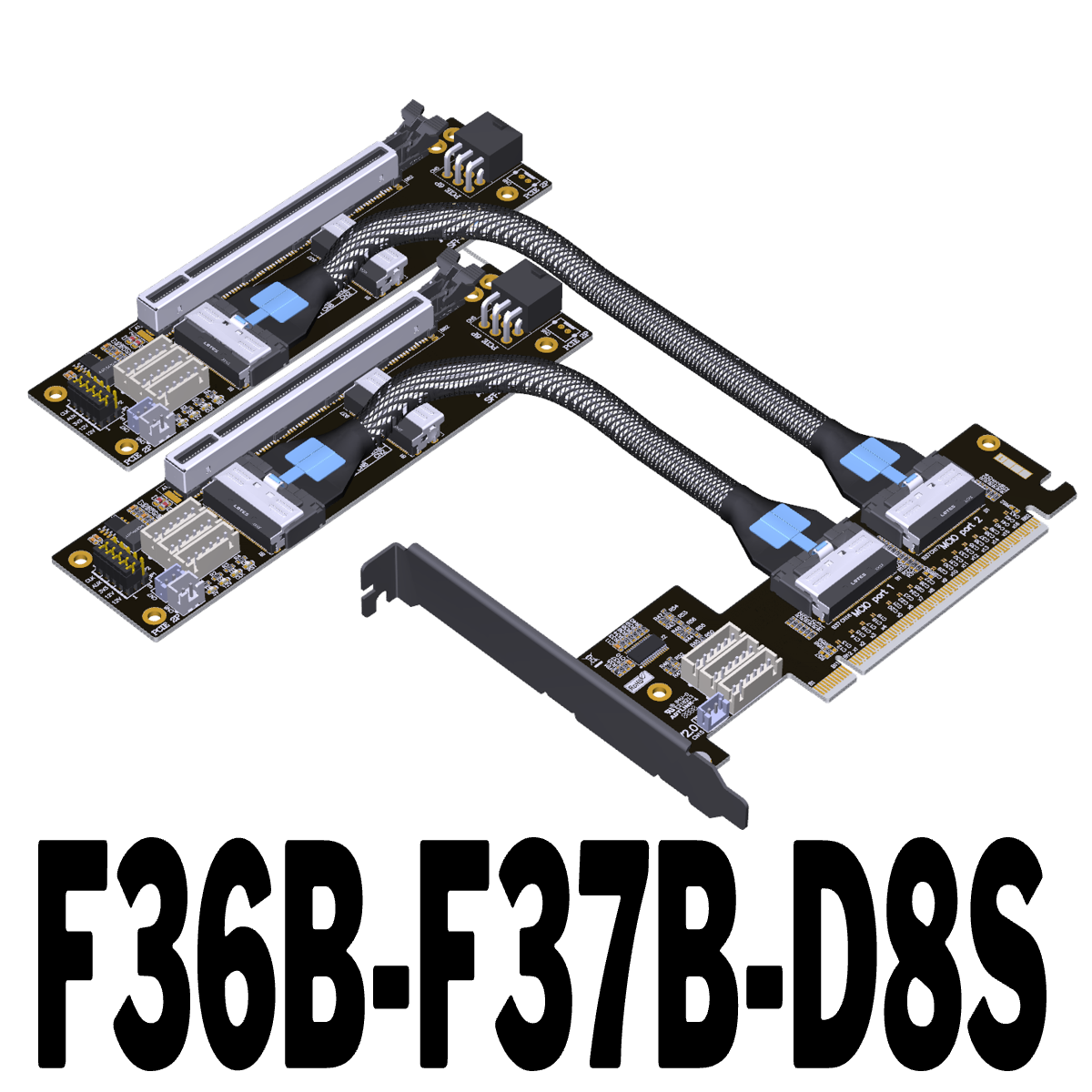

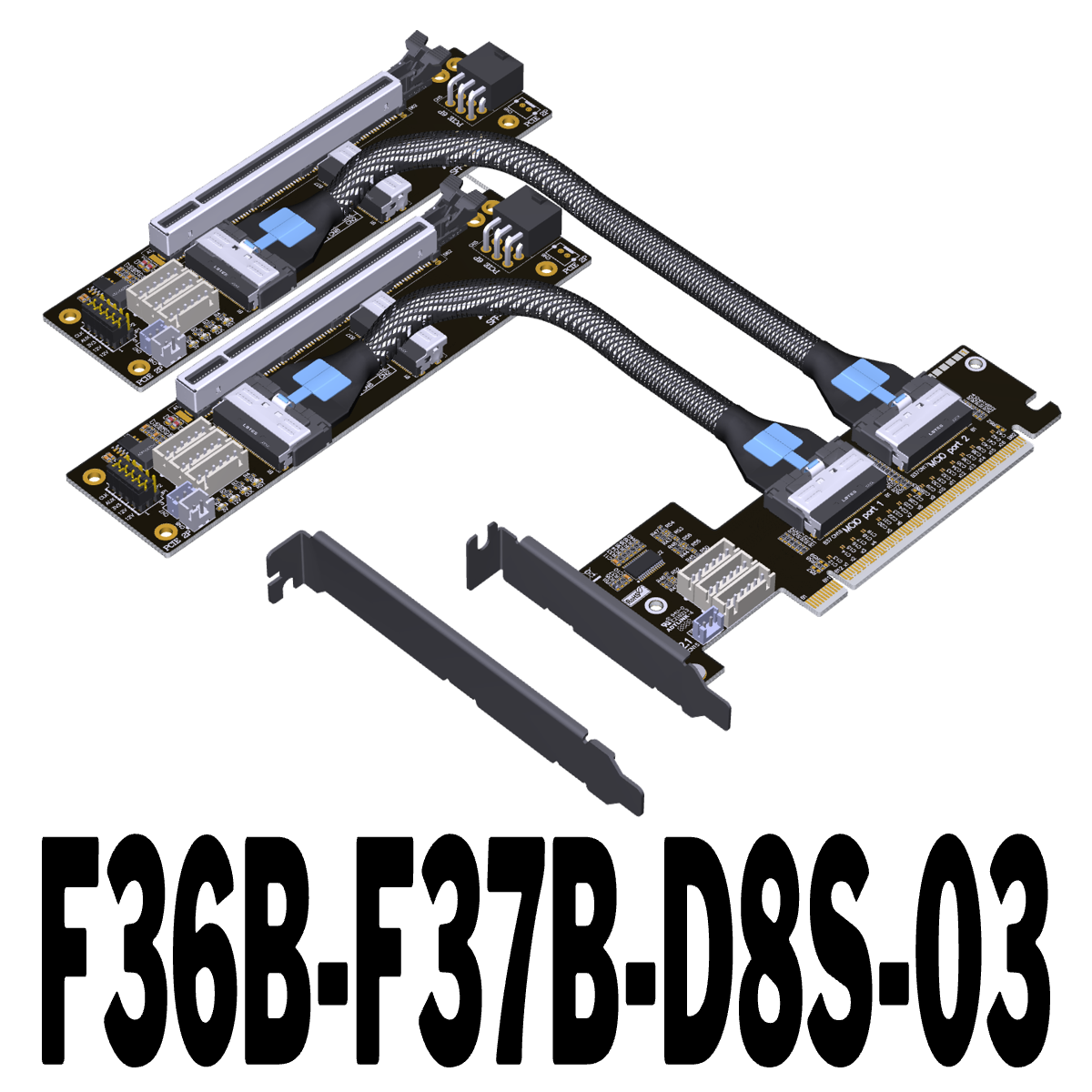

F36B-F37B-D8S	PCI-E 4.0 x16 to double x16(Split into x8x8) turn 90 degree extension cables	PCIe 4.0 x8x8

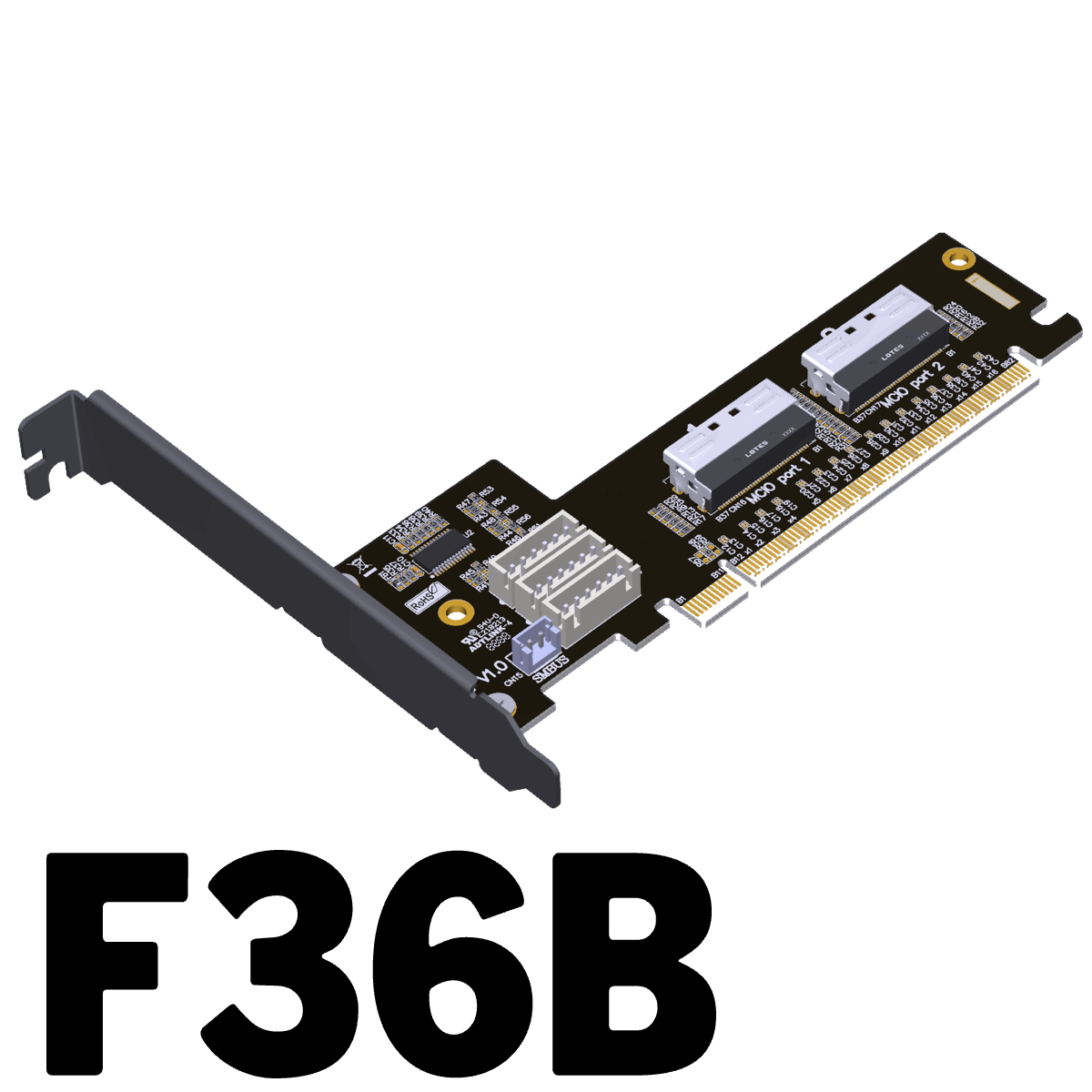

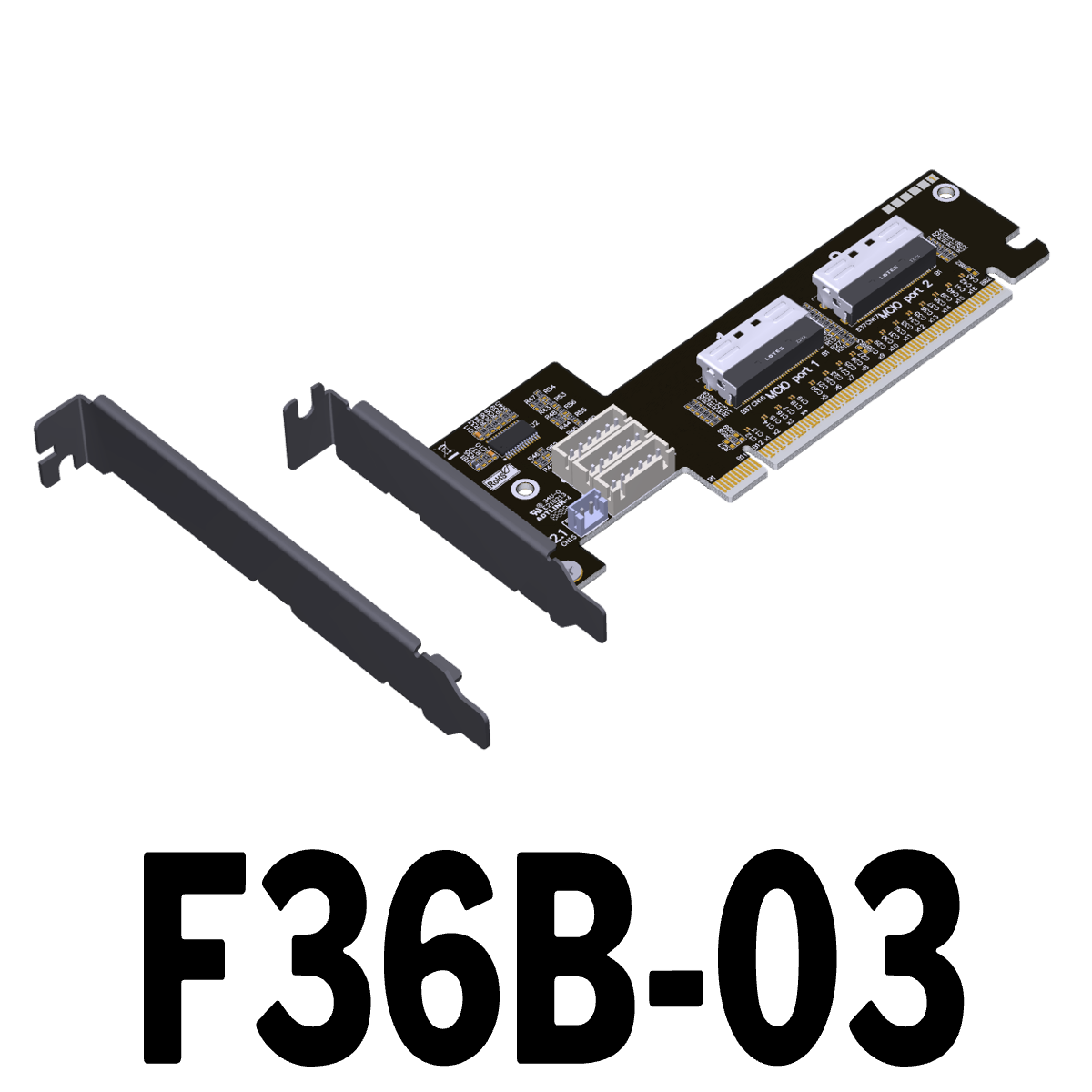

F36B	PCI-E 4.0 x16 Male to MICO x8x8 Female adapter	PCIe 4.0

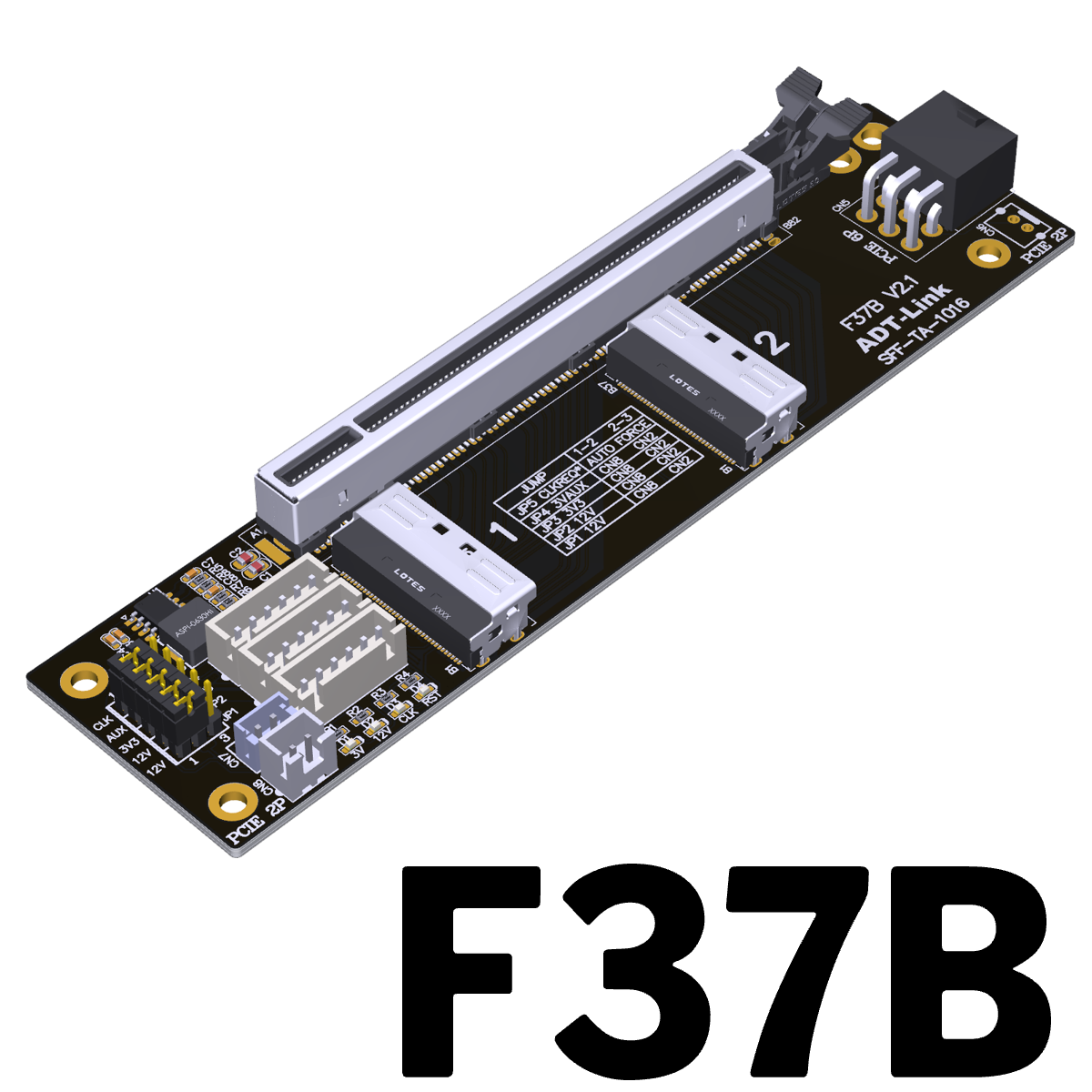

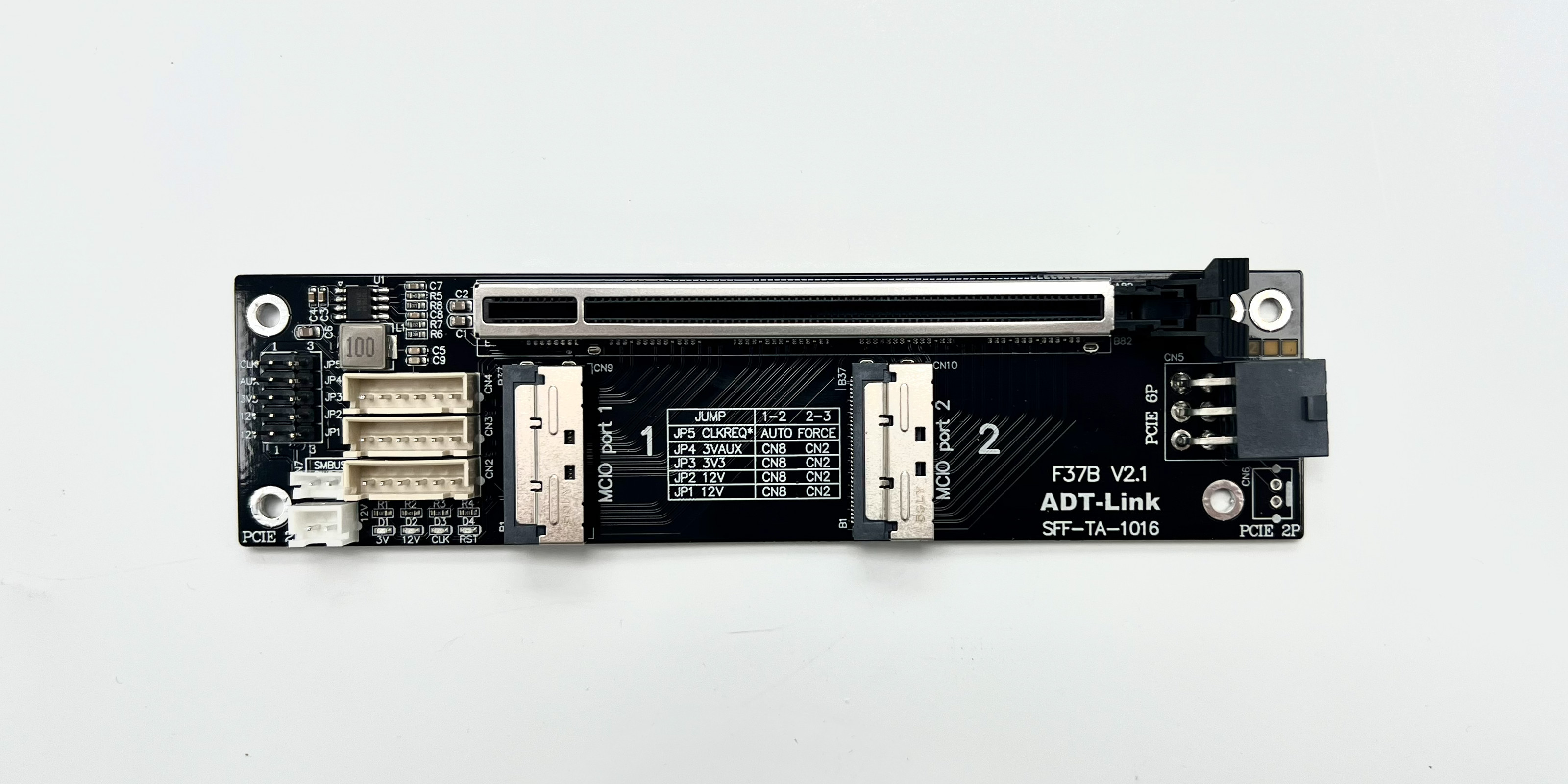

F37B	PCI-E 4.0 MICO x8x8 Female to x16 Female adapter	PCIe 4.0

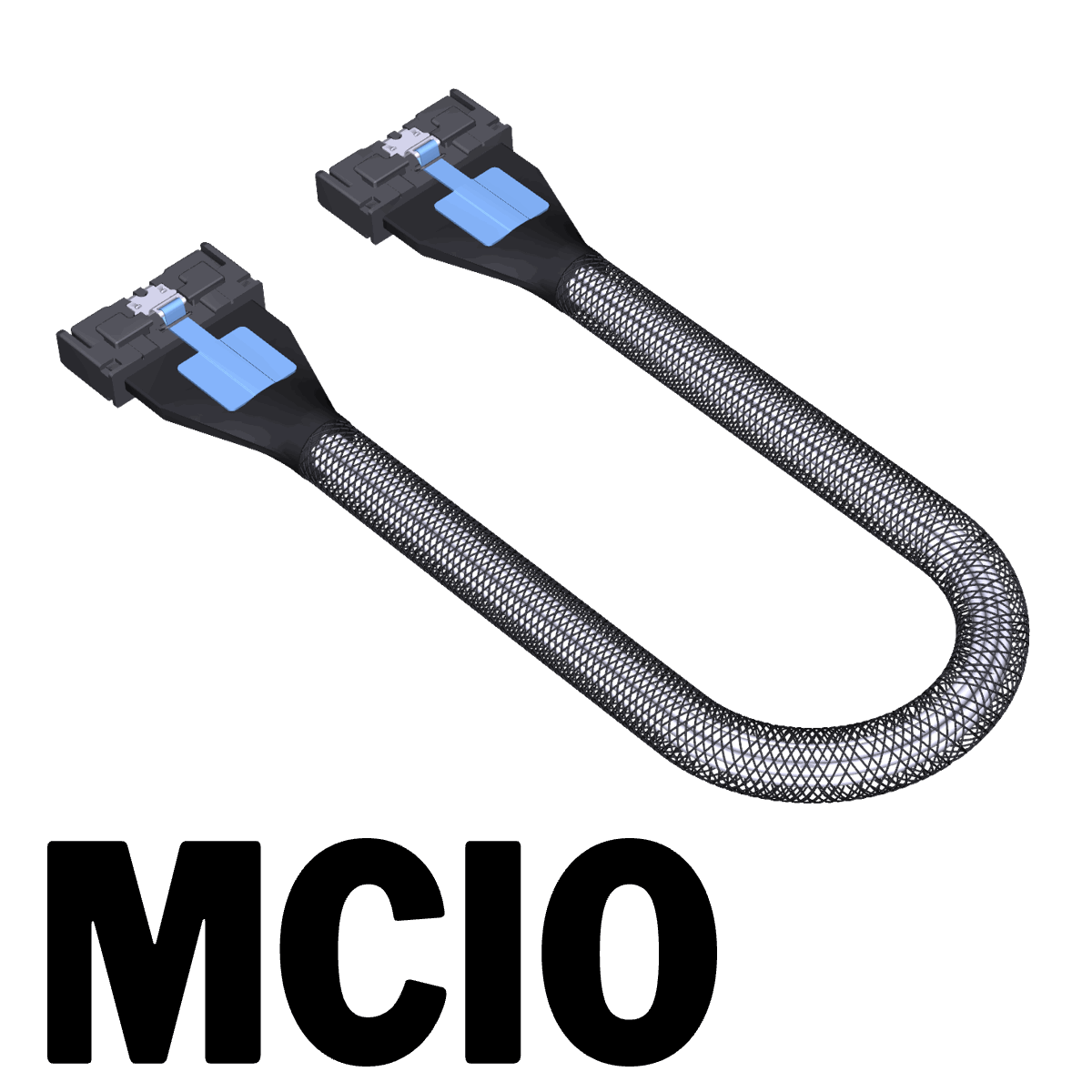

MCIO-x8	PCI-E 4.0 MCIO x8 74 Pin Male to Male extension cables	PCIe 4.0 x8

Product advantages:

1. UL certified PCB board, gold finger gold-plated 10µ", good conductivity, can reduce the blue screen problem caused by oxidation and rust impedance.
2. The connector shell material is PA10T/LCP, the terminal is gold-plated 15µ" for plug-in resistance, and the high frequency meets RoHS/Free (HF) requirements.
3. Four-layer PCB board, advanced design, exquisite craftsmanship, stable and fast signal, excellent wiring, good isolation, high-frequency impedance board can reach PCIe 5.0 standard, meeting various needs.
4. This PCIe adapter cable can be freely split, supports motherboard Bifurcation PCIE supports one-to-one, one-to-two, flexible design, and wide application.

Photo:

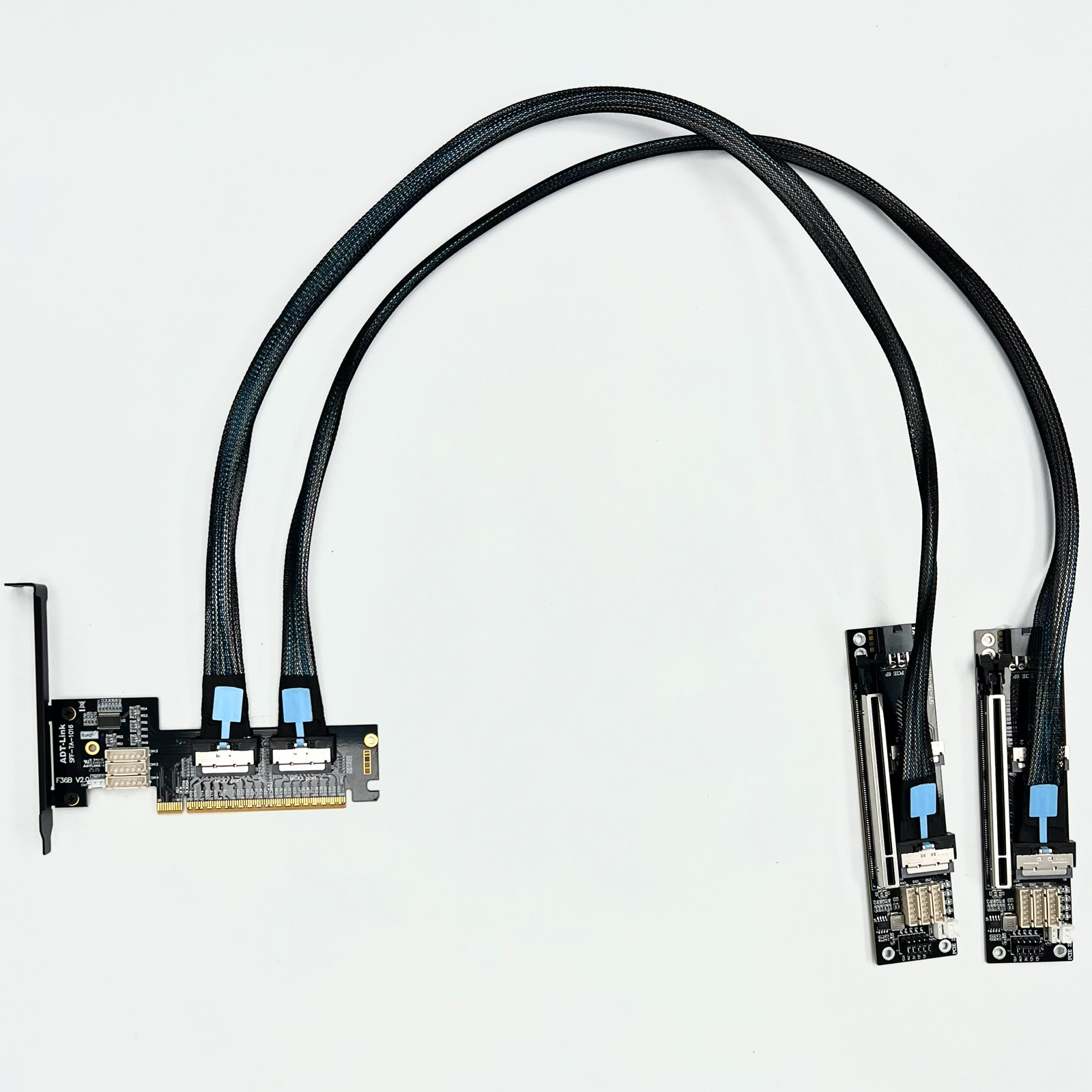

One-to-one installation completion pictures

Q&A:

What is the product speed?

One to two, two devices can be used at the same time, achieving PCIe4.0x8 full-speed transmission.

How to confirm whether the motherboard supports Bifurcation PCIE splitting?

Please check the motherboard manual yourself. The manual or BIOS options will explain Bandwidth PCIE channel splitting or Bifurcation options. If it is not mentioned, it is not supported.
