PCIe x16 to PCIe x16 Extender

  • F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S
  • F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S
  • F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S
  • F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S
F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4SF3312A,F3312A-D8S,F3312A-844S,F3312A-Q4SF3312A,F3312A-D8S,F3312A-844S,F3312A-Q4SF3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S

F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S

  • Product ID:F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S
  • Transfer speed: PCIe 4.0
  • Interface: PCIe x16/PCIe x16
  • Shelf time:2024-09-26 11:07:19
  • Product description: ADTLink PCIe 4.0 x16 FFC graphics card extension cable supports one-to-four x4x8 split
  • INQUIRY
Part-Number
Note
Part-Number
Note
Part-Number
Note
Part-Number
Note
PayPal Acceptance Mark

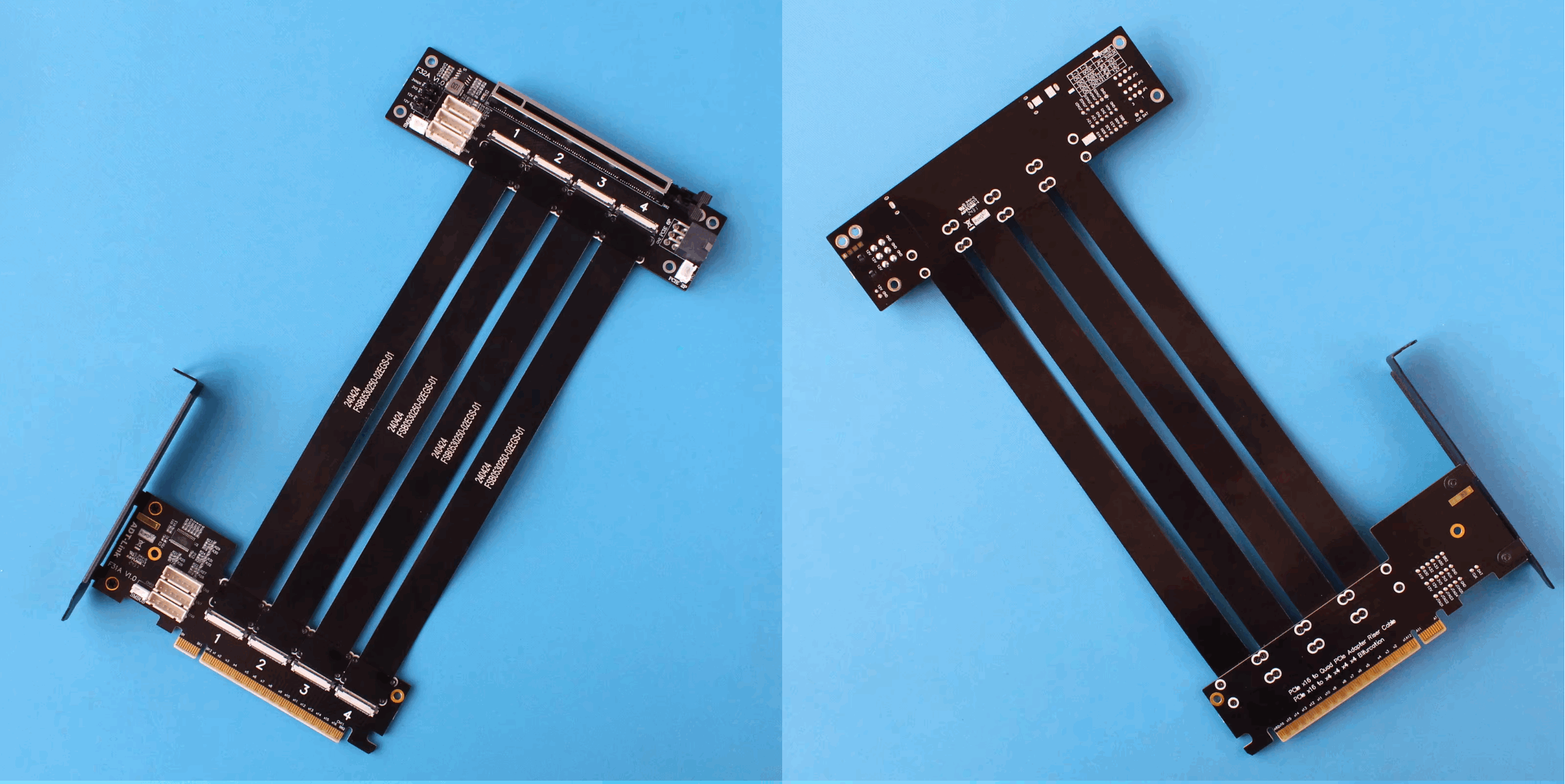

ADT-Link PCI express 4.0 x16 Split Extension Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 x16 Split extension cable

Product model: F3312A,F3312A-D8S,F3312A-844S,F3312A-Q4S

Transfer speed: PCIe 4.0

Wire length: 25cm,50cm


Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.


Part-Number Description:

Part-Number
Description
Bandwidth(Max.)
F3312A
PCI-E x16 to x16 turn 90 degree extension cables PCIe 4.0 x16
F3312A-D8S
PCI-E x16 to double x16(Split into x8x8) turn 90 degree extension cables
PCIe 4.0 x8x8
F3312A-844S PCI-E x16 to three x16(Split into x8x4x4) turn 90 degree extension cables
PCIe 4.0 x8x4x4
F3312A-Q4S
PCI-E x16 to Quad x16(Split into x4x4x4x4) turn 90 degree extension cables
PCIe 4.0 x4x4x4x4



Product advantages:

1. The 1.5mm aluminum alloy gasket is strong and durable, which can effectively block interference and noise.
2. UL certified wire, the 5th generation FFC flat cable design is fully shielded, and the ultra-thin thickness is only 0.5mm.
3. UL certified PCB board, gold finger gold-plated 10µ", good conductivity, can reduce the blue screen problem caused by oxidation and rust impedance.
4. The connector shell material is PA10T/LCP, the terminal is gold-plated 15µ" for plug-in resistance, and the high frequency meets RoHS/Free (HF) requirements.
5. Four-layer PCB board, advanced design, exquisite craftsmanship, stable and fast signal, excellent wiring, good isolation, high-frequency impedance board can reach PCIe 5.0 standard, meeting various needs.
6. This PCIe adapter cable can be freely split, supports motherboard Bifurcation PCIE supports one-to-one, one-to-two, one-to-three, one-to-four, flexible design, and wide application.

Photo:






One-to-one and one-to-two installation completion pictures

Q&A:

What is the product speed?

One to two, two devices can be used at the same time, achieving PCIe4.0x8 full-speed transmission.


Is there any EMI shielding for Cable?
With metal shielding.  The cable uses the latest EMI shielding materials with full cable coverage shielding to prevent the incoming or outgoing of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.


What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.


Is the product detachable?
The FFC cable can be detached at both ends, which is very convenient. To avoid plug-in loss, the FFC cable is only allowed to be disassembled 10 times.

How to confirm whether the motherboard supports Bifurcation PCIE splitting?
Please check the motherboard manual yourself. The manual or BIOS options will explain Bandwidth PCIE channel splitting or Bifurcation options. If it is not mentioned, it is not supported.


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_F3312A_3D.zip

Schematic files download http://www.adt.link/download/ADT F3312A schematic.pdf

Cable specification files download http://www.adt.link/download/ADT-F3312A specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_F3312A_3D.zip

Schematic files download http://www.adtlink.cn/download/ADT F3312A schematic.pdf

Cable specification files download http://www.adtlink.cn/download/ADT-F3312A specification.pdf

Webshop:

https://www.adt.link/product/F3312A-Shop.html
