ADT-WK5

  • Product ID:ADT-WK5
  • Interface: M.2 Key-B / USB 3.0
  • Application: M.2 to USB Adapter
  • Shelf time:2023-Feb-11
  • Product description: ADT-WK5 M.2 Key-B to USB 3.0 adapter
  • INQUIRY

M.2 B-key gold finger to USB 3.0 type-A female adapter

Brand: ADT-Link

Product model: WK5

Product Name:M.2 B-key WWAN 4G network card slot to USB3.0 interface adapter board

Adapter board specifications: M.2 B-key WWAN interface, size 30x42mm, adapter board supports USB 3.0

Weight: 3g

Operation Temperature: -40℃~+80℃

Applicable equipment: USB wireless card, USB mouse receiver, USB SSD

Product use: can make the notebook empty 4G network card slot to USB 3.0 interface, this product for transfer use

Product restrictions: This product is a special design, difficult to assemble, size compatibility restrictions, limited to professional engineers designated for purchase. Please confirm your notebook space restrictions and product specifications before placing an order.

Purchase tips: Be sure to buy 1~2 samples before purchasing in bulk. This product is only an adapter board and does not include demonstration equipment such as wireless network cards, hard disks, et

Part-Number Description:

Part-Number
Description
Speed
ADT-WK5 M.2 B-key gold finger to USB 3.0 type-A female adapter USB 3.0

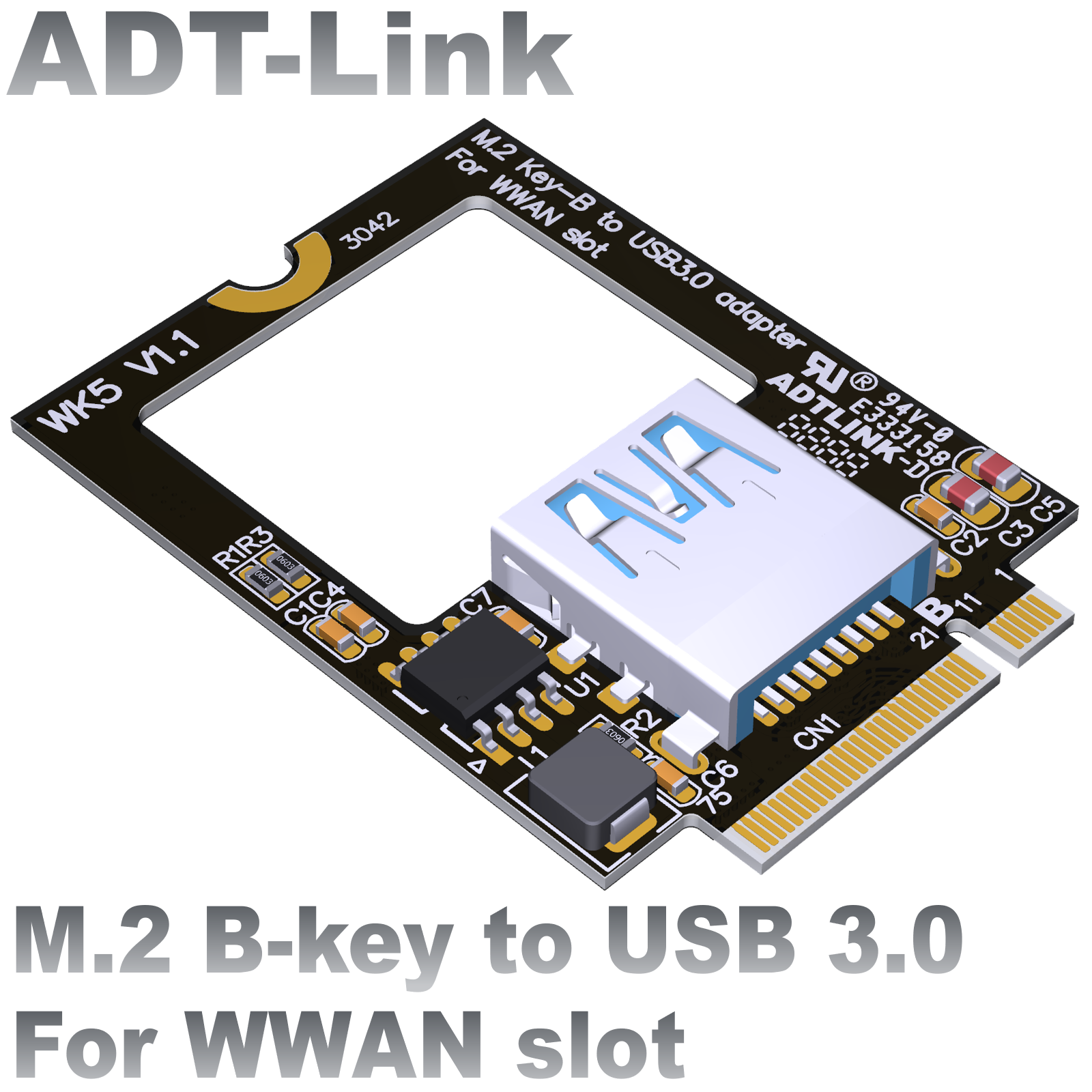

Photo:


Real picture:
This product only refers to the adapter board, does not include wireless network card hard disk and other demonstration equipment

Summary of technical issues:
What is the size and length limit for USB devices?

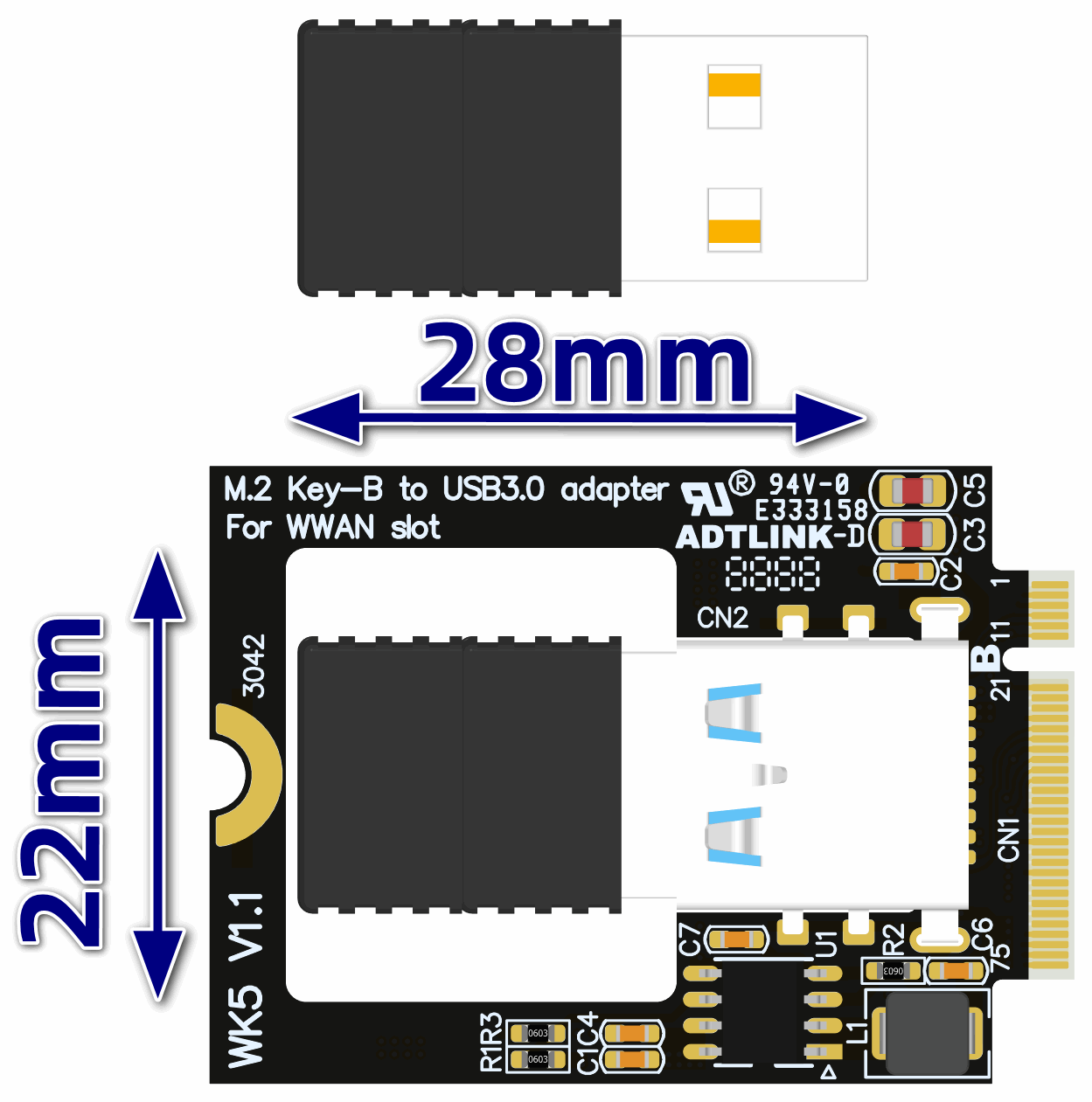

As shown in the figure below, the length of the U disk must be within 28mm, and it cannot be installed beyond 28mm

What are the size and thickness limits for USB devices?
As shown in the figure below, the thickness of the adapter board is 5.8mm, and whether it can be installed depends on the thickness of the U disk and the space of your notebook

U disk and wireless card device purchase connection reference
https://detail.tmall.com/item_o.htm?id=587491193955
https://detail.tmall.com/item_o.htm?id=683758527846


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF, SETP, Specification and schematic files download http://www.adt.link/download/ADT_WK5_3D.zip

FTP: Hong Kong

3D PDF, SETP , Specification and schematic files download http://www.adtlink.cn/download/ADT_WK5_3D.zip
