Type C to C (UTT)

  • UTT2-MF-12P series
  • UTT2-MF-12P series
  • UTT2-MF-12P series
UTT2-MF-12P series UTT2-MF-12P series UTT2-MF-12P series

UTT2-MF-12P series

  • Product ID:UTT2-MF-12P series
  • Interface:TYPE-C / TYPE-C
  • Application: USB extension cable
  • Shelf time:2022-05-17
  • Product description: USB 2.0 Type-C male to Type-C female flat cable
  • INQUIRY

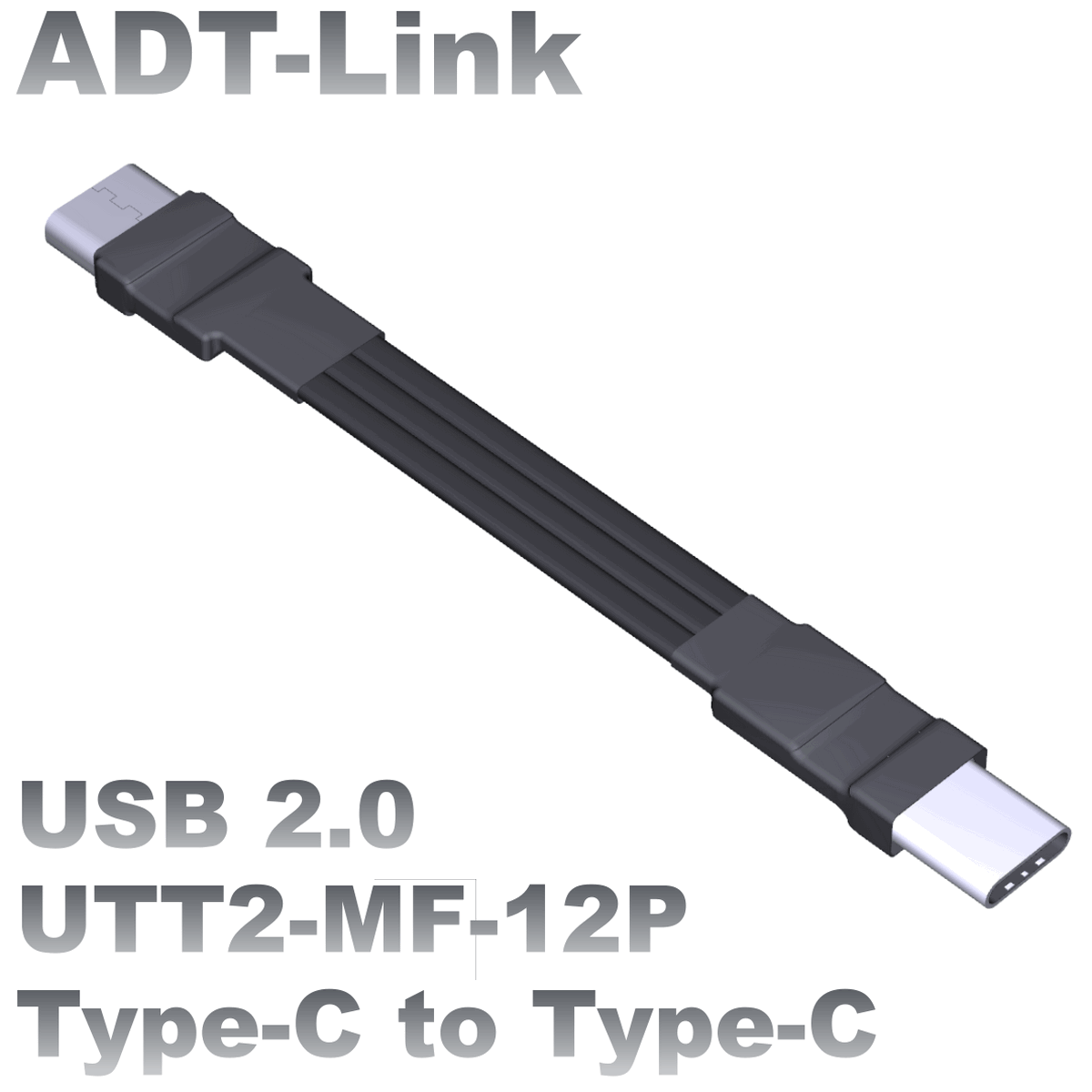

USB 2.0 Type-C male to Type-C female flat cable

Brand name: ADT-LINK

Product name: USB 2.0 Type-C male to Type-C female flat cable

Product model: UTT2-MF-12P series

Transfer speed: support of increased bandwidth up to 0.48G/bps

Wire length: 3~300 cm, the length can be customized,

Current capacity: 5A within 50cm ; 3A within 1 meter

Product applications: mobile phones, tablet computers, GPS navigators, storage devices, imaging devices, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device extension and adapter use, convenient for USB device charging and USB headset microphone extension transmission, etc. And other purposes.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

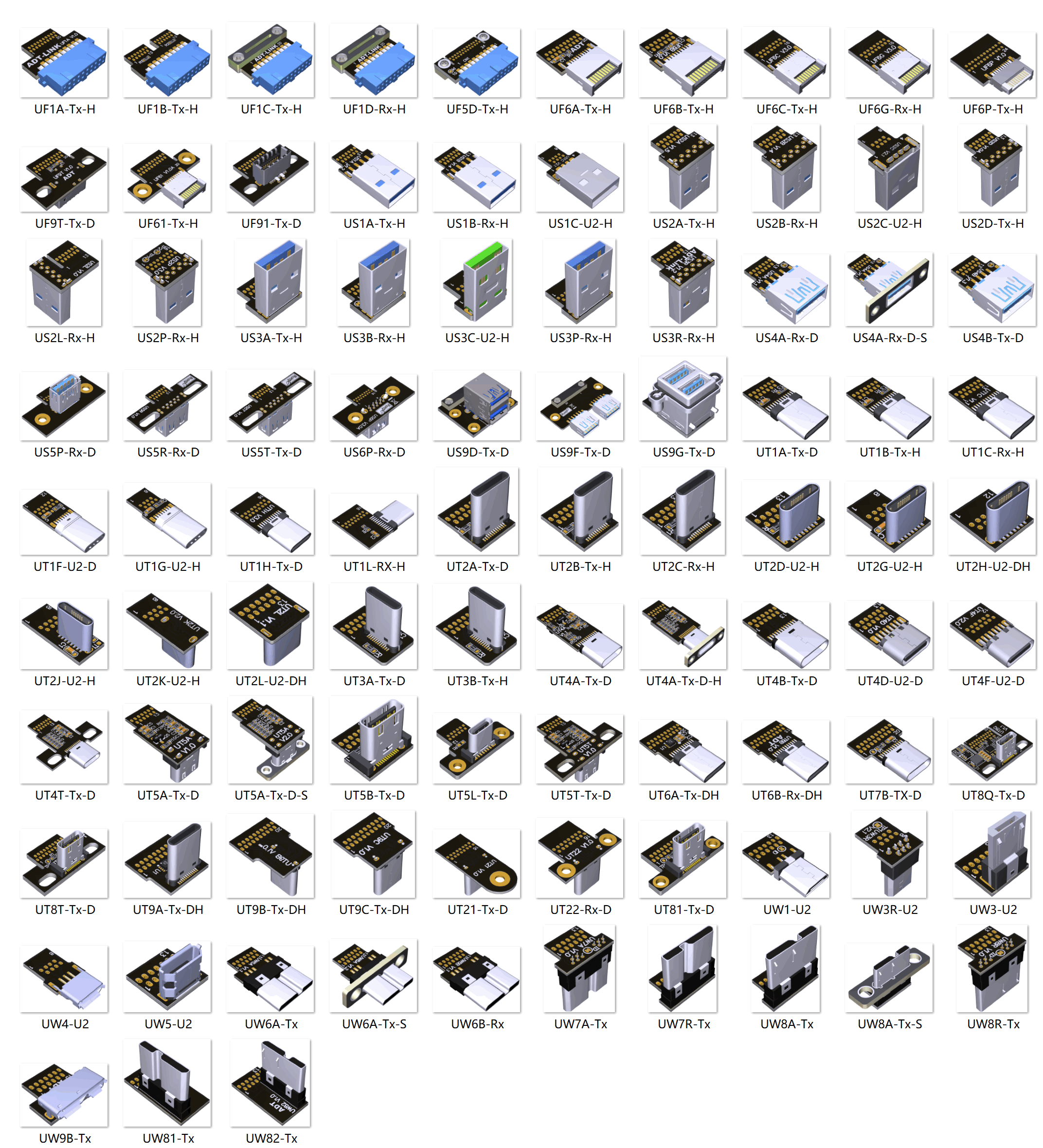

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Brand Part-number Product-Description

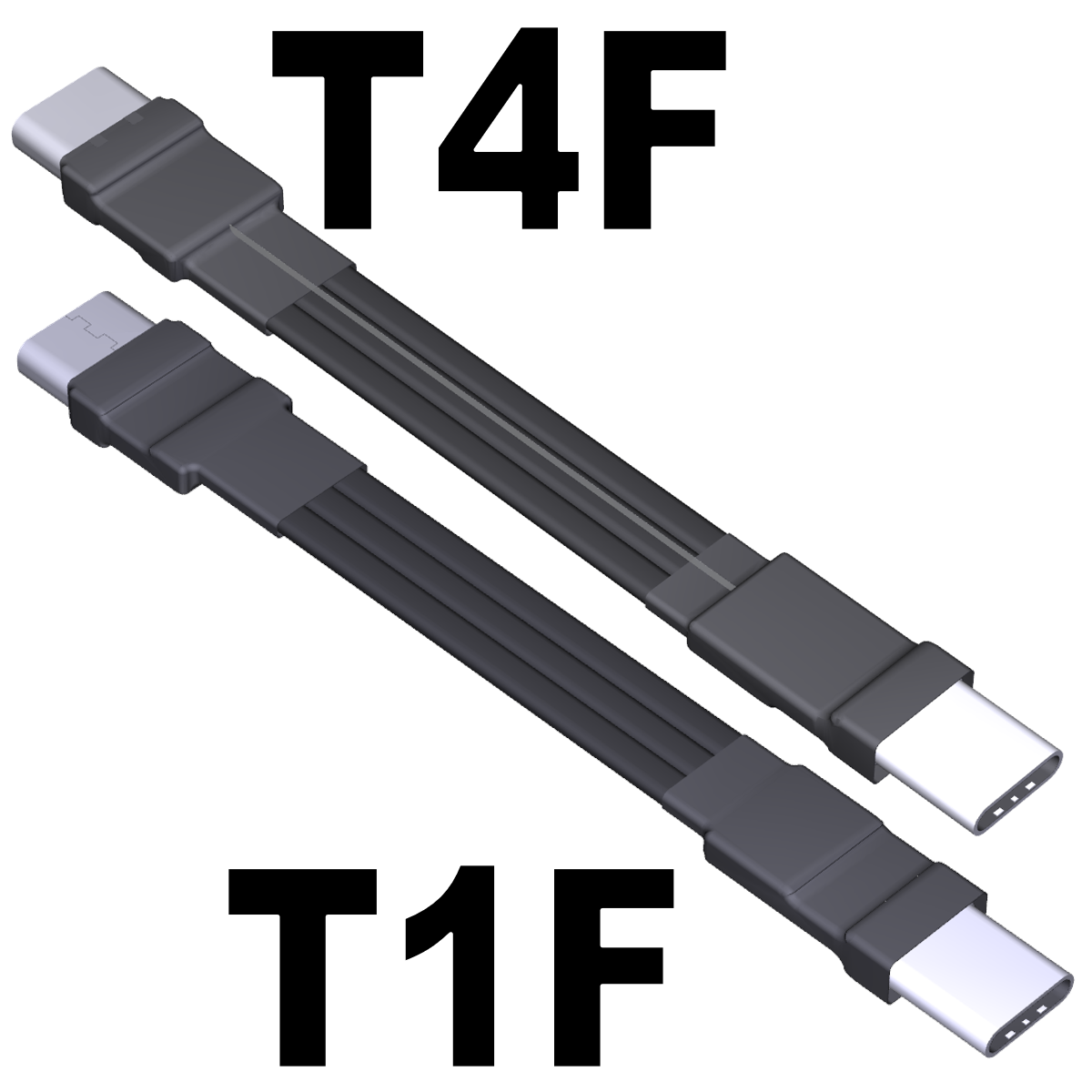

ADTLINK UT1F-UT4F USB 2.0 Type-C male to Type-C female flat cable

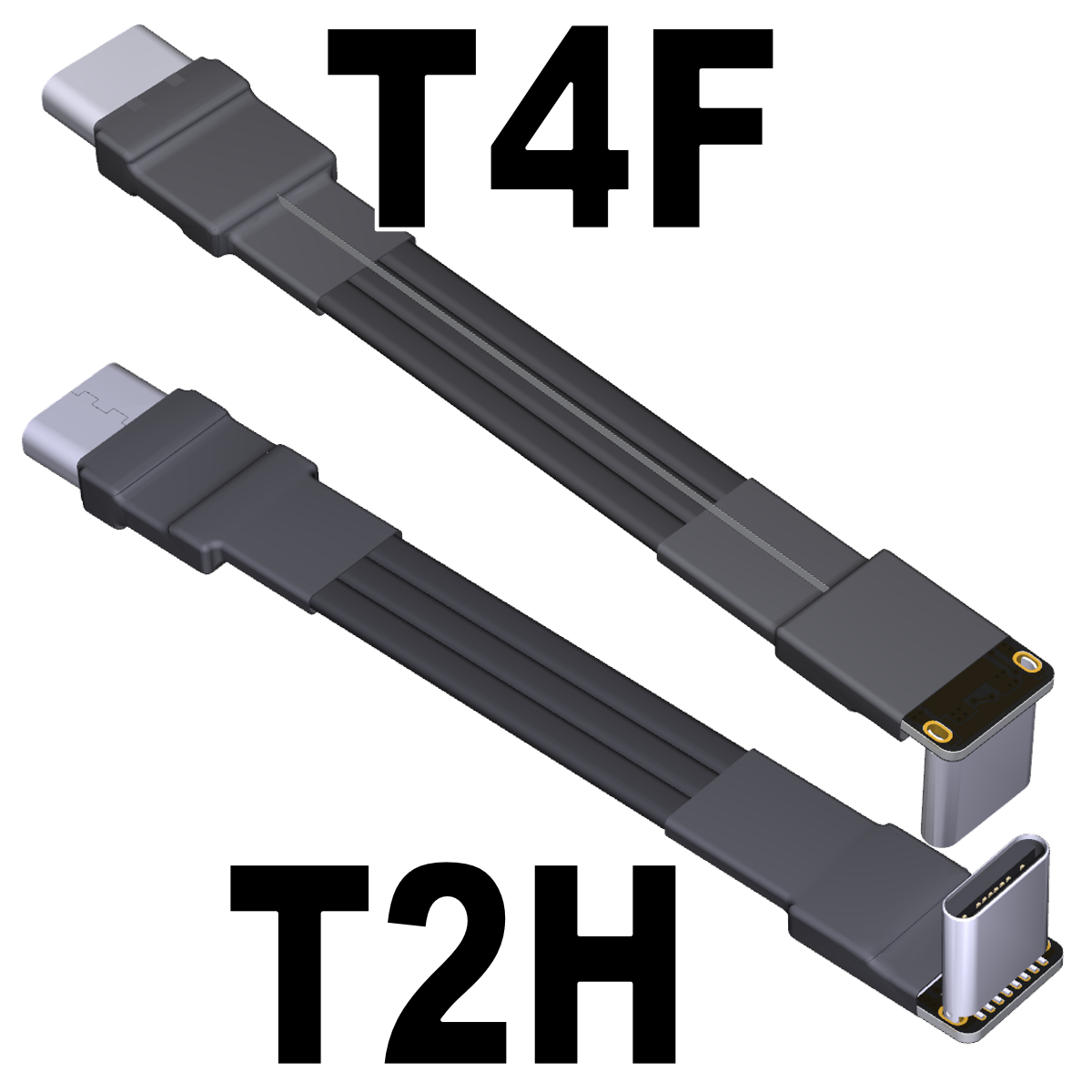

ADTLINK UT2H-UT4F USB 2.0 Type-C male to Type-C female flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

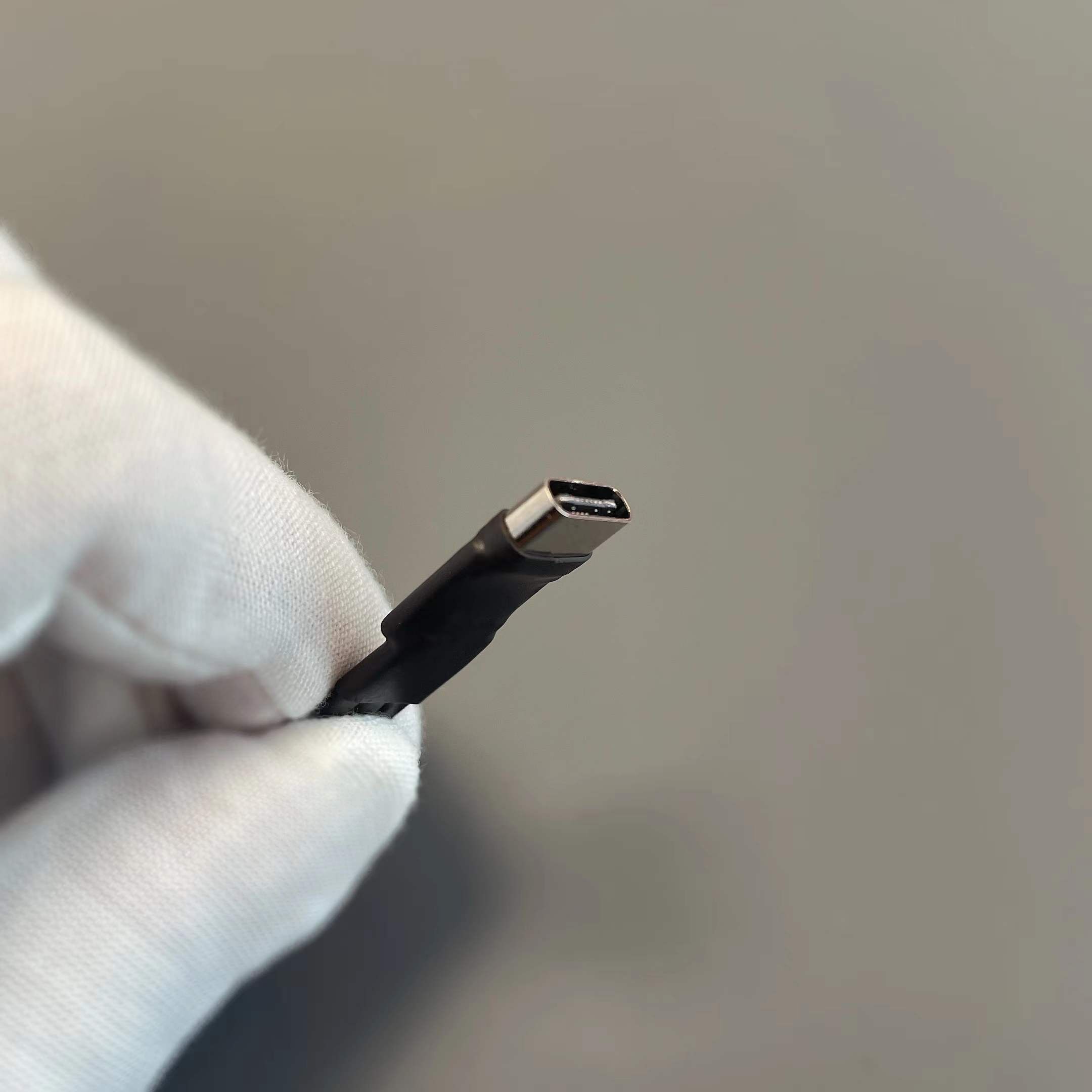

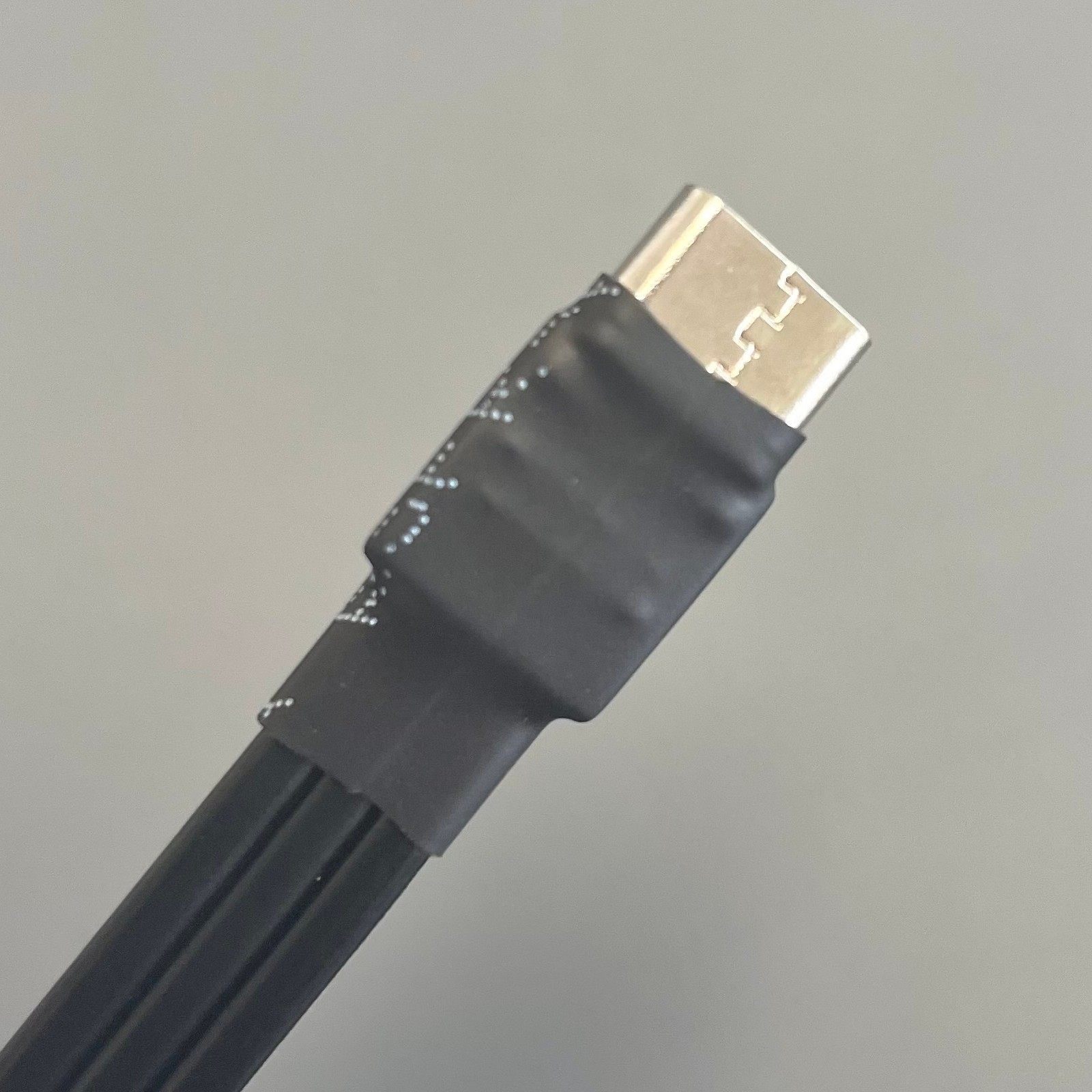

Photo:

Q&A:

Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?

The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/UTT2-MF-12P.ZIP

Spec download: contact sales

FTP: Hong Kong

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adtlink.cn/download/UTT2-MF-12P.ZIP

WebShop:

http://www.adt.link/product/UTT2-MF-12P-Shop.html


Keywords:

Aerial FPV PTZ USB 2.0 3.0 3.1 flexible flat ribbon cable FFC cable FPV displayport flat Cable Standard Male to female Straight

Converter Cable Angle   thin flat highly-routable foldable axial elbow A type 10G/bps 5G/bps

3 / 5 /10 /15 /20 /30 /50 / 100 / 150 / 200 cm For PC AV HDTV LCD FPV FFC 3D  Multicopter

2K 4K 50/60Hz for HDTV AV Aerial Photography 90 Degree ConnectorDrone Gopro DSLR gimbal kit
