  • Product ID:USW3 series
  • Interface:USB-A / Micro-B 3.0
  • Application: USB extension cable
  • Shelf time:2020-02-10 11:07:19
  • Product description: USB 3.0 Type-A male to Micro-B male flat cable
  • INQUIRY

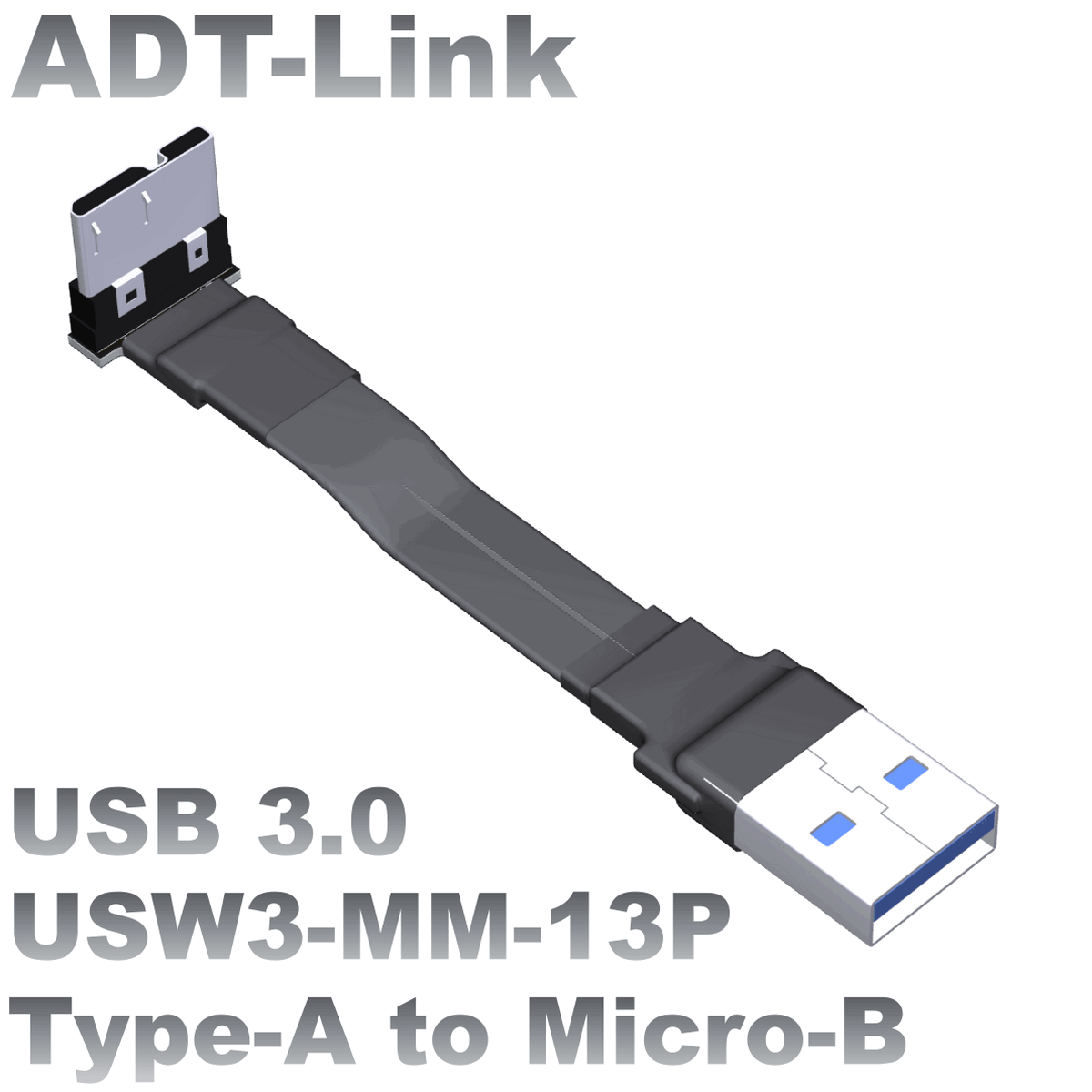

USB 3.0 Type-A male to Micro-B male flat cable

Brand name: ADT-LINK

Product name: USB 3.0 Type-A male to Micro-B male flat cable

Product model: USW3-MM-13P series

Transfer speed: support of increased bandwidth up to Gen 1x1, 5G/bps

Wire length: 3~300 cm, the length can be customized,

Current capacity: 3A within 50cm ; 1.5A within 1 meter

Product application: GPS navigator, hard disk, ROCK Pi 4 Raspberry Pi MCU development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, USB power supply and camera video transmission of handheld pan/tilt, etc.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E





Brand Part-number Product-Description

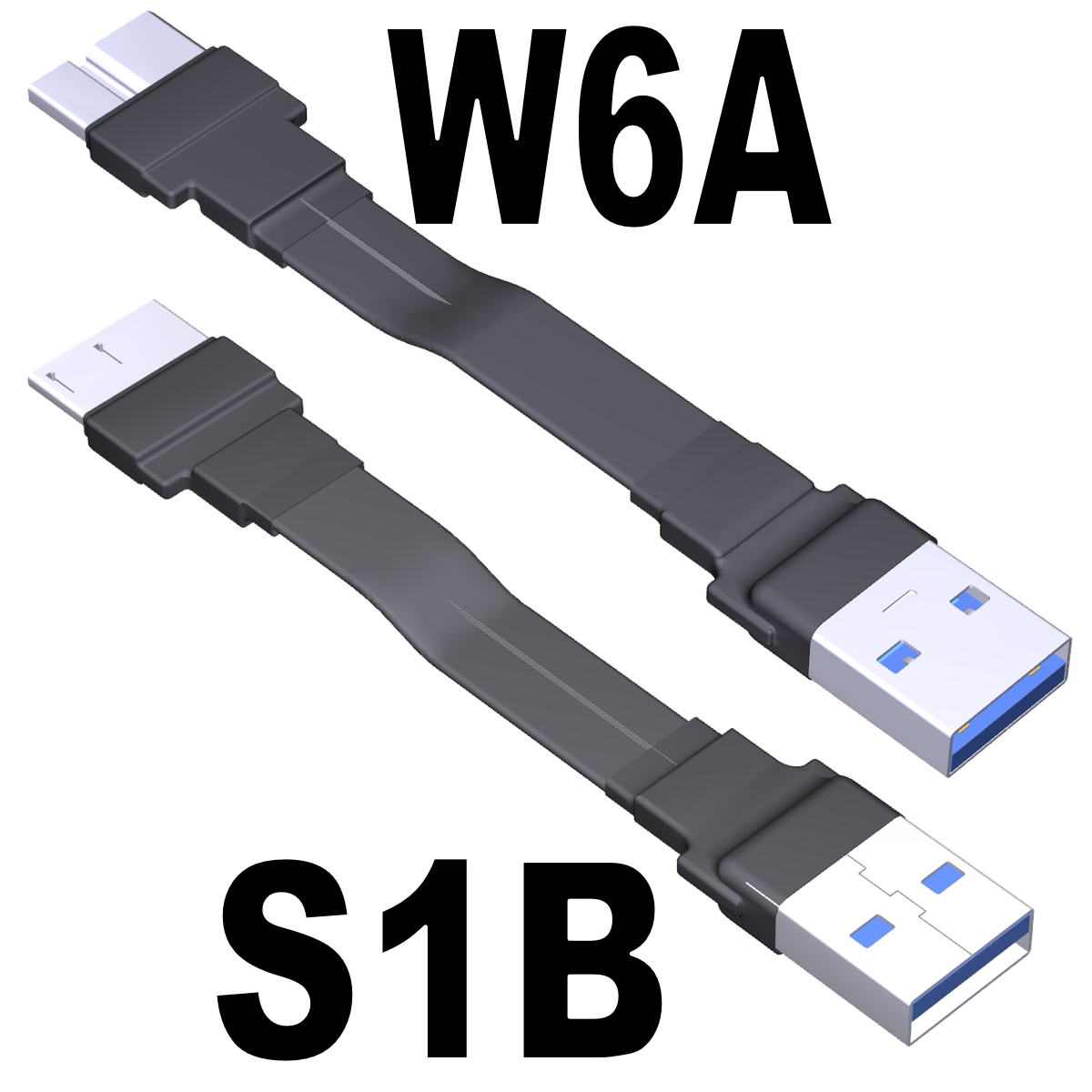

ADTLINK US1B-UW6A USB 3.0 Type-A male to Micro-B male flat cable

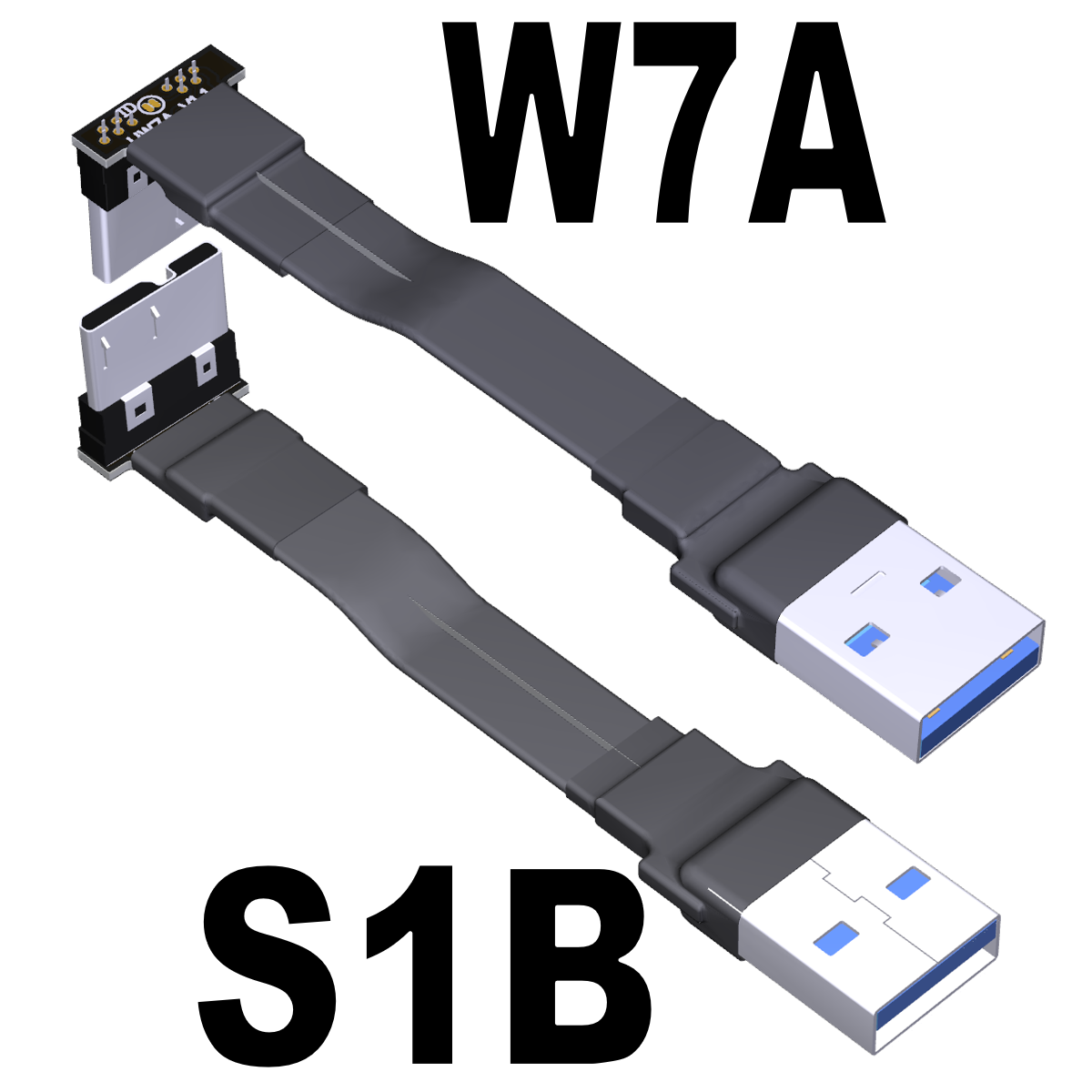

ADTLINK US1B-UW7A USB 3.0 Type-A male to Micro-B male flat cable

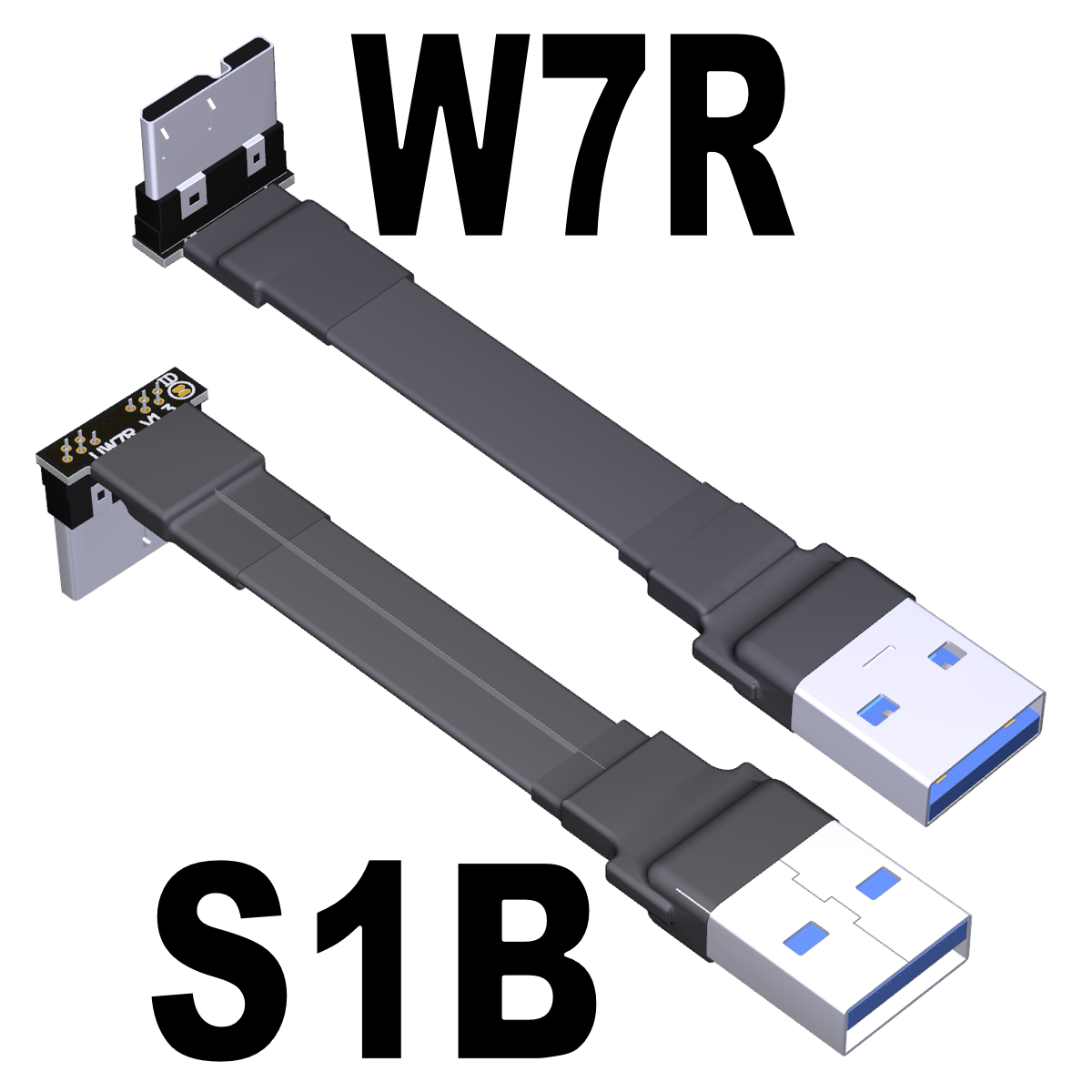

ADTLINK US1B-UW7R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US1B-UW81 USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US1B-UW82 USB 3.0 Type-A male to Micro-B male flat cable

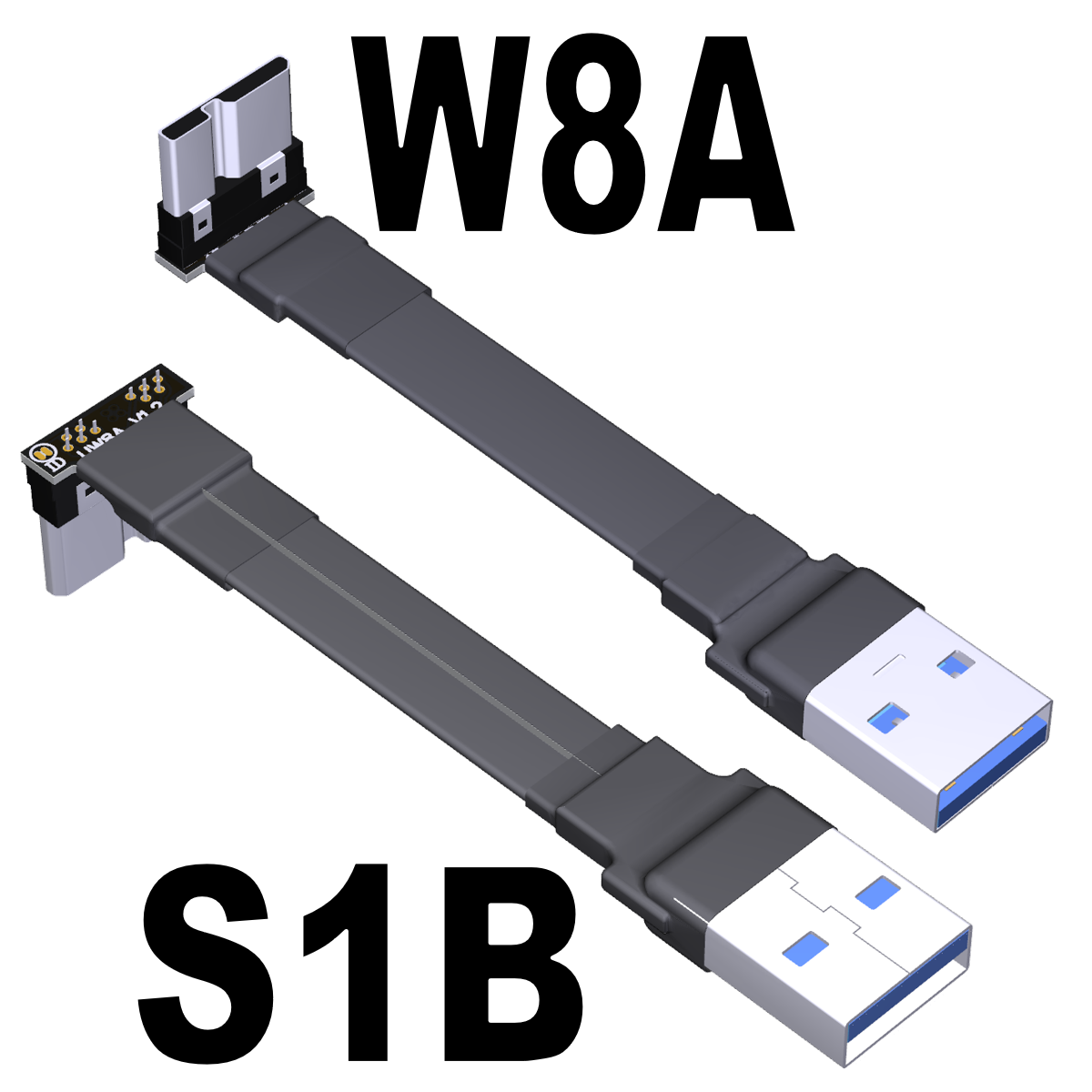

ADTLINK US1B-UW8A USB 3.0 Type-A male to Micro-B male flat cable

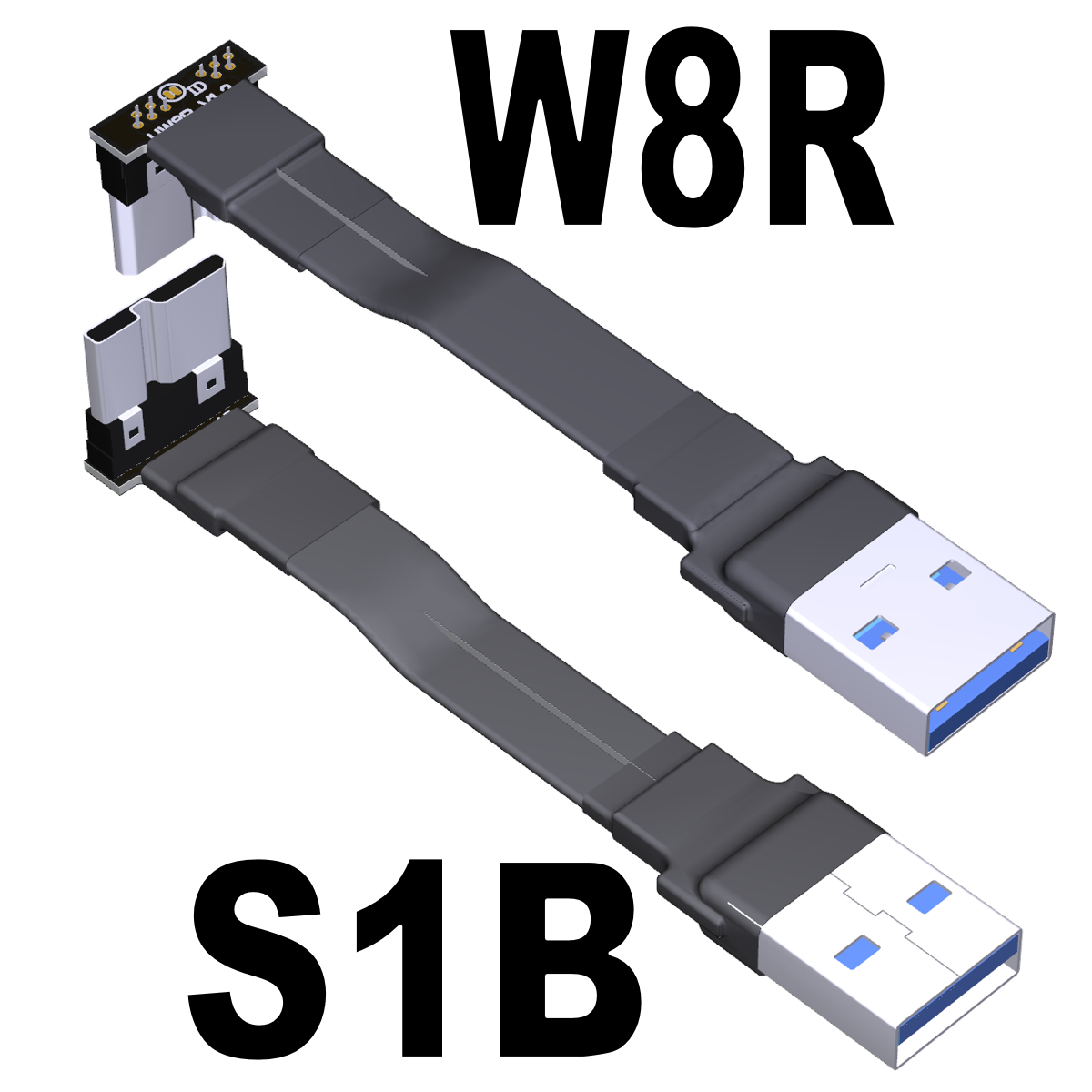

ADTLINK US1B-UW8R USB 3.0 Type-A male to Micro-B male flat cable

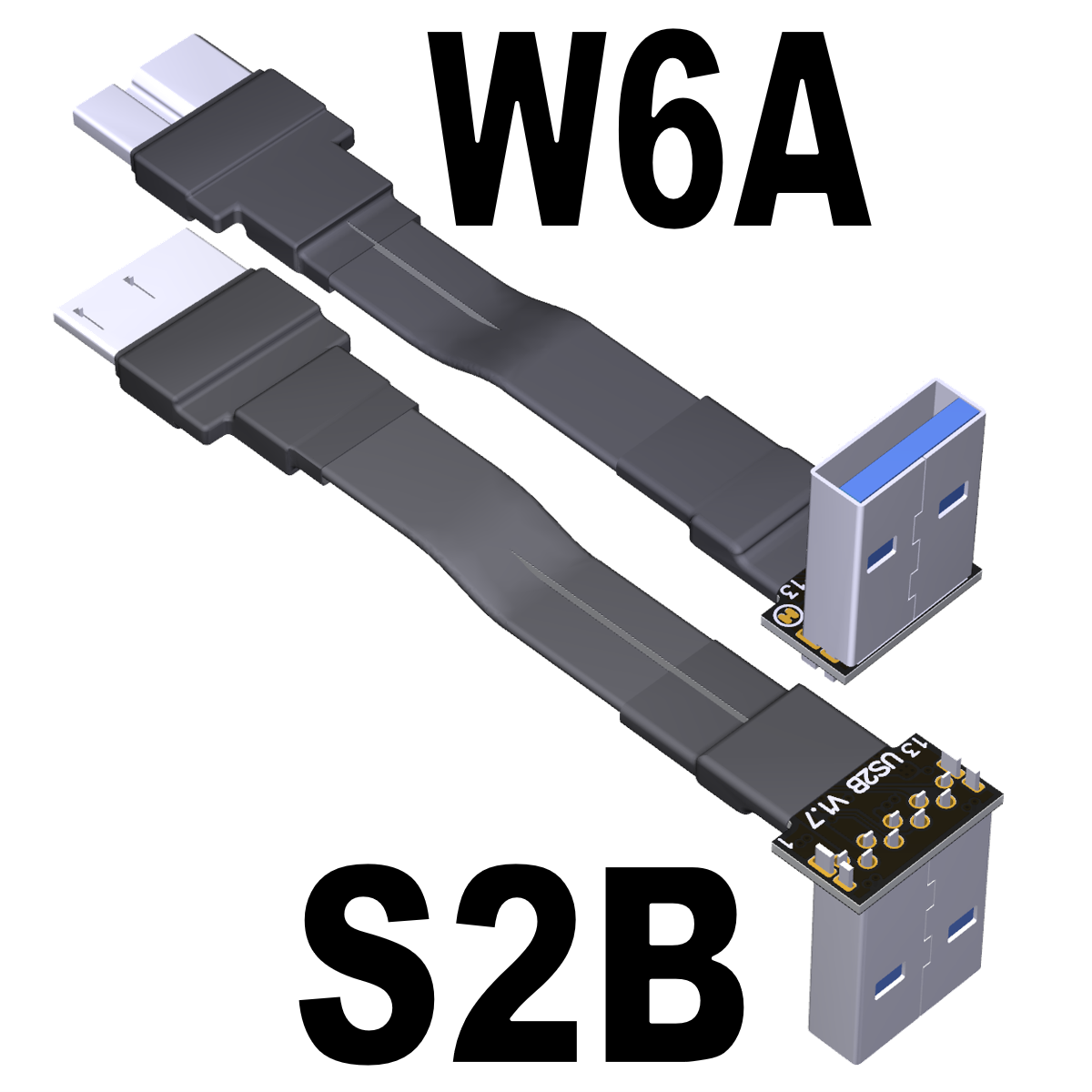

ADTLINK US2B-UW6A USB 3.0 Type-A male to Micro-B male flat cable

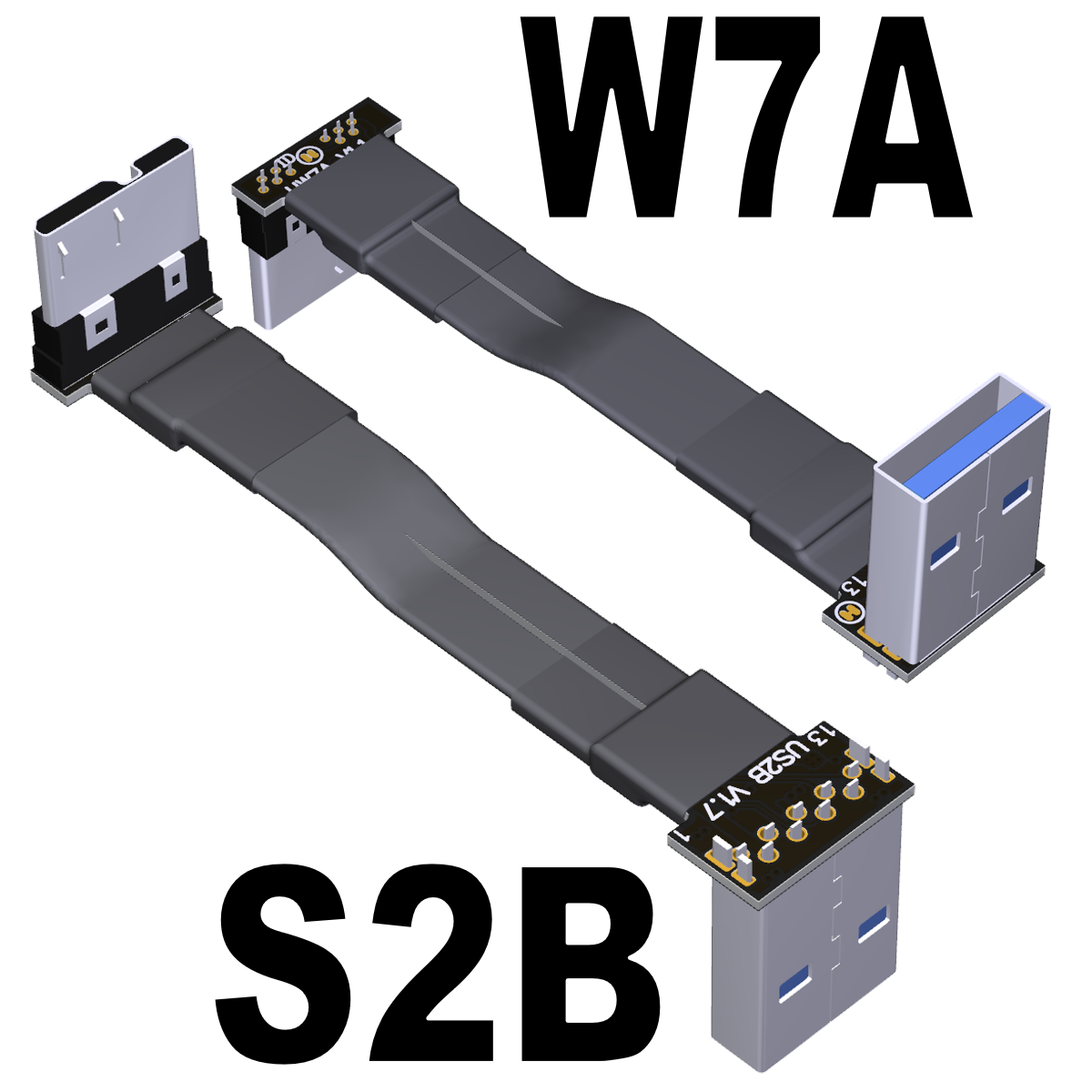

ADTLINK US2B-UW7A USB 3.0 Type-A male to Micro-B male flat cable

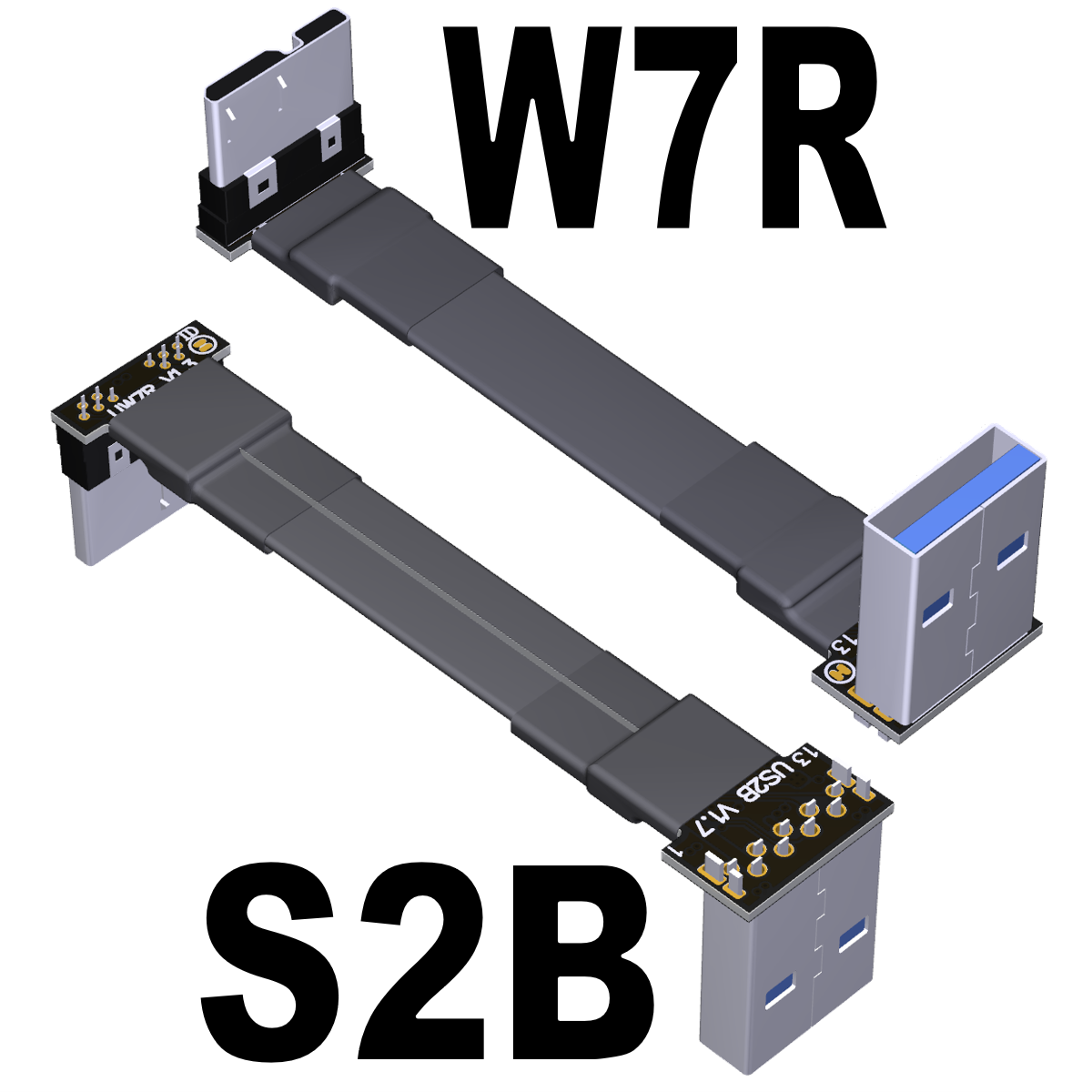

ADTLINK US2B-UW7R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2B-UW81 USB 3.0 Type-A male to Micro-B male flat cable

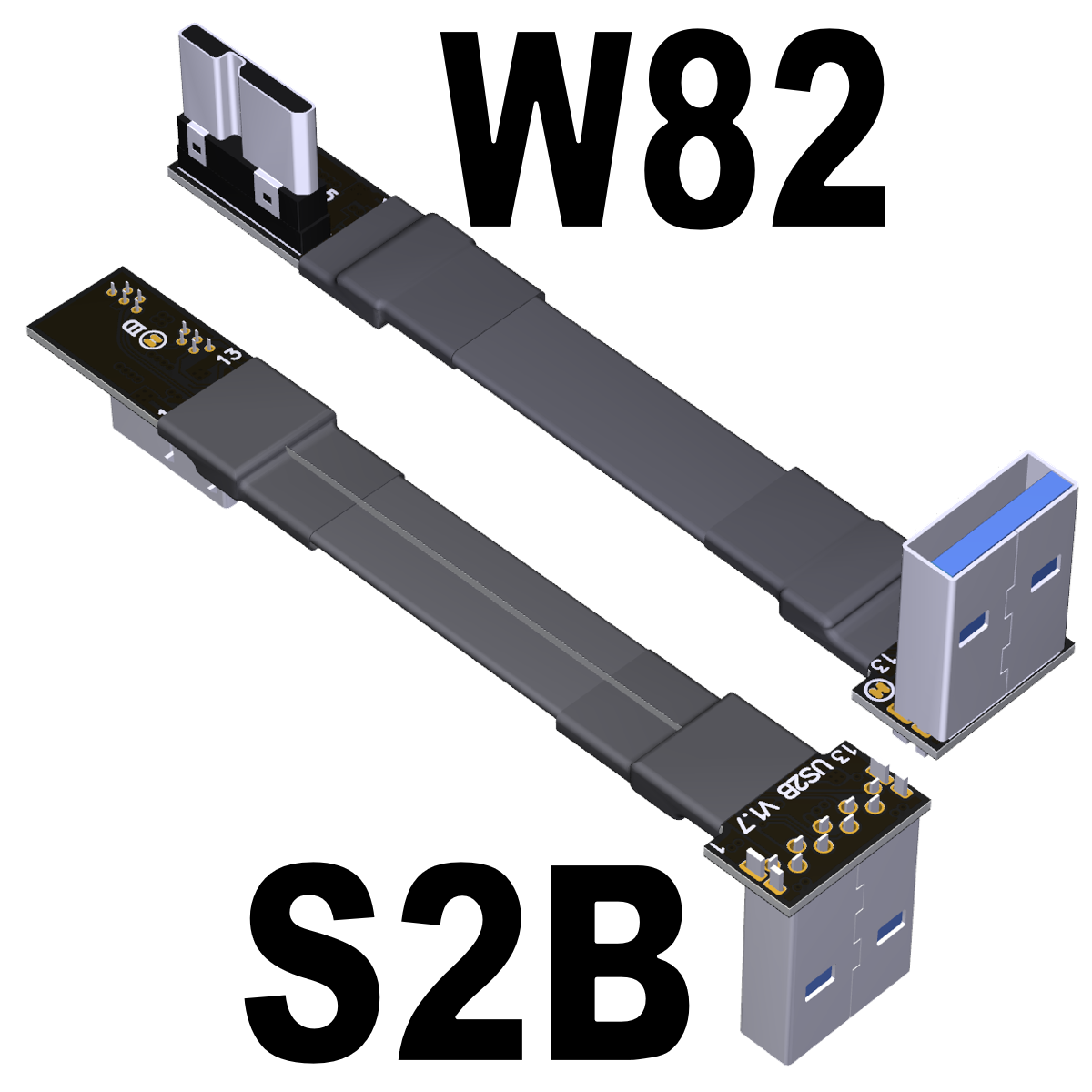

ADTLINK US2B-UW82 USB 3.0 Type-A male to Micro-B male flat cable

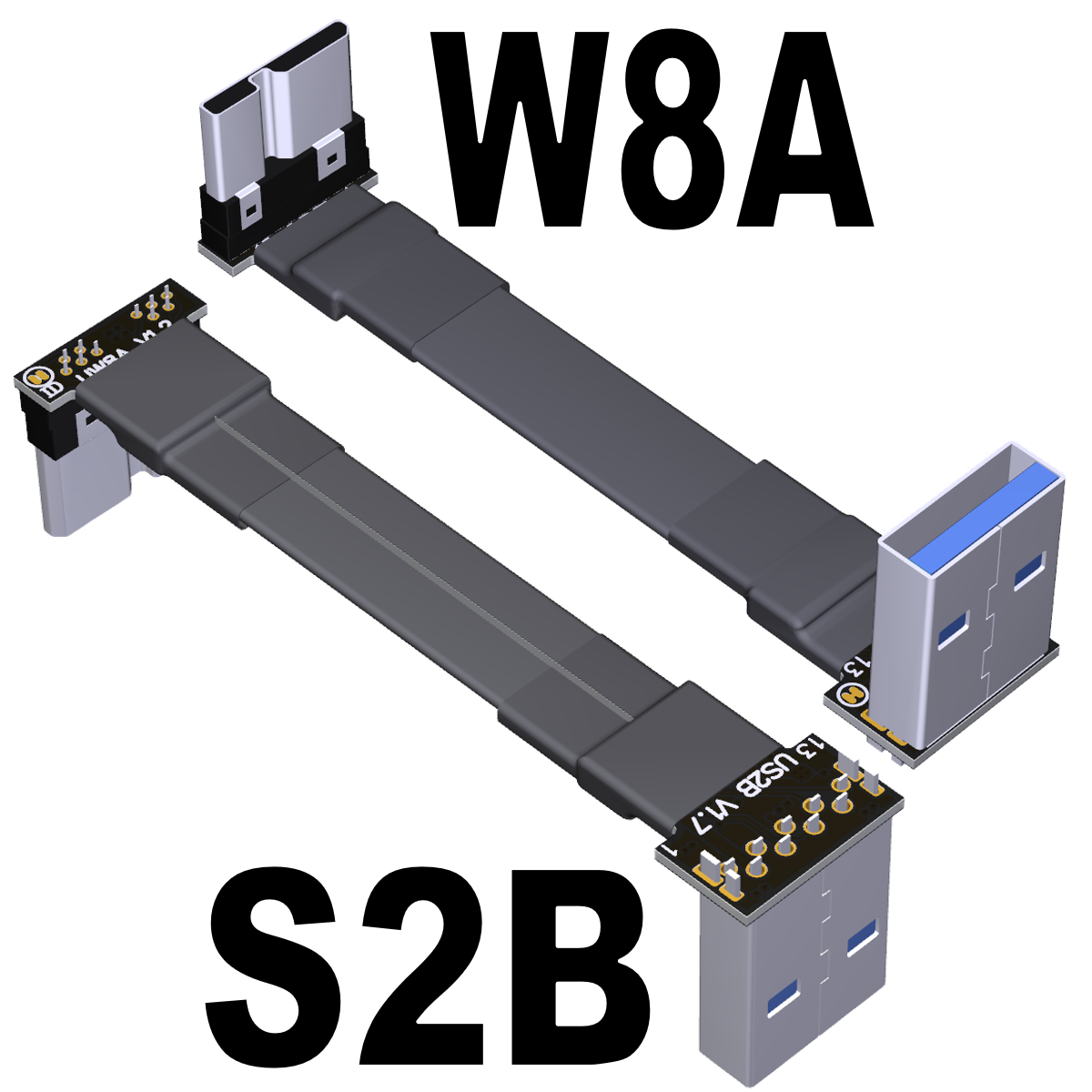

ADTLINK US2B-UW8A USB 3.0 Type-A male to Micro-B male flat cable

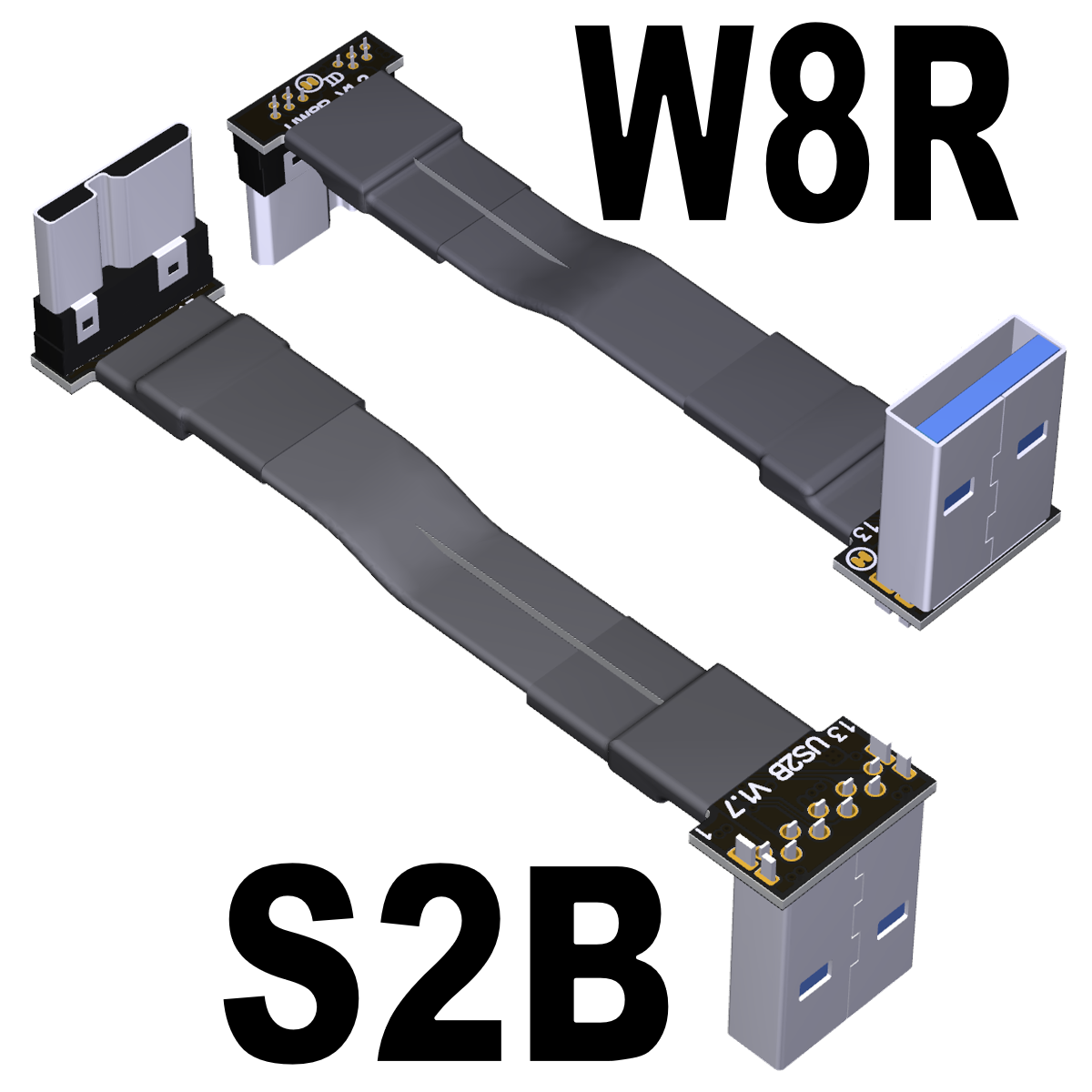

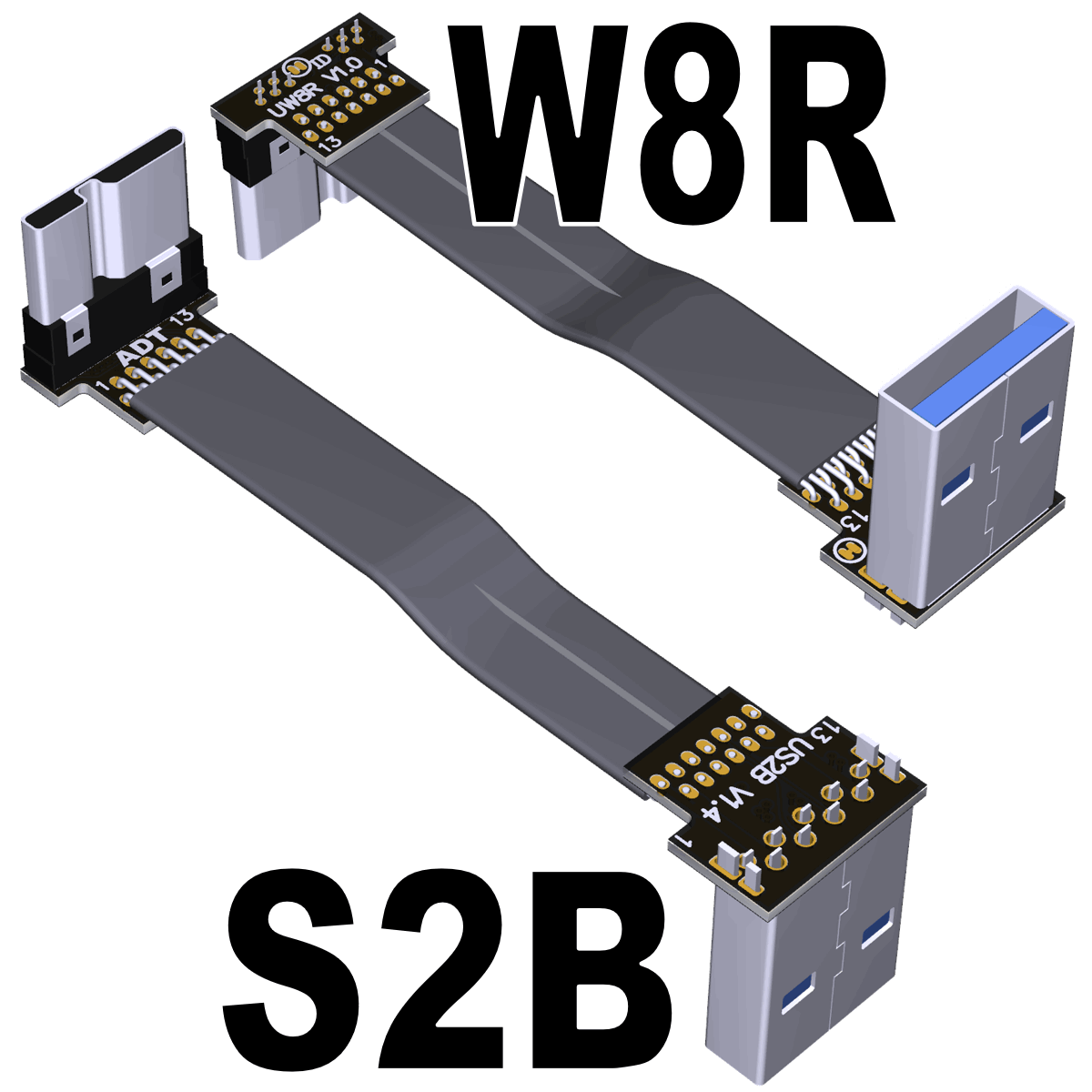

ADTLINK US2B-UW8R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW6A USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW7A USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW7R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW81 USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW82 USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW8A USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US2L-UW8R USB 3.0 Type-A male to Micro-B male flat cable

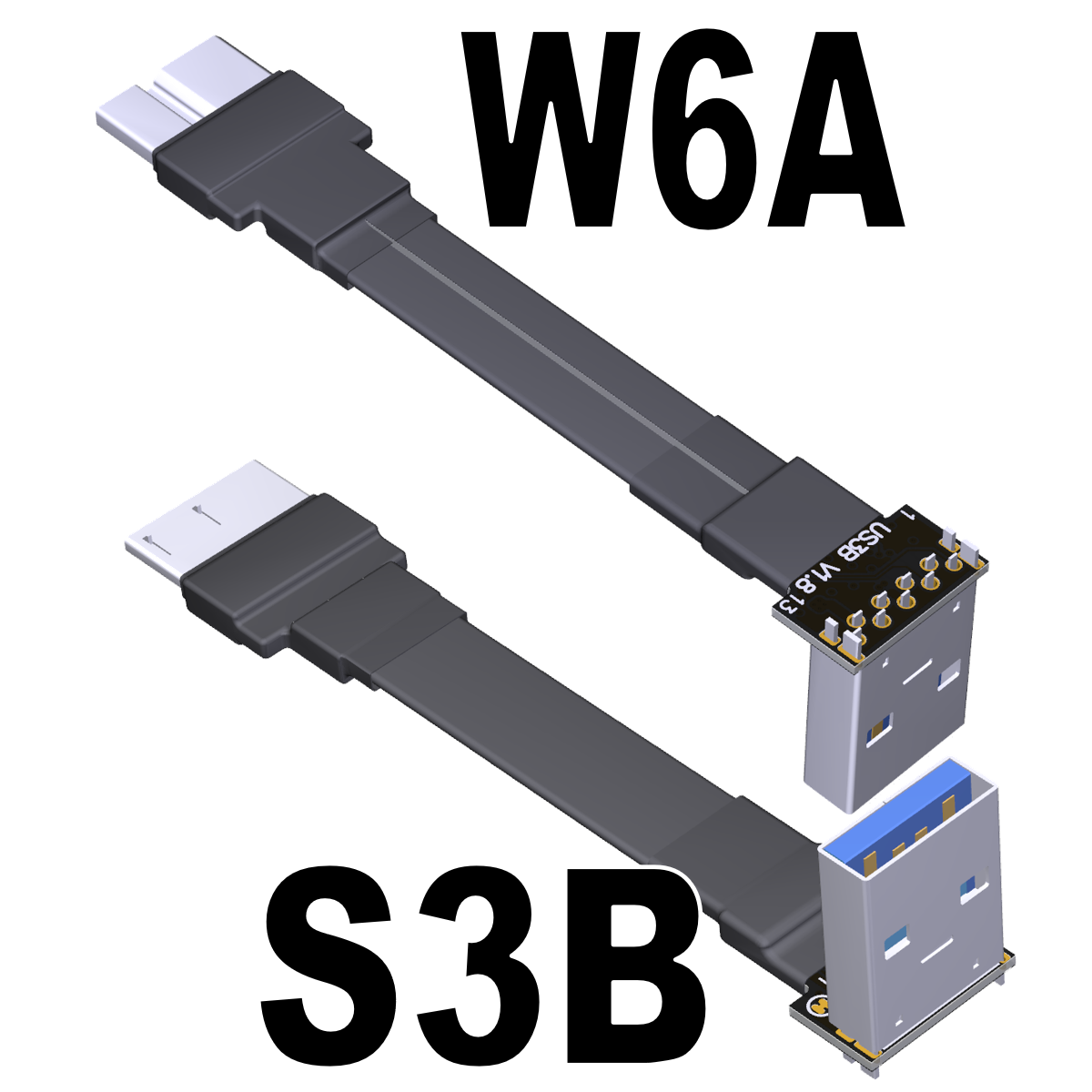

ADTLINK US3B-UW6A USB 3.0 Type-A male to Micro-B male flat cable

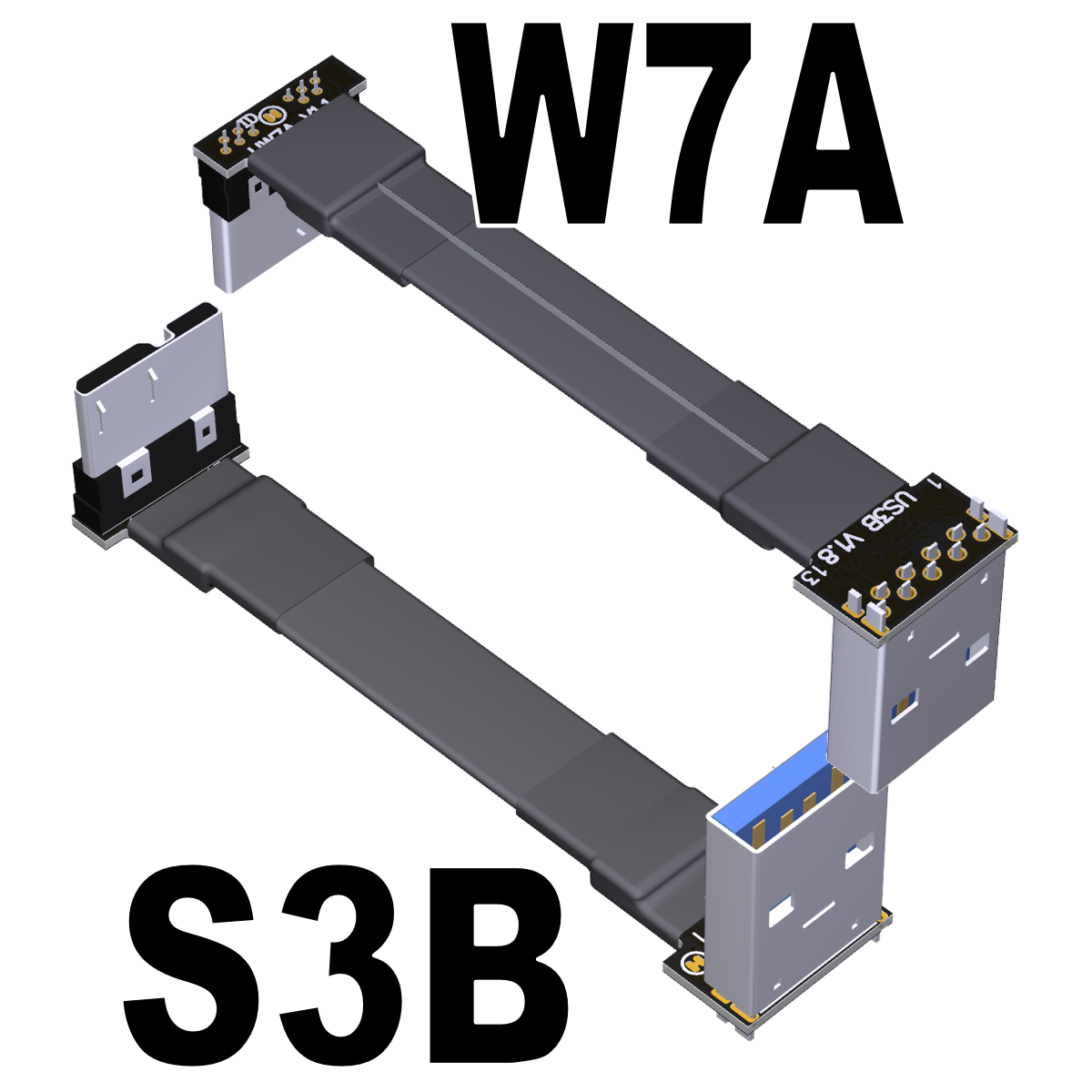

ADTLINK US3B-UW7A USB 3.0 Type-A male to Micro-B male flat cable

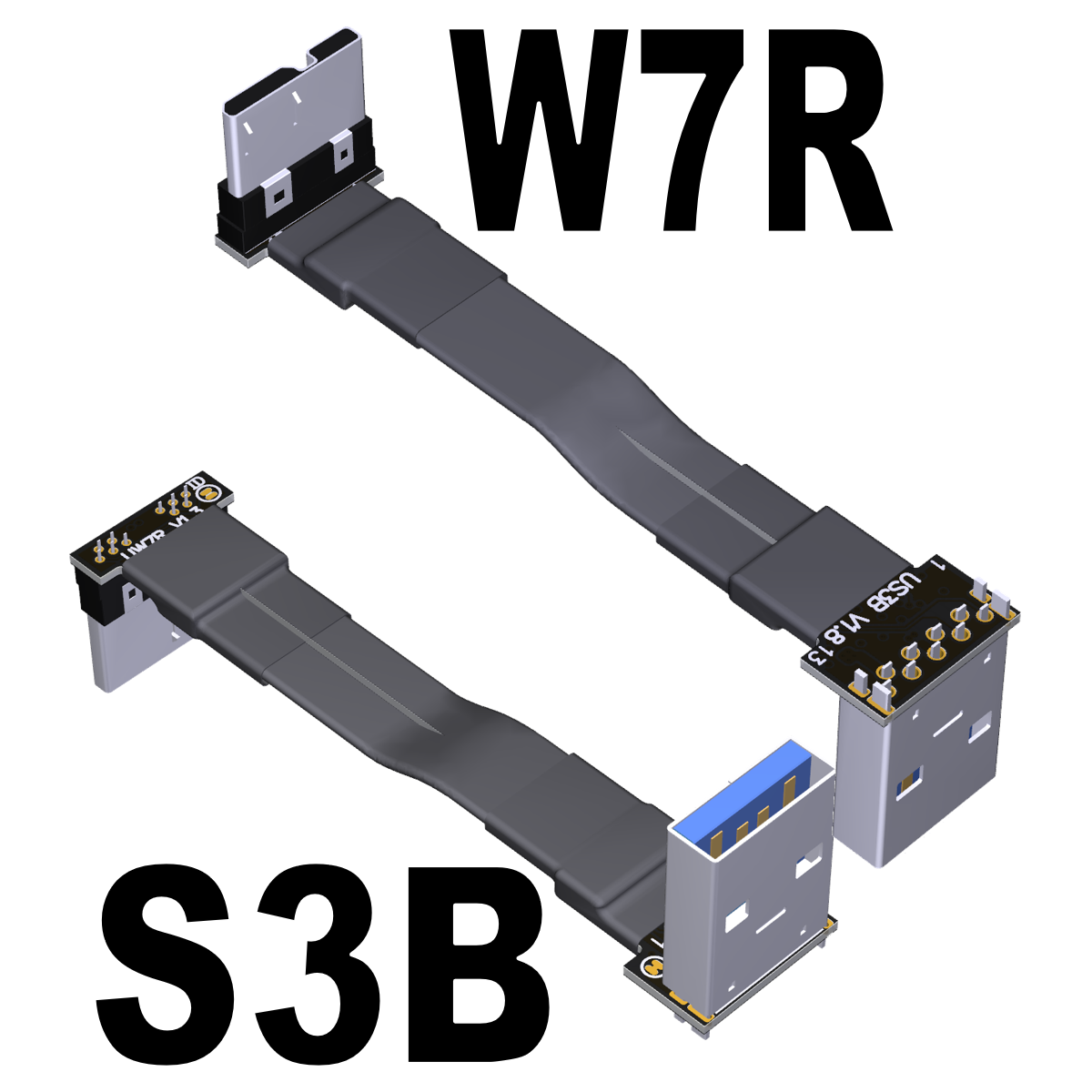

ADTLINK US3B-UW7R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US3B-UW81 USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US3B-UW82 USB 3.0 Type-A male to Micro-B male flat cable

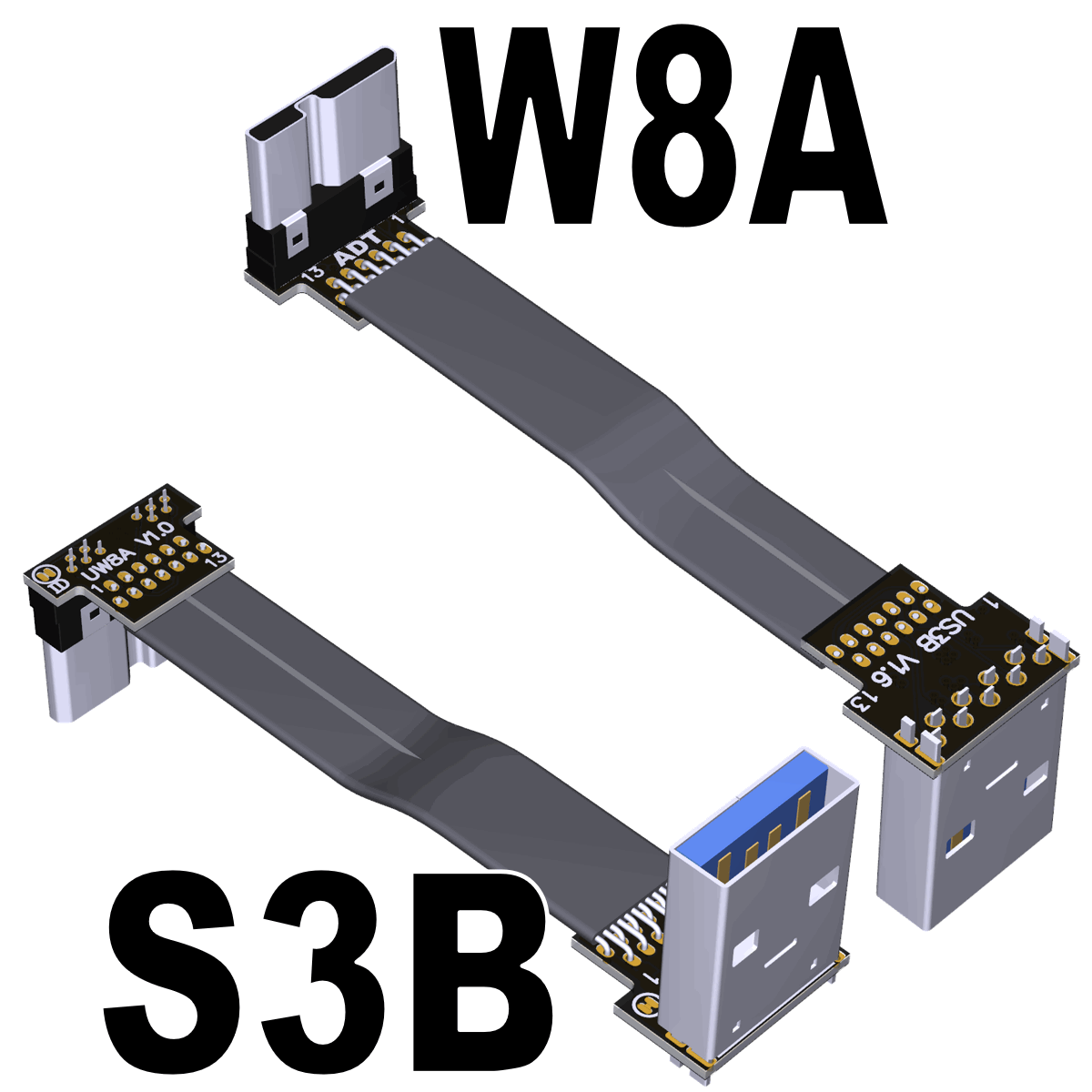

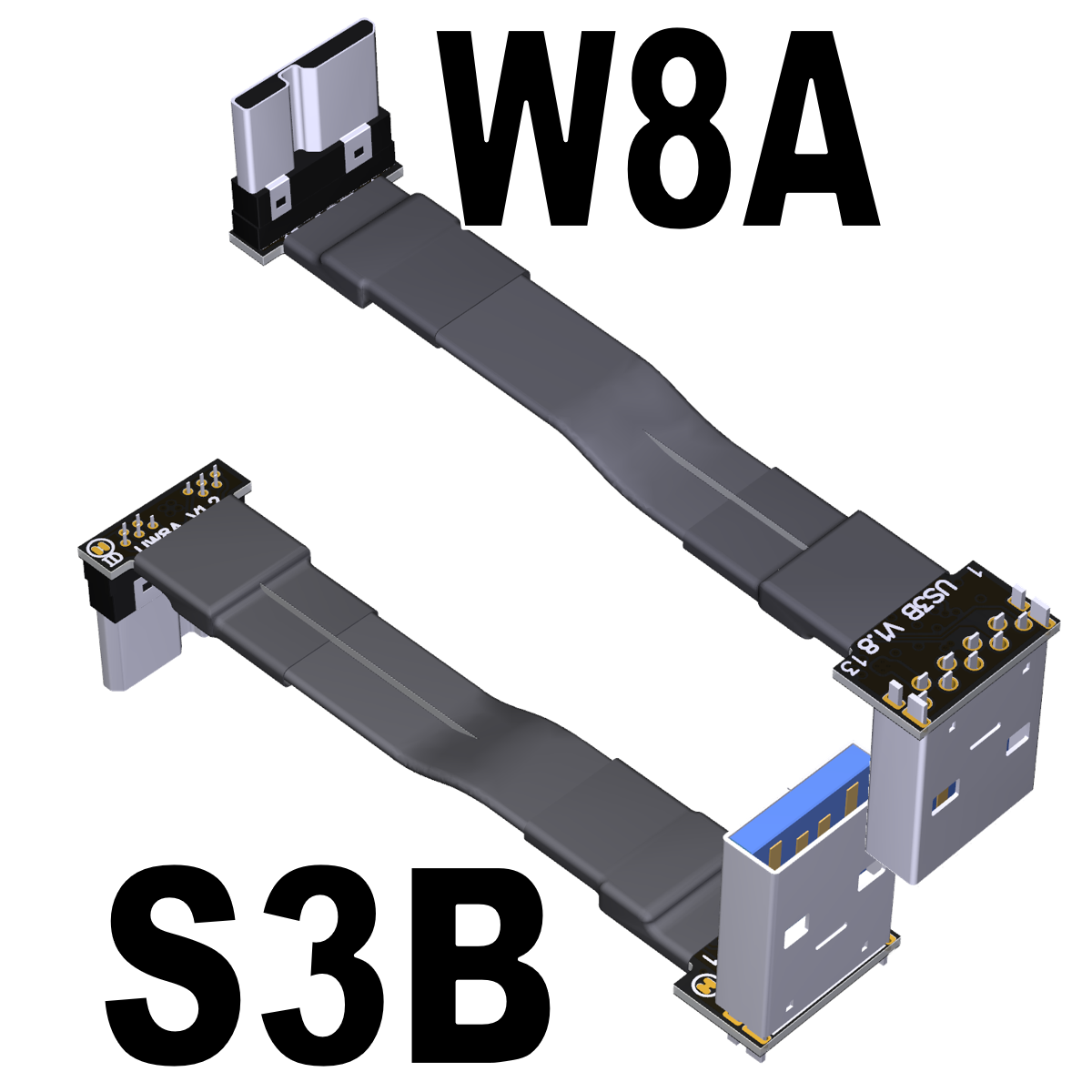

ADTLINK US3B-UW8A USB 3.0 Type-A male to Micro-B male flat cable

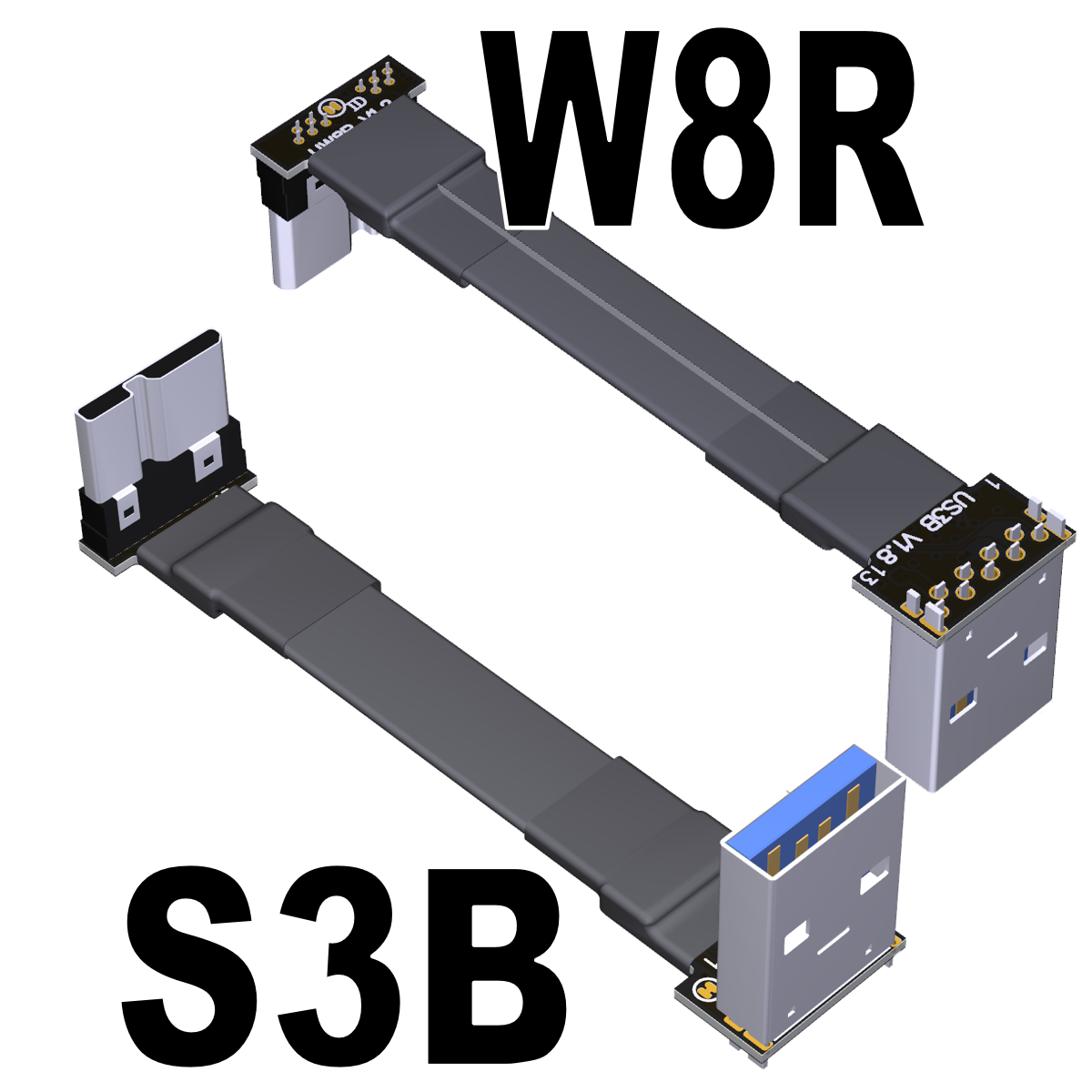

ADTLINK US3B-UW8R USB 3.0 Type-A male to Micro-B male flat cable

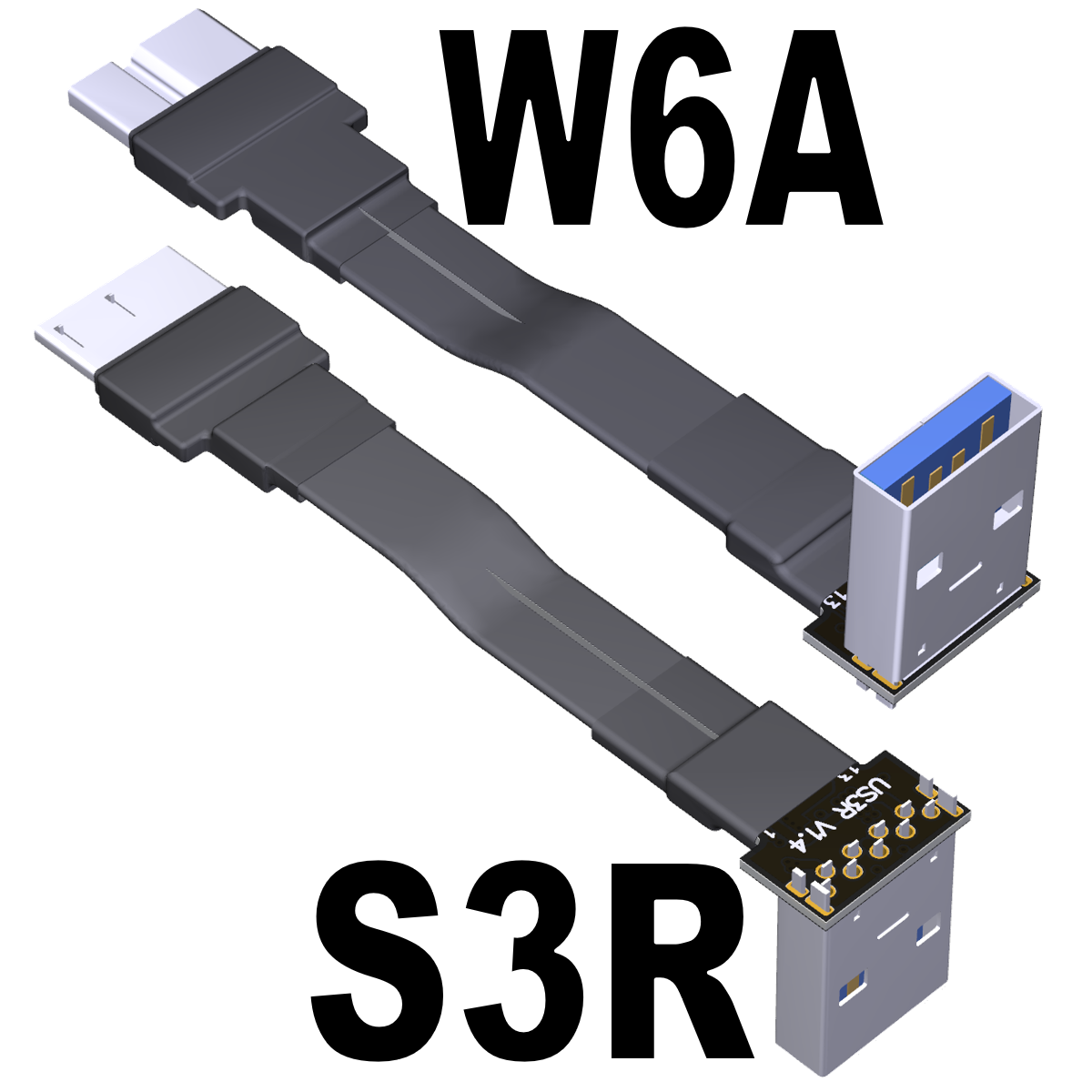

ADTLINK US3R-UW6A USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US3R-UW7A USB 3.0 Type-A male to Micro-B male flat cable

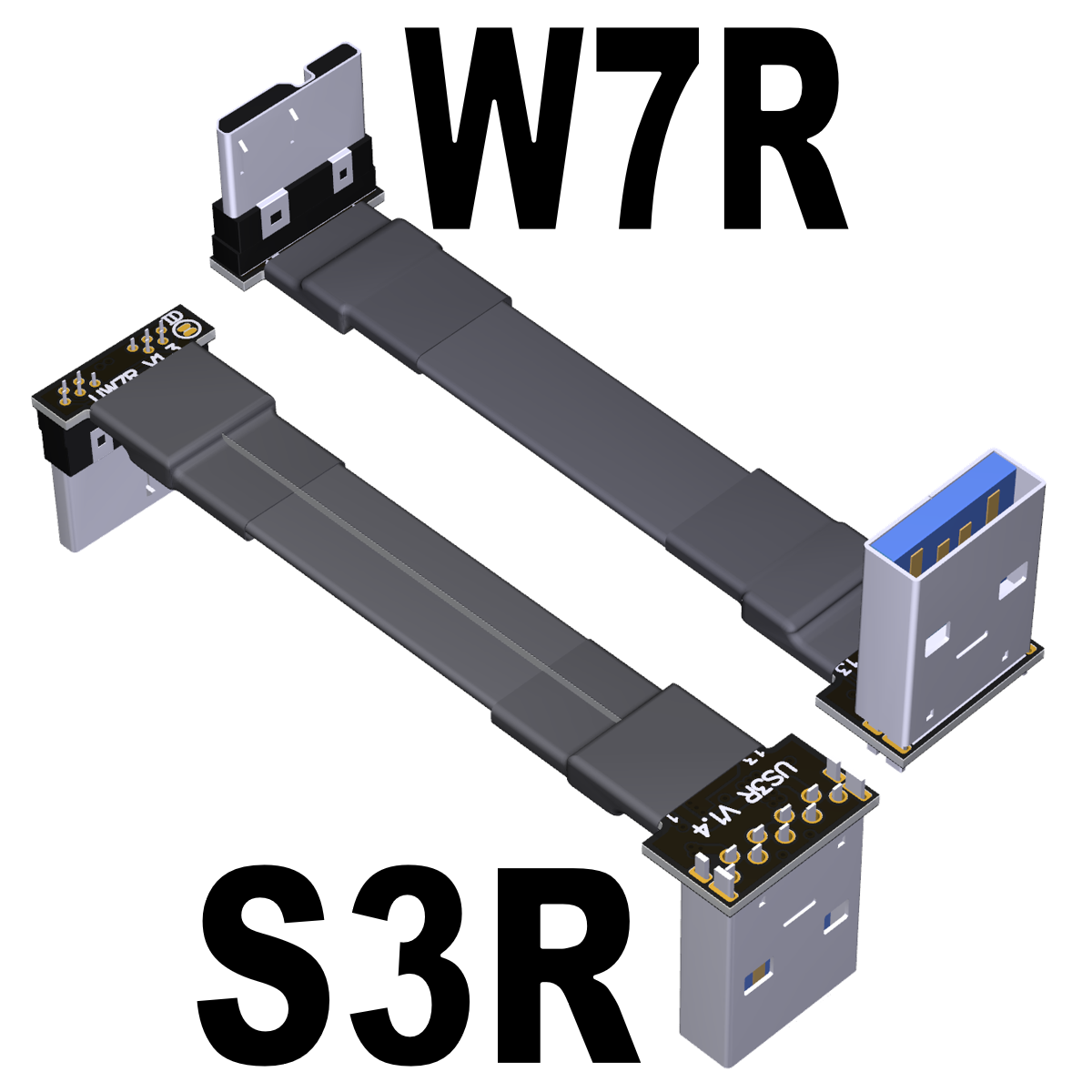

ADTLINK US3R-UW7R USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US3R-UW81 USB 3.0 Type-A male to Micro-B male flat cable
ADTLINK US3R-UW82 USB 3.0 Type-A male to Micro-B male flat cable

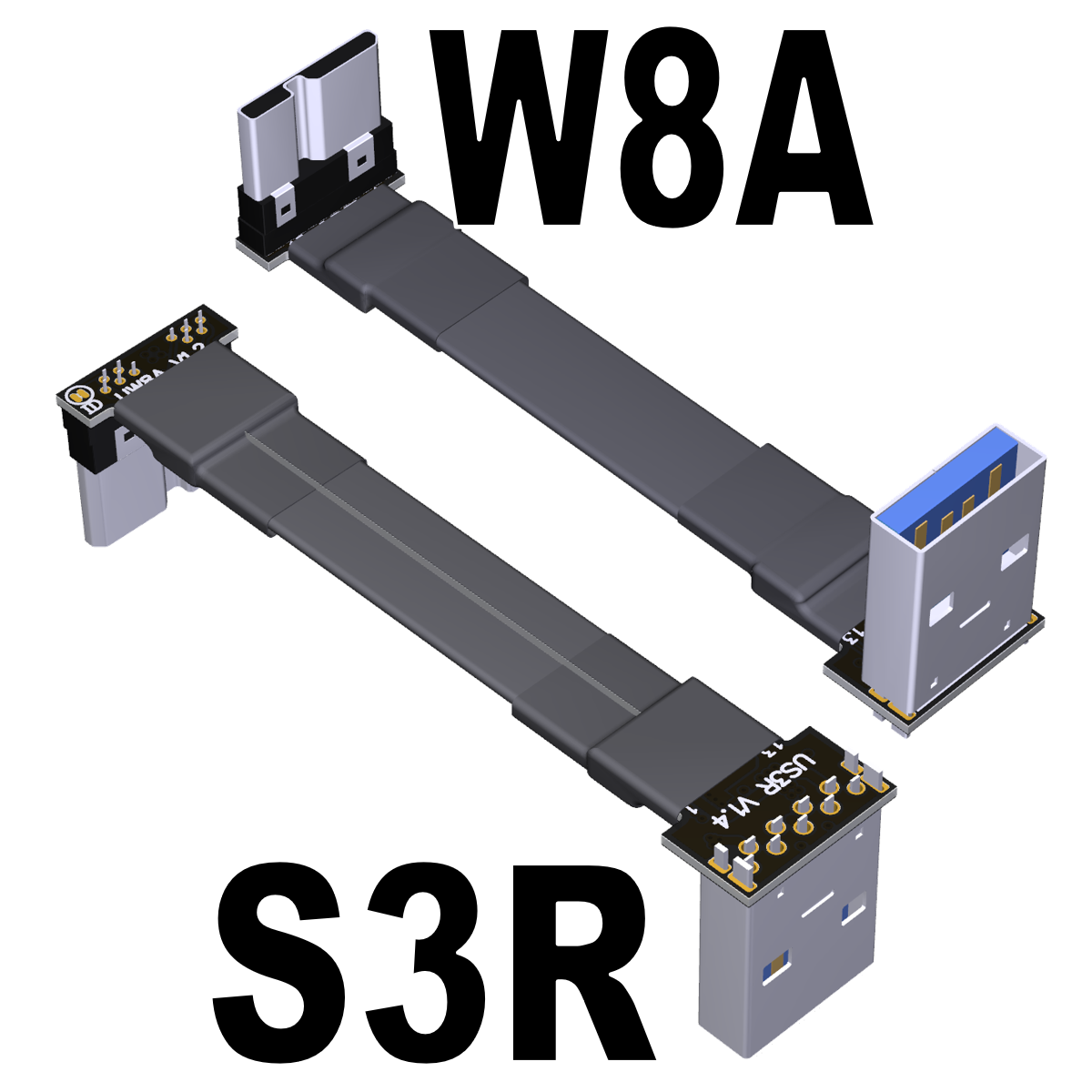

ADTLINK US3R-UW8A USB 3.0 Type-A male to Micro-B male flat cable

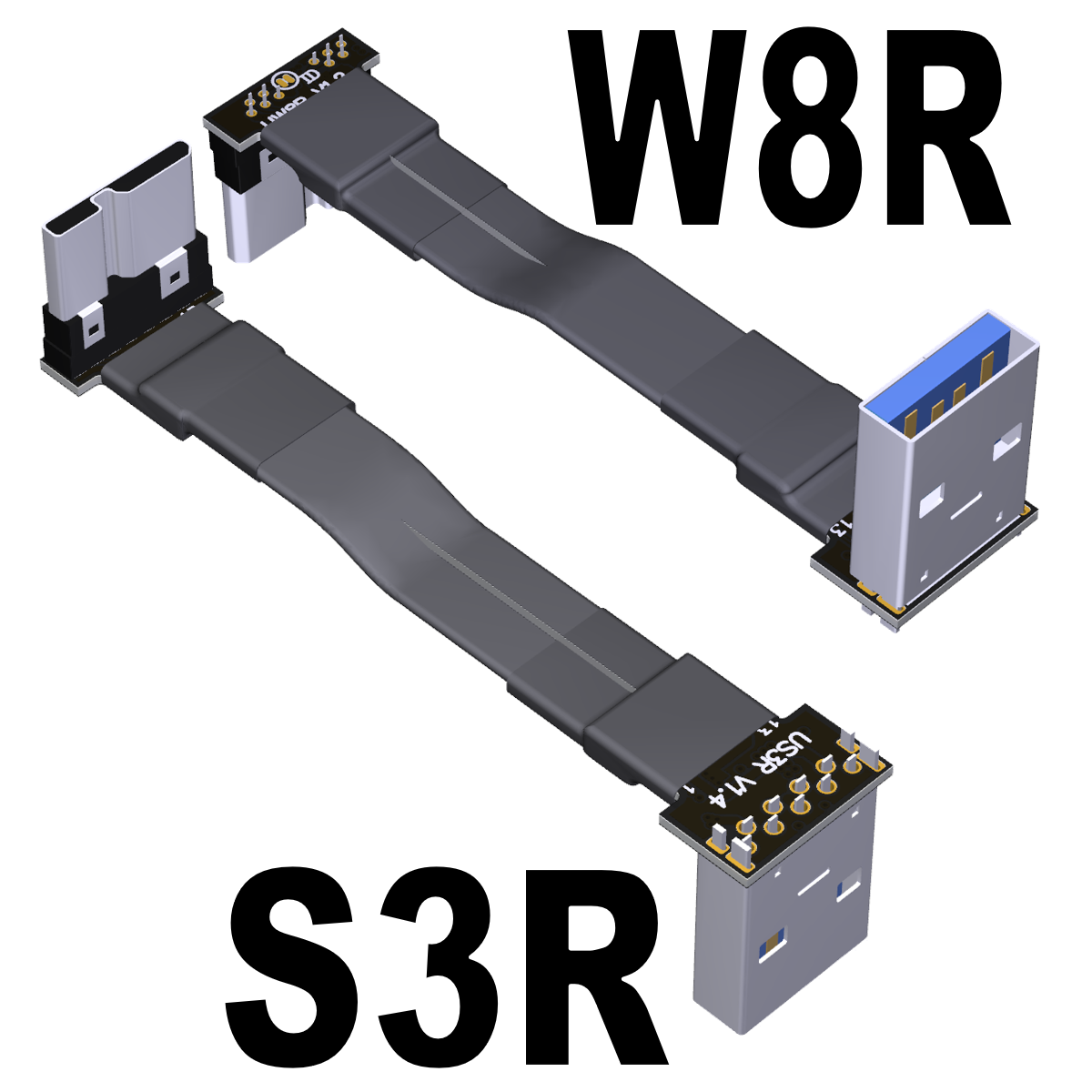

ADTLINK US3R-UW8R USB 3.0 Type-A male to Micro-B male flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

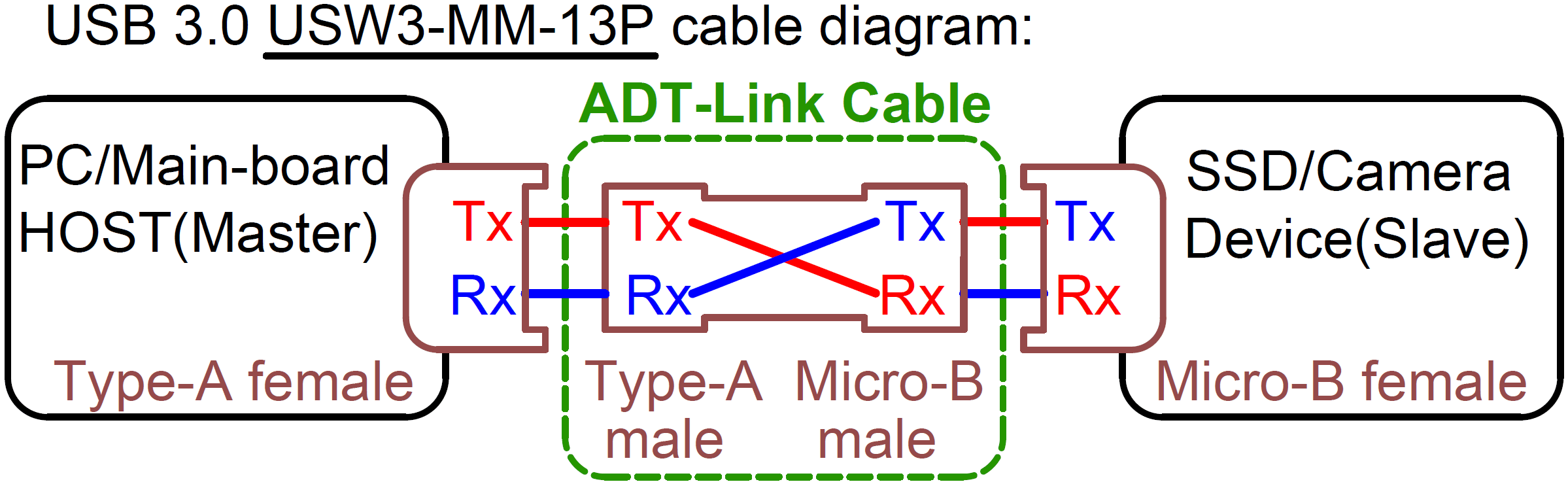

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/USW3-MM-13P.ZIP

Spec download: contact sales

FTP: Hong Kong

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adtlink.cn/download/USW3-MM-13P.ZIP
