Type A to A (USS)

  • USS3-MF-16P series
  • USS3-MF-16P series
  • USS3-MF-16P series
  • USS3-MF-16P series
  • USS3-MF-16P series
USS3-MF-16P seriesUSS3-MF-16P seriesUSS3-MF-16P seriesUSS3-MF-16P seriesUSS3-MF-16P series

USS3-MF-16P series

  • Product ID:USS3-MF-16P series
  • Interface: Type-A to Type-A
  • Application: USB extension cable
  • Shelf date:2022-05-13
  • Product description: USB 3.0 Type-A male to Type-A female flat cable
  • INQUIRY

USB 3.0 Type-A male to Type-A female flat cable

Brand name: ADT-LINK

Product name: USB 3.0 Type-A male to Type-A female flat cable

Product model: USS3-MF-13P series

Transfer speed: support of increased bandwidth up to Gen1x1 5Gbps

Wire length:3 ~ 300 cm, the length can be customized,

Current capacity: 1.5A within 50cm, 0.9A within 1 meter

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, steering gear pan/tilt, Xiaosi pan/tilt, SLR handheld pan/tilt USB Power supply and AV transmission, etc.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Brand Part-number Product-Description

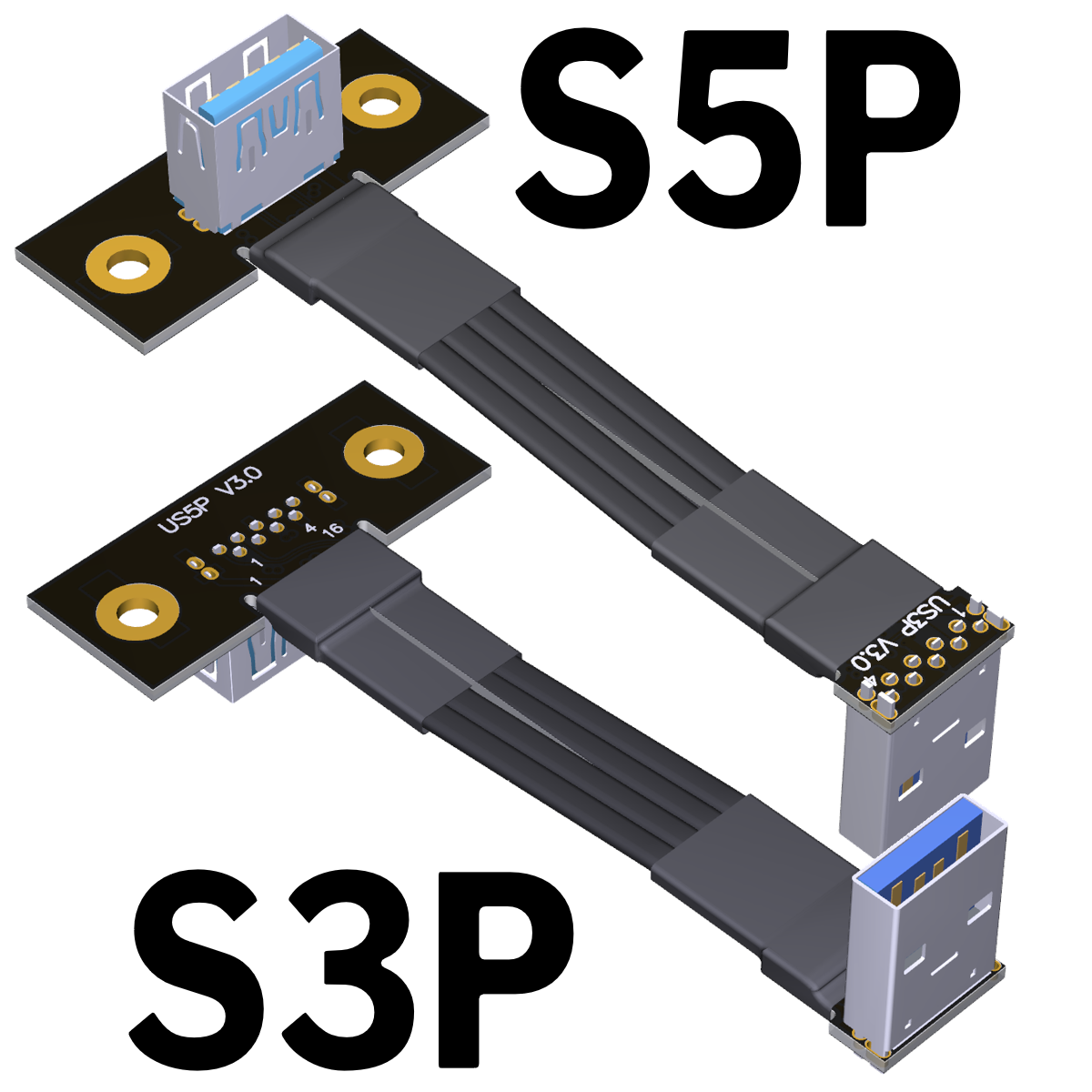

ADTLINK US2P-US5P USB 3.0 Type-A male to Type-A female flat cable
ADTLINK US3P-US5P USB 3.0 Type-A male to Type-A female flat cable

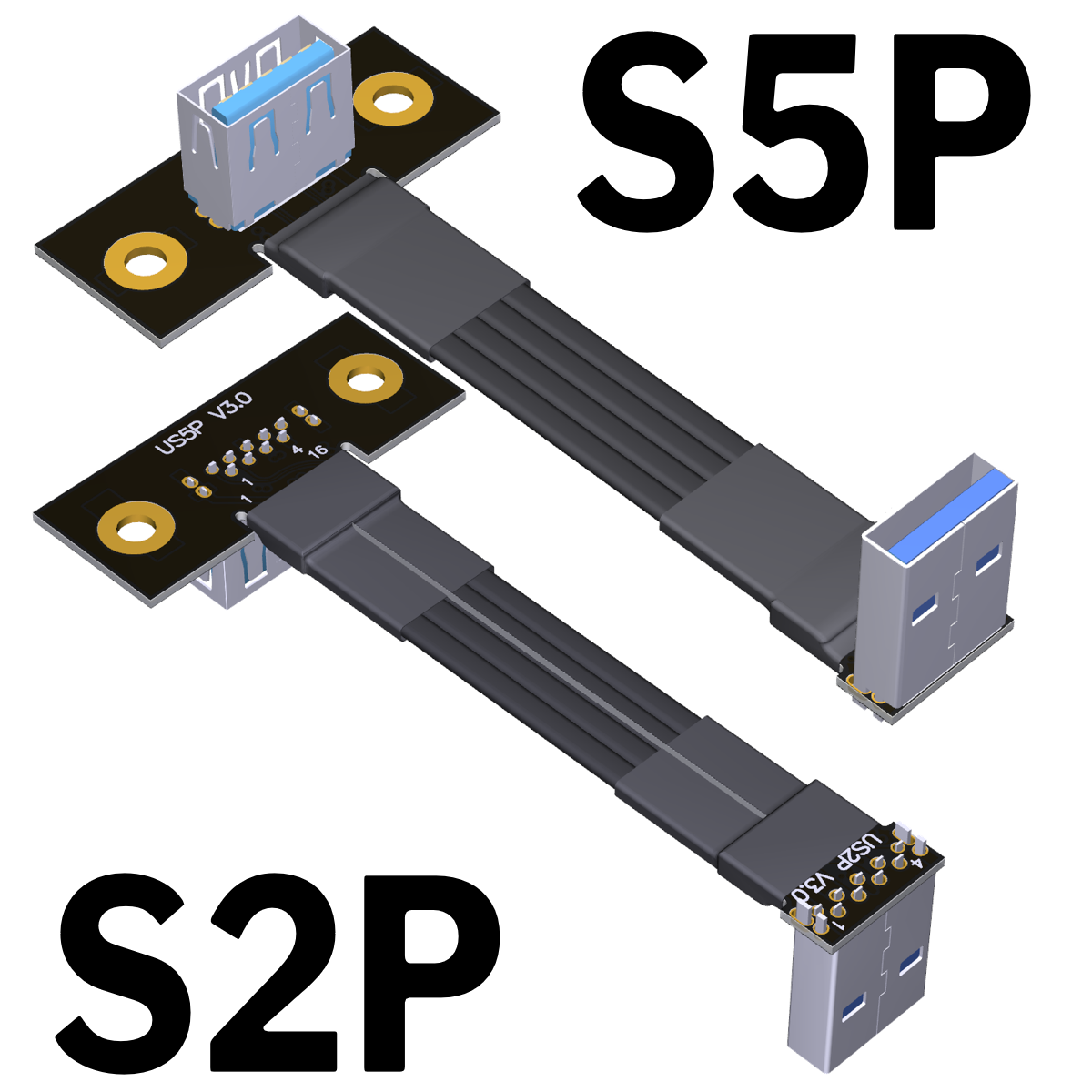

ADTLINK US2P-US6P USB 3.0 Type-A male to Type-A female flat cable
ADTLINK US3P-US6P USB 3.0 Type-A male to Type-A female flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?

The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/USS3-MF-16P.ZIP

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/download/USS3-MF-16P.ZIP

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

WebShop:

http://www.adt.link/product/USS3-MF-16P-Shop.html
