  • Product ID:USF3-FM-16P series
  • Interface:USB Type-A / Type-E
  • Application: USB extension cable
  • Shelf time:2022-05-15

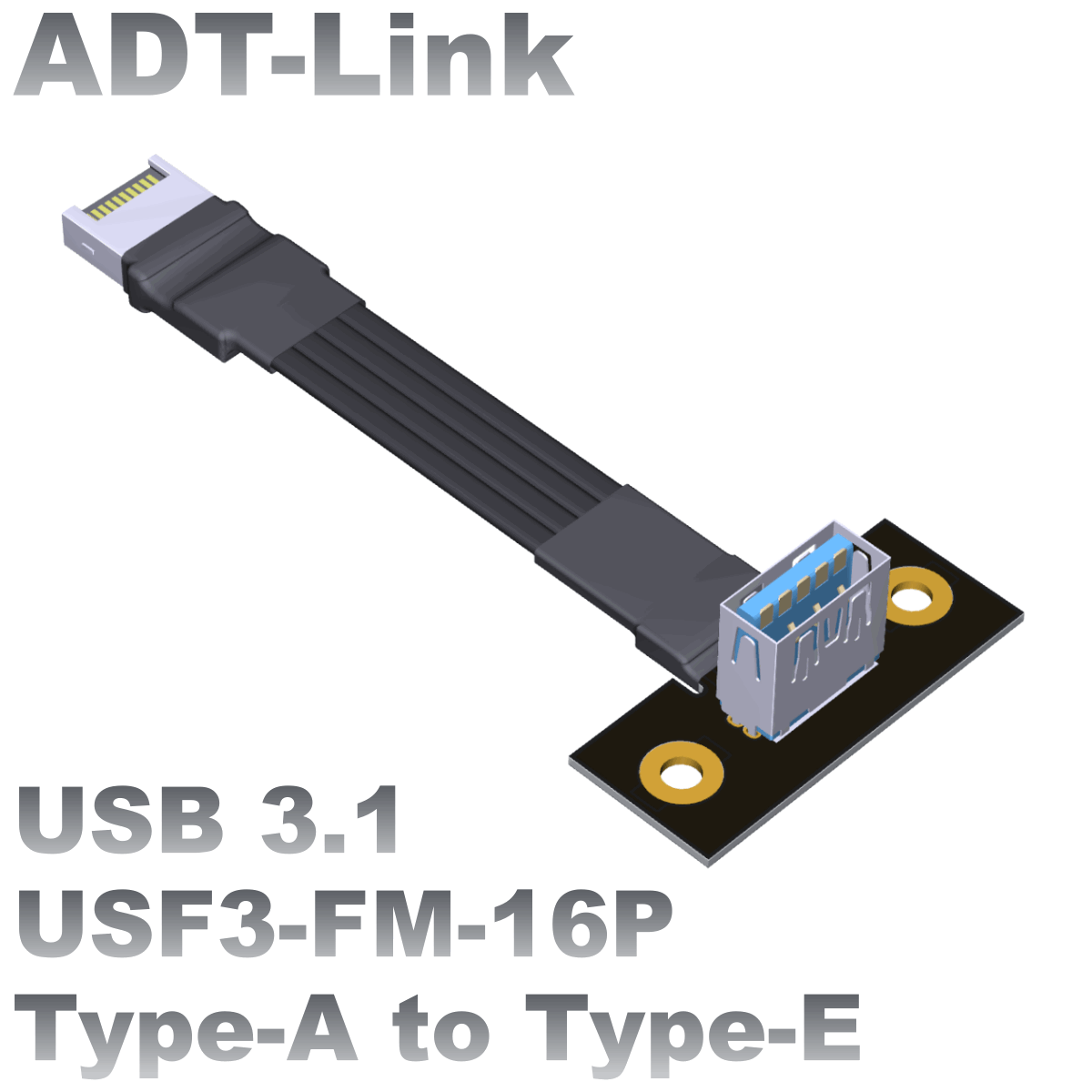

  • Product description: USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

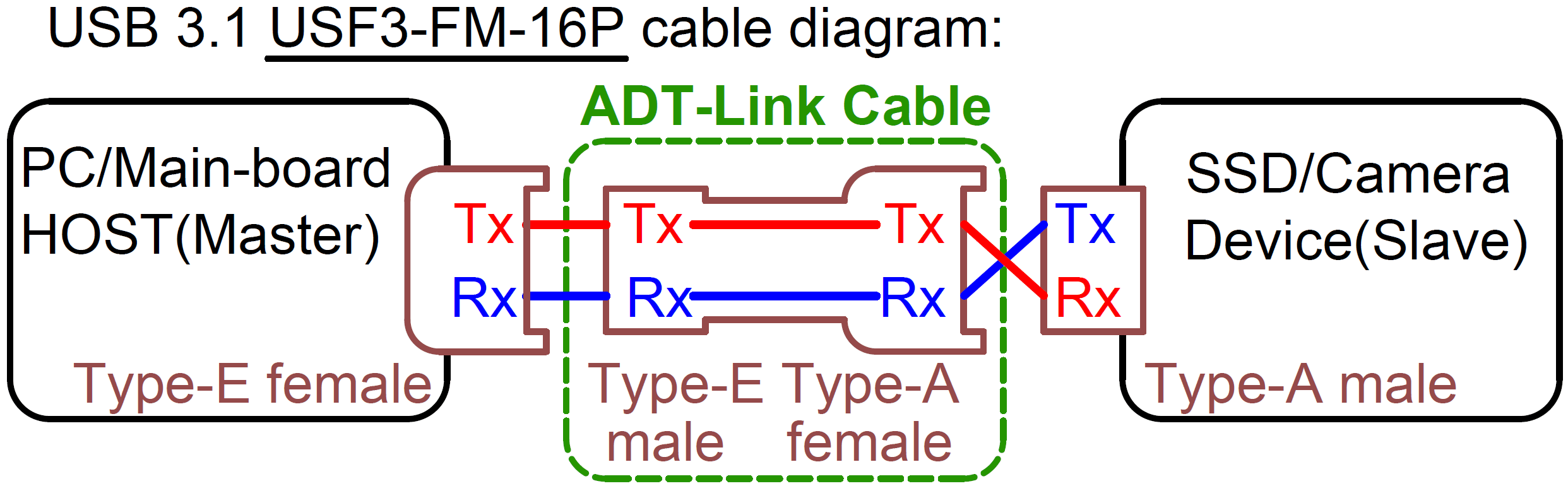

USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

Brand name: ADT-LINK

Product name: USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

Product model: USF3-FM-16P series

Transfer speed: support of increased bandwidth up to USB3.1 , 10G/bps (max.)

Wire length: 3 ~ 300 cm, the length can be customized

Current capacity: 5V/1.5A within 50cm ; 5V/0.9A within 1 meter)

Product application: USB3.1 internal 20Pin type-E connector extension cable

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Usage restriction: The serial connection of two or more USB cables will cause signal attenuation, so that it can only reach 5G/bps speed, but cannot reach 10G/bps speed.

ADT USB series Part-Number Description:


Brand Part-number Product-Description

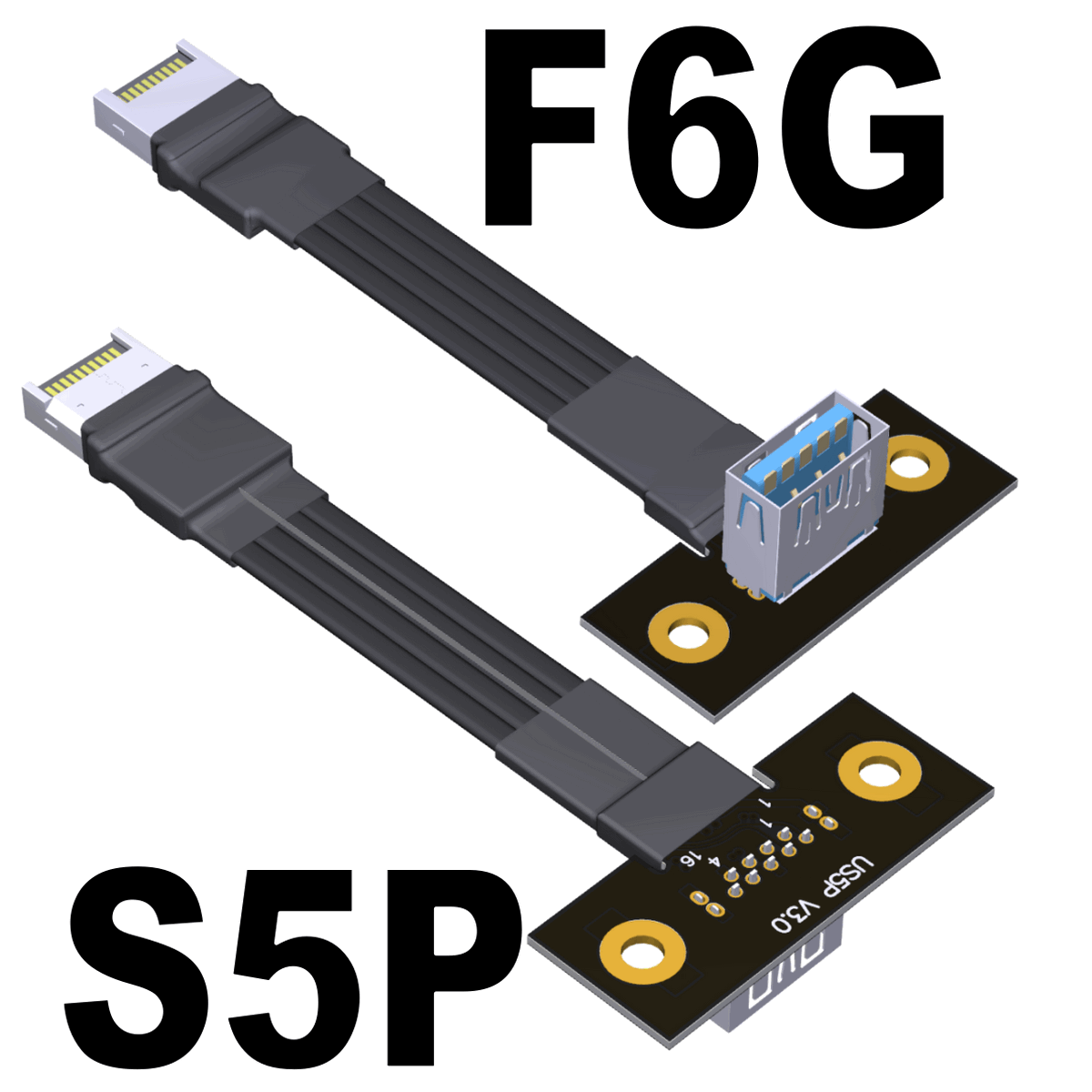

ADTLINK US5P-UF6G USB 3.1 type-A female to Internal 20Pin type-E male Flat Cable
ADTLINK US6P-UF6G USB 3.1 type-A female to Internal 20Pin type-E male Flat Cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.



To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/USF3-FM-16P.ZIP

Spec download: contact sales

FTP: Hong Kong

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adtlink.cn/download/USF3-FM-16P.ZIP




Aerial FPV PTZ USB 3.0 3.1 flexible flat ribbon cable FFC cable FPV type-e 20pin front panel internal 19pin flat Cable Standard Male to female Straight

Converter Cable Angle   highly-routable foldable axial elbow A type 10G/bps 5G/bps micro-B type-C USB-C USB-E internal type-E 24PIN
