Type E to E (UFF)

  • UFF3-FM-20P series
  • UFF3-FM-20P series
UFF3-FM-20P seriesUFF3-FM-20P series

UFF3-FM-20P series

  • Product ID:UFF3-FM-20P series
  • Interface: TYPE-E / TYPE-E
  • Application: USB extension cable
  • Shelf time:2022-05-15
  • Product description: USB 3.2 Type-E female to Type-E male flat cable
  • INQUIRY

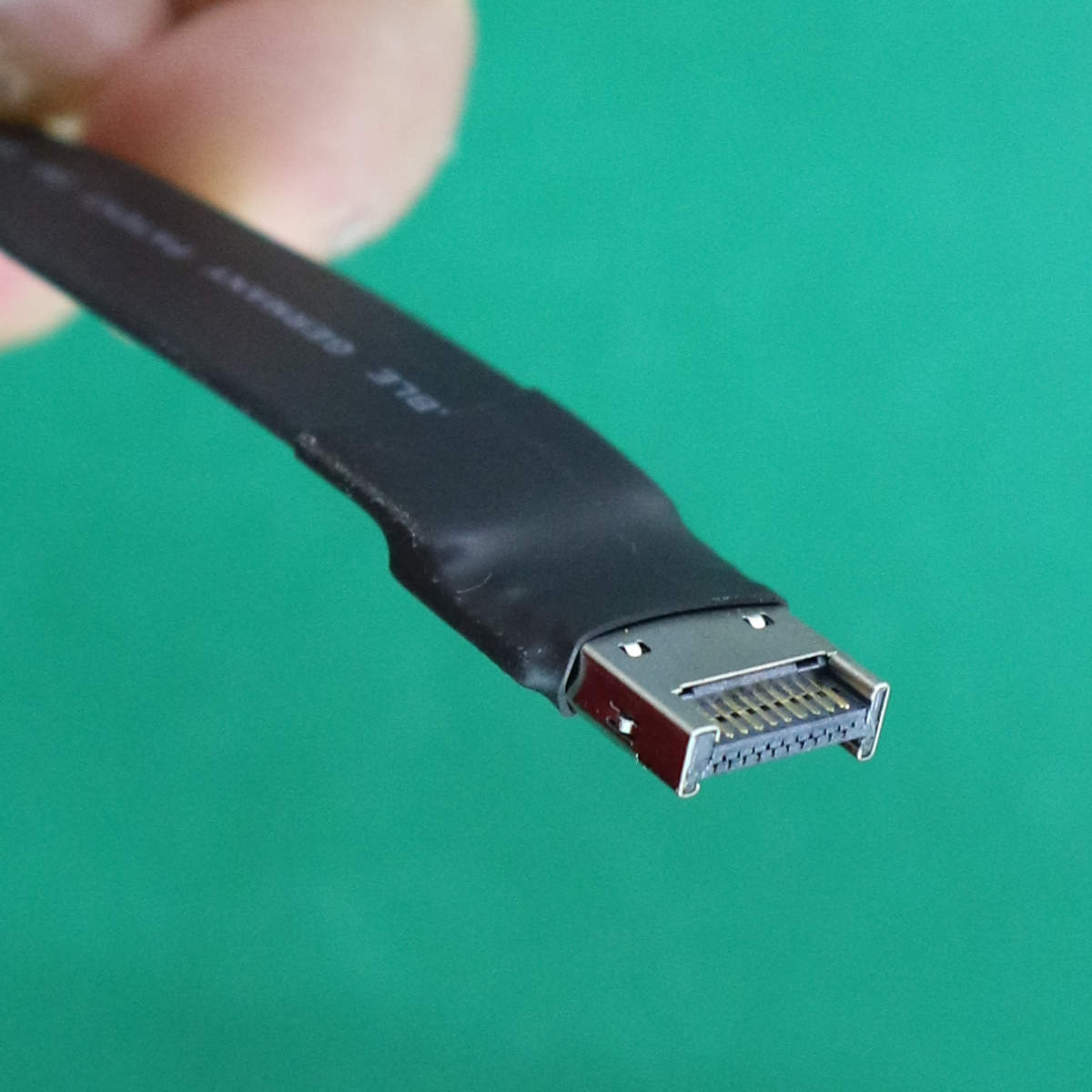

USB 3.2 Type-E female to Type-E male flat cable

Brand name: ADTLINK

Product name: USB 3.2 Type-E female to Type-E male flat cable

Product model: UFF3-FM-20P series

Transfer speed: gen2x2 within 50cm, gen1x2 within 1 meter

Wire length: 3~300 cm, the length can be customized

Current capacity: 3A within 50cm, 1.5A within 1 meter

Product application: USB3.0/3.1/3.2 internal 20Pin USB type-E front panel socket extension flat cable

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Brand Part-number Product-Description
ADTLINK UF9T-UF6A USB 3.0 Type-E female to Type-E male flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/UFF3-FM-20P.ZIP

Spec download: contact sales

FTP: Hong Kong

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adtlink.cn/download/UFF3-FM-20P.ZIP
