PCIe x8 to PCIe x8 Extender

  • R88SF
R88SF

R88SF

  • Product ID: R88SF
  • Interface: PCIe x8 / PCIe x8
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x8 to x8 adapter for graphics video cards extension.
  • INQUIRY

ADT-Link PCIe 3.0 x8 to x8 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x8 extension cable

Product model: R88SF

Transfer speed: PCIe3.0 x8 to x8, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x8 to PCIe x8 slot extension cable


ADT R33 series Part-Number Description:

Part-Number
Description
Bandwidth
R88SF PCI-E x8 to x8 turn 180 degree flat mount extension cables PCIe 3.0 x8 (64G/bps)



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

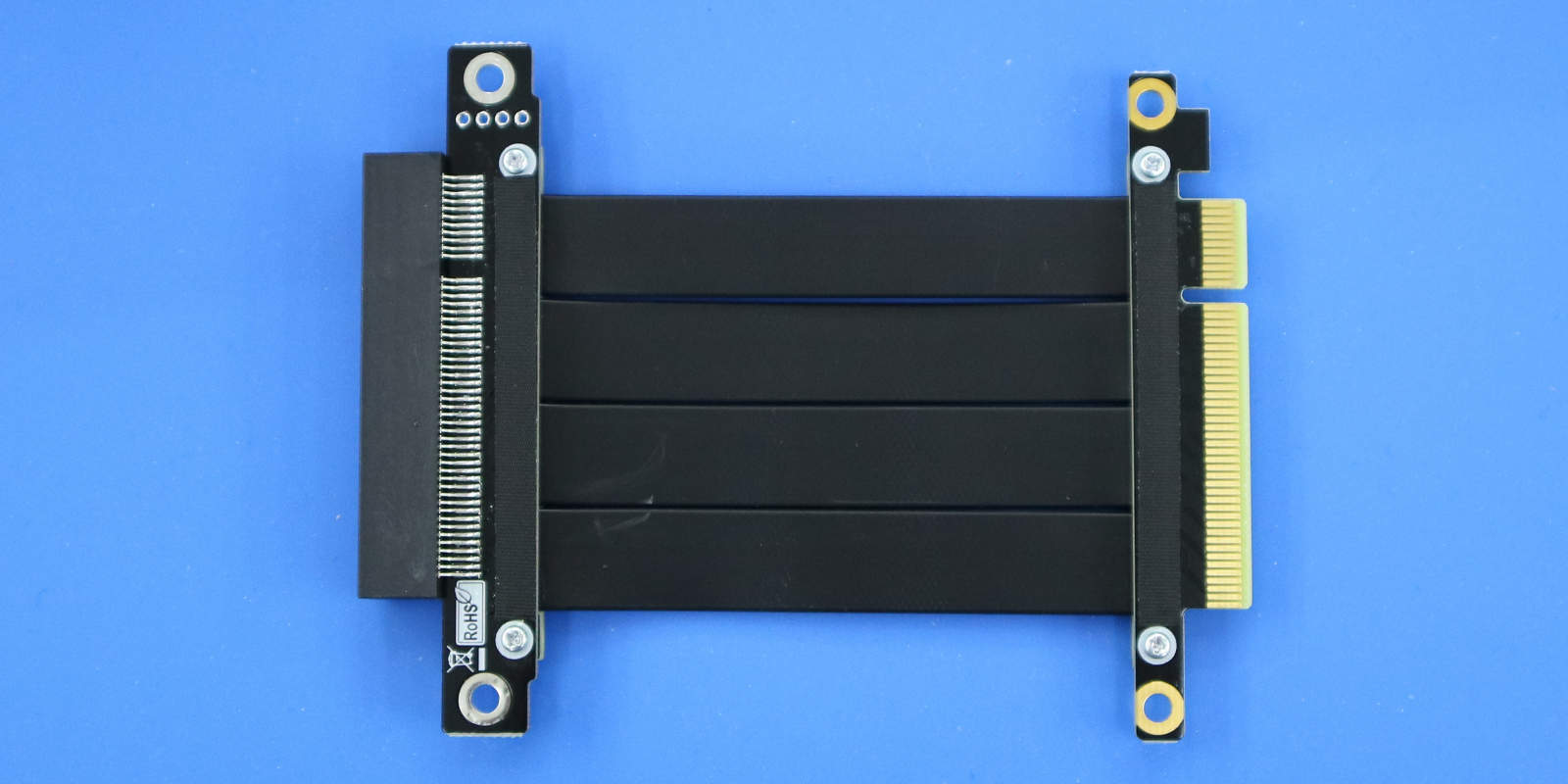

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R88_3D.zip

Spec download http://www.adt.link/Uploads/download/ADT_R88SF Cable specification 2020326.pdf

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R88_3D.zip
