  • Product name: PCIe 4.0 x8 to x8 extension cable
  • Product model: K88SF,K88SL,K88AB
  • Transfer speed: PCIe 4.0 x8 to x8, 128G/bps (Max.)
  • Product description: PCIe x8 to x8 adapter for graphics video cards extension.
  • Product description: ADT-Link PCIe 4.0 x8 to x8 Extension Cable
  • INQUIRY

ADT-Link PCI express 4.0 x8 to x8 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x8 extension cable

Product model: K88SF,K88SL,K88AB

Transfer speed: PCIe 4.0 x16 to x8, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Product description: PCIe x8 to x8 adapter for graphics video cards extension.


ADT K22 series Part-Number Description:

Part-Number
Description
Bandwidth
K88SF
PCI-E x8 to x8 turn 180 degree splint vertical extension cables PCIe 4.0 x8 (128G/bps)
K88SL
PCI-E x8 to x8 turn 90 degree splint vertical extension cables
PCIe 4.0 x8 (128G/bps)
K88AB
PCI-E x8 to x8 turn 90 degree splint vertical extension cables support SMBUS.WAKE#
PCIe 4.0 x8 (128G/bps)
Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

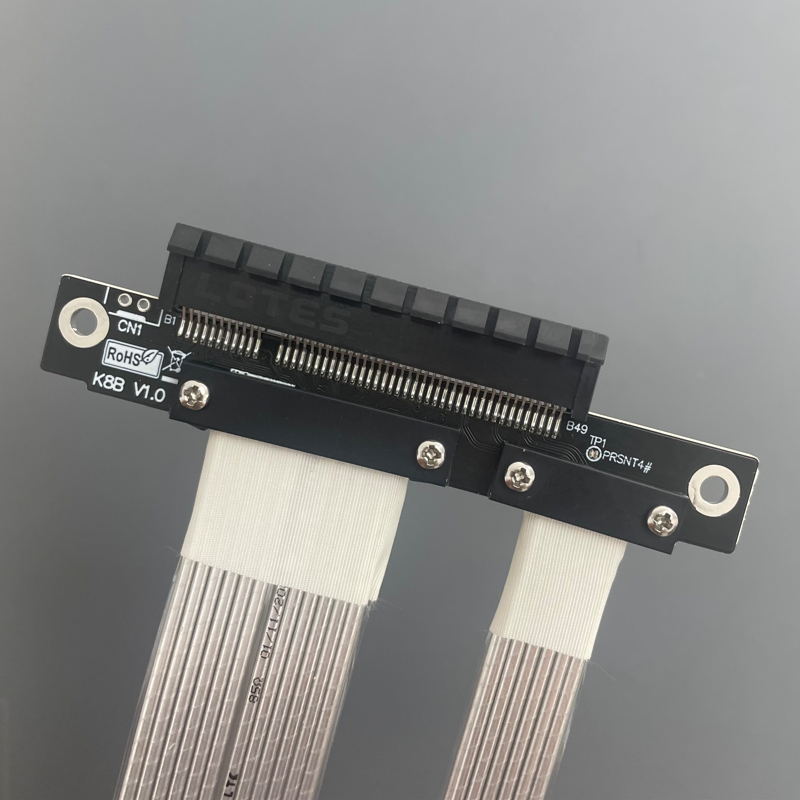

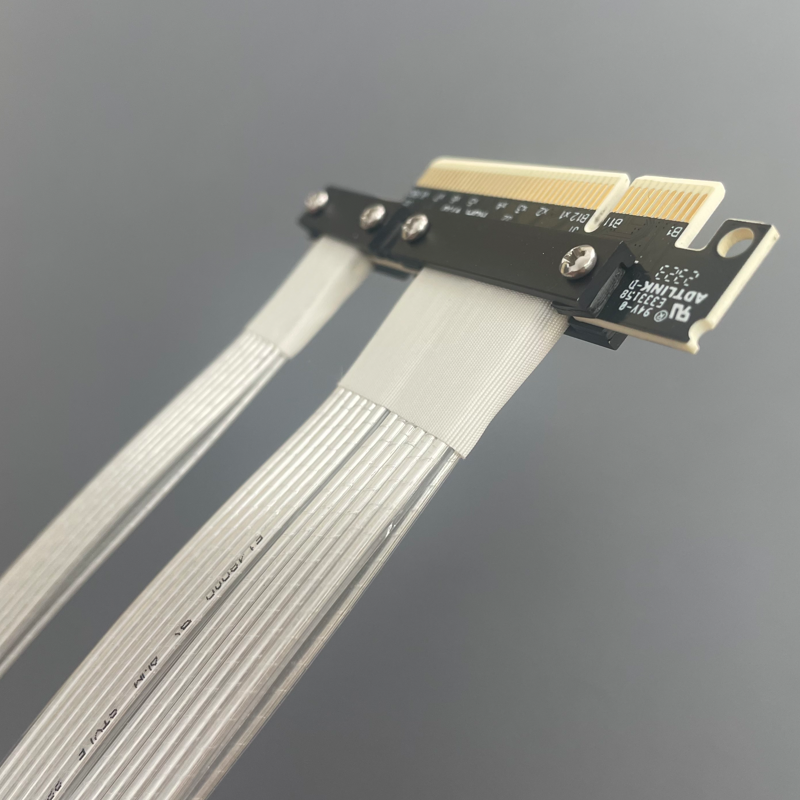

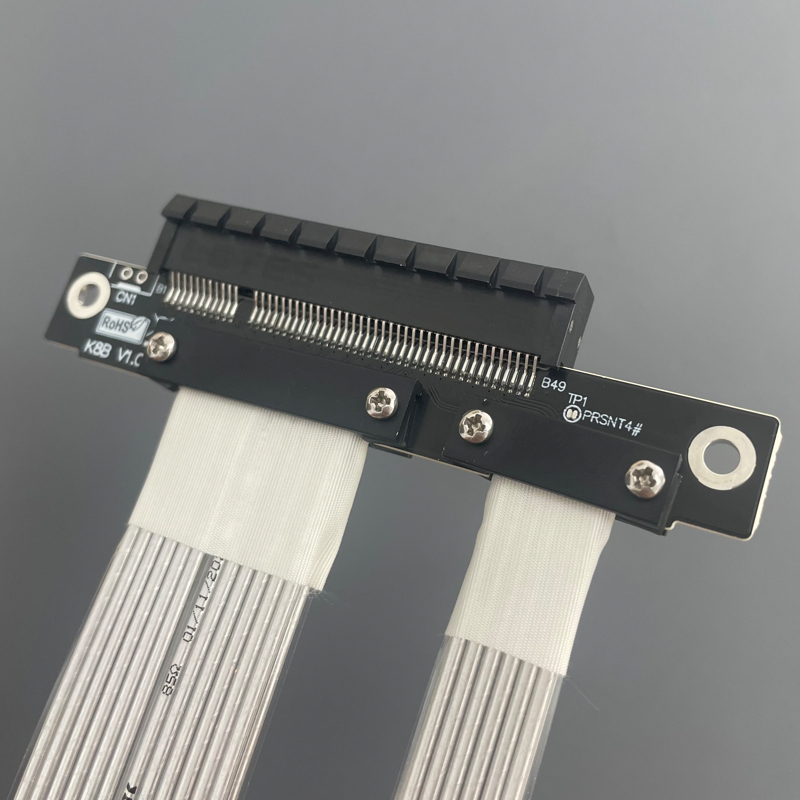

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K88xx_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K88xx_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
