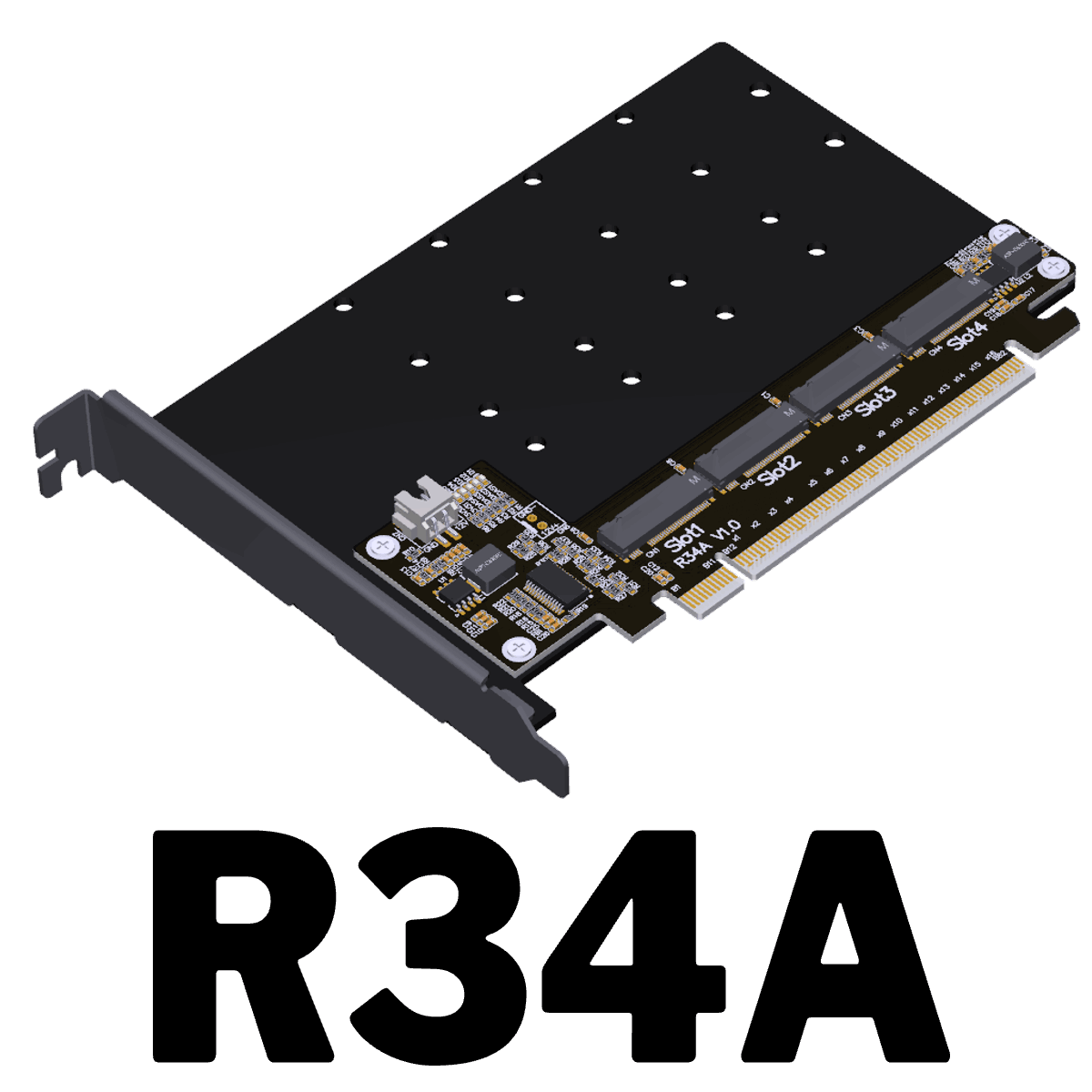

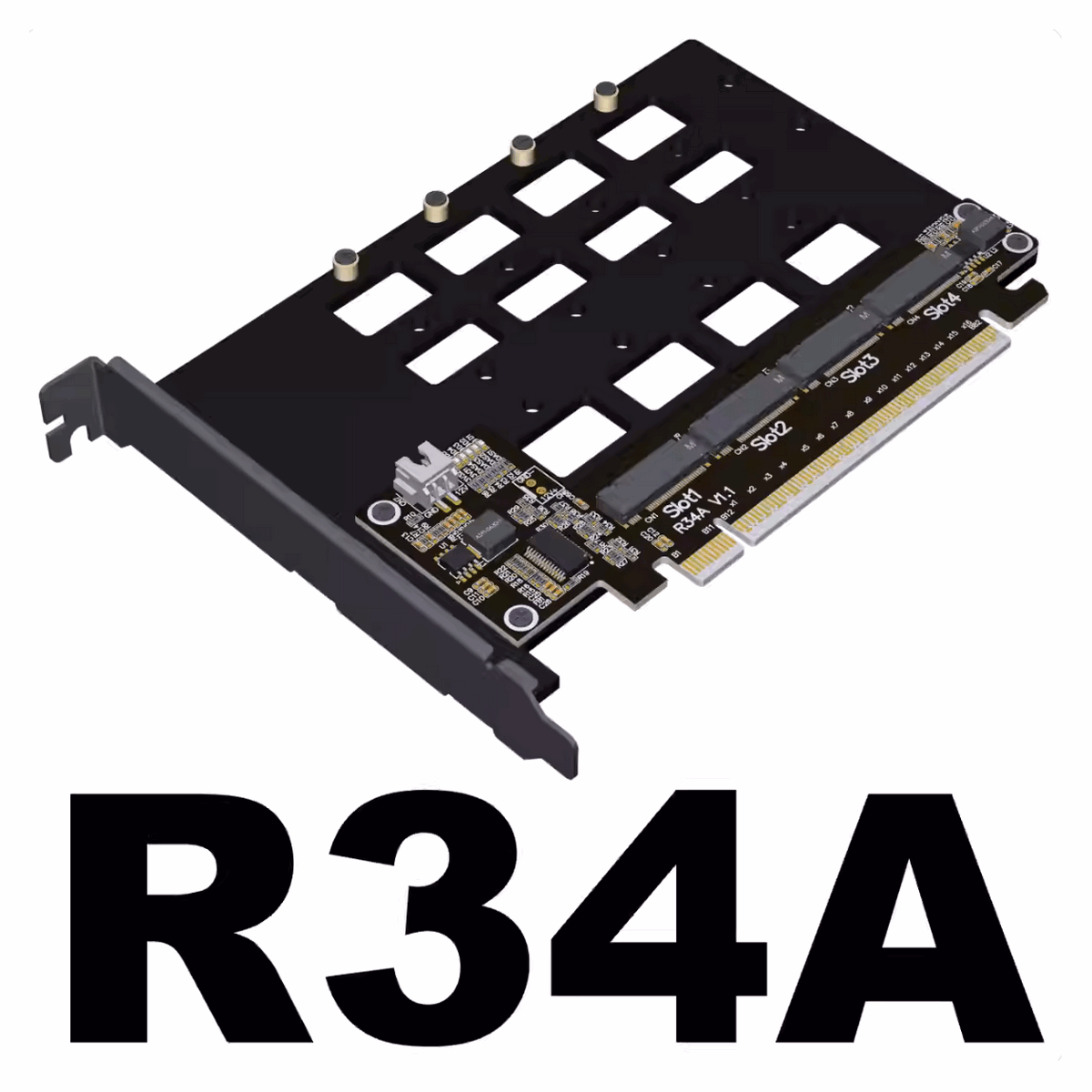

ADT-Link PCIe x16 to Quad M.2 NVMe SSD Adapter

Brand name: ADT-LINK

Product name: PCIe x16 to Quad M.2 NVMe SSD Adapter

Product model: R34A

Transfer speed: Gen5 x16

Dimension: PCIe x16 card. Support Quad M.2 NVMe card

Application: Bifurcation PCIe for Quad NVMe SSD to PCIe x16 slot

System requirements: The motherboard must have a free PCIe x16 interface and support Bifurcation PCIe 4x4 splitting function

Product Specifications:
Bifurcation supports PCI Express5.0 x4x4x4x4
M.2 slot support  2242, 2260, 2280, 22110 SSD sizes

Part-Number Description:

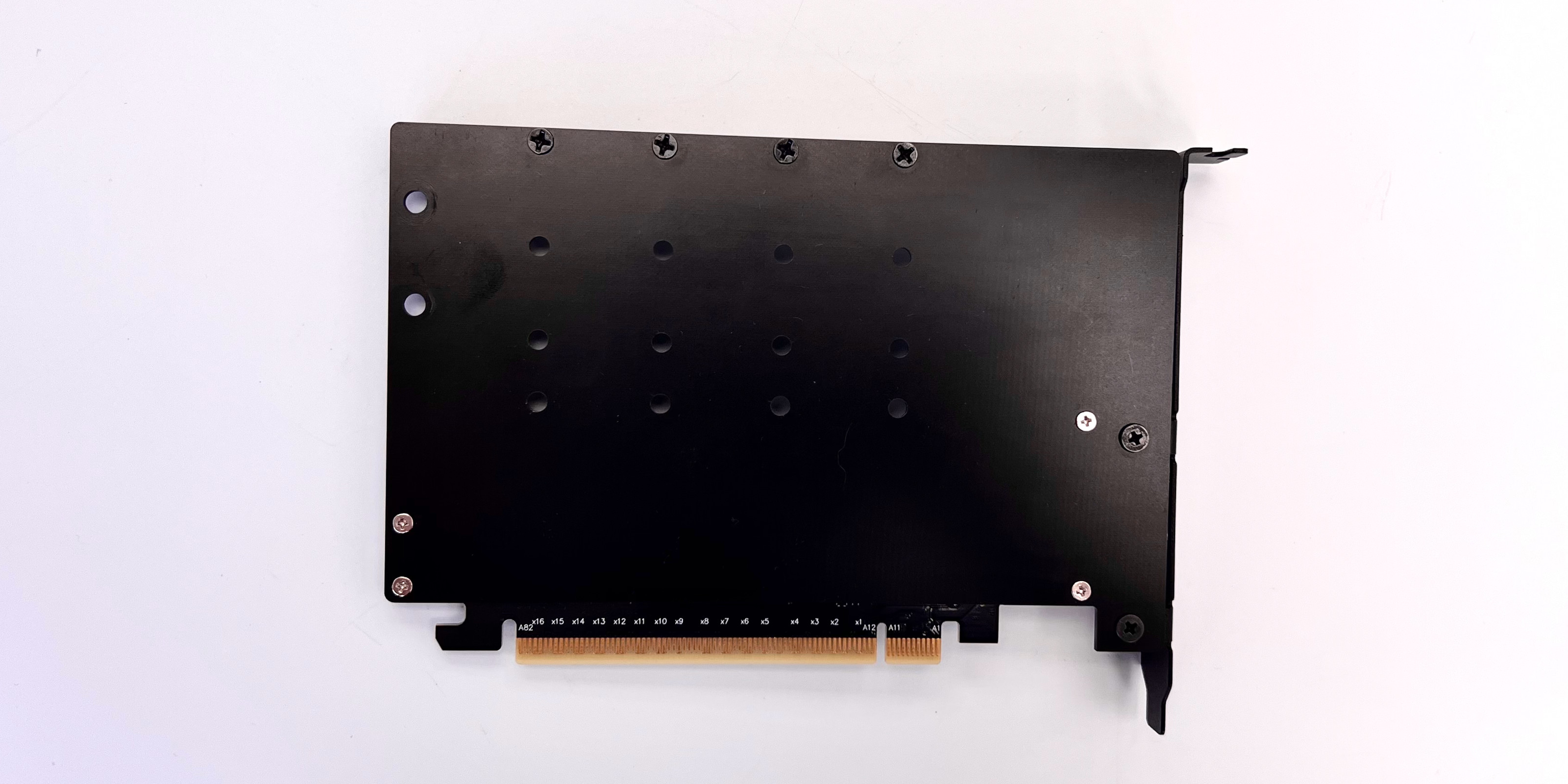

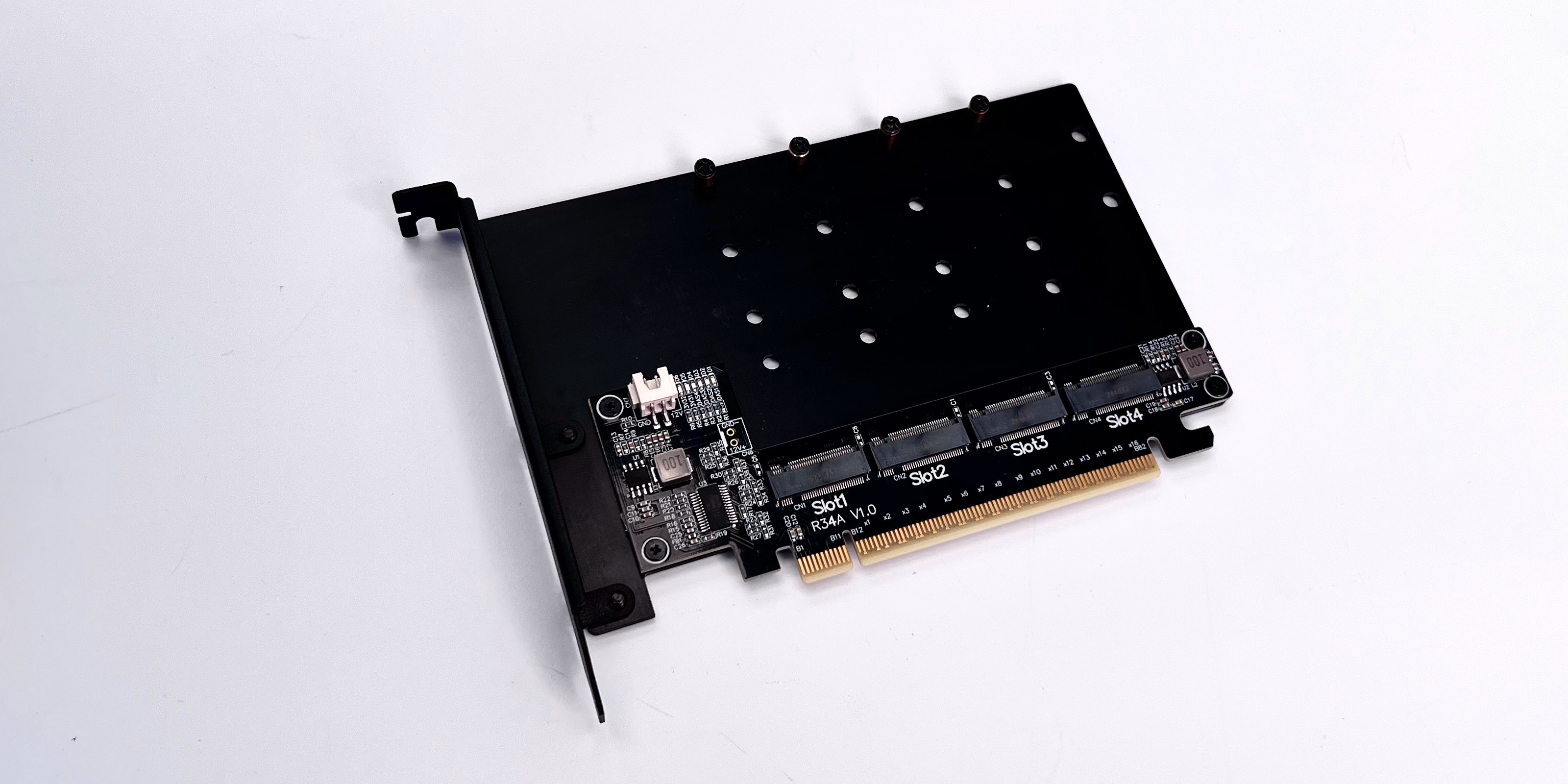

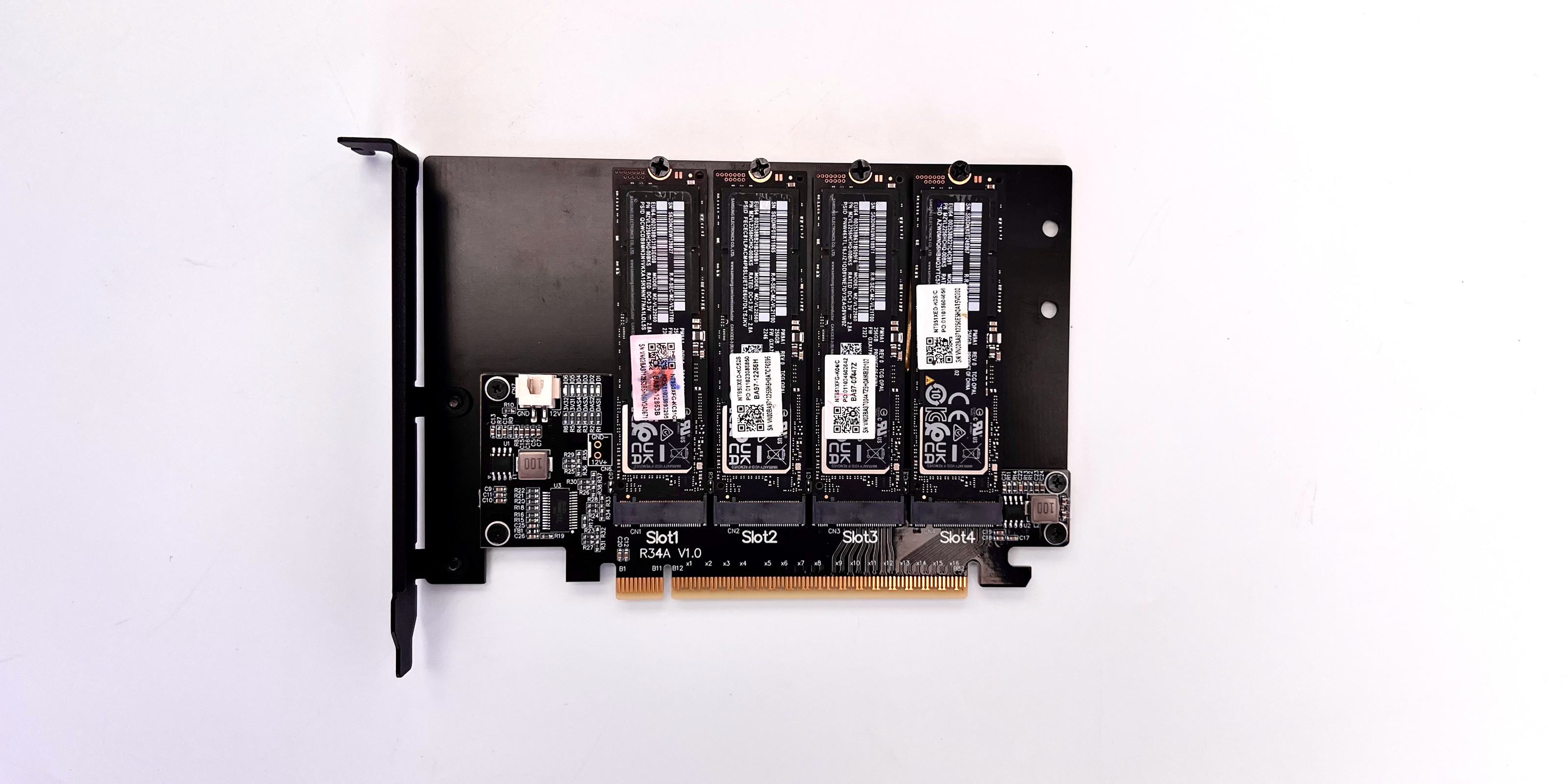

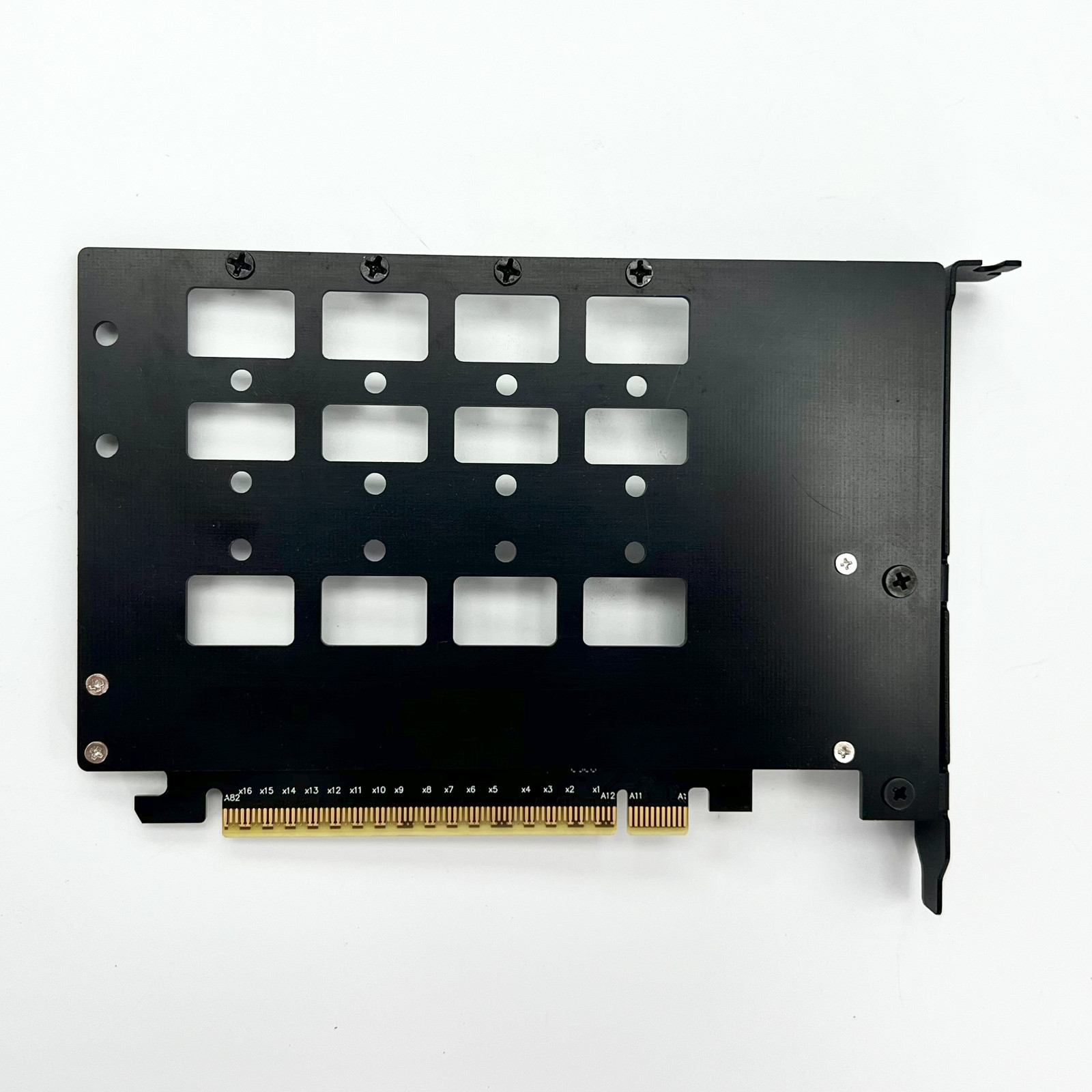

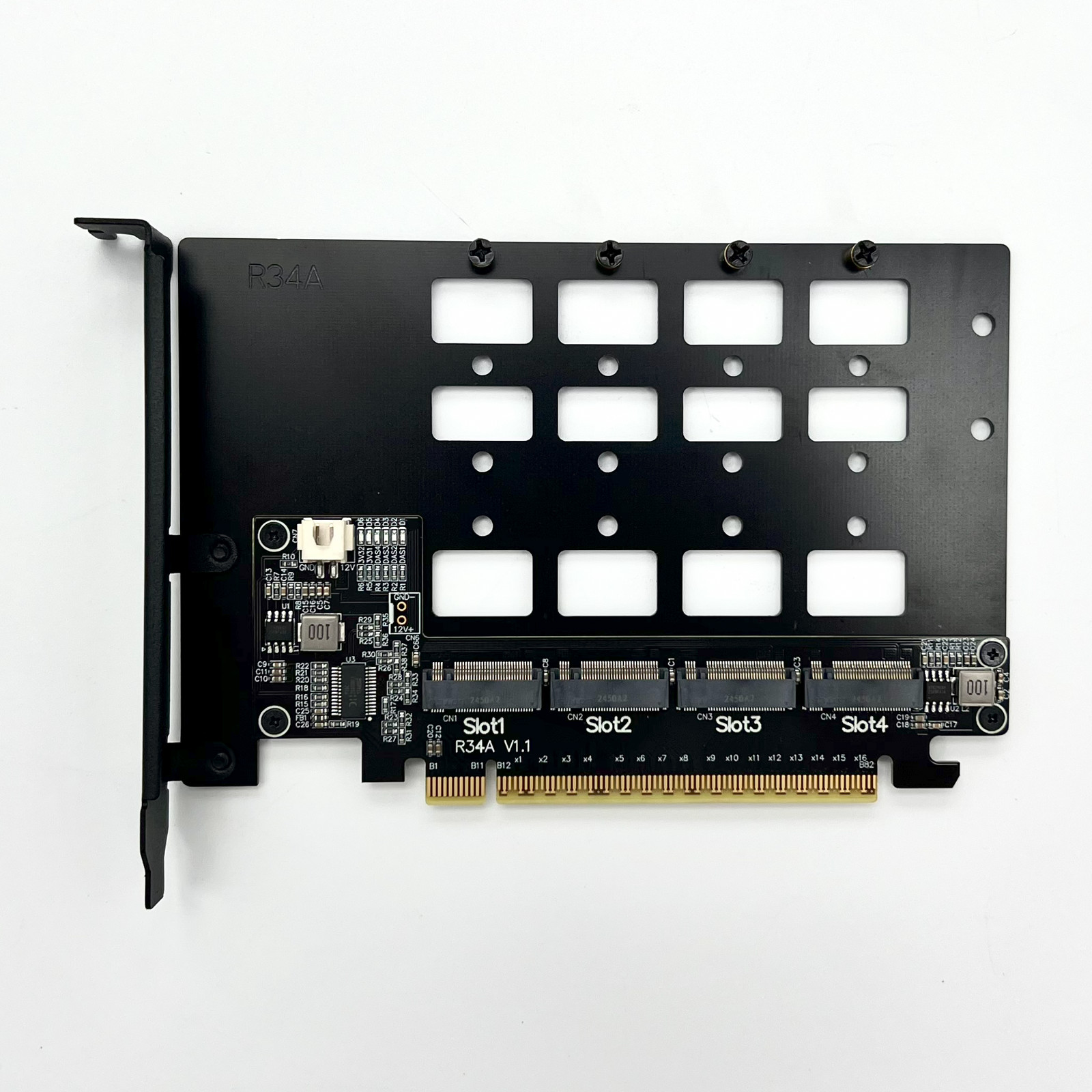

Photo:

Q&A:

How to confirm whether the motherboard supports Bifurcation PCIE split?
Please check your motherboard manual, manual or BIOS option will explain Bandwidth PCIE channel splitting or Bifurcation option. If not mentioned then not supported, option please choose 4x4 or x4x4x4x4

ASUS motherboard supported models and split technical instructions

https://www.asus.com/support/FAQ/1037507/

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic & 3D model files download https://www.adt.link/download/ADT_R34A_3D.zip

FTP: Hong Kong

Schematic & 3D model files download https://www.adtlink.cn/download/ADT_R34A_3D.zip
