  • Product ID: R33BF ; R33BF-TU ; R33BL ; R33BH ; R33BK
  • Interface: PCIe x16 / PCIe x16
  • Application: Extension
  • Shelf time:2022-06-19
  • Product description: PCIe x16 to x16riser for graphics video cards extension cable. gen5
  • INQUIRY

PCIe 4.0 x16 Riser Cable Re-Driver IC Integrated

Brand name: ADT-LINK

Product name: PCIe 4.0 x16 Riser Cable Re-Driver IC Integrated

Product model:R33BF 4.0 ; R33BL 4.0 ; R33BH 4.0 ; R33BK 4.0

Transfer speed: PCIe 4.0 x16 (Max.)

Wire length: 5 ~ 100 cm, the length can be customized, PCIE 5.0 is not guaranteed

Application: PCIe x16 graphics video card to PCIe x16 slot extension riser cable

Part-Number Description:

Brand Part-Number
Description
ADTLINK R33BL-BK 4.0
PCI-E 4.0 x16 to x16 turn 90 degree upright right angle extension black cables
ADTLINK
R33BL-SI 4.0
PCI-E 4.0 x16 to x16 turn 90 degree upright right angle extension silver cables
ADTLINK
R33BF-BK 4.0
PCI-E 4.0 x16 to x16 turn 180 degree splint vertical extension black cables
ADTLINK
R33BF-SI 4.0
PCI-E 4.0 x16 to x16 turn 180 degree splint vertical extension silver cables
ADTLINK R33BK-BK 4.0
PCI-E 4.0 x16 to x16 turn 0 degree splint vertical extension black cables
ADTLINK
R33BK-SI 4.0
PCI-E 4.0 x16 to x16 turn 0 degree splint vertical extension silver cables
ADTLINK R33BH-BK 4.0
PCI-E 4.0 x16 to x16 turn 90 degree connector lock version extension black cables
ADTLINK
R33BL-SI 4.0
PCI-E 4.0 x16 to x16 turn 90 degree connector lock version extension silver cables



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

The riser support PCIe 5.0?

Using Phison's PS7101 PCIe 5.0 Redriver signal repeater (Repeater IC), this chip can regenerate the signal to enhance its signal quality. To reduce the error rate of signal transmission, the reference diagram is as follows:.

PCIe 5.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 5.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 4.0 or lower.

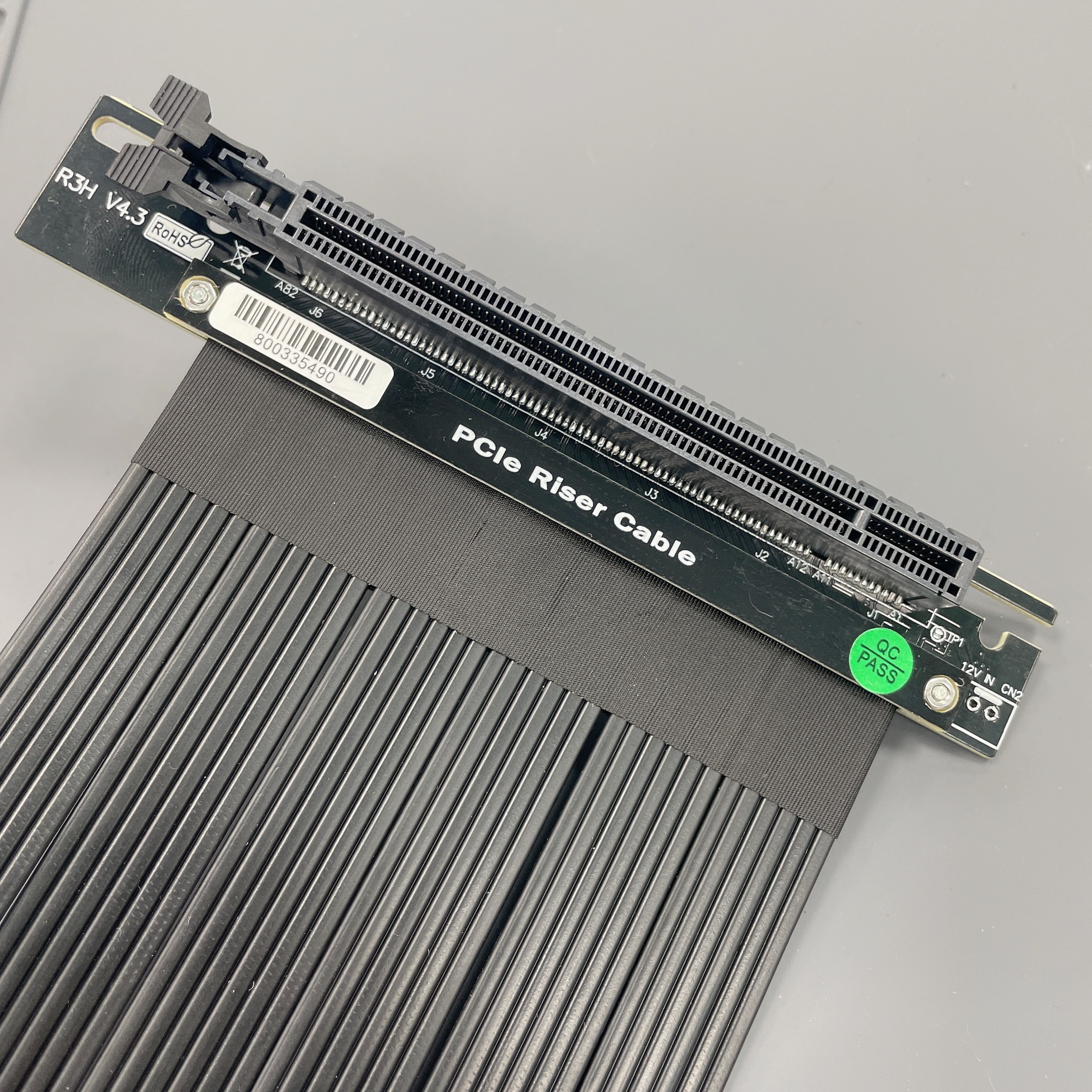

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D files download http://www.adt.link/download/R33V5.ZIP

FTP: Hong Kong

3D files download http://www.adtlink.cn/download/R33V5.ZIP


WebShop:

http://www.adt.link/product/R33V5-Shop.html
