PCIe x16 to PCIe x16 Extender

  • R33SF, R33SL, R33SR
  • R33SF, R33SL, R33SR
  • R33SF, R33SL, R33SR
  • R33SF, R33SL, R33SR
  • R33SF, R33SL, R33SR
  • R33SF, R33SL, R33SR
R33SF, R33SL, R33SRR33SF, R33SL, R33SRR33SF, R33SL, R33SRR33SF, R33SL, R33SRR33SF, R33SL, R33SRR33SF, R33SL, R33SR

R33SF, R33SL, R33SR

  • Product ID: R33SF, R33SL, R33SR
  • Interface: PCIe x16 / PCIe x16
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x16 to x16 adapter for graphics video cards extension.
  • INQUIRY

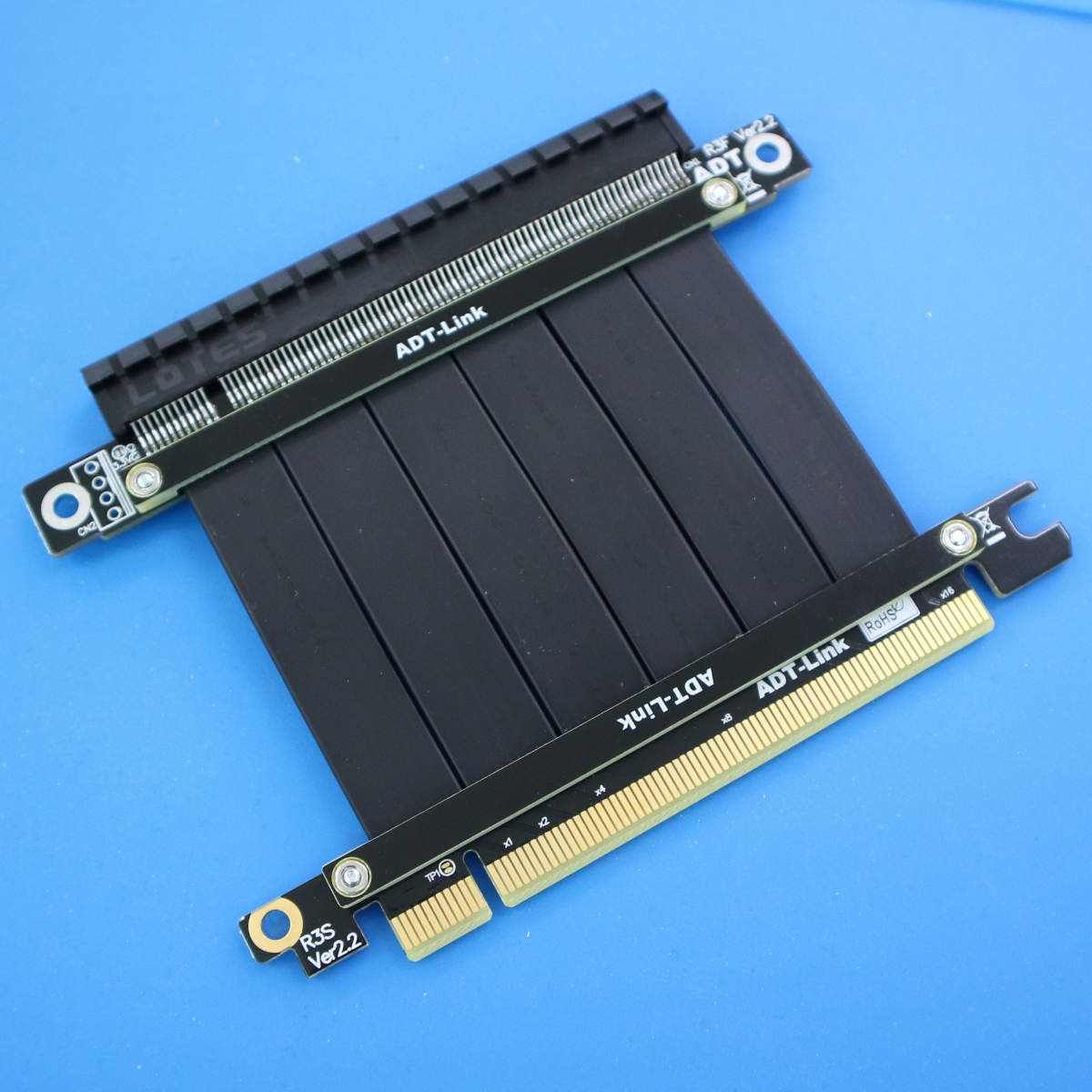

ADT-Link PCI express 3.0 x16 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable

Product model: R33SF , R33SL , R33SR

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable


ADT R33 series Part-Number Description:

Part-Number
Description
Bandwidth
R33SL PCI-E x16 to x16 turn 90 degree upright right angle extension cables  PCIe 3.0 x16
R33SF
PCI-E x16 to x16 turn 180 degree splint vertical extension cables PCIe 3.0 x16
R33SR PCI-E x16 to x16 turn 270 degree inverted reverse extension cables PCIe 3.0 x16
R33SL-PW
PCI-E x16 to x16 turn 90 degree upright right angle extension cables with SATA power cable for Server Motherboard ETH Mining
PCIe 3.0 x16
R33SF-PW
PCI-E x16 to x16 turn 180 degree splint vertical extension cables with SATA power cable for Server Motherboard ETH Mining
PCIe 3.0 x16
R33SR-PW
PCI-E x16 to x16 turn 270 degree inverted reverse extension cables with SATA power cable for Server Motherboard ETH Mining
PCIe 3.0 x16

Model R33SF-PW with power cord suitable for RTX3060 multi-graphics card ETH mining
Multi-card mining buyers please note that the external power supply of the extension cable is to solve the problem of insufficient power supply for the motherboard. If your motherboard has 2 PCIe enhanced power connector and a power cable is connected, then my extension cable does not need to be connected to the connector. If your motherboard does not have a PCIe enhanced power connector, then my extension cable must be connected to the power supply.

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 20cm blue arrow in the figure below.


Dimension Description: (female to male)

Part-Number
Description
R33SF PCIe x16 to x16 flat mount extension cable
R33SL PCIe x16 to x16 left angle extension cable
R33SR PCIe x16 to x16 Right angle extension cable


Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.


Photo:



Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R33_3D.zip

Spec download http://www.adt.link/Uploads/download/ADT_R33SF Cable specification 20200521.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R33SL Cable specification 20200521.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R33SS Cable specification 20190820.pdf

Schematic download http://www.adt.link/Uploads/download/ADT_R33SF Schematic 20191211.pdf
