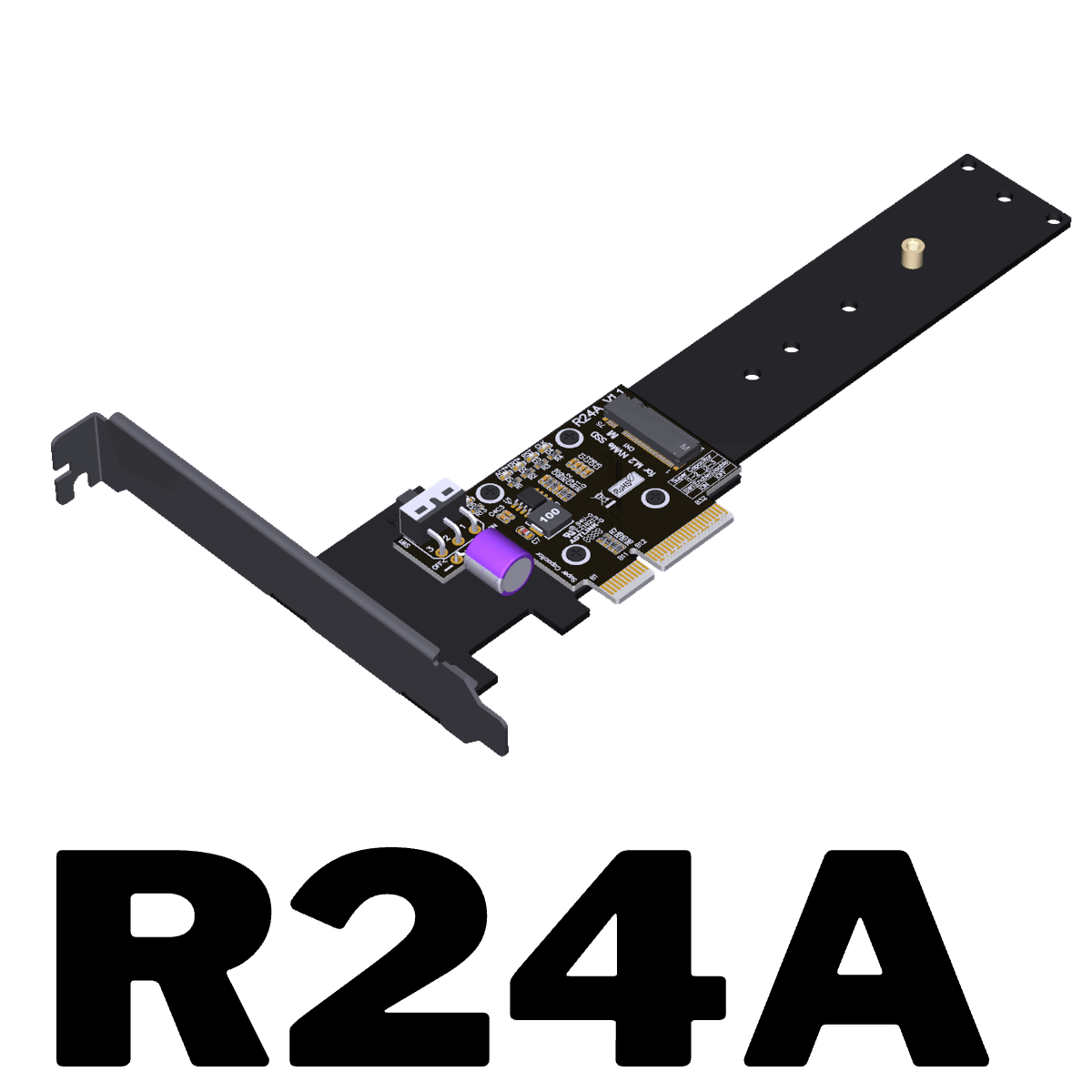

PCIe/USB Adapter

R24A

Product ID: R24A
Product name: PCIe 5.0 x4 to M.2 NVMe Adapter
Interface: PCIe x4 /M.2 NVMe
Transfer speed: PCIe 5.0 x4
Product description: ADT-Link PCIe 5.0 x4 to M.2 NVMe SSD Adapter with Bracket
INQUIRY

ADT-Link PCIe 5.0 x4 to M.2 NVMe adapter

Brand name: ADT-LINK

Product name: PCIe 5.0 x4 to M.2 NVMe adapter

Product model: R24A

Transfer speed: 128Gb/Sec (PCIe gen5 x4 Max.)

Application:M.2 NVMe SSD Card to PCIe x4/x8/x16 interface

ADT R24-Adapter series Part-Number Description:

Part-Number	Description	Bandwidth (Max.)
R24A	PCIe x4 to M.2 NVMe adapter with bracket	PCIe 5.0 x4 (128G/bps)

Dimension data of the bracket

Product advantages:
1. Support PCIe 5.0 x4, compatible with gen3/gen4/gen51. Supports PCIe 5.0 X4 compatibility with Gen3/Gen4/Gen5
2. Exclusive design bracket base plate, perfectly compatible with 2230/2242/2260/2280/22110 SSD card
3. Gold finger gold plating process, with a gold thickness of up to 10U, in compliance with IPC Level 1 international standards
4. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening

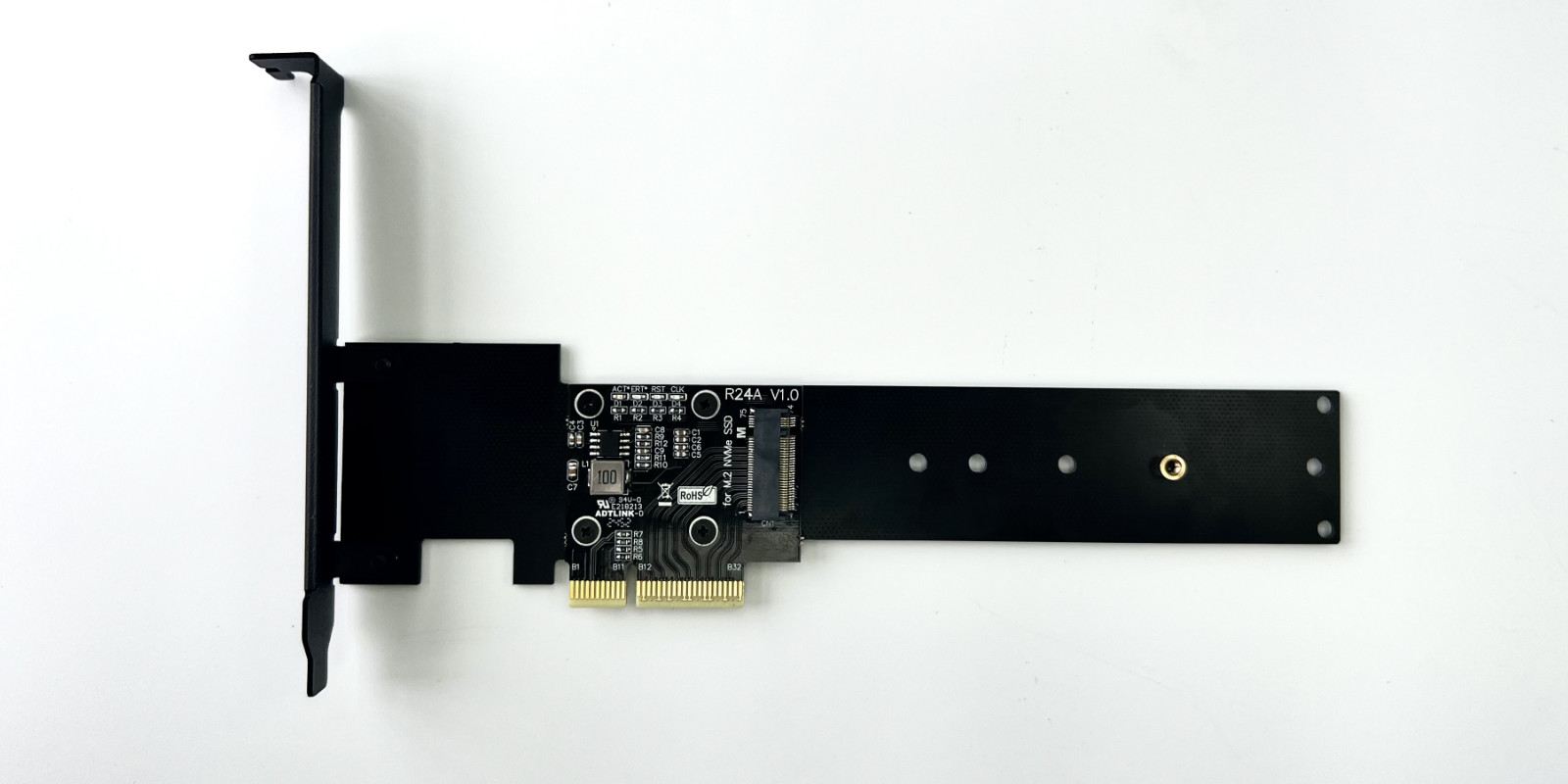

Photos:

Q&A:

Introduction to R24A indicator lights

R24A has four indicator lights: D1 light is a read-write light that flashes during the read-write process; D2 is the fault light, which is normally off; The D3 light is a RESET light, which normally only flashes once when turned on; The D4 light is the REQ CLK # light, which is normally on.
