M.2 NVMe to M.2 NVMe Extender

K44SF-HT,K44SH-HT

Product name: M.2 NVMe Key M extension cable
Product model: K44SF-HT,K44SH-HT
Transfer speed: PCIe 5.0 x4 , 128G/bps (Max.)
Application: M.2 NVMe SSD cards extension
Product description: ADT-Link Pcie 5.0 x4 M.2 NVMe M-Key SSD Round Extension Riser Cable with Metal Shield
INQUIRY

ADT-Link M.2 NVMe SSD Extension Riser Cable

Brand name: ADT-LINK

Product name: M.2 NVMe Key M extension cable

Product model: K44SF-HT,K44SH-HT

Transfer speed: PCIe 5.0 x4 , 128G/bps (Max.)

Wire length: 10~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards extension

Operating Temperature: ‑40℃ ~ +105℃

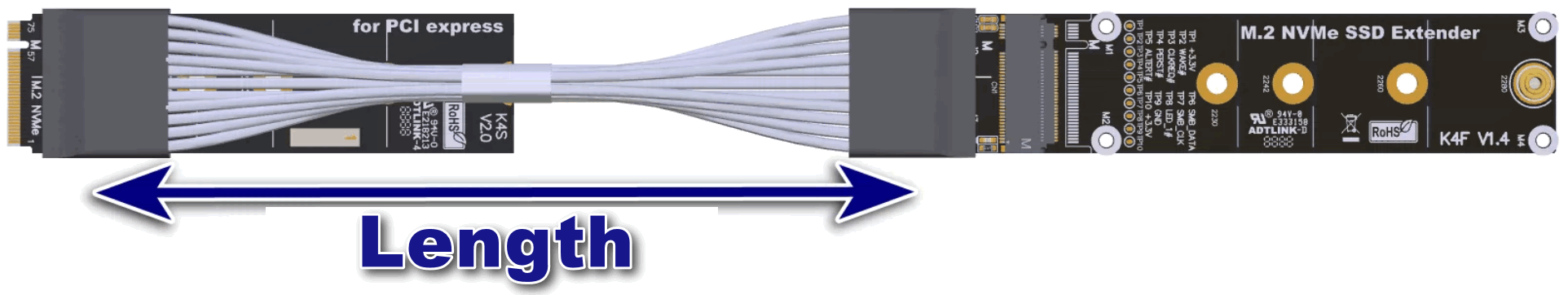

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

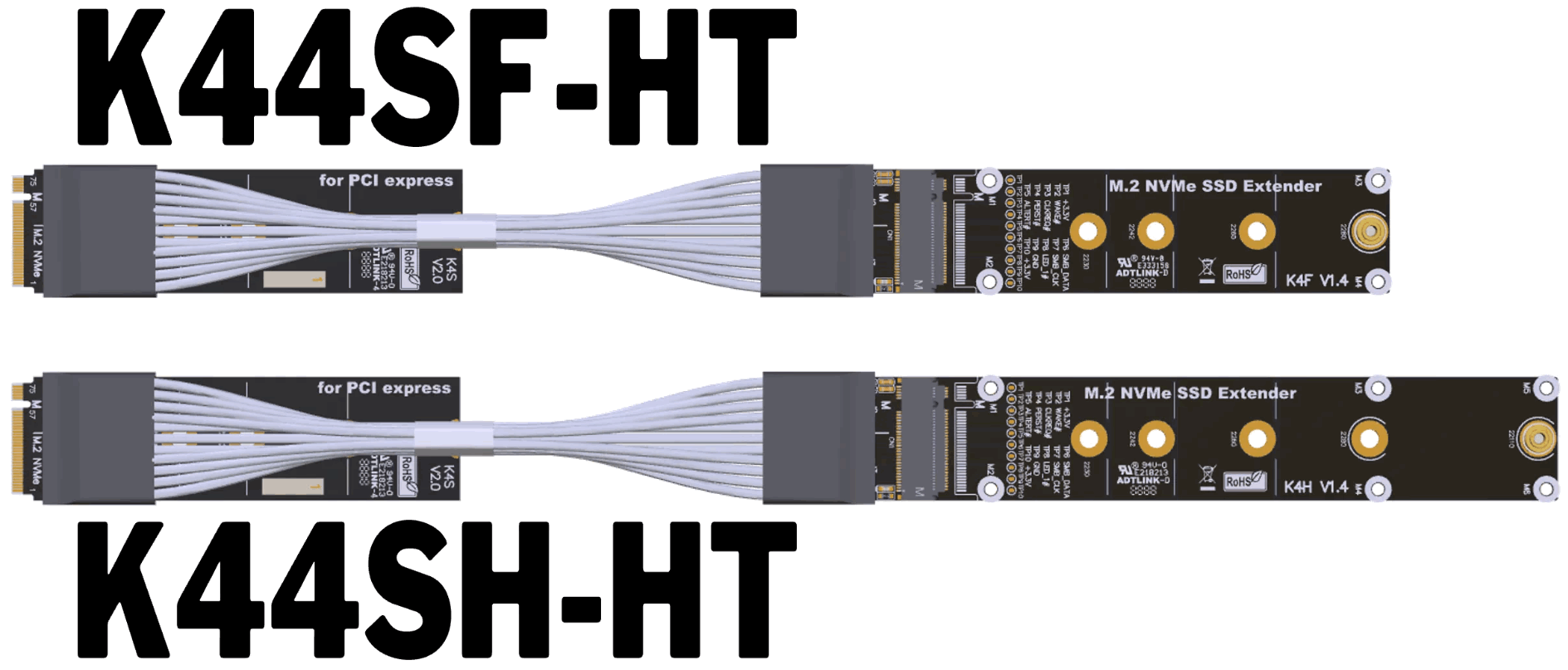

What is the difference between ADT model K44SF and K44SH?

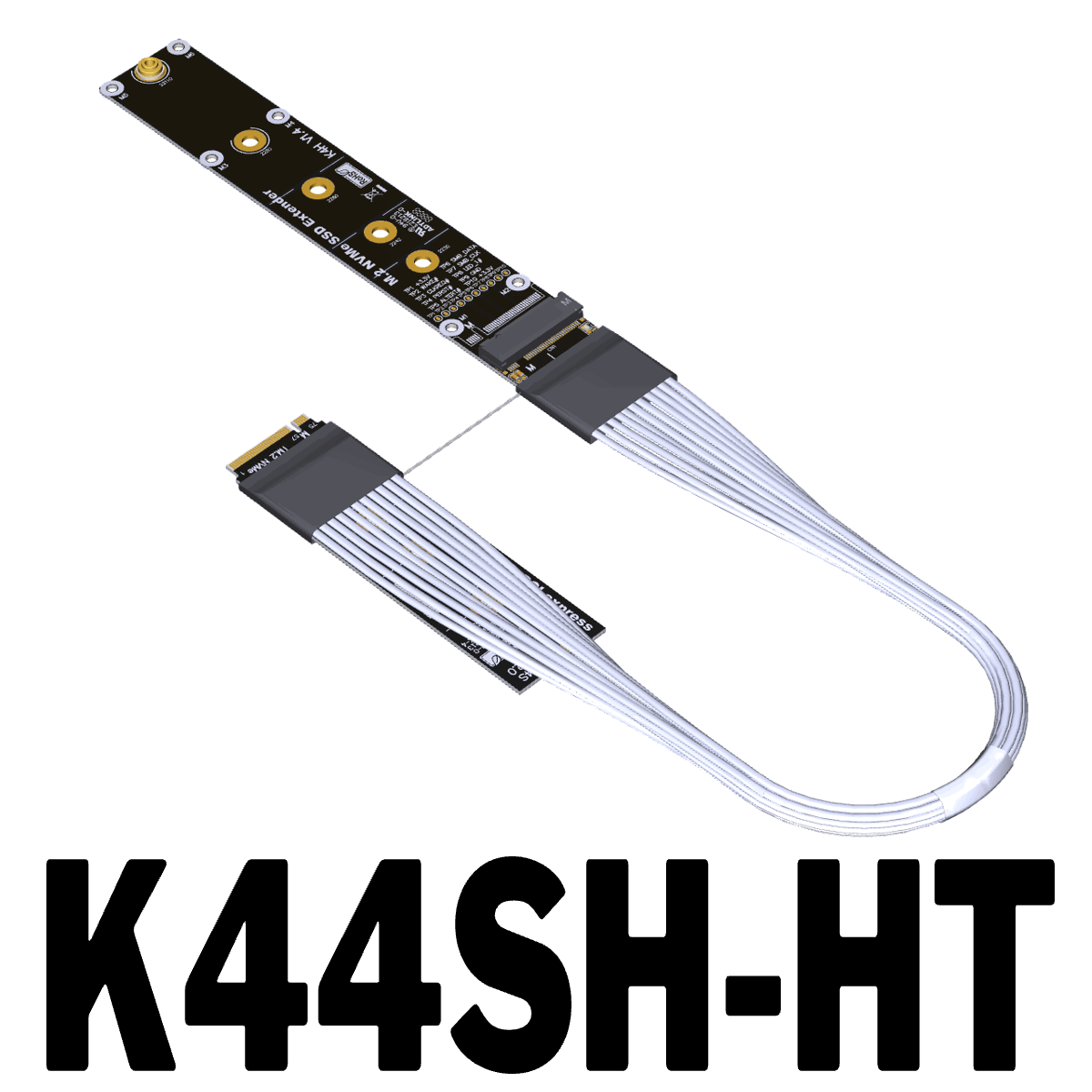

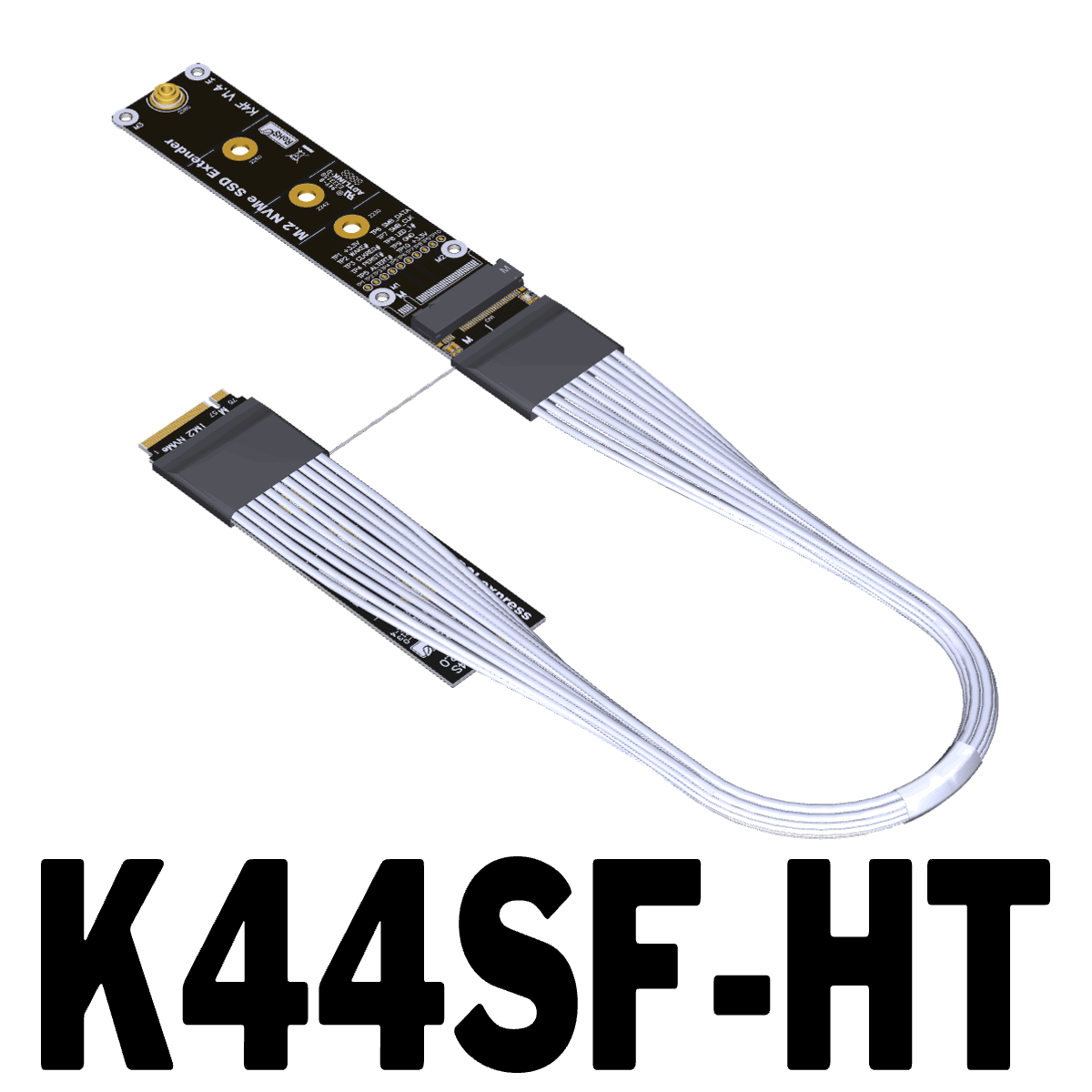

The K44SH-HT can support SSDs of 22110 size, while the K44SF-HT can support SSDs of 2280 size. The external dimensions are shown in the following figure:

Can K44SF-HT and K44SH-HT support PCIe 5.0?

The measured data of our store are as follows:

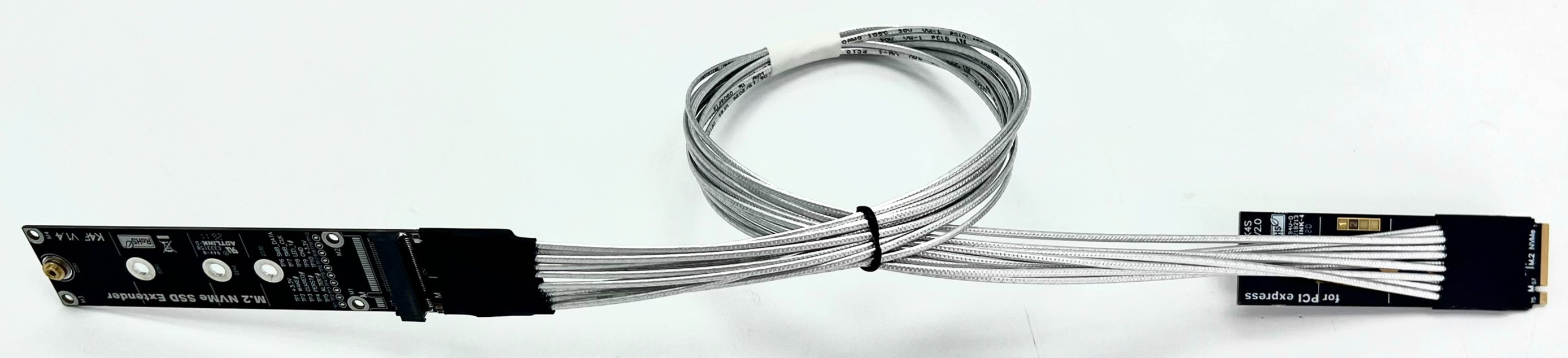

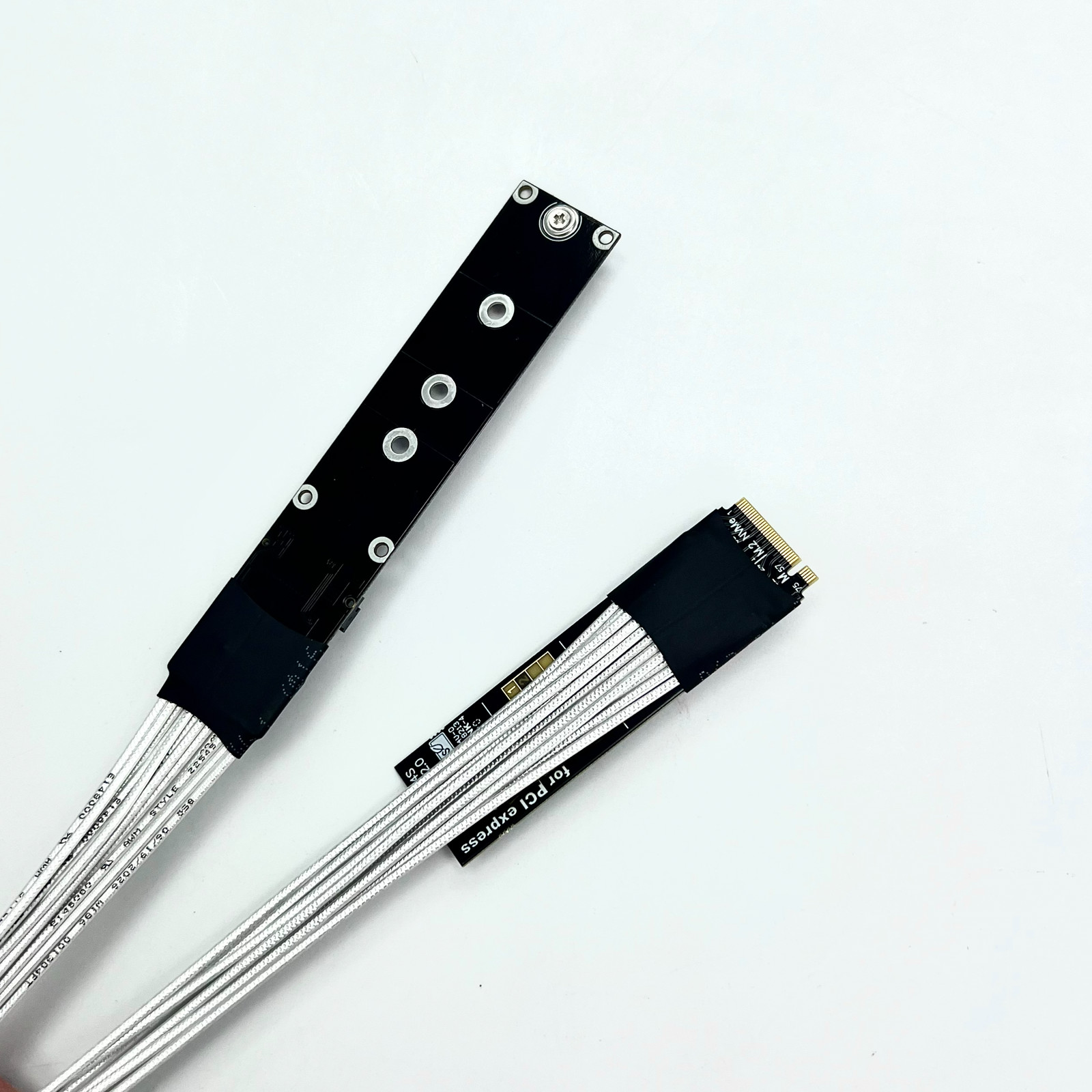

Photo:

Q&A:

The PCB is too long; can it be shortened?

The PCB can be cut along the white line indicated by the arrow.

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The wire can be bent freely without affecting its use.
