DP Extension Cable

  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
  • DPP series
DPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP seriesDPP series

DPP series

  • Product ID:DPP series
  • Interface:DP / DP
  • Application: Displayport Cable
  • Shelf time:2019-10-10 11:07:19
  • Product description: DPP DP to DP flat cable
  • INQUIRY

ADT-Link DP to DP Flat Cable

Not recommended for new design


Brand name: ADT-LINK

Product name: DP to DP Cable

Product model: DPP series

Transfer speed: DP1.2

Wire length: 3 ~ 200 cm, the length can be customized,

Operating temperature: -20°C ~ 80°C

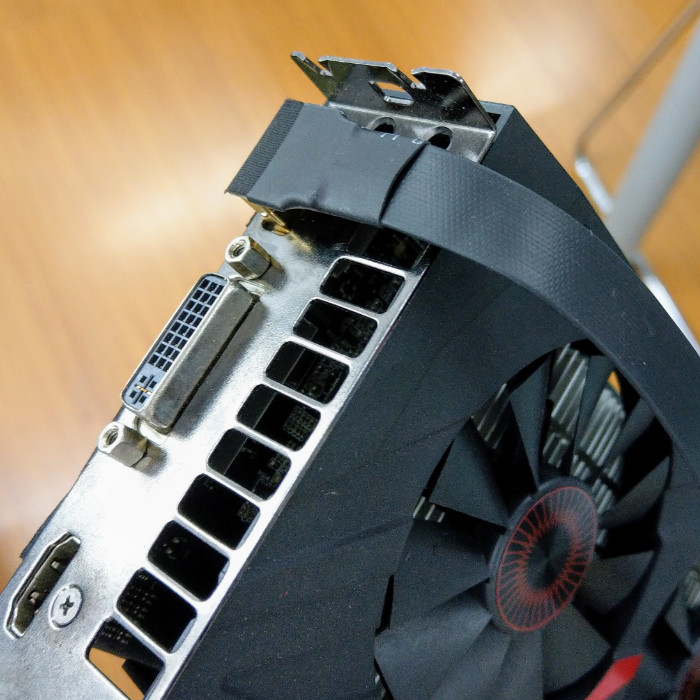

Application: For Video card, Graphics card extension

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Note: The extension cable does not support two or more DP cables connected in series. If you connect more than two DP cables in series, the signal will be attenuated. It may not be used normally.

ADT DP series Part-Number Description:

Product Name Cable Material Part-Number Bandwidth

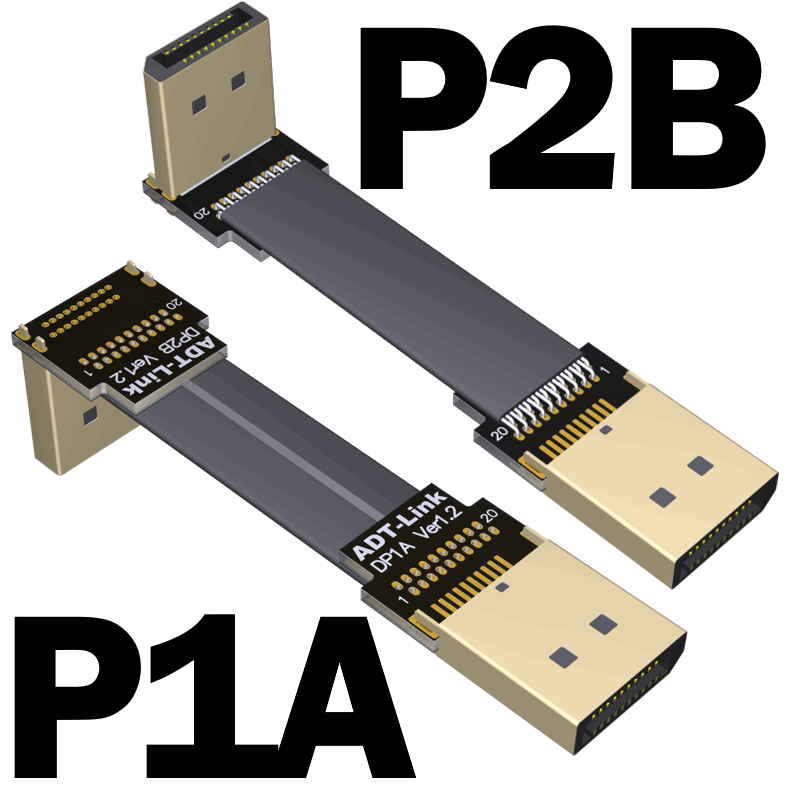

DP Cable, flat mount male to flat mount male Black without metal shield P1A-P1B DP1.2
DP Cable, flat mount male to Turn up male Black without metal shield P1A-P2B DP1.2

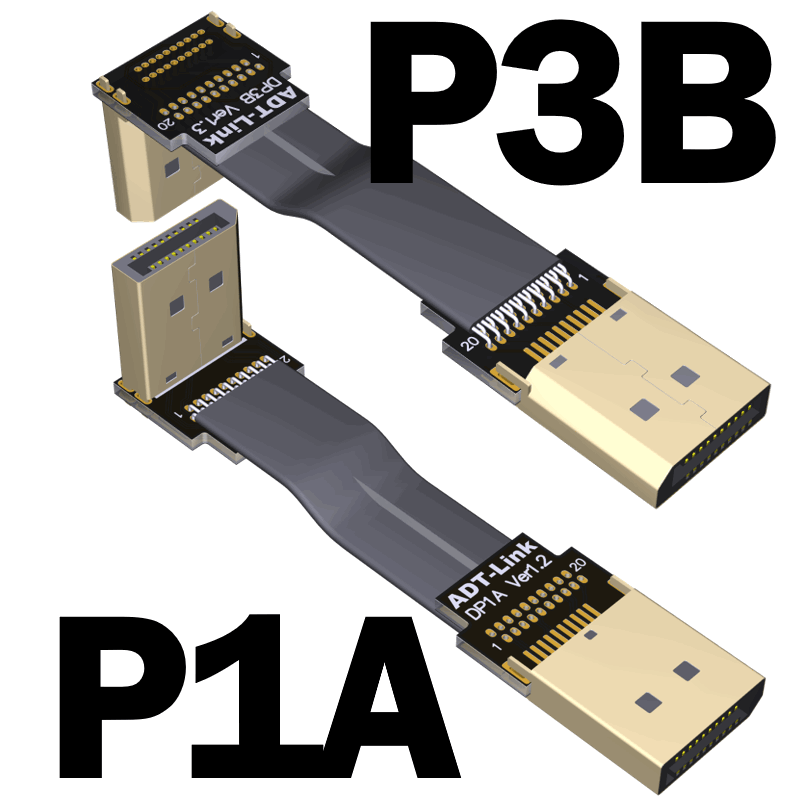

DP Cable, flat mount male to Turn down male Black without metal shield P1A-P3B DP1.2

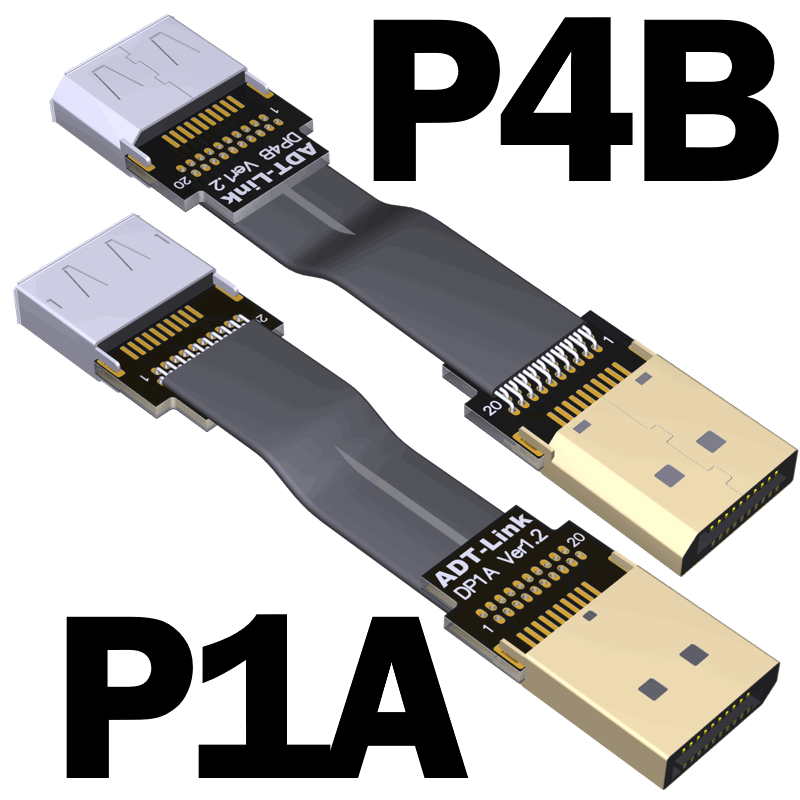

DP Cable, flat mount male to flat mount female Black without metal shield P1A-P4B DP1.2

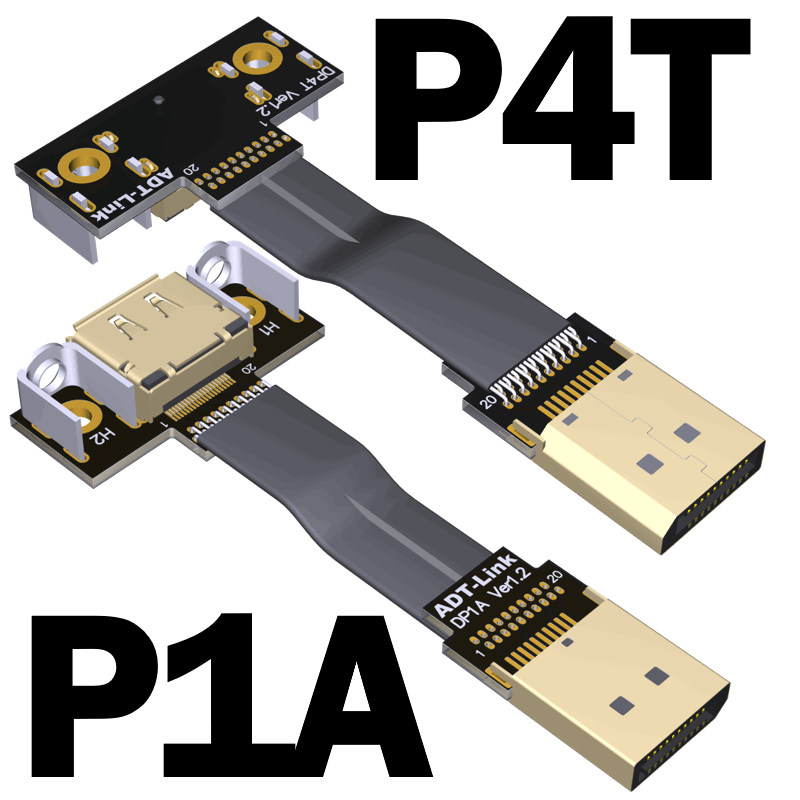

DP Cable, flat mount male to flat mount female with fixing hole Black without metal shield P1A-P4T DP1.2
DP Cable, turn up male to Turn up male Black without metal shield P2A-P2B DP1.2
DP Cable, turn up male to Turn down male Black without metal shield P2A-P3B DP1.2
DP Cable, turn up male to flat mount female Black without metal shield P2A-P4B DP1.2

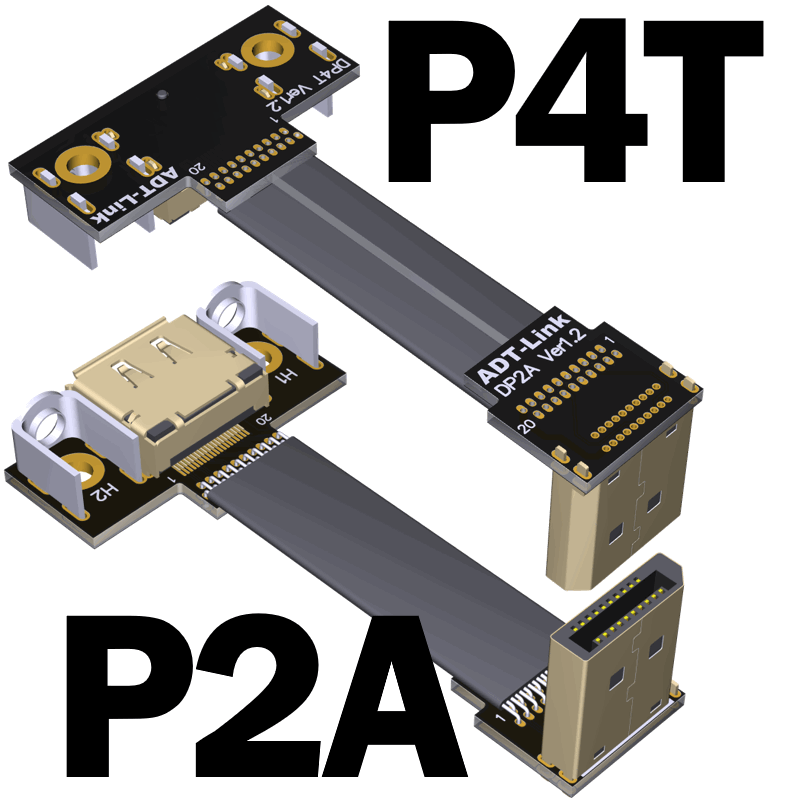

DP Cable, turn up male to flat mount female with fixing hole Black without metal shield P2A-P4T DP1.2
DP Cable, turn down male to Turn down male Black without metal shield P3A-P3B DP1.2

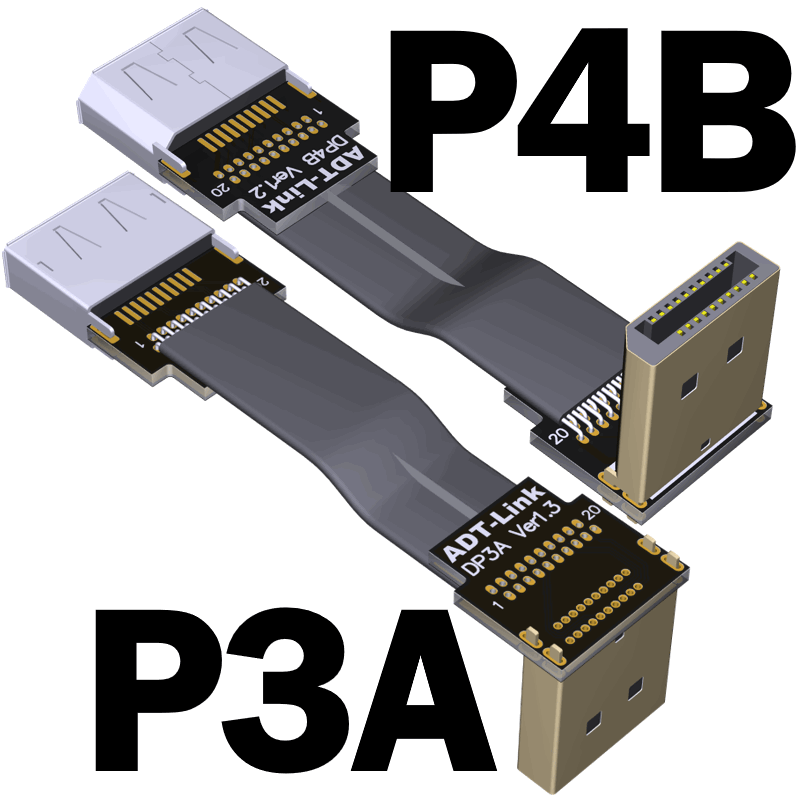

DP Cable, turn down male to flat mount female Black without metal shield P3A-P4B DP1.2
DP Cable, turn down male to flat mount female with fixing hole Black without metal shield P3A-P4T DP1.2

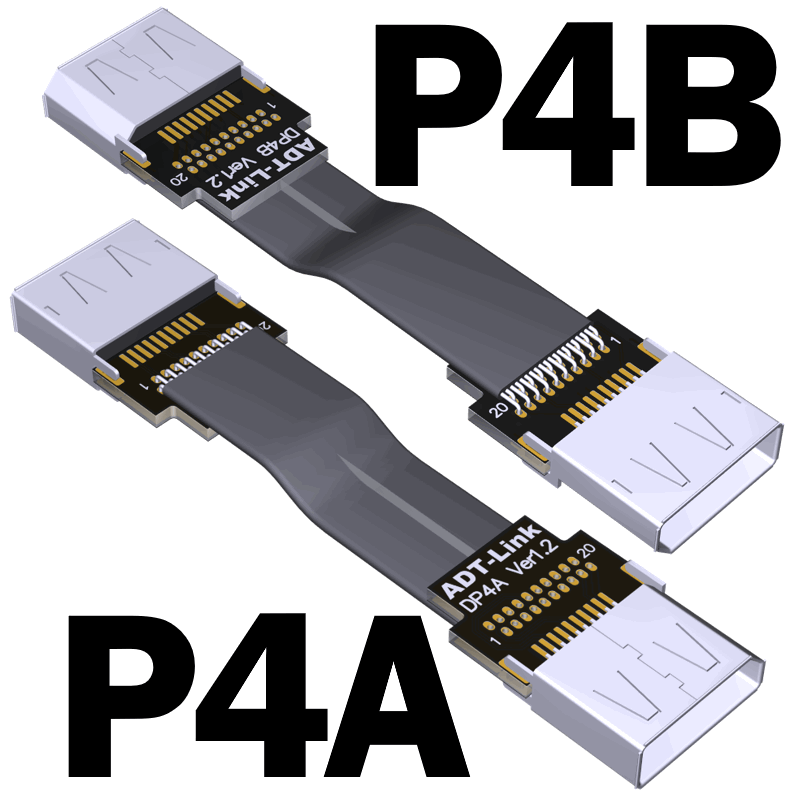

DP Cable, flat mount female to flat mount female Black without metal shield P4A-P4B DP1.2

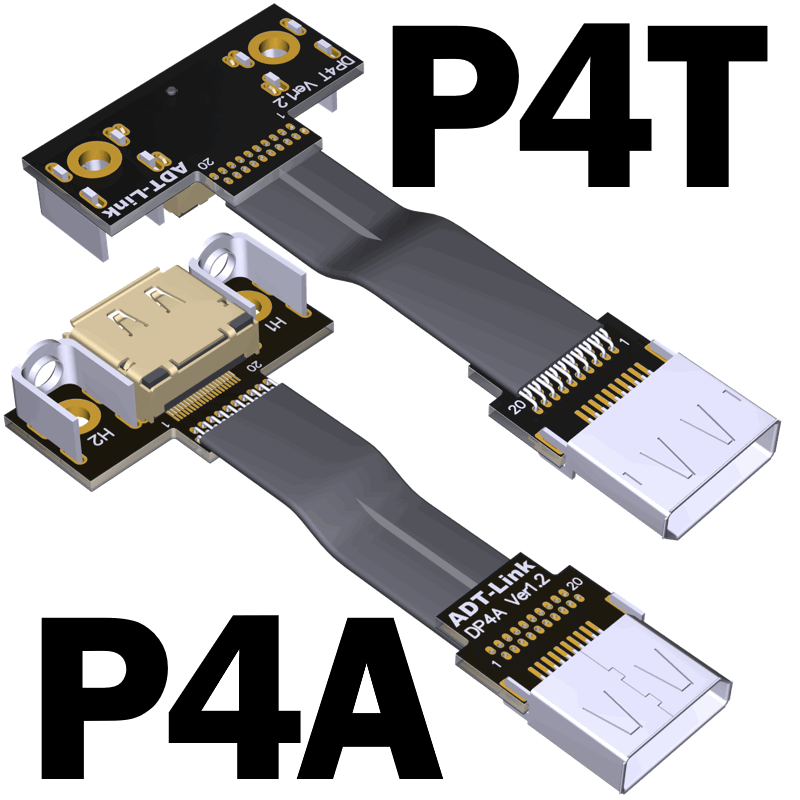

DP Cable, flat mount female to flat mount female with fixing hole Black without metal shield P4A-P4T DP1.2

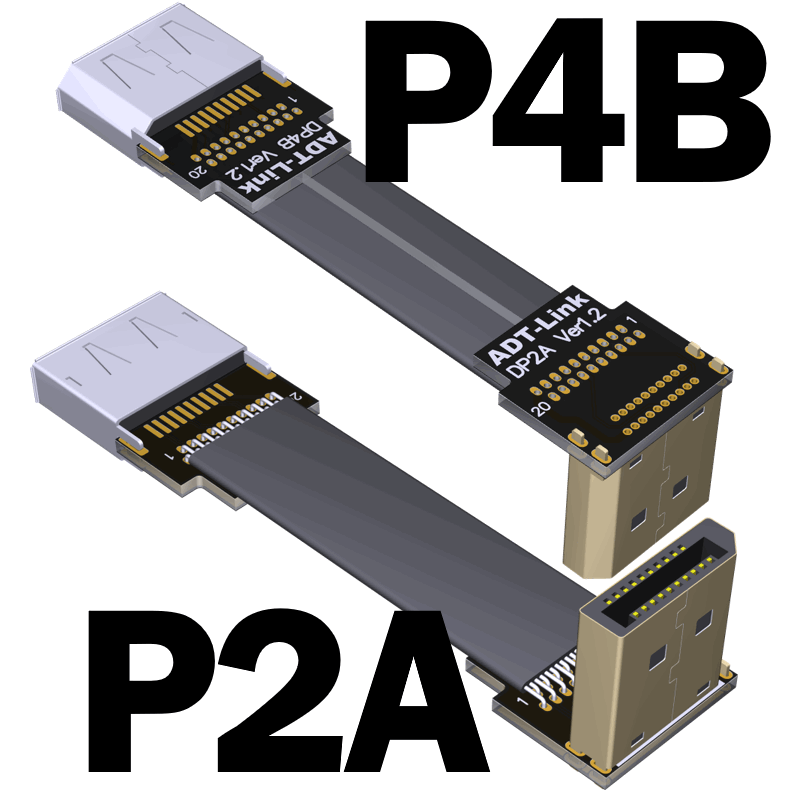

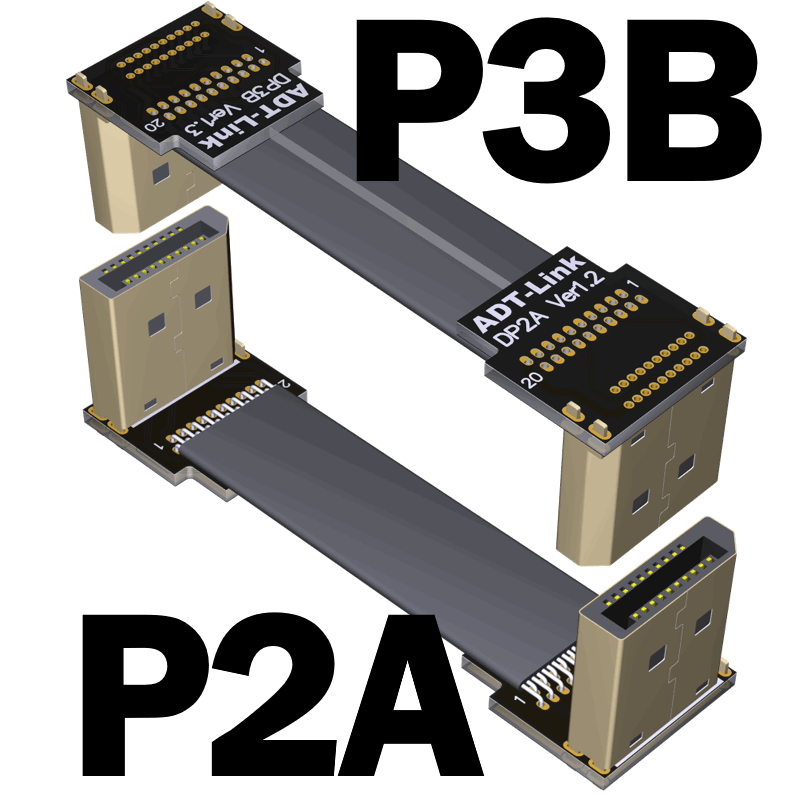

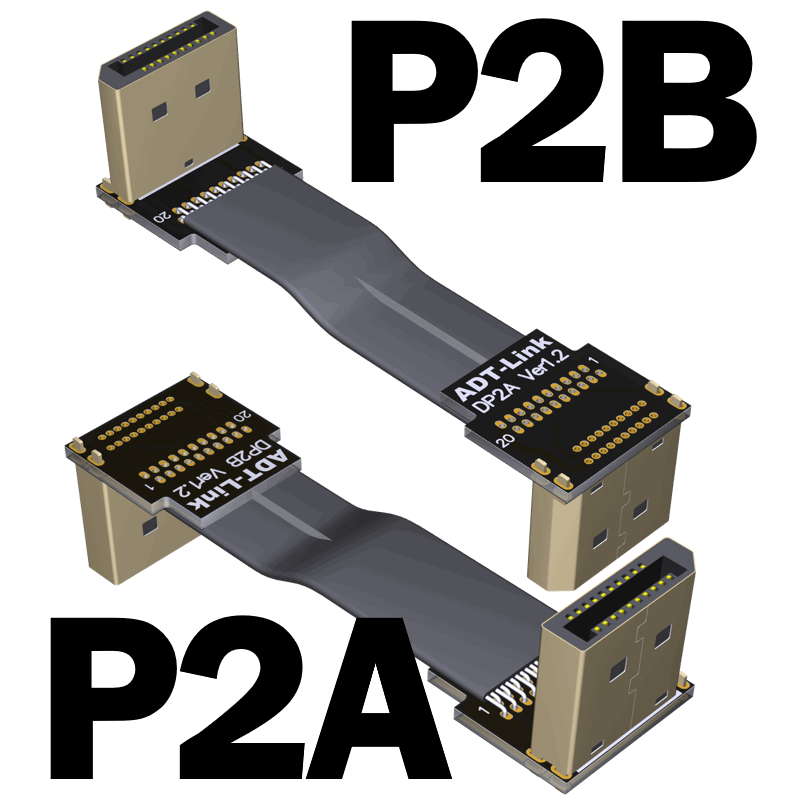

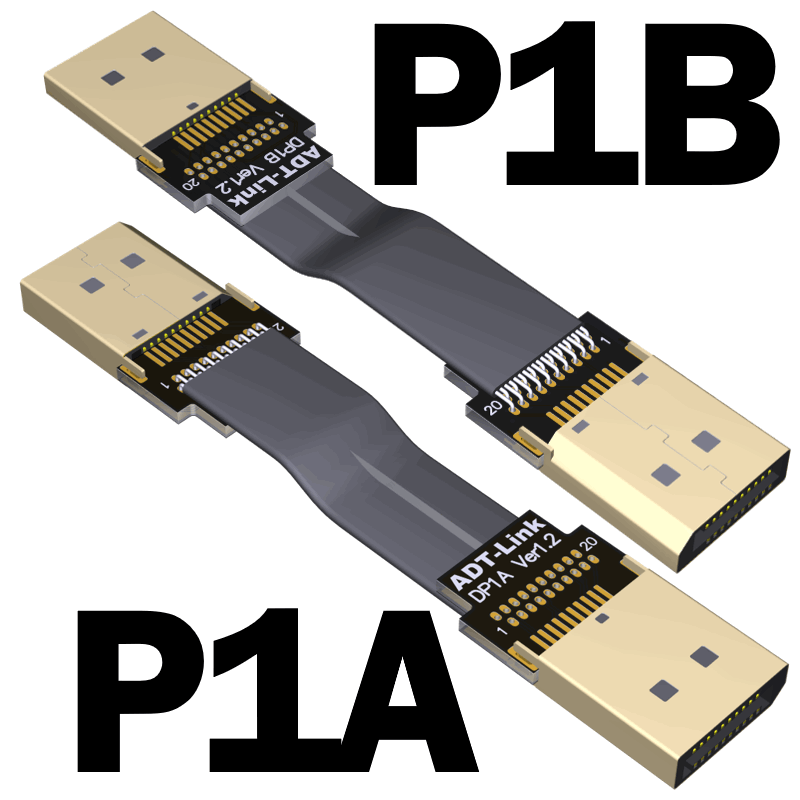

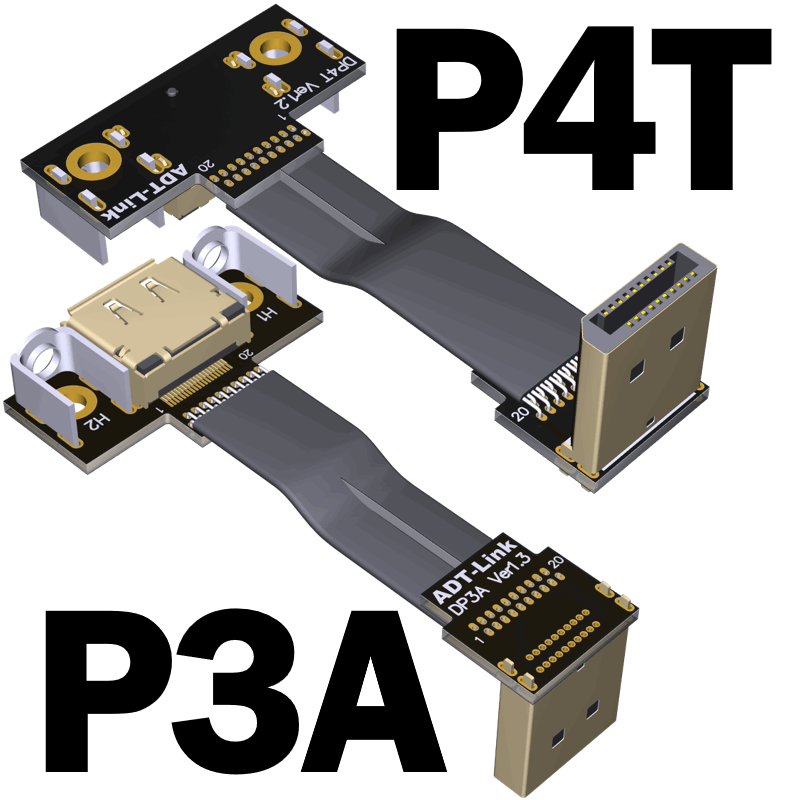

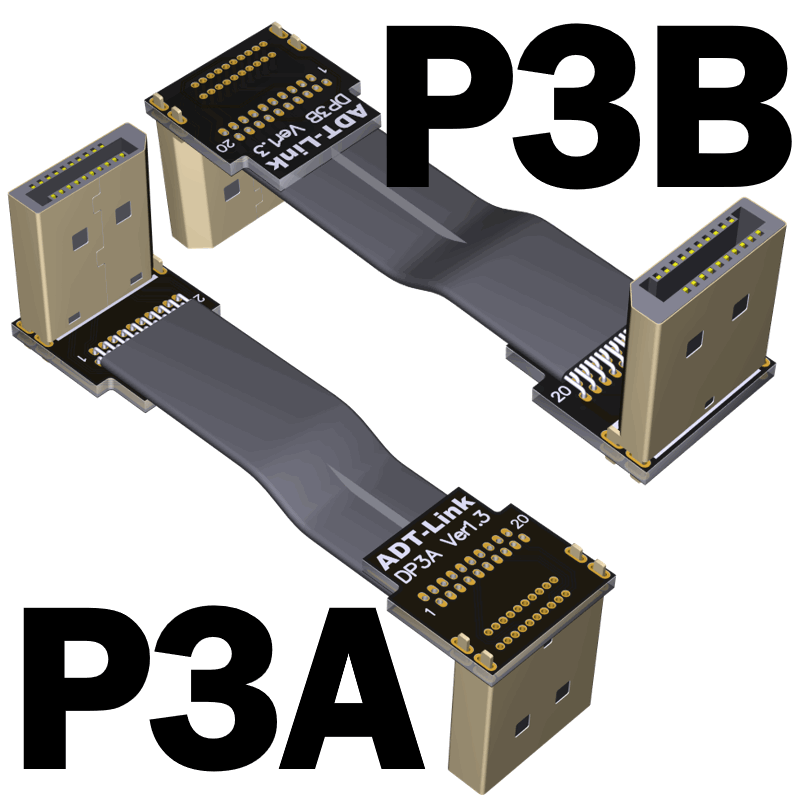

P1_DP flat mount; P2_DP turn up; P3_DP turn down; P4_DP female
M1_mini DP flat mount;

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.



Q&A:

How compatible are wires?

Supports DP 1.2 high-speed, supports 4K/60hz full-speed. High compatibility.

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. The silver or blue wire is added with a metal shield. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.


What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

The size of the blue and silver wire can be bent 90 degrees, the size(mm) is as shown in the figure below (it is recommended to choose the silver version to be thicker and safer)

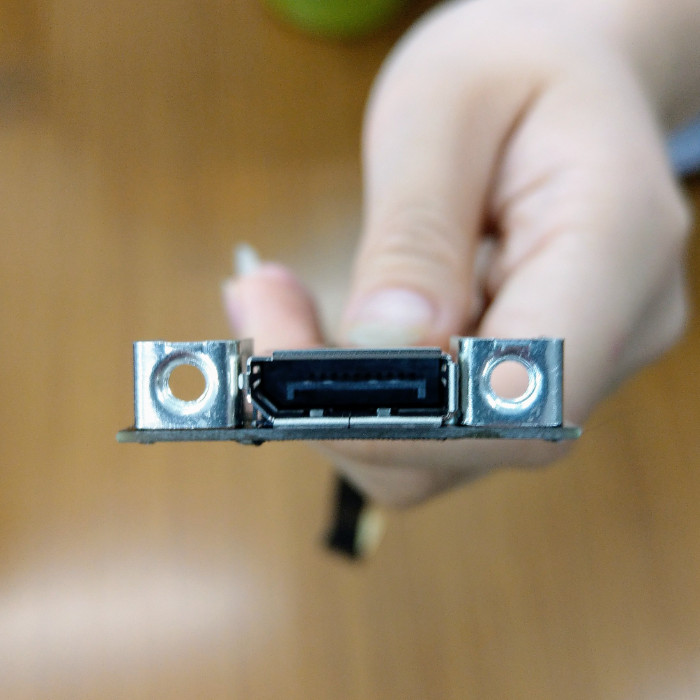

What is the hole pitch for model P4T?

As shown in the figure below, please use M4 screws with a hole pitch of 27mm. 3D STEP files can be downloaded.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download http://www.adt.link/Uploads/download/ADT_DPP_3D.zip

FTP: Hong Kong

3D PDF files download http://www.adtlink.cn/Uploads/download/ADT_DPP_3D.zip

WebShop:

http://www.adt.link/product/DPP-Shop.html


Keywords:

Aerial FPV PTZ HDMI flexible flat ribbon cable FFC cable FPV displayport flat Cable Standard Male to female Straight

A1 DP Mini display 1.4 Micro DP 1.2 Converter Cable Angle   highly-routable foldable axial elbow

3 / 5 /10 /15 /20 /30 /50 / 100 / 150 / 200 cm For PC AV HDTV LCD FPV FFC 3D  Multicopter

2K 4K 50/60Hz for HDTV AV Aerial Photography 90 Degree Connector

PREVIOUS:R45SF (Shop) NEXT:DMP series
