FPC Extension Cable

  • B36 series
B36 series

B36 series

  • Product ID: B36 series
  • Interface: mini-SIM
  • Application: SIM extension cable
  • Shelf time:2022-06-04
  • Product description: mini SIM FPC Cable
  • INQUIRY

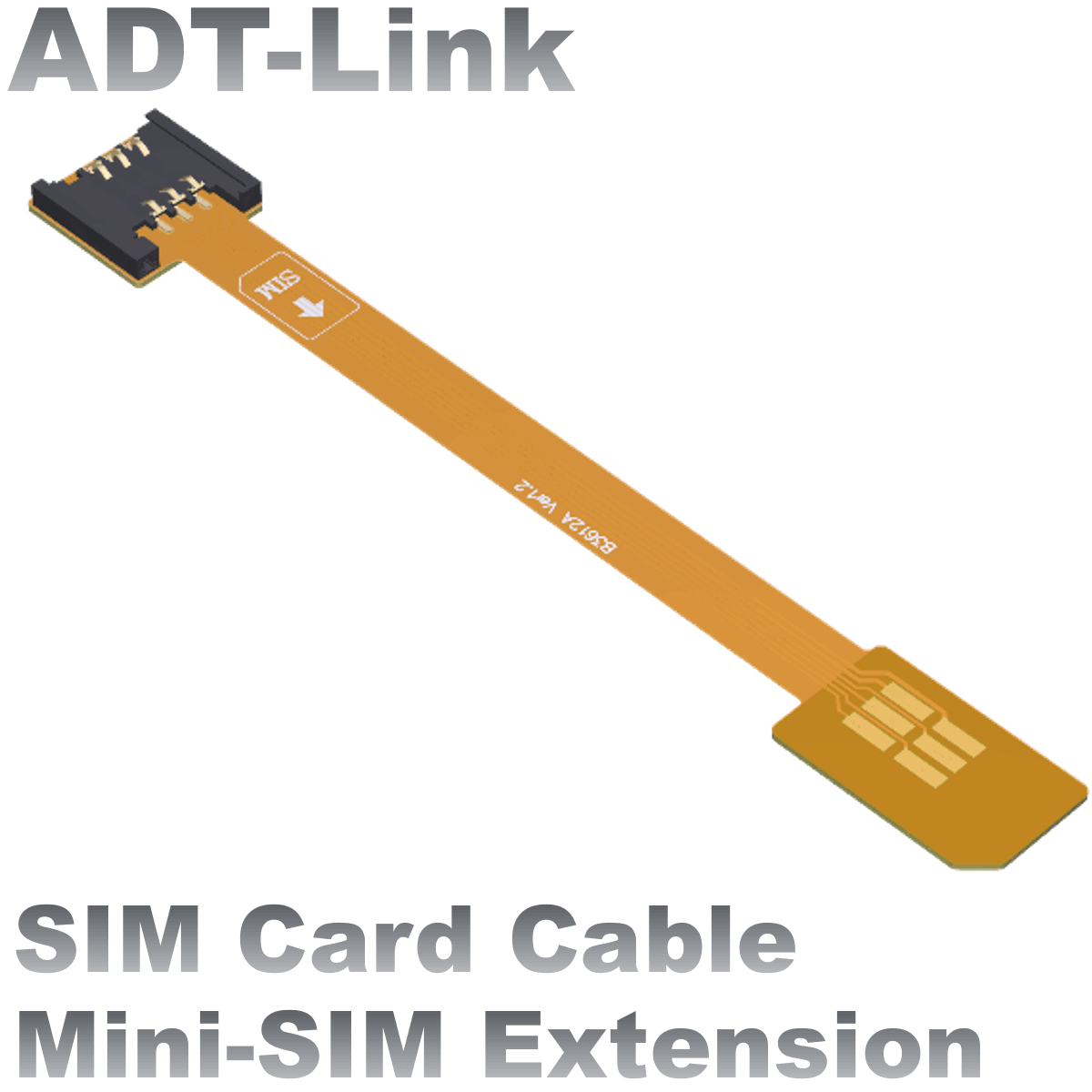

mini SIM FPC Cable

Brand name: ADT-LINK

Product name: mini SIM FPC Cable

Product model: B36 series

Product application: GPS navigator, hard disk, ROCK Pi 4 Raspberry Pi MCU development board, built-in mini-SIM connector to extension mini-SIM card.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to be connected to the built-in SIM connector and is limited to the product engineer's designated purchase. Individual buyers are not allowed to place an order for purchase. It is not easy to use for ordinary purposes, and returns and exchanges are not supported. Please consider carefully before placing an order for purchase

Product List:

Brand Part-number Product-Description Cable Length
ADTLINK B3014A micro SIM male to mini SIM female FPC Cable 14.1cm
ADTLINK
B3014A-M micro SIM male to micro SIM female FPC Cable 14.1cm
ADTLINK
B3014A-N micro SIM male to nano SIM female FPC Cable
14.1cm




ADTLINK B3114A nano SIM male to mini SIM female FPC Cable 14.2cm
ADTLINK
B3114A-M
nano SIM male to micro SIM female FPC Cable
14.2cm
ADTLINK
B3114A-N
nano SIM male to nano SIM female FPC Cable
14.2cm




ADTLINK

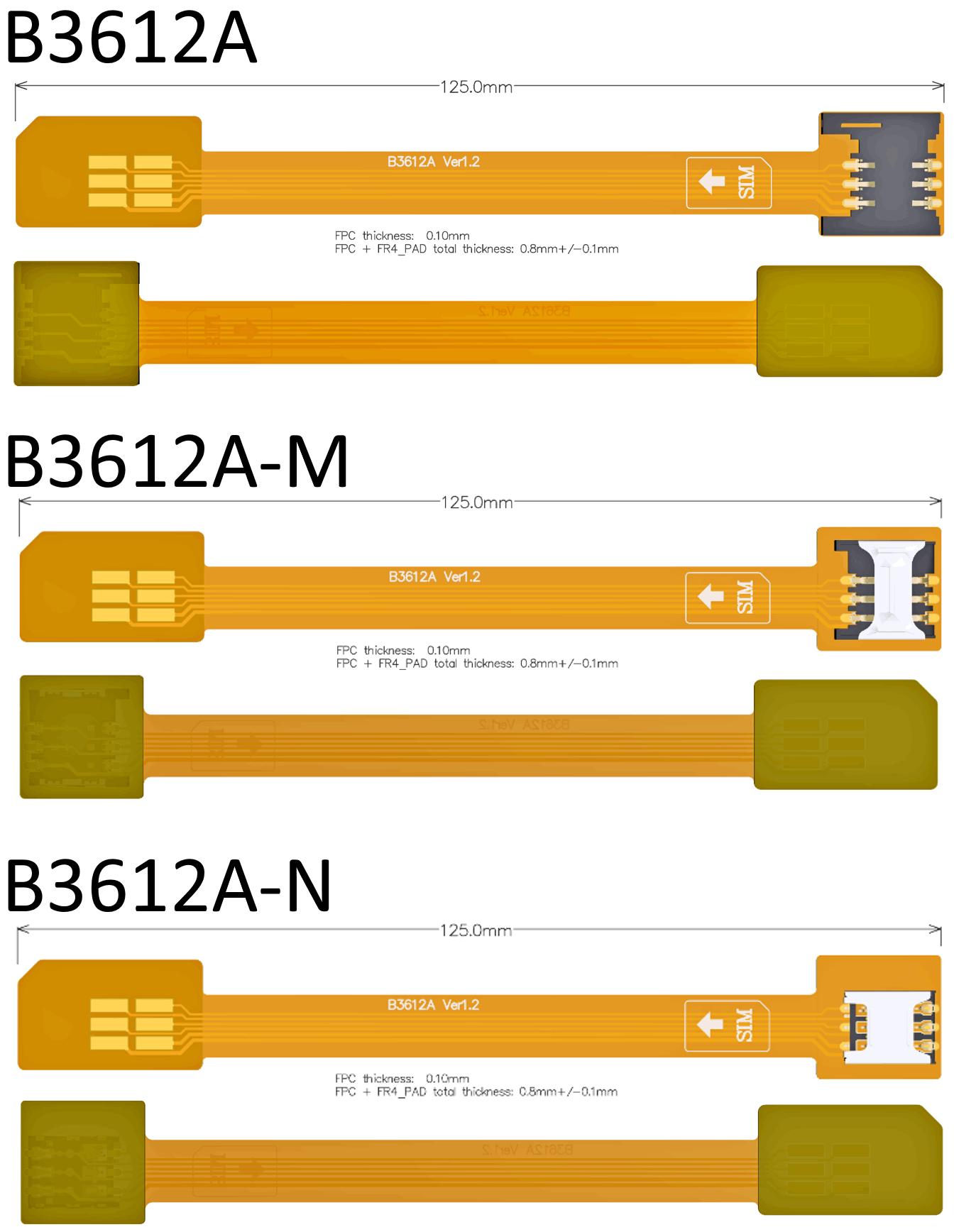

B3612A
mini SIM male to mini SIM female FPC Cable
12.5cm
ADTLINK
B3612A-M
mini SIM male to micro SIM female FPC Cable
12.5cm
ADTLINK
B3612A-N
mini SIM male to nano SIM female FPC Cable
12.5cm




Cable length Description:

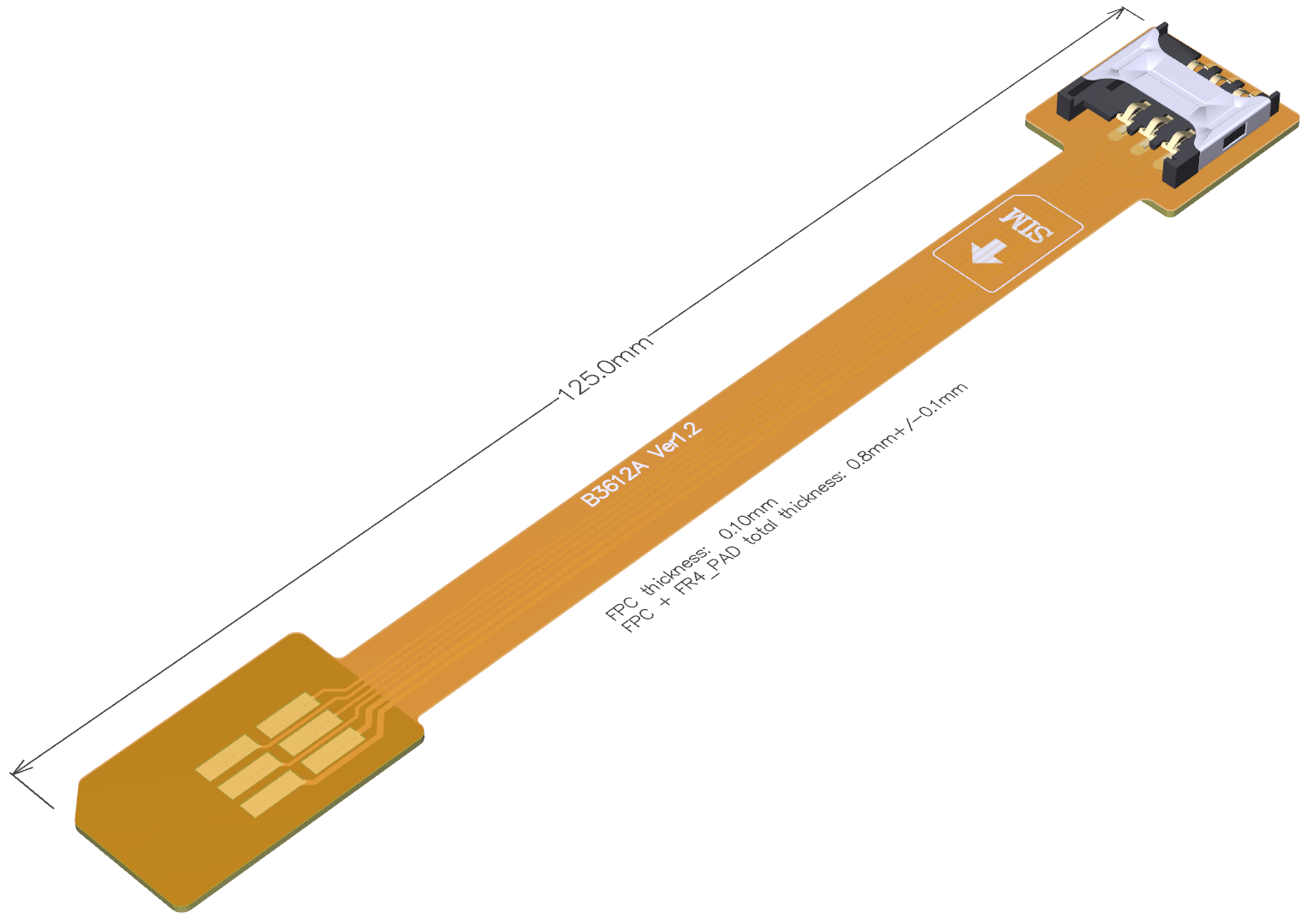

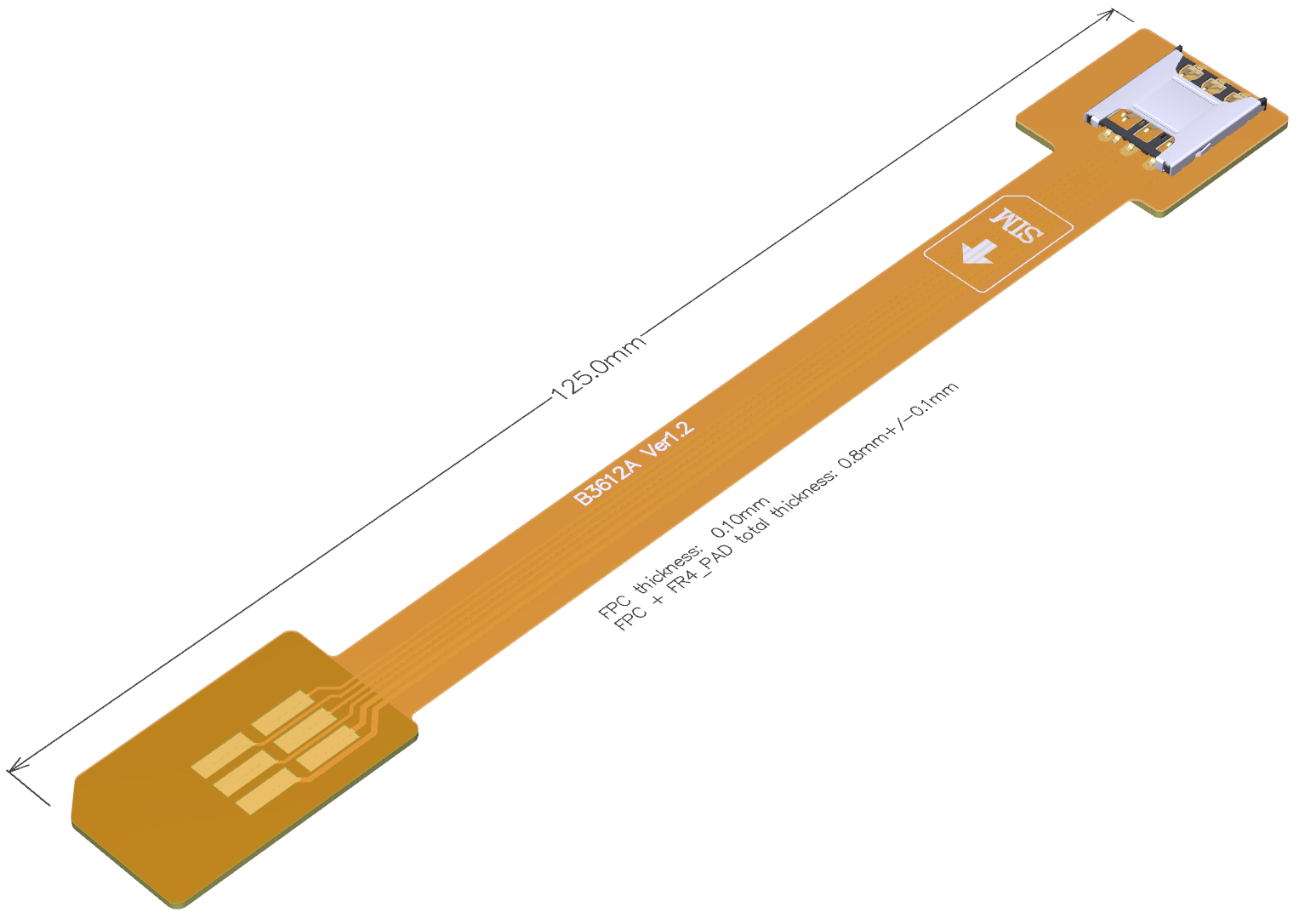

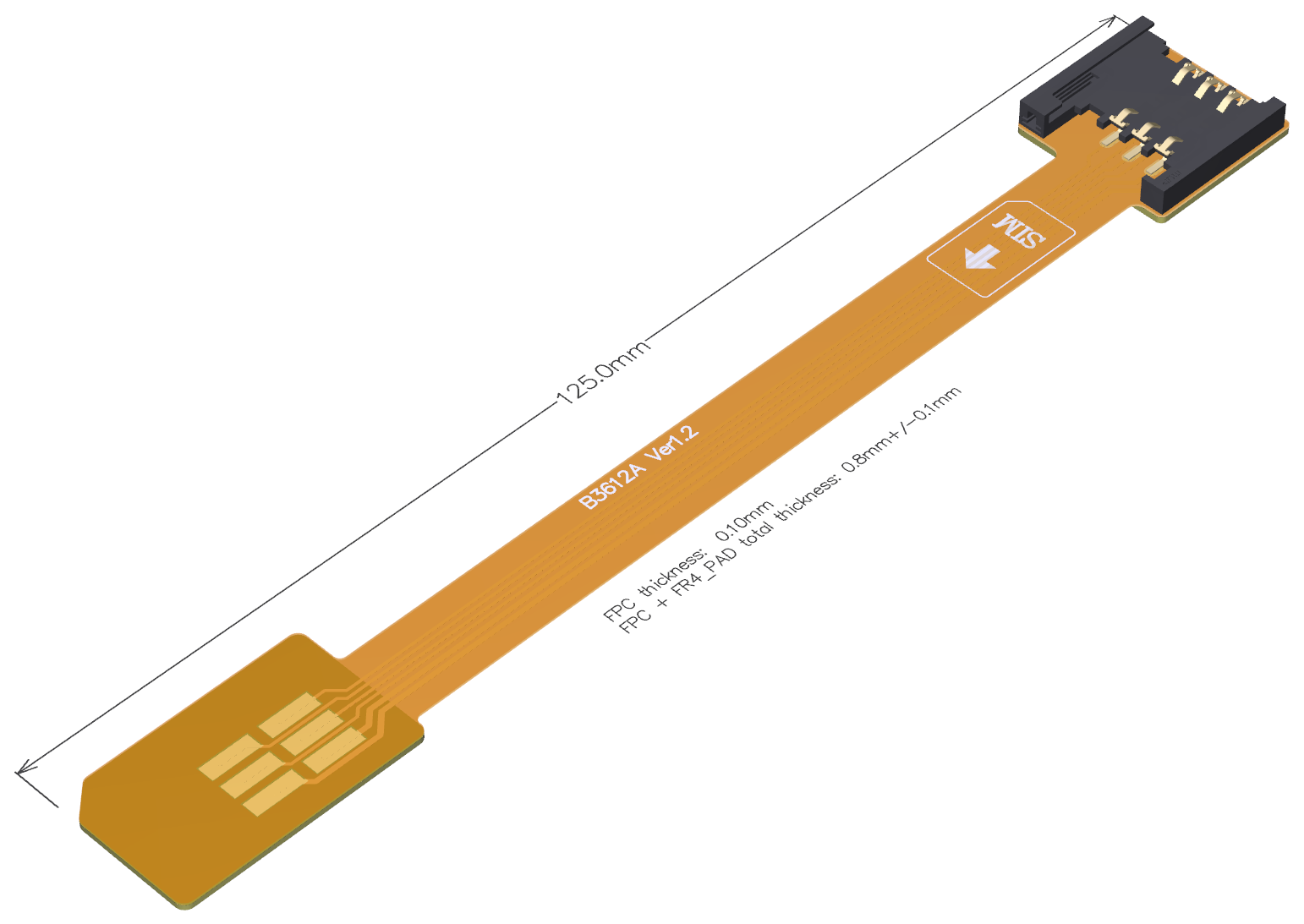

The length of the wire refers to the part of the FFC visible wire. Please refer to the arrow in the figure below.

Q&A:

Does it support hot swap?

Hot plugging is not supported. You need to shut down the device before installing the SD extension cable.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download: http://www.adt.link/download/SIMEXT.ZIP

FTP: Hong Kong

3D model STEP & PDF files download: http://www.adtlink.cn/download/SIMEXT.ZIP

WebShop:

http://www.adt.link/product/B36-Shop.html
