OcuLink Extension Cable

R29A

Product ID: R29A
Product name: PCIe 4.0 x4 to OCuLink SFF-8612 Adapter
Interface: PCIe x4 /OCuLink SFF-8612
Transfer speed: PCIe 4.0 x4
Product description: ADT-Link PCIe 4.0 x4 to OCuLink SFF-8612 Adapter with Bracket for External graphics card
INQUIRY

ADT-Link PCIe 4.0 x4 to OCuLink SFF-8612 adapter

Brand name: ADT-LINK

Product name: PCIe 4.0 x4 to OCuLink SFF-8612 adapter with half height and full height brackets

Product model: R29A

Transfer speed: 64Gb/Sec (PCIe gen4 x4 Max.)

Application:OCuLink graphics card external to PCIe x4/x8/x16 interface

ADT R29A Part-Number Description:

Part-Number	Description	Bandwidth (Max.)
R29A	PCIe x4 to OCuLink SFF-8612 adapter with half height and full height brackets	PCIe 4.0 x4 (64G/bps)

Dimension data of the bracket

Product advantages:
1. Support PCIe 4.0 x4, compatible with gen3/gen4.
2. Equipped with full height and half height brackets, widely used in various environments.

3. Circuit protection design to prevent the current generated by external graphics cards from flowing to the motherboard, thus protecting the motherboard
4. Gold finger gold plating process, with a gold thickness of up to 10U, in compliance with IPC Level 1 international standards
5. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening
Photos:

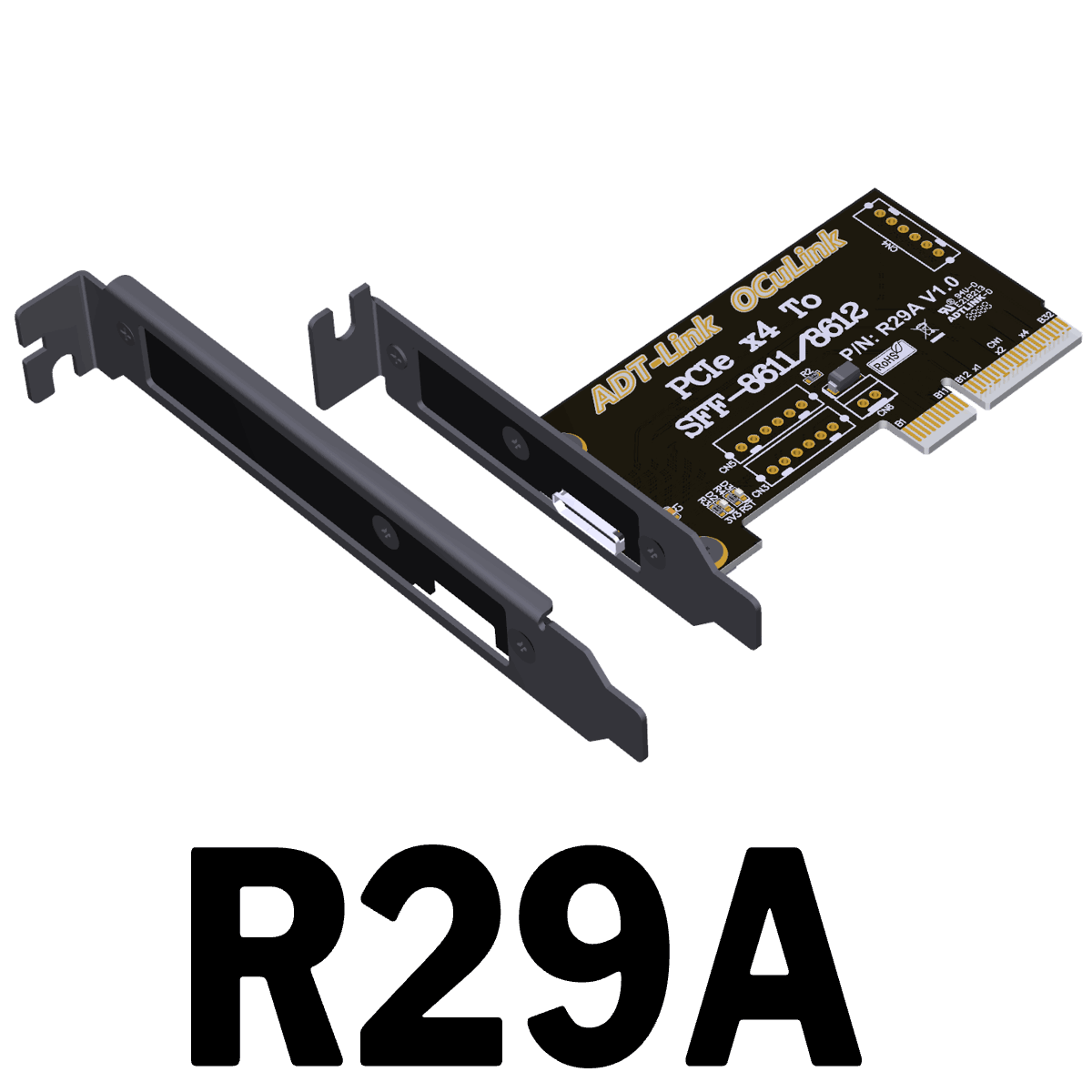

R29A

Q&A:

Introduction to R29A indicator lights

R29A has two indicator lights: D2 light is the power indicator light, which is normally on; The D3 light is a RESET light, which normally only flashes once when turned on.

Test data:
