mPCIe to PCIe x4 Extender

R62SF, R62SL, R62SR

Product ID：R62SF, R62SL, R62SR
Interface: PCIe x4 / mini PCIe
Application: Extension
Shelf time：2019-01-10 11:07:19
Product description: mini-pcie to PCI Express 3.0 x4 extender adapter
INQUIRY

ADT-Link mini-PCIe to PCI 3.0 x4 Extension Cable

Brand name: ADT-LINK

Product name: mPCIe to PCIe 3.0 x4 extension cable

Product model: R62SF , R62SL , R62SR

Transfer speed: PCIe 3.0 x1 , 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x4 RAID NVMe SSD card / LAN card / capture card to mPCIe extender

ADT R62 series products Part-Number Description:

P/N	Description	Bandwidth

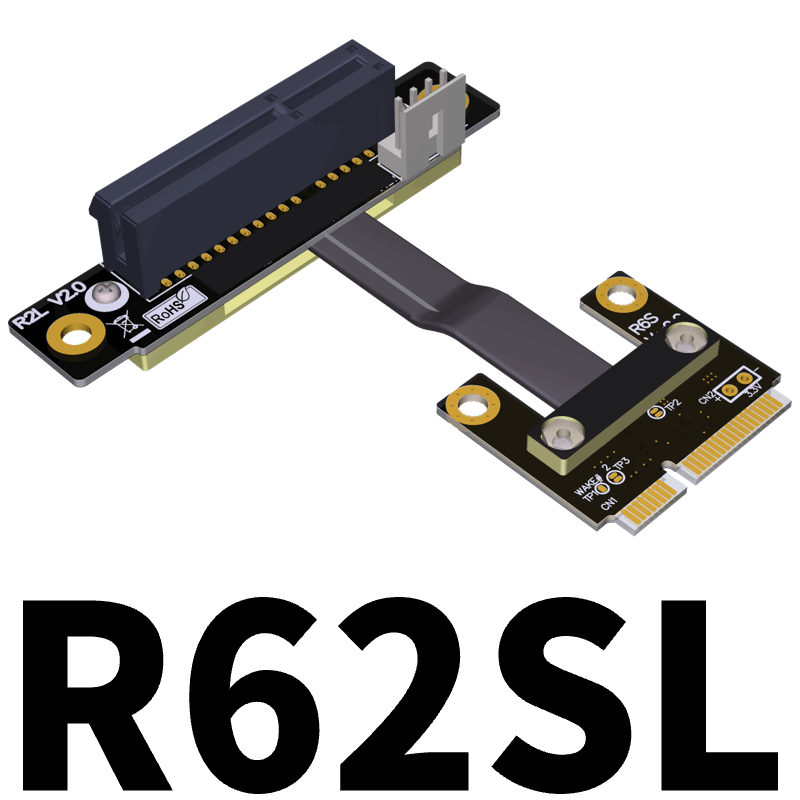

R62SL	mPCIe edge to PCIe x4 connector turn 90 degree upright right angle extension cables	PCIe 3.0 x1 (8G/bps)

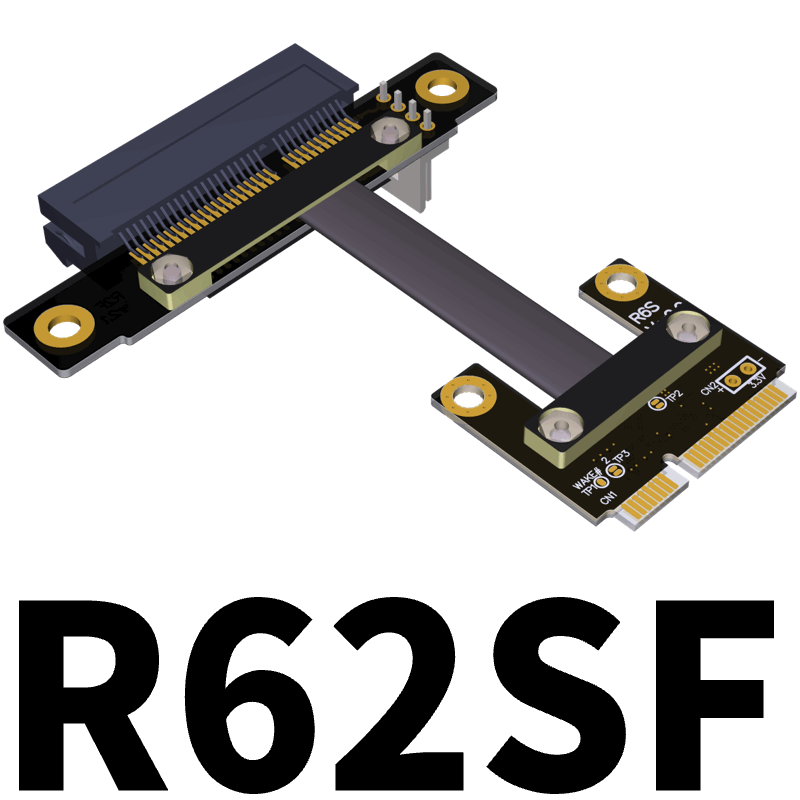

R62SF	mPCIe edge to PCIe x4 connector turn 180 degree splint vertical extension cables	PCIe 3.0 x1 (8G/bps)

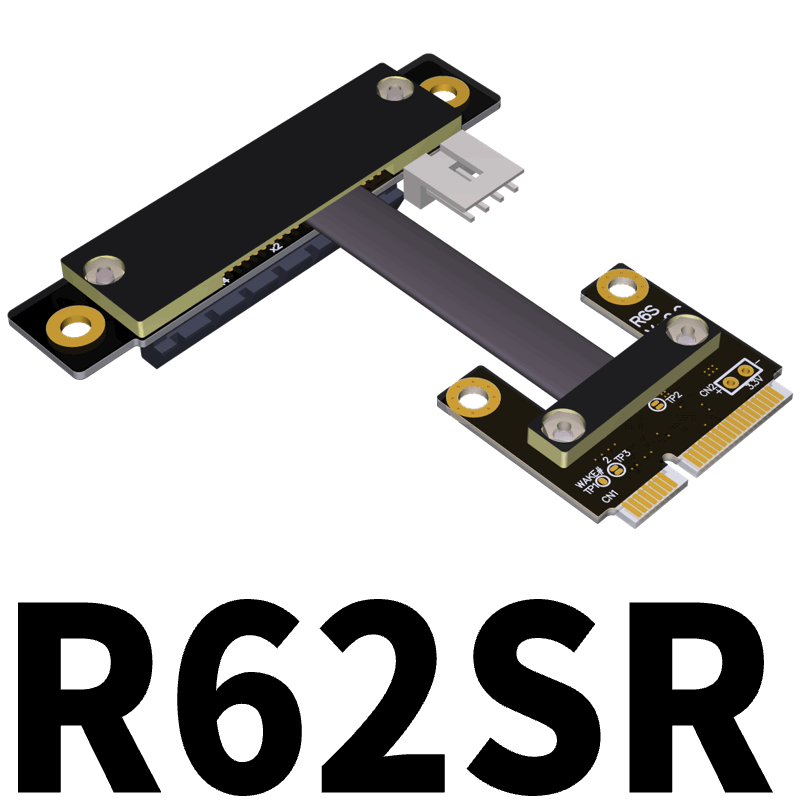

R62SR	mPCIe edge to PCIe x4 connector turn 270 degree inverted reverse extension cables	PCIe 3.0 x1 (8G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Photo:

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
