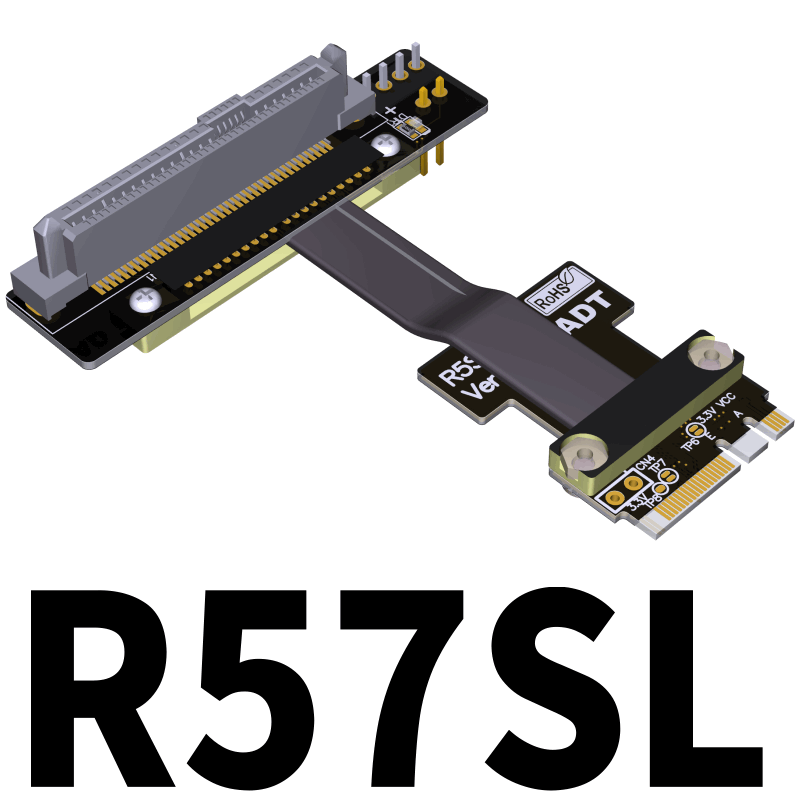

M.2 WiFi to U.2 SSD Extender

  • R57SL
R57SL

R57SL

  • Product ID:R57SF
  • Interface: M.2 WiFi / U.2 NVMe
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: ADT-Link U.2 NVMe SSD to M.2 Key A.E. Extension Cable
  • INQUIRY

ADT-Link M.2 WiFi to U.2 NVMe Extension Cable

Brand name: ADT-LINK

Product name: M.2 key A.E. to U.2 NVMe SSD extension cable

Product model: R57SL

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: U.2 NVMe SSD Card to M.2 A.E. slot extension adapter cable


ADT R57SL Part-Number Description:

Part-Number
Description
Bandwidth
R57SL M.2 key A.E. to U.2 NVMe SSD extension cable PCIe 3.0 x1 (8G/bps Max.)



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R57_3D.zip

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R57_3D.zip

WebShop:

http://www.adt.link/product/R57SL-Shop.html
