Brand name: ADT-LINK

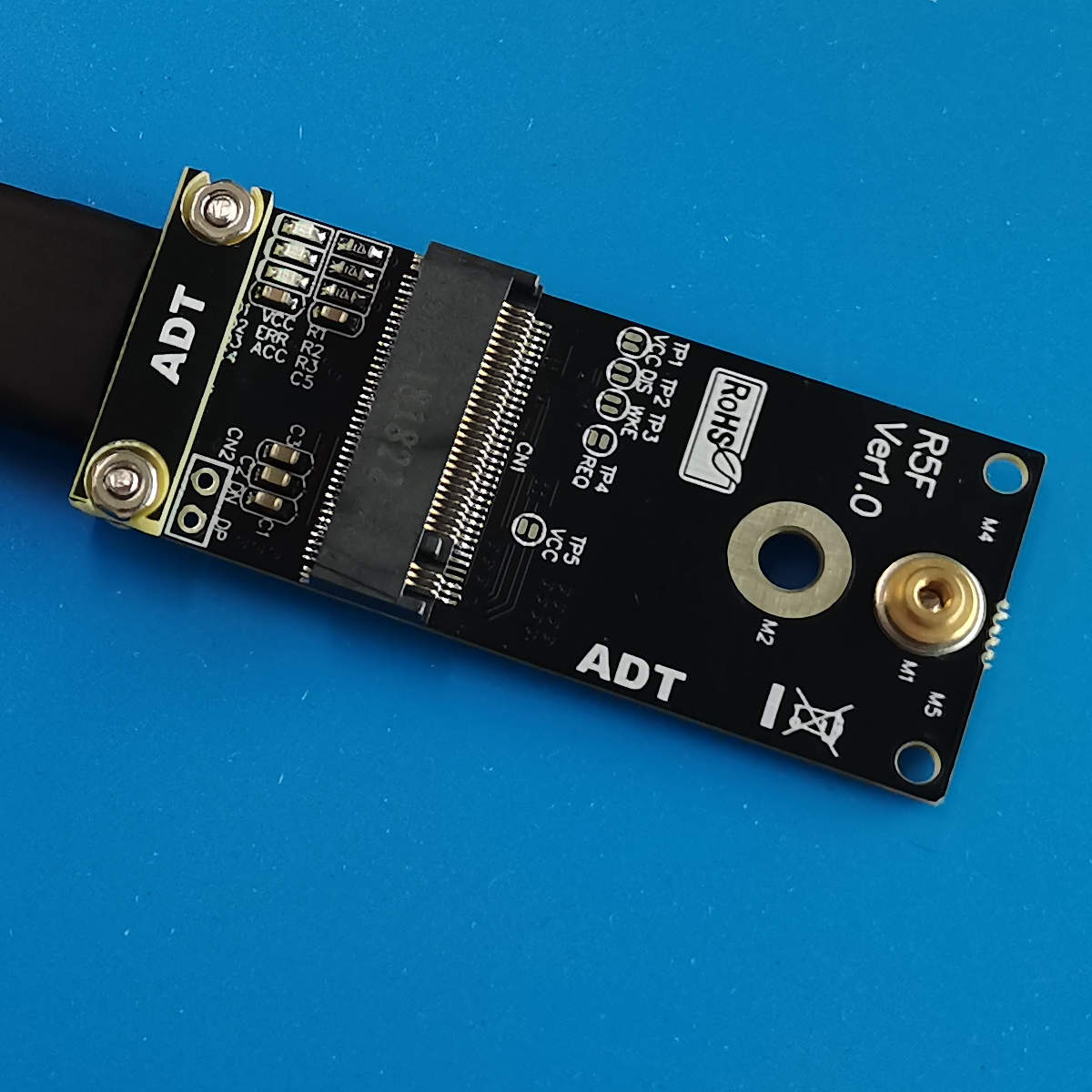

Product name: M.2 key A.E. WiFi Card extension cable
Product model: R55SF
Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)
Wire length: 3 ~ 100 cm, the length can be customized,
Application: M.2 WiFi Card extension cable
ADT R55SF Part-Number Description:
|R55SF||M.2 key A.E. WiFi Card extension cables||PCIe 3.0 x1 (8G/bps Max.)|
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Is there any EMI shielding for Cable?
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
To open 3D PDF files. Please use Adobe Reader DC software.
FTP: Los Angeles
3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R55_3D.zip
Spec download http://www.adt.link/Uploads/download/ADT_R55SF Cable specification 20200626.pdf
Schematic download http://www.adt.link/Uploads/download/ADT_R55SF Schematic 20170505.pdf
FTP: Hong Kong
3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R55_3D.zip
